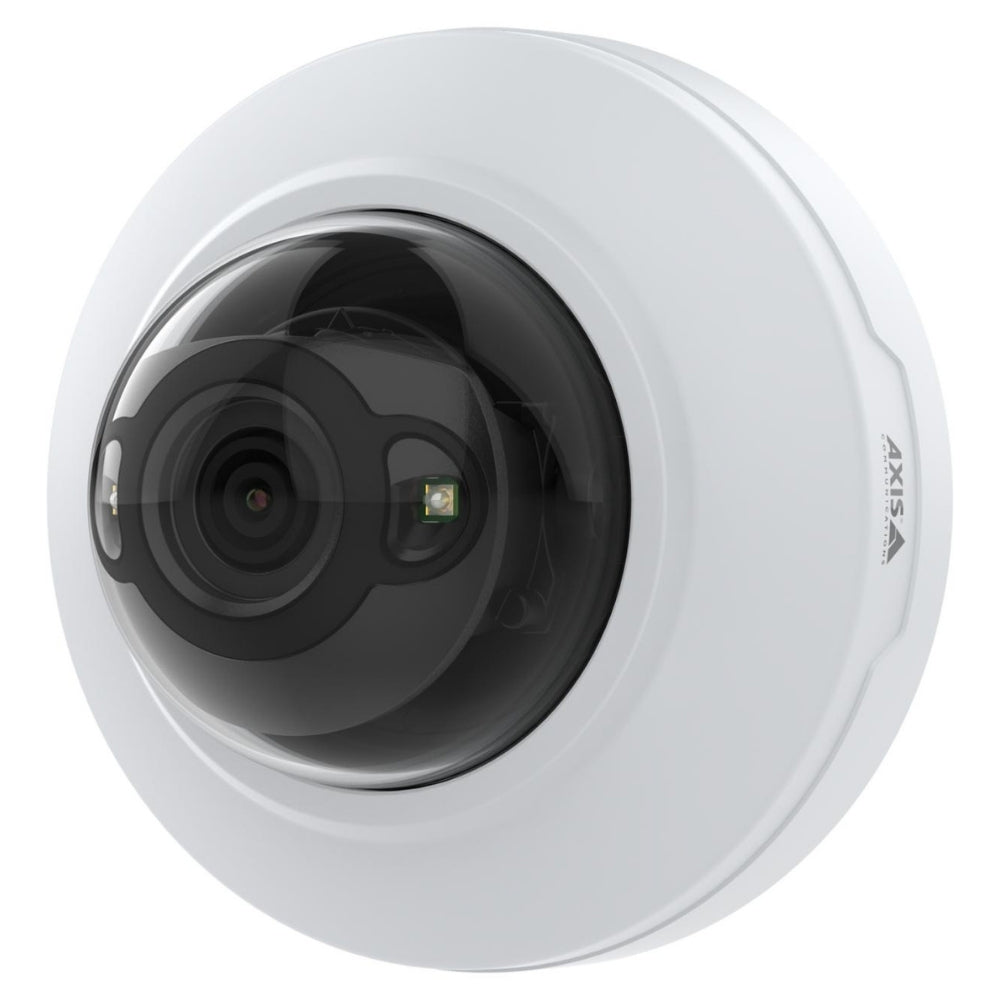

The AXIS M4215-LV is a compact and discreet 2 MP dome camera that delivers excellent image quality in any lighting, day or night. With deep learning analytics on the edge, it offers powerful AI capabilities in a compact, repaintable form factor. Its varifocal lens, HDMI output, and optimised IR further enhance its flexibility, making it ideal for discreet indoor surveillance.
Features
-
2 MP Resolution – Crisp image capture at up to 1920x1080 resolution.
-
Varifocal Lens – 3.5–6.6 mm lens with remote zoom and focus.
-
Optimised IR & Lightfinder – Sharp video even in complete darkness.
-
Deep Learning Analytics – DLPU for on-camera intelligent detection.
-
HDMI Output – Direct connection to public display monitors.
-
Axis Edge Vault – Built-in hardware-based cybersecurity.
-
Compact & Paintable – Blends easily with various environments.
-
Zipstream Technology – Lowers bandwidth and storage usage.
What's Included:
- AXIS M4215-LV Dome Camera
- Installation Guide
- Owner Authentication Key
- Virtual Client License (H.264/H.265)
DOWNLOADS
Key Info
Smart AI at the Edge
Equipped with a deep learning processing unit (DLPU), the M4215-LV enables real-time detection and classification of humans, vehicles (cars, buses, trucks, bikes), and more—right on the camera, reducing server load and speeding up response times.
Reliable Imaging Day & Night
This camera delivers sharp 2 MP video using Lightfinder and WDR up to 110 dB for clear scenes in challenging light. Optimised IR ensures visibility in total darkness up to 20 meters.
Discreet & Flexible Installation
Compact and paintable, the camera supports ceiling or wall mounts using optional accessories. Remote zoom and focus, Corridor Format, and a level grid simplify setup.
Robust Cybersecurity with Axis Edge Vault
Axis Edge Vault ensures device integrity through secure boot, signed firmware, and encrypted storage. Hardware-level safeguards protect against unauthorized access and tampering.
Efficient Streaming and Integration
Axis Zipstream with H.264/H.265 minimizes storage and bandwidth. HDMI output allows public viewing, while support for ONVIF, VAPIX API, SIP, and MQTT enables integration with third-party systems.
Tech Specs
| Specification |
Details |
| **Camera** |
|
| Image Sensor |
1/2.8” progressive scan RGB CMOS |
| Lens |
Varifocal 3.5–6.6 mm, F1.7–2.6 |
| Field of View |
Horizontal: 93°–47°, Vertical: 50°–26° |
| Day/Night |
IR-cut filter, automatic |
| Min. Illumination |
Color: 0.14 lux, B/W: 0.03 lux, 0 lux with IR |
| IR Illumination |
Optimised IR, range up to 20 m (65 ft) |
| SoC |
CV25 with DLPU |
| Shutter Speed |
1/25000 s to 1/5 s |
| Angle Adjustment |
Pan ±180°, Tilt -40° to +65°, Rotation ±105° |
| **Video** |
|
| Compression |
H.264 (Main/High), H.265 (Main), Motion JPEG |
| Max Resolution |
1920x1080 |
| Frame Rate |
Up to 25/30 fps |
| Streaming |
Multiple configurable streams, Zipstream (H.264/H.265) |
| WDR |
Up to 110 dB depending on scene |
| PTZ |
Digital PTZ |
| Image Settings |
Brightness, contrast, sharpness, white balance, overlays, mirroring |
| HDMI Output |
1080p/720p @ 25/30/50/60 Hz |
| **Audio** |
|
| Input/Output |
Two-way audio via portcast technology |
| **Network** |
|
| Protocols |
IPv4/IPv6, HTTP/HTTPS, FTP/SFTP, TLS, SNMP, MQTT, RTSP, UPnP, SIP |
| Connectors |
RJ45 PoE, HDMI Type D |
| **System Integration** |
|
| API |
VAPIX, ONVIF (Profiles G/M/S/T), SIP, ACAP, cloud connection |
| Event Triggers |
System status, edge storage, I/O, motion, tampering, schedule, MQTT |
| Event Actions |
Record, upload, notification, overlays, SNMP trap, MQTT publish |
| Built-in Tools |
Digital roll, level grid, pixel counter, remote zoom & focus |
| **Analytics** |
|
| Included |
AXIS Object Analytics, Scene Metadata, Face Detection, Motion Detection |
| Object Classes |
Humans, vehicles (cars, buses, trucks, bikes) |
| Scenarios |
Line crossing, object in area, occupancy, time in area |
| **Cybersecurity** |
|
| Software Security |
Signed OS, secure boot, password protection, SD card encryption |
| Hardware Security |
Axis Edge Vault, Secure element (EAL6+), secure keystore |
| Network Security |
IEEE 802.1X, MACsec, TLS 1.2/1.3, NTS, HTTPS/HSTS, X.509 PKI, firewall |
| **General** |
|
| Casing |
IP42, IK08 impact-resistant polycarbonate and aluminum |
| Power |
PoE IEEE 802.3af/802.3at, Typical: 4.8W, Max: 9.5W |
| Storage |
microSD/microSDHC/microSDXC + NAS |
| Operating Conditions |
0 °C to 45 °C, 10–85% RH |
| Dimensions |
Ø120 mm × H71 mm |
| Weight |
366 g |
| Languages |
EN, DE, FR, ES, IT, RU, ZH, JA, KO, PT, PL, NL, CZ, SV, FI, TR, TH, VI |
| Warranty |
5-year warranty |
Q&A
Q: Can this camera be used in complete darkness?
A: Yes, thanks to Optimised IR, it can see clearly in total darkness up to 20 meters.
Q: Is this camera suitable for public-facing displays?
A: Yes, the built-in HDMI output supports direct connection to public viewing monitors.
Q: What kind of analytics are included?
A: It includes AXIS Object Analytics, Scene Metadata, Face Detection, People Counter, and more—all powered by deep learning on the edge.
Q: How secure is this camera?
A: It features Axis Edge Vault, encrypted firmware, secure boot, and industry-standard network protection like IEEE 802.1X and TLS 1.3.
Q: Can I paint the camera to match my environment?
A: Yes, the camera is repaintable without voiding the warranty (check instructions with your Axis partner).
