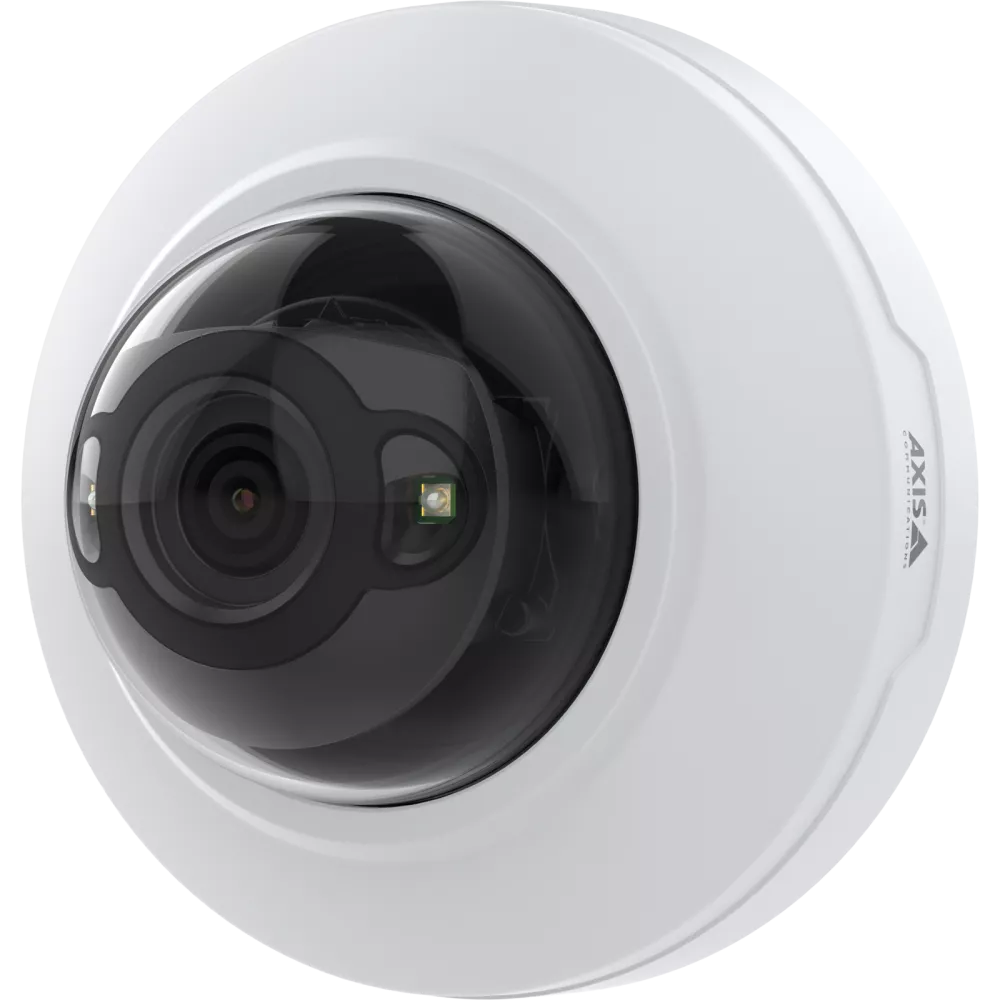

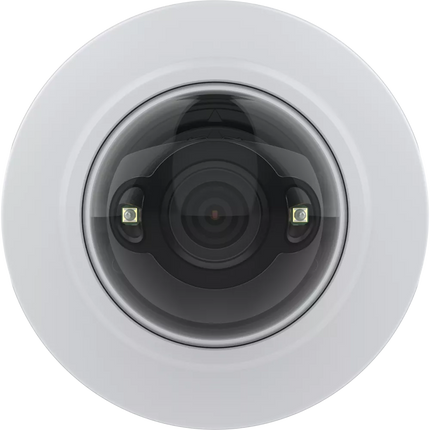

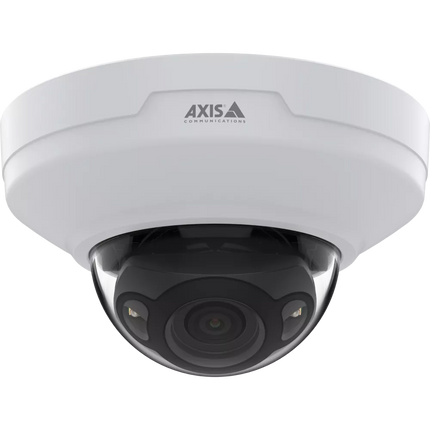

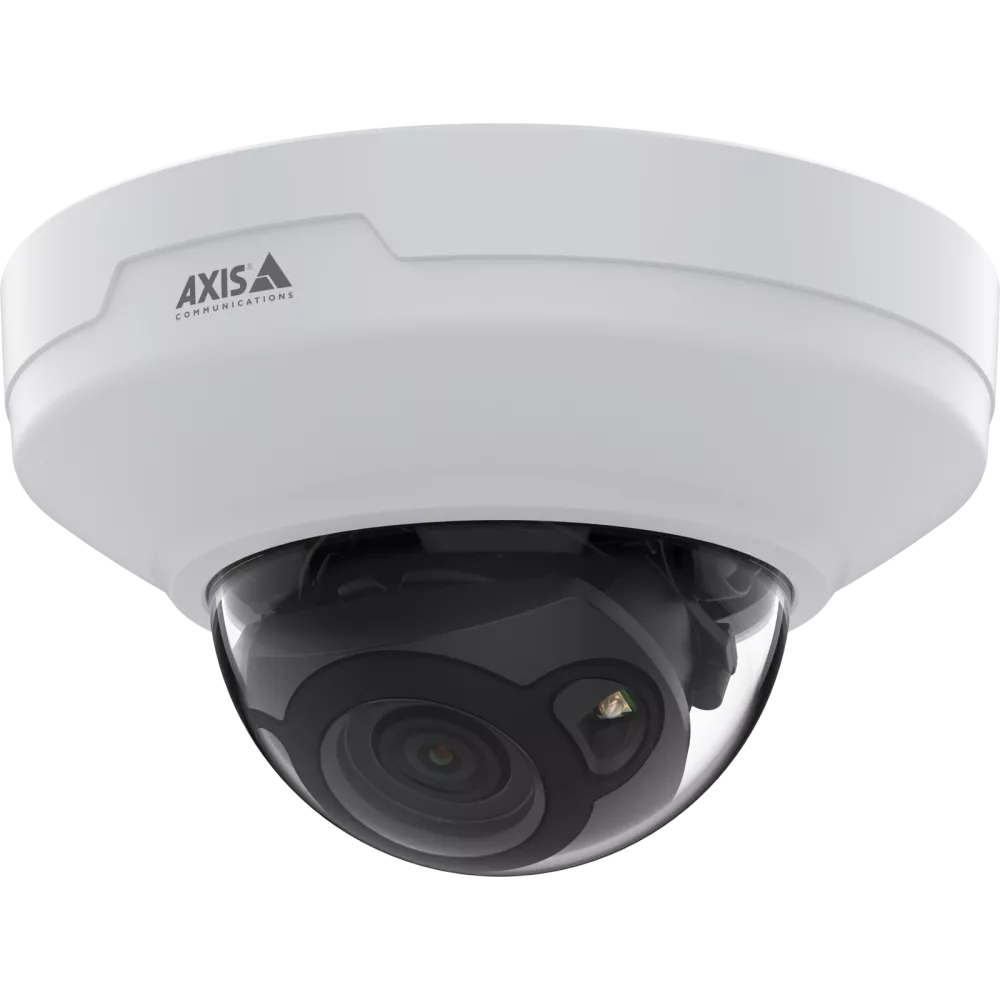

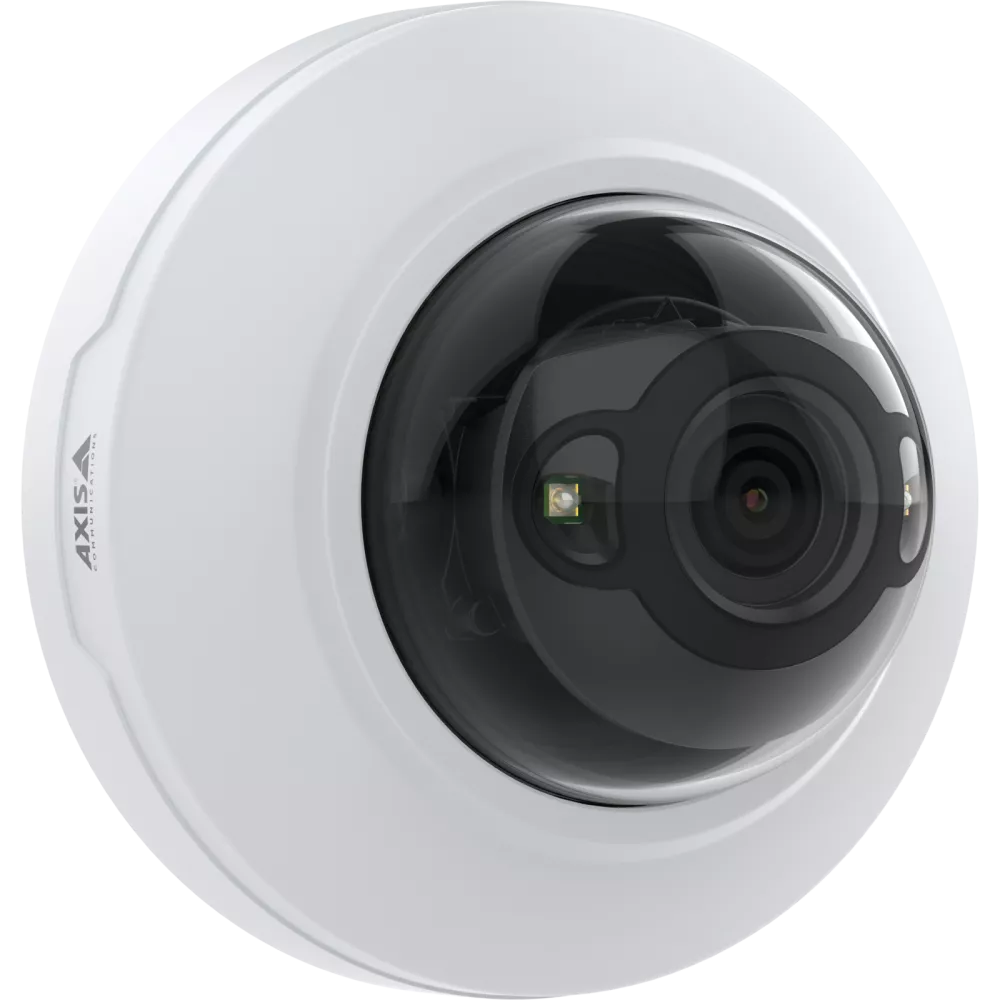

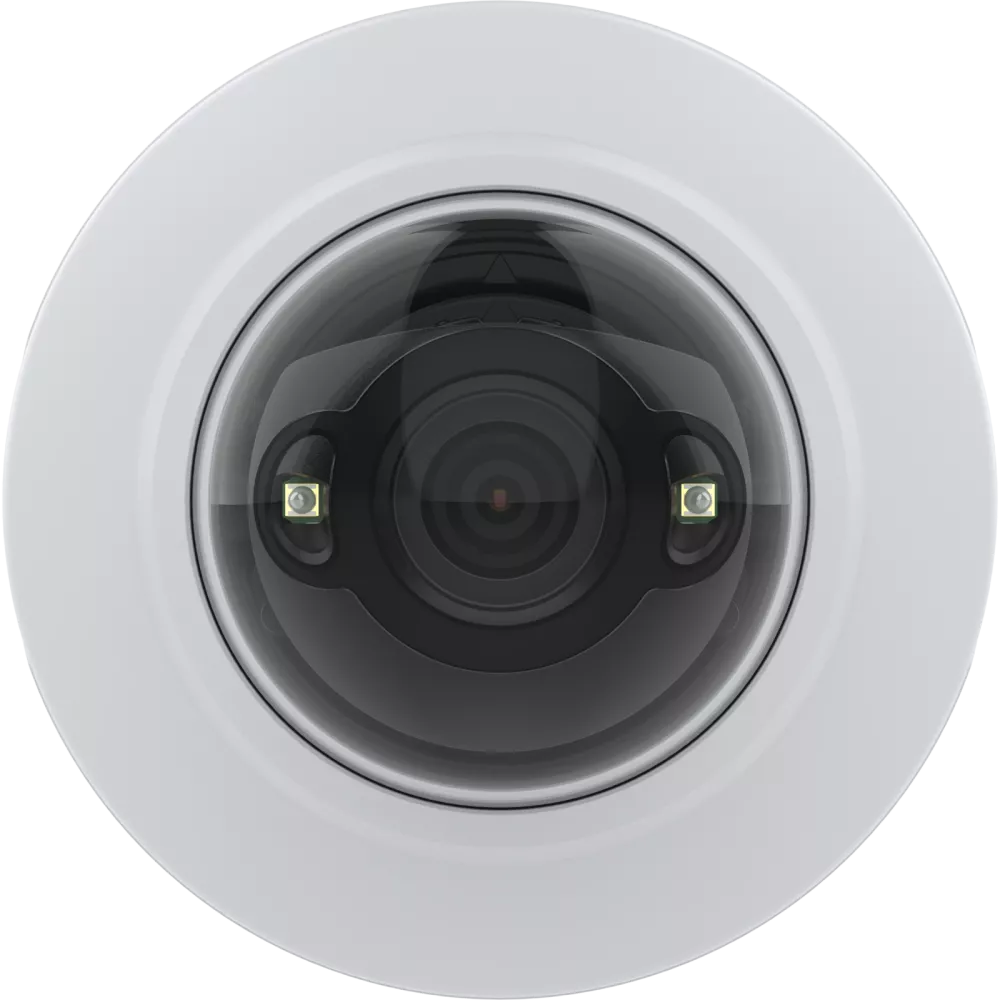

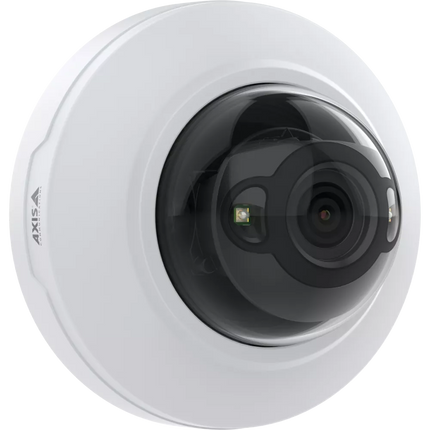

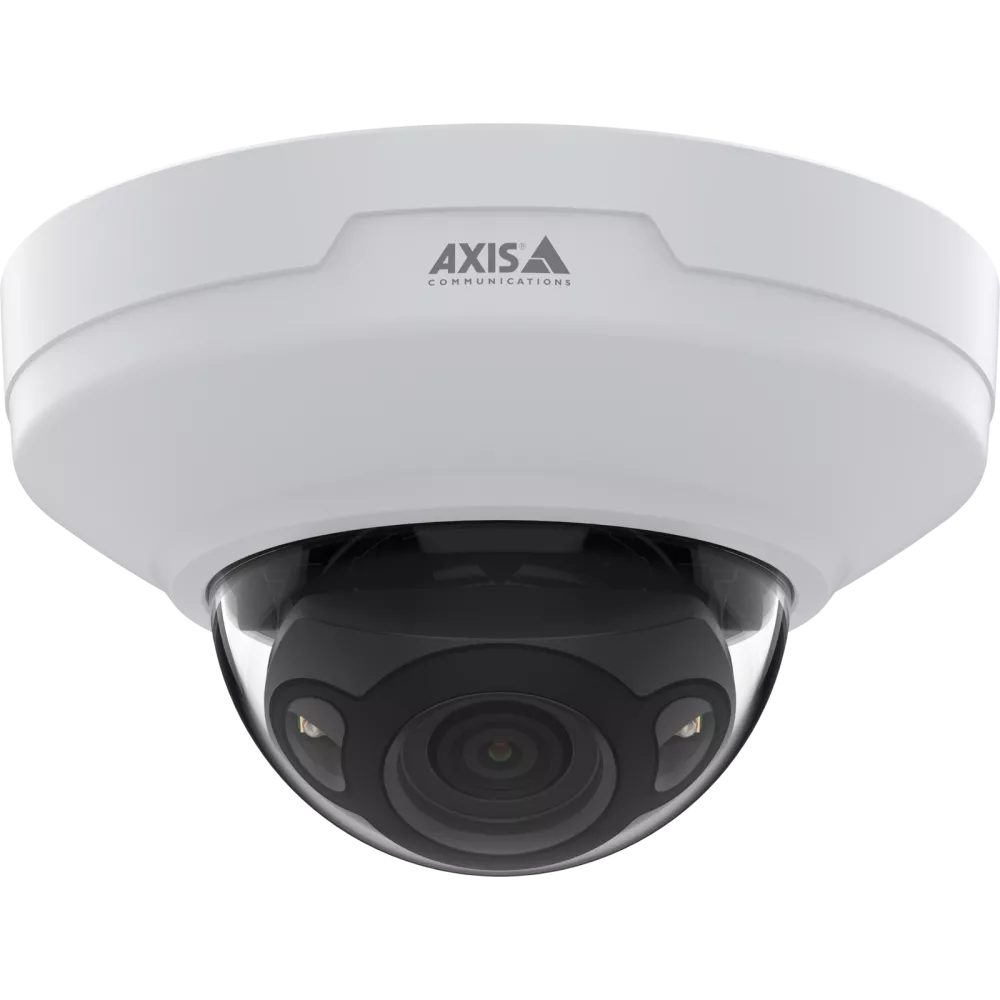

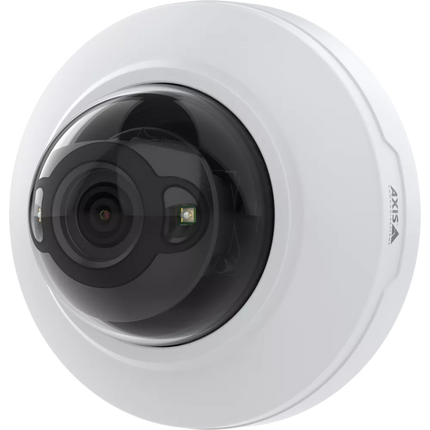

The Axis M4218-LV delivers powerful surveillance in a compact, discreet dome. Designed for indoor environments like offices, retail stores, and schools, this 4K ultra HD camera captures exceptional detail even in low light. Equipped with a varifocal lens and Axis system-on-chip, it supports advanced analytics, edge storage, and robust image optimization. With vandal-resistant housing and support for audio input, this model fits perfectly into demanding professional environments where both performance and durability matter.
Features
-
4K Ultra HD Video – Capture fine detail for better facial recognition and activity monitoring.
-
Discrete Dome Design – Low-profile form factor blends easily into ceilings and walls.
-
Lightfinder and Forensic WDR – Crystal-clear imaging in challenging lighting, from dim hallways to backlit entrances.
-
Varifocal Lens – Adjust field of view for wide-area coverage or tight monitoring of high-risk zones.
-
Axis Edge Vault Security – Protects device ID and simplifies secure network integration.
-
Built-In Analytics – Includes motion detection, tampering alert, object counting, and more—right out of the box.
-
IK08-Rated Casing – Strong vandal-resistant build, ideal for public-facing areas.
-
Axis Zipstream with H.264/H.265 – Reduce bandwidth and storage costs without sacrificing image quality.
-
Microphone & Audio Input Support – Monitor sound or integrate with intercom/security audio setups.
Downloads
Extra Info
Superior Image Quality in Any Light
The M4218-LV uses Lightfinder technology to deliver vivid, color-accurate footage even in near-darkness, making it ideal for 24/7 environments like hotel corridors or lobbies. Paired with Forensic WDR, the camera compensates for extreme contrasts—such as backlit windows—so you won’t lose crucial detail in shadows or highlights.
Optimized Storage and Bandwidth
Thanks to Axis Zipstream and support for H.264/H.265, this camera compresses video efficiently without compromising forensic detail. This significantly reduces network load and storage requirements—ideal for high-resolution multi-camera systems.
Smarter Surveillance with Built-In Analytics
The Axis M4218-LV includes onboard analytics like motion detection, audio detection, and tampering alerts, plus support for object counting and occupancy monitoring. It’s an excellent choice for users looking to gain more insight from their video without adding extra software.
Vandal-Resistant for High-Traffic Areas
Rated IK08, the dome resists impacts and tampering, making it a smart fit for schools, hospitals, and retail spaces where equipment may be exposed. Its clean, flush-mount design also discourages interference or vandalism.
Secure by Design
With Axis Edge Vault, the M4218-LV safeguards your system with secure boot and device ID protection, ensuring integrity from the moment it powers on. It’s a solid choice for IT-conscious facilities or those with strict compliance requirements.
Tech Specs
| Camera Model |
Axis M4218-LV |
| Image Sensor |
1/2.5" progressive scan RGB CMOS |
| Lens |
Varifocal, 3–6 mm, F1.6
Horizontal field of view: 100°–51°
Vertical field of view: 53°–29°
Motorized focus and zoom |
| Minimum Illumination |
Color: 0.19 lux at 30 IRE, F1.6
B/W: 0.04 lux at 30 IRE, F1.6 |
| Shutter Time |
1/66500 s to 1 s |
| Camera Angle Adjustment |
Pan: ±100°
Tilt: 0–75°
Rotation: ±190° |
| Video Compression |
H.264 (Baseline, Main, High Profile)
H.265 (Main Profile)
Motion JPEG |
| Resolution |
3840x2160 (8.3 MP) to 160x90 |
| Frame Rate |
Up to 20 fps at 3840x2160
Up to 30 fps at 3072x1728 |
| Image Settings |
Compression, Color, Brightness, Sharpness, Contrast, White balance, Exposure control, Exposure zones, Rotation, Mirroring, Day/night mode, WDR: Forensic Capture, Dynamic text and image overlay, Privacy masks |
| Wide Dynamic Range |
Forensic WDR |
| Low Light Performance |
Axis Lightfinder |
| Audio |
Two-way audio
Built-in microphone
External microphone input
Line output |
| Video Analytics |
Axis Object Analytics
Motion detection
Audio detection
Shock detection
Tampering alarm
Active tampering alarm |
| Video Streaming |
Multiple, individually configurable streams
Axis Zipstream technology in H.264/H.265 |
| Security Features |
Signed firmware
Secure boot
Axis Edge Vault with TPM module |
| Network Protocols |
IPv4, IPv6, HTTP, HTTPS, SSL/TLS, QoS, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3, DNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| Storage Options |
MicroSD/microSDHC/microSDXC card slot
Support for recording to network-attached storage (NAS) |
| Operating Conditions |
0 °C to 50 °C (32 °F to 122 °F)
Humidity 10–85% RH (non-condensing) |
| Casing |
Polycarbonate and aluminum
IK08-rated vandal resistance |
| Mounting Options |
Recessed ceiling mount
Surface mount
Optional accessories for wall, pole, and pendant mounting |
| Power |
Power over Ethernet (PoE) IEEE 802.3af Type 1 Class 3 |
| Power Consumption |
Max: 7.5 W |
| Dimensions |
Height: 53 mm (2.1 in)
Diameter: 121 mm (4.8 in) |
| Weight |
420 g (0.93 lb) |
| Included Accessories |
Installation guide, Windows decoder 1-user license, Drill template, Resistorx L-key |
| Optional Accessories |
T94B01P conduit back box
T94B02D pendant kit
T94T01M wall mount
AXIS surveillance cards |
| Compliance & Certifications |
EMC, Safety, Environment, IEC/EN 62471 (photobiological safety), IEC/EN/UL 62368-1 |
Q&A
Q: Is this camera good for nighttime use?
A: Yes, it features Axis Lightfinder technology which delivers clear, full-color images in low-light environments.
Q: Can the lens be adjusted to cover different viewing areas?
A: Yes, it has a varifocal lens (3–6 mm) that lets you adjust the field of view during installation to match your surveillance needs.
Q: Is it vandal-proof?
A: The camera is IK08-rated, meaning it's built to withstand physical impacts and tampering—perfect for high-risk or public indoor areas.
Q: Does it support audio?
A: Yes, it has a built-in microphone and supports external audio input for integrated audio surveillance or intercom use.
Q: How is the video stored?
A: It supports edge storage via microSD card and can also stream to network video recorders. Axis Zipstream technology optimizes storage without losing video quality.
Q: Can I integrate this camera with other security systems?
A: Yes, the Axis M4218-LV is ONVIF compliant and supports integration with a wide range of VMS platforms and third-party systems.
