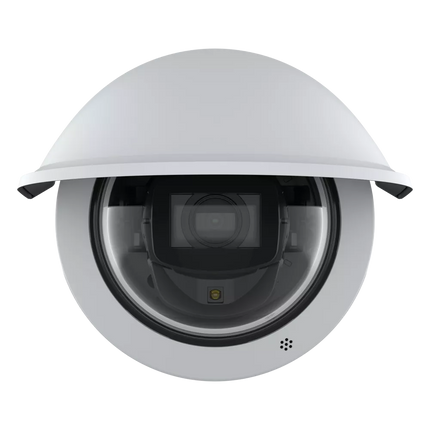

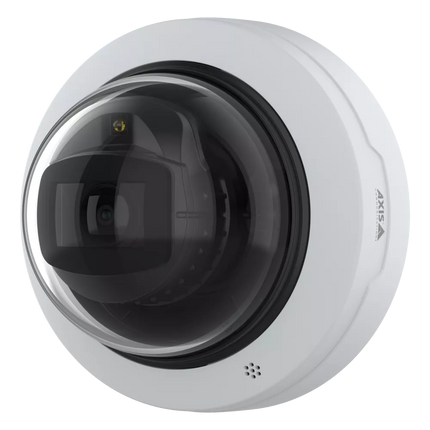

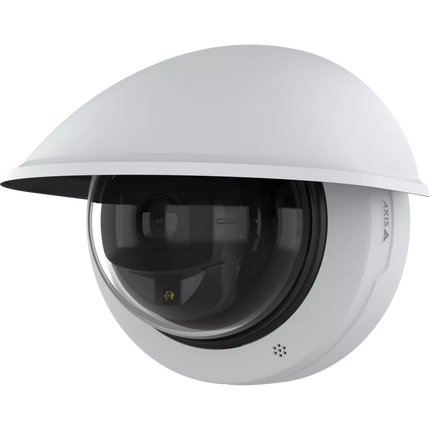

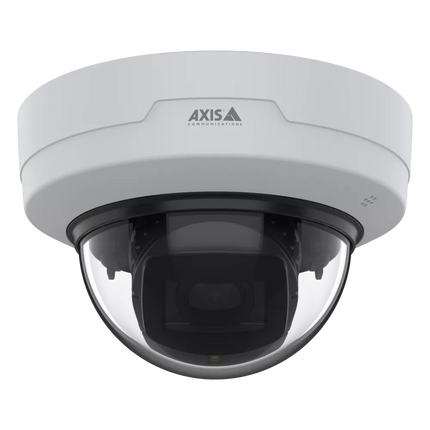

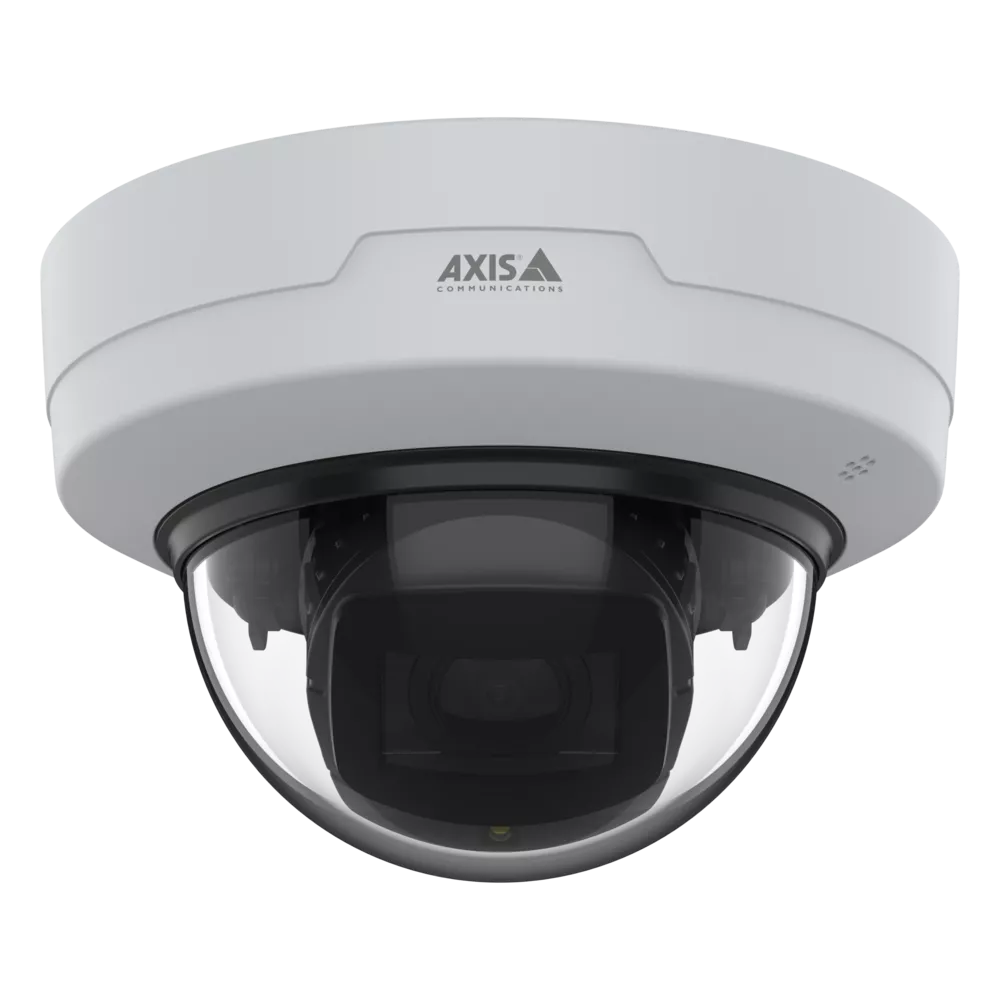

The Axis M4225-LVE is a compact and robust mini dome camera designed to deliver reliable, high-quality surveillance in any outdoor or indoor environment. Whether securing a storefront, monitoring entrances, or overseeing public spaces, this camera combines smart design with powerful performance. With built-in analytics, wide dynamic range, and excellent low-light imaging, the M4225-LVE is ideal for users who need discreet, flexible, and effective monitoring 24/7 — even in harsh conditions.
Features
-
Compact Dome Design – Discreet and vandal-resistant housing ideal for retail, schools, and office entrances.
-
Wide Dynamic Range (WDR) – Clear, balanced video even with harsh lighting or backlight.
-
Built-in Video Analytics – Detect motion, tampering, and loitering directly on-camera to reduce false alarms.
-
OptimizedIR Night Vision – Reliable identification in total darkness with built-in, adaptive infrared.
-
Varifocal Lens (3–6 mm) – Flexible viewing angles (up to 100°) for tailored coverage of key areas.
-
Weather and Impact Rated (IP66 & IK10) – Built tough for rain, dust, and vandalism.
-
Edge Storage Support – Record directly to SD card for failover protection or standalone operation.
-
Zipstream Compression – Lower bandwidth and storage use without sacrificing video quality.
-
M42 Series Platform – Affordable, next-gen Axis technology with long-term support and scalability.
Downloads
Extra Info
Advanced Low-Light Performance
Thanks to Axis’ advanced image processing and OptimizedIR, the M4225-LVE delivers clear footage even in complete darkness. The IR LEDs adjust automatically to the scene, preventing overexposure of close objects while maintaining clarity across the entire field of view.
Smart Surveillance with Edge Analytics
The camera includes built-in analytics like motion detection, line crossing, and tampering alarms. These tools help minimize false alarms and allow security teams to respond faster to real incidents — all without needing expensive external software.
Durable in Every Environment
Built for tough outdoor or exposed indoor installations, this camera is both IK10 vandal-resistant and IP66 weatherproof. Its wide operating temperature range makes it ideal for entry points, parking lots, and perimeter monitoring in challenging climates.
Flexible Viewing and Easy Setup
Its varifocal lens offers a field of view from 36° to 100°, enabling wide area coverage or focused observation. Combined with remote zoom and focus, installation is quicker and easier for professionals and DIYers alike.
Tech Specs
| Camera Type |
Fixed dome |
| Image Sensor |
1/2.8" progressive scan RGB CMOS |
| Lens |
Varifocal 3–6 mm, F1.8
Horizontal field of view: 100°–36°
Vertical field of view: 53°–20° |
| Minimum Illumination |
Color: 0.11 lux (50 IRE, F1.8)
B/W: 0.02 lux (50 IRE, F1.8)
0 lux with IR illumination on |
| IR Illumination |
OptimizedIR with 850 nm IR LEDs
Range up to 15 m (49 ft) |
| Shutter Speed |
1/31500 s to 1/2 s |
| Video Compression |
H.264 (Main and Baseline Profiles)
Motion JPEG |
| Resolution |
1920x1080 (1080p) to 160x90 |
| Frame Rate |
Up to 25/30 fps (50/60 Hz) in all resolutions |
| Video Streaming |
Multiple, individually configurable streams
Axis Zipstream technology in H.264 |
| Pan/Tilt/Zoom |
Digital PTZ |
| Day/Night Functionality |
Automatically removable infrared-cut filter |
| Wide Dynamic Range |
WDR – Forensic Capture |
| Video Analytics |
Motion Detection
Axis Video Motion Detection
Active tampering alarm |
| Event Triggers |
Analytics, Edge storage events, System events, Input signal |
| Event Actions |
File upload: FTP/SFTP/HTTP/HTTPS/network share
Email notifications
Local storage recording
External output activation
Pre- and post-alarm video buffering |
| Operating Conditions |
-30 °C to 50 °C (-22 °F to 122 °F)
Humidity: 10–100% RH (condensing) |
| Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F) |
| Protection Rating |
IP66-rated (weather-resistant)
IK10-rated (vandal-resistant) |
| Power |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 |
| Power Consumption |
Typical: 5.6 W
Max: 9.8 W |
| Storage |
MicroSD/microSDHC/microSDXC card slot
Support for recording to network-attached storage (NAS) |
| Network Interface |
RJ45 10BASE-T/100BASE-TX PoE |
| Security |
Signed firmware
Secure boot
HTTPS encryption
IEEE 802.1x
Digest authentication
IP address filtering
User access control |
| ONVIF Compliance |
Profile G, S, and T |
| Operating System |
AXIS OS |
| Dimensions |
Height: 101 mm (4.0 in)
Diameter: 149 mm (5.9 in) |
| Weight |
500 g (1.1 lb) |
| Included Accessories |
Installation guide
Drill template
Resistorx L-key
Connector guard
Connector kit
Weather shield |
| Certifications |
EMC: EN 55032 Class A, EN 55024, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A
Safety: IEC/EN/UL 62368-1
Environment: IEC 60529 IP66, IEC 62262 IK10 |
Q&A
Q: Is this camera suitable for outdoor use?
A: Yes. The M4225-LVE is IP66-rated for water and dust protection, and IK10-rated for impact resistance, making it ideal for outdoor and vandal-prone areas.
Q: Can I use this camera at night?
A: Absolutely. It includes OptimizedIR for effective night vision up to 15 meters, offering detailed video even in complete darkness.
Q: What makes this different from a basic dome camera?
A: It features built-in analytics, remote zoom and focus, varifocal lens flexibility, and durable construction — ideal for professional-grade surveillance.
Q: Does it support recording without an NVR?
A: Yes. You can record directly to an onboard SD card for local storage and backup.
Q: What’s the angle of view?
A: The camera provides a horizontal viewing angle between 36° and 100°, depending on lens adjustment.
