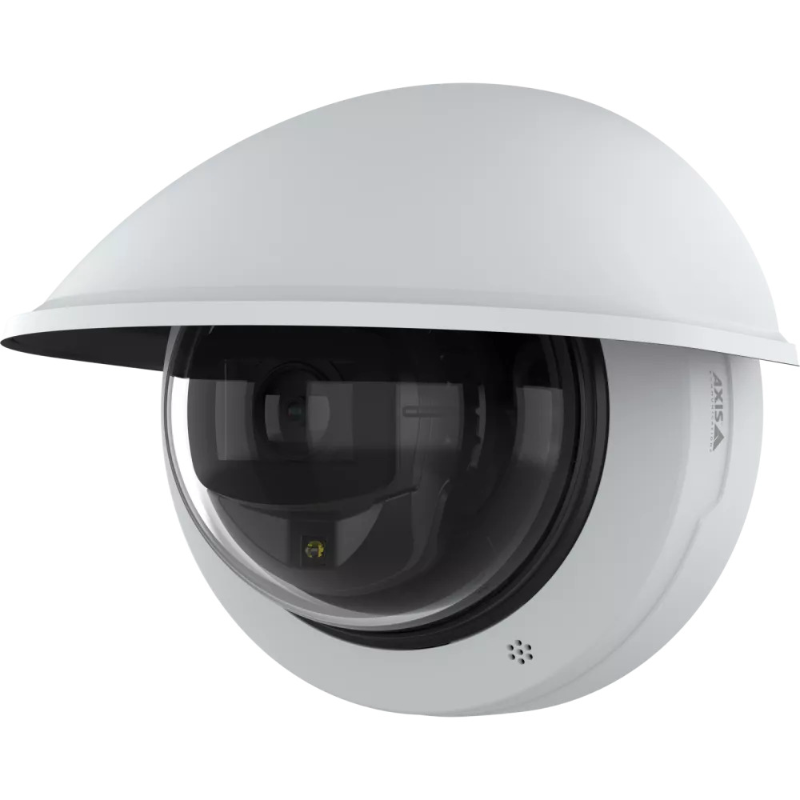

The AXIS M4227-LVE is a compact and powerful 2MP outdoor dome camera designed for reliable surveillance in challenging environments. Featuring a Deep Learning Processing Unit (DLPU), AXIS Object Analytics, Lightfinder, Forensic WDR, and OptimizedIR, it delivers outstanding image quality and intelligent event detection day and night. Ideal for schools, retail environments, office buildings, warehouses, and outdoor perimeter monitoring.
Features
-
2MP Full HD Resolution – Captures clear and detailed video for everyday surveillance applications.
-
Varifocal Lens with Remote Zoom & Focus – Flexible field of view with simplified installation and adjustment.
-
Deep Learning Processing Unit (DLPU) – Enables advanced analytics directly on the camera.
-
AXIS Object Analytics – Detects, classifies, and tracks people and vehicles.
-
Lightfinder – Delivers clear color images in low-light environments.
-
Forensic WDR – Preserves image detail in scenes with challenging lighting.
-
OptimizedIR – Provides clear surveillance in complete darkness.
-
H.265 with Zipstream – Reduces bandwidth and storage requirements.
-
Axis Edge Vault – Hardware-based cybersecurity protection.
What's Included:
- AXIS M4227-LVE Dome Camera
- Weather Shield
- Installation Hardware
- Terminal Connectors
- Quick Installation Guide
- Windows Decoder License
DOWNLOADS
Key Info
Compact Outdoor Surveillance
The AXIS M4227-LVE combines advanced imaging technologies and intelligent analytics in a compact outdoor-ready dome design. Its varifocal lens and remote zoom/focus capabilities simplify installation while delivering flexible coverage.
Reliable Performance in Any Lighting
Designed to provide excellent image quality around the clock.
-
Lightfinder for enhanced color images in low-light conditions
-
Forensic WDR for balanced exposure in difficult lighting
-
OptimizedIR for surveillance in complete darkness
-
Day/Night Functionality for continuous monitoring
Advanced AI Analytics
The integrated Deep Learning Processing Unit enables intelligent analytics directly on the camera, reducing server requirements while improving event detection accuracy.
- AXIS Object Analytics
- People and vehicle classification
- Object tracking and detection
- Metadata generation for forensic search
Built for Outdoor Security
- IP66 and IP67 weather protection
- IK10 vandal-resistant housing
- Axis Edge Vault cybersecurity platform
- Reliable operation in demanding environments
Tech Specs
| Specification |
Details |
| Model |
M4227-LVE (02815-001) |
| Camera Type |
Outdoor Dome Camera |
| Image Sensor |
1/2.8" Progressive Scan RGB CMOS |
| Resolution |
1920 × 1080 (2MP Full HD) |
| Lens |
Varifocal Lens with Remote Zoom and Focus |
| Frame Rate |
Up to 30 fps |
| Day/Night Function |
Automatic IR-cut Filter |
| Lightfinder |
Yes |
| Wide Dynamic Range |
Forensic WDR |
| IR Illumination |
OptimizedIR |
| System on Chip |
ARTPEC-8 |
| AI Processing |
Deep Learning Processing Unit (DLPU) |
| Analytics |
AXIS Object Analytics, Motion Detection, Audio Detection |
| Video Compression |
H.264, H.265, Motion JPEG, Zipstream |
| Memory |
1024 MB RAM, 512 MB Flash |
| Storage |
microSD/microSDHC/microSDXC Support |
| Power |
PoE IEEE 802.3af |
| Protection Ratings |
IP66, IP67, IK10, NEMA 4X |
| Operating Temperature |
-30°C to 50°C |
| Warranty |
5-Year Warranty |
Q&A
Q: Is the M4227-LVE suitable for outdoor installations?
Yes. The camera is designed for outdoor use and carries IP66, IP67, IK10, and NEMA 4X ratings.
Q: Does the camera support AI analytics?
Yes. The integrated DLPU enables AXIS Object Analytics for intelligent people and vehicle detection and classification.
Q: Can the camera monitor in complete darkness?
Yes. OptimizedIR provides reliable surveillance performance in low-light and no-light conditions.
Q: Does the camera offer flexible viewing angles?
Yes. The varifocal lens with remote zoom and focus allows easy adjustment to suit different surveillance requirements.
Q: What applications is the M4227-LVE best suited for?
It is ideal for schools, retail stores, office buildings, warehouses, parking areas, and outdoor perimeter security.
Q: Does the camera include cybersecurity protection?
Yes. Axis Edge Vault provides hardware-based protection, secure key storage, and device integrity safeguards.
