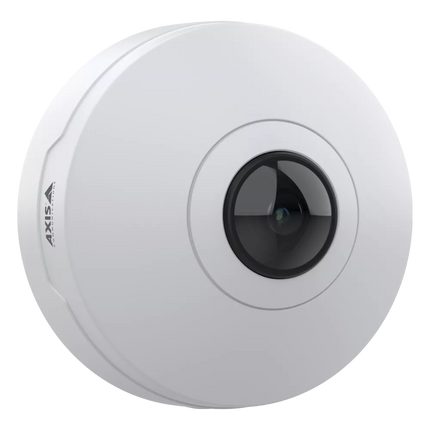

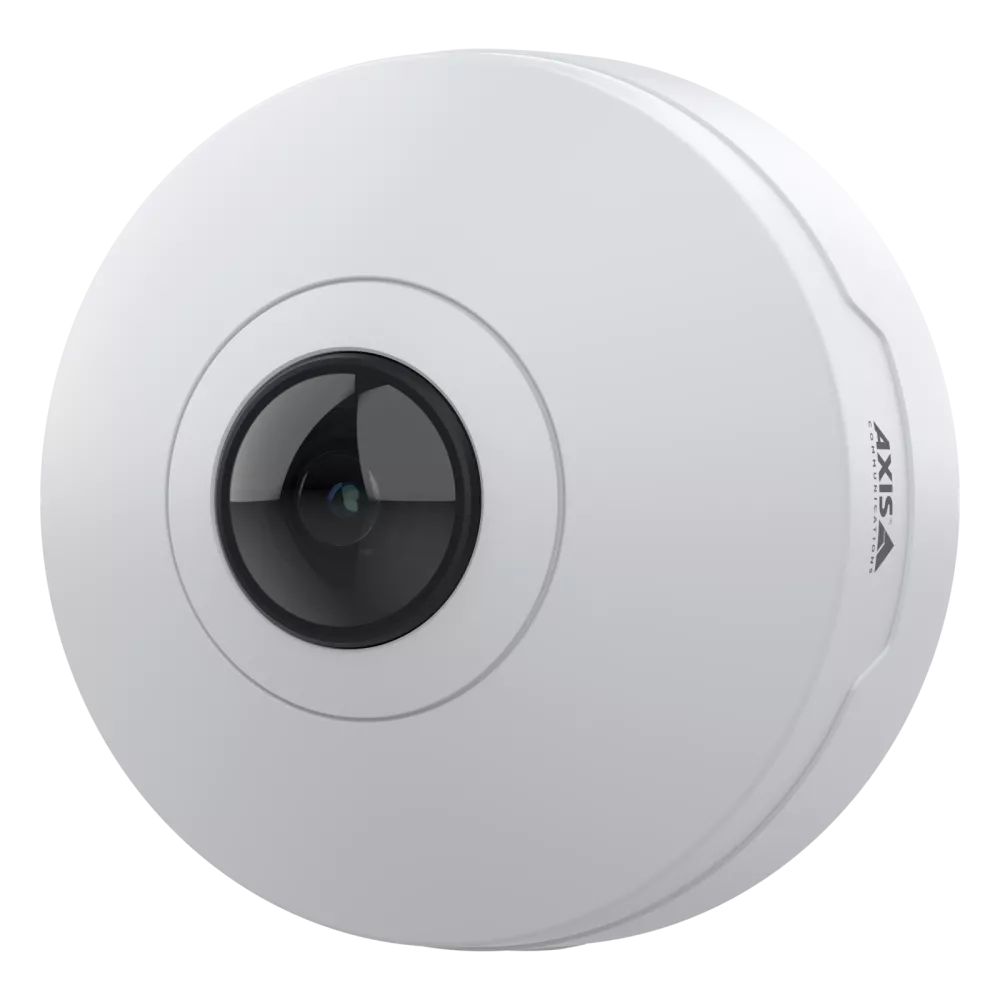

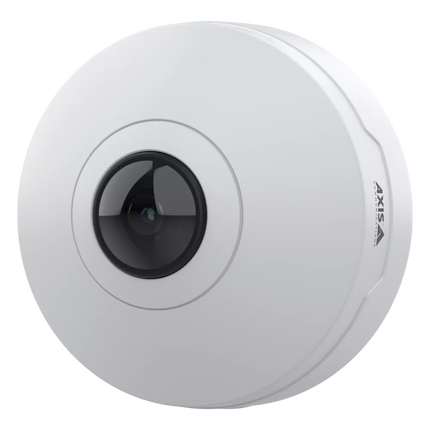

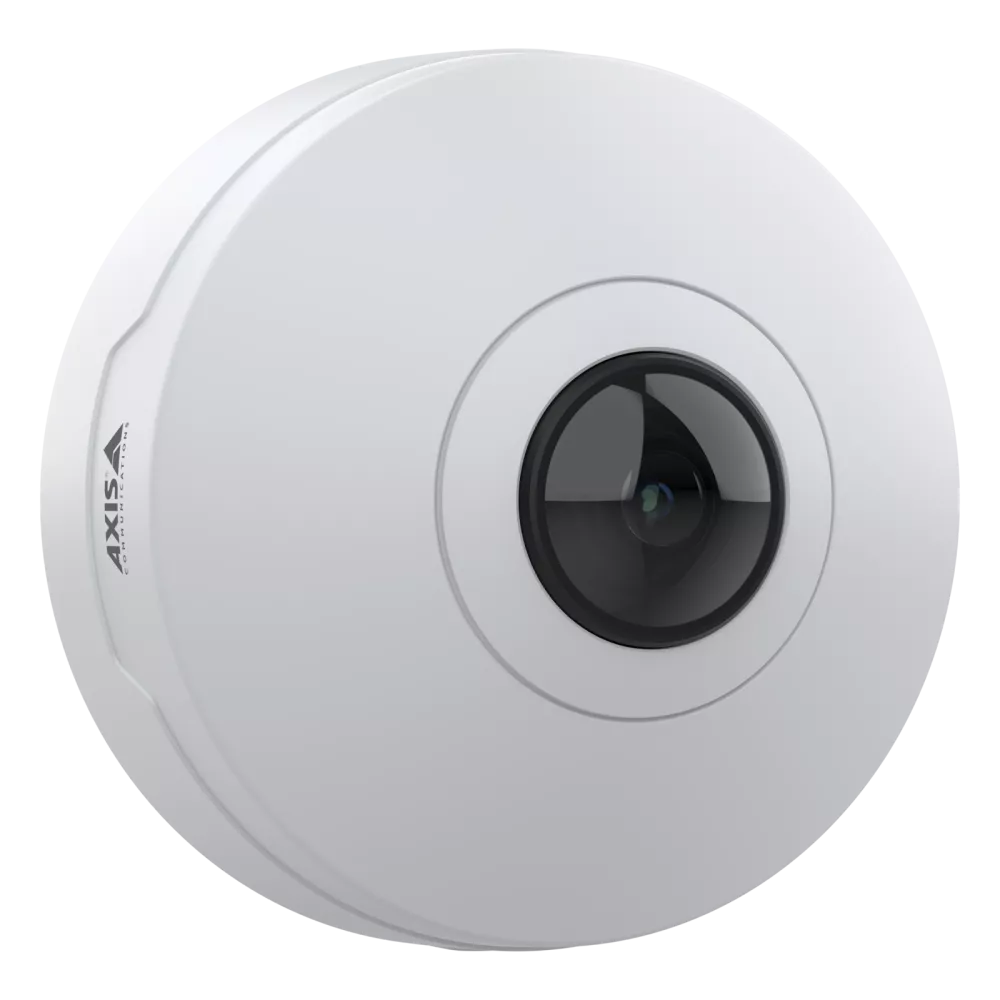

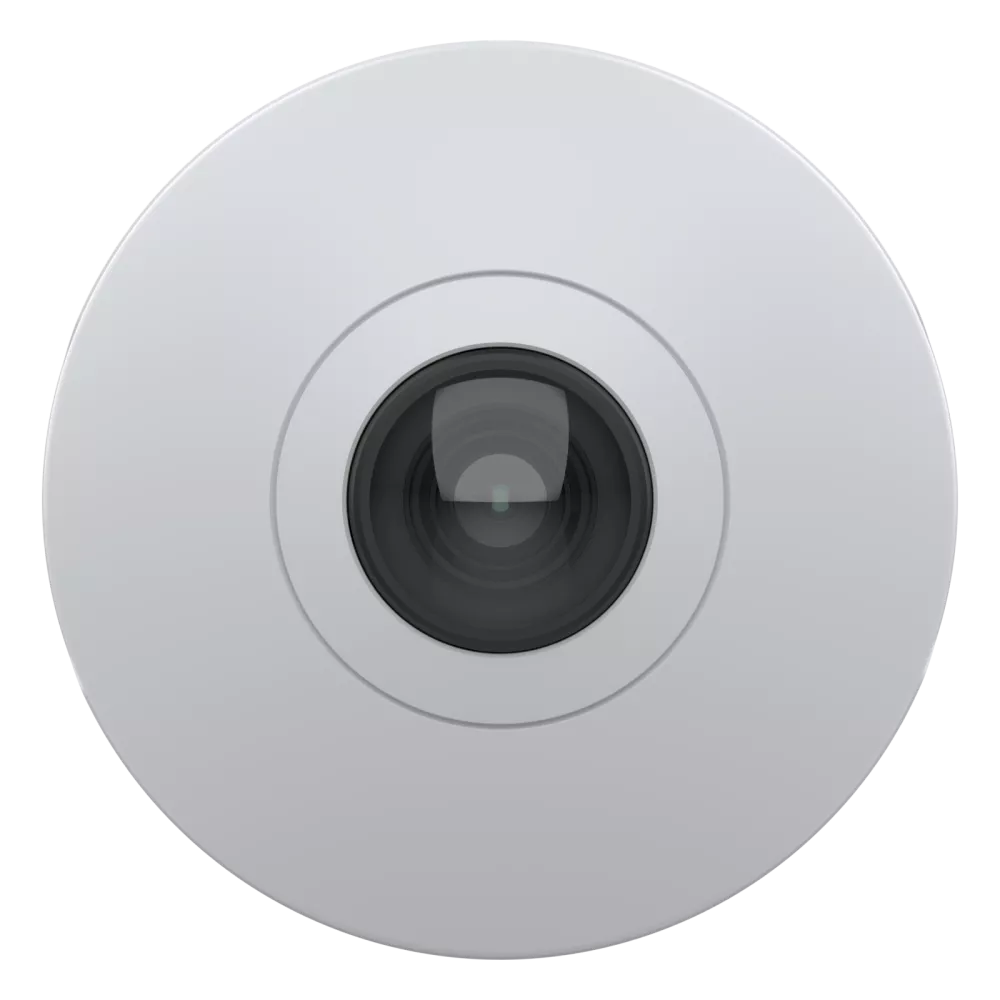

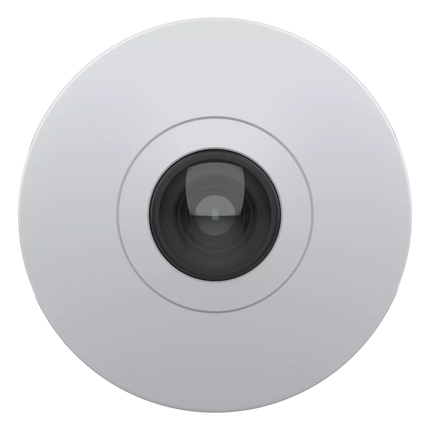

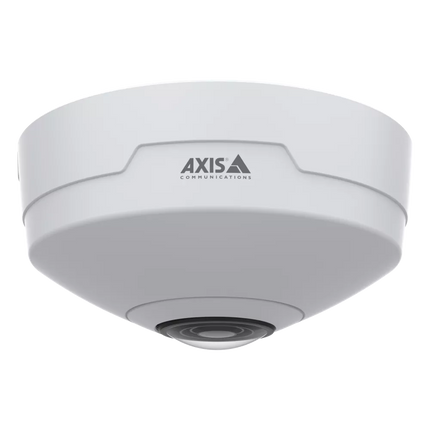

Protect large indoor areas with confidence using the Axis M4328-P — a compact panoramic camera designed to deliver complete 360° coverage in one stream, with no blind spots. Whether you're securing a retail store, public building, or open office space, this discreet dome offers sharp, distortion-free imaging, robust analytics compatibility, and low bandwidth use for scalable installations. It’s ideal for professionals who want clarity, coverage, and cost-efficiency in a single camera.
Features
-
12 Megapixel Imaging – Capture detailed scenes in large indoor spaces with sharp clarity and precision.
-
360° Panoramic View – Monitor an entire room without the need for multiple cameras.
-
Advanced Analytics Support – Works with Axis Object Analytics for reliable people detection and area monitoring.
-
Compact Dome Design – Low-profile form factor ideal for discreet indoor mounting.
-
Flexible Viewing Modes – Supports dewarped views like quad, corner, or panorama for easier monitoring and playback.
-
Axis Zipstream with H.264/H.265 – Reduces bandwidth and storage usage without compromising image quality.
-
Forensic WDR (Wide Dynamic Range) – Balances light and dark areas for usable video in challenging lighting.
-
Built-in Microphone – Enables audio detection or recording, useful for real-time alerts or investigations.
-
Edge Storage Support – Record directly to a microSD card for redundancy or standalone setups.
Downloads
Extra Info
Full Room Awareness in a Single Stream
The Axis M4328-P offers a complete 360° overview, ideal for covering wide, open areas like lobbies, classrooms, or retail aisles. Its fisheye lens and ultra-high resolution allow you to capture everything from wall to wall without needing multiple units or creating blind spots.
Smart, Efficient Surveillance
With support for Axis Object Analytics, this camera enables real-time detection of people entering restricted zones or loitering, making it suitable for both proactive and reactive security needs. The built-in microphone adds an extra layer of intelligence, enabling audio-triggered alerts or recordings.
Optimized Storage Without Quality Loss
Thanks to Axis’s Zipstream technology, video is compressed efficiently using H.264 or H.265 while preserving critical forensic details. This keeps file sizes small and reduces strain on your NVR and network — ideal for multi-camera installations.
Flexible Viewing Options
Operators can choose between a variety of dewarped views — such as quad view for four areas, corridor mode for hallways, or a panoramic stretch for full-wall displays — helping them focus on what matters most without distortion.
Easy Installation, Reliable Performance
Its compact and unobtrusive form factor allows for quick ceiling or wall installation. Plus, its low power draw and edge storage support make it suitable for deployments where infrastructure is limited.
Tech Specs
| Model |
AXIS M4328-P |
| Camera Type |
Panoramic Fixed Dome |
| Image Sensor |
1/1.7" Progressive scan RGB CMOS |
| Lens |
Fixed lens
Focal length: 1.56 mm
Horizontal field of view: 180°
Vertical field of view: 180° |
| Minimum Illumination |
Color: 0.28 lux at 30 IRE (50 Hz, 1/15 s exposure) |
| Shutter Speed |
1/35500 s to 1/5 s |
| Pan/Tilt/Zoom |
Digital PTZ |
| Video Compression |
H.264 (MPEG-4 Part 10/AVC)
H.265 (HEVC)
Motion JPEG |
| Resolutions |
2992x2992 to 160x160 |
| Frame Rate |
Up to 25/30 fps (50/60 Hz) at all resolutions |
| Video Streaming |
Multiple configurable streams in H.264/H.265/MJPEG
Axis Zipstream technology |
| View Areas |
360° overview
Panorama
Double panorama
Quad view
Corner view |
| Wide Dynamic Range |
Forensic WDR |
| Day/Night Functionality |
Yes |
| Audio |
Built-in microphone
Audio streaming
Axis Audio Analytics |
| Video Analytics |
AXIS Object Analytics
Motion detection
Audio detection
Live stream access detection
Tampering alarm
Remove object
Enter/exit detection
Line crossing |
| Event Triggers |
Analytics, edge storage events, audio, tampering, time schedule |
| Event Actions |
File upload: FTP/SFTP/HTTP/HTTPS/network share
Email notifications
External output activation
Pre- and post-alarm video buffering
Overlay text, send SNMP trap, etc. |
| Video Management Software |
AXIS Companion
AXIS Camera Station
Third-party VMS via ONVIF |
| Network Protocols |
IPv4, IPv6, HTTP, HTTPS, SSL/TLS, QoS, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, IGMP, DHCP, ARP, SOCKS, LLDP, MQTT |
| Security |
Axis Edge Vault
Signed firmware
Secure Boot
IEEE 802.1x
User access log
HTTPS encryption
Brute force delay protection
IP address filtering |
| Local Storage |
MicroSD/microSDHC/microSDXC card slot
Support for recording to network-attached storage (NAS) |
| Power |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3
Typical: 4.7 W
Maximum: 6.2 W |
| Operating Conditions |
0°C to 50°C (32°F to 122°F)
Humidity: 10–85% RH (non-condensing) |
| Storage Conditions |
-40°C to 65°C (-40°F to 149°F) |
| Certifications |
EMC, Safety, Environmental: IEC/EN/UL 62368-1
FCC Part 15 Subpart B Class A
ICES-003 Class A
VCCI Class A
RCM AS/NZS CISPR 32 Class A
KCC KN32 Class A, KN35
EN 55032 Class A
EN 55035
IEC/EN 61000-3-2, -3 |
| Casing |
Polycarbonate and aluminum
Color: White NCS S 1002-B
Repaintable |
| Dimensions |
Height: 52 mm (2.0 in)
Diameter: 101 mm (4.0 in) |
| Weight |
280 g (0.62 lb) |
| Included Accessories |
Installation guide
Drill hole template
Resistorx T10 L-key
Connector guard |
| Warranty |
5-year Axis warranty |
Q&A
Q: Is the Axis M4328-P suitable for outdoor use?
A: No, this model is designed specifically for indoor environments and should be installed where it’s protected from weather exposure.
Q: Can it record without a network video recorder (NVR)?
A: Yes, it supports microSD card storage for local recording, ideal for backup or standalone use.
Q: What kind of analytics does it support?
A: It supports Axis Object Analytics, including object detection, line crossing, and occupancy monitoring.
Q: Does it offer dewarped video for easier viewing?
A: Yes, it supports multiple dewarped views such as panorama, corridor, and quad view, which makes monitoring and playback more intuitive.
Q: How is image quality in areas with mixed lighting?
A: It includes Forensic Wide Dynamic Range (WDR) to handle high-contrast lighting conditions, ensuring usable footage in challenging scenes.
Q: Is audio recording available on this camera?
A: Yes, it has a built-in microphone, which can be used for audio detection or recording, depending on your system setup and compliance regulations.
