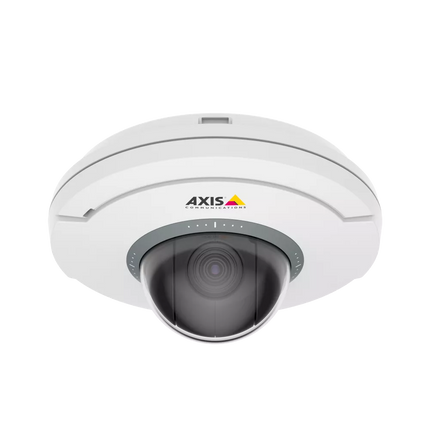

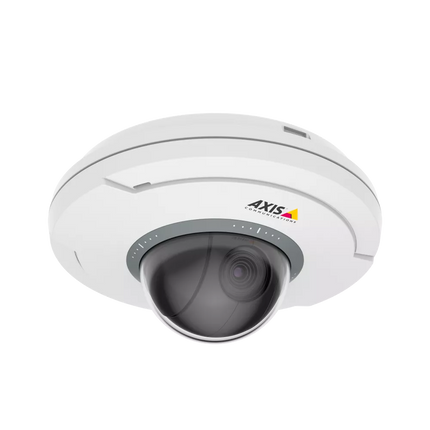

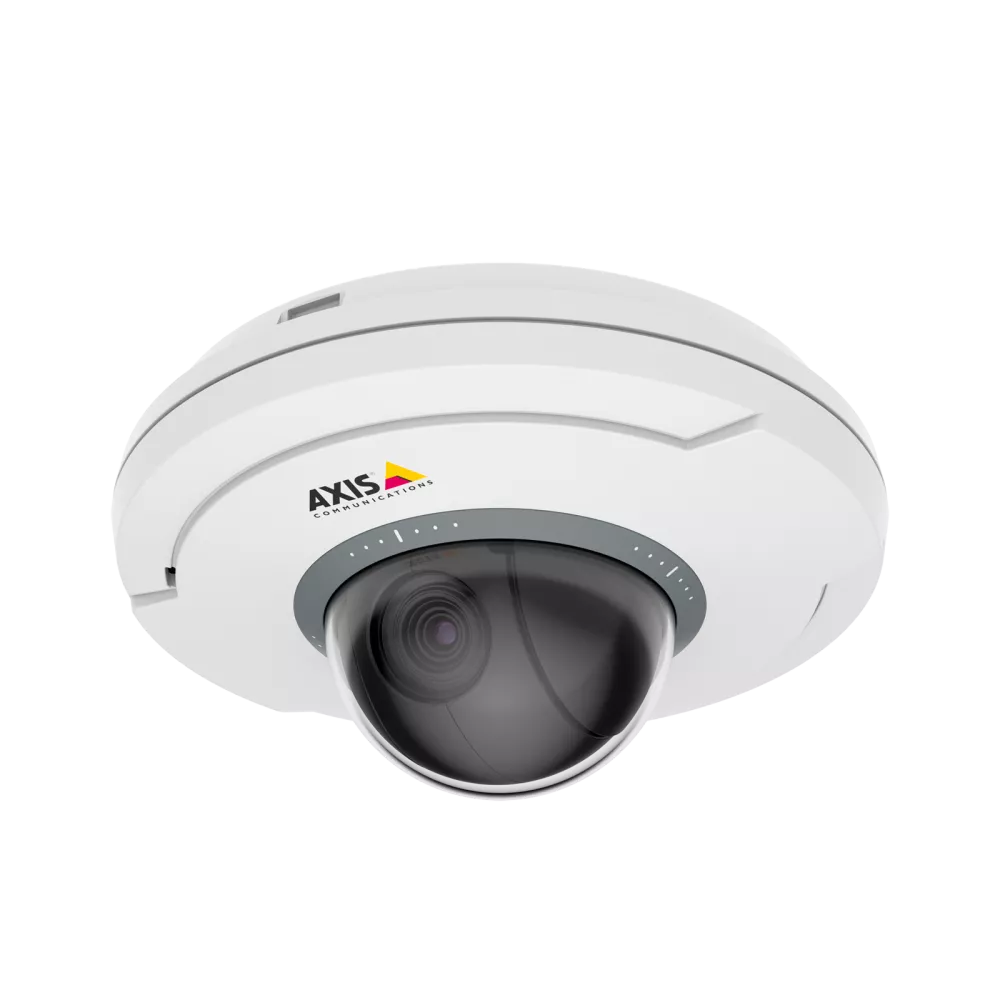

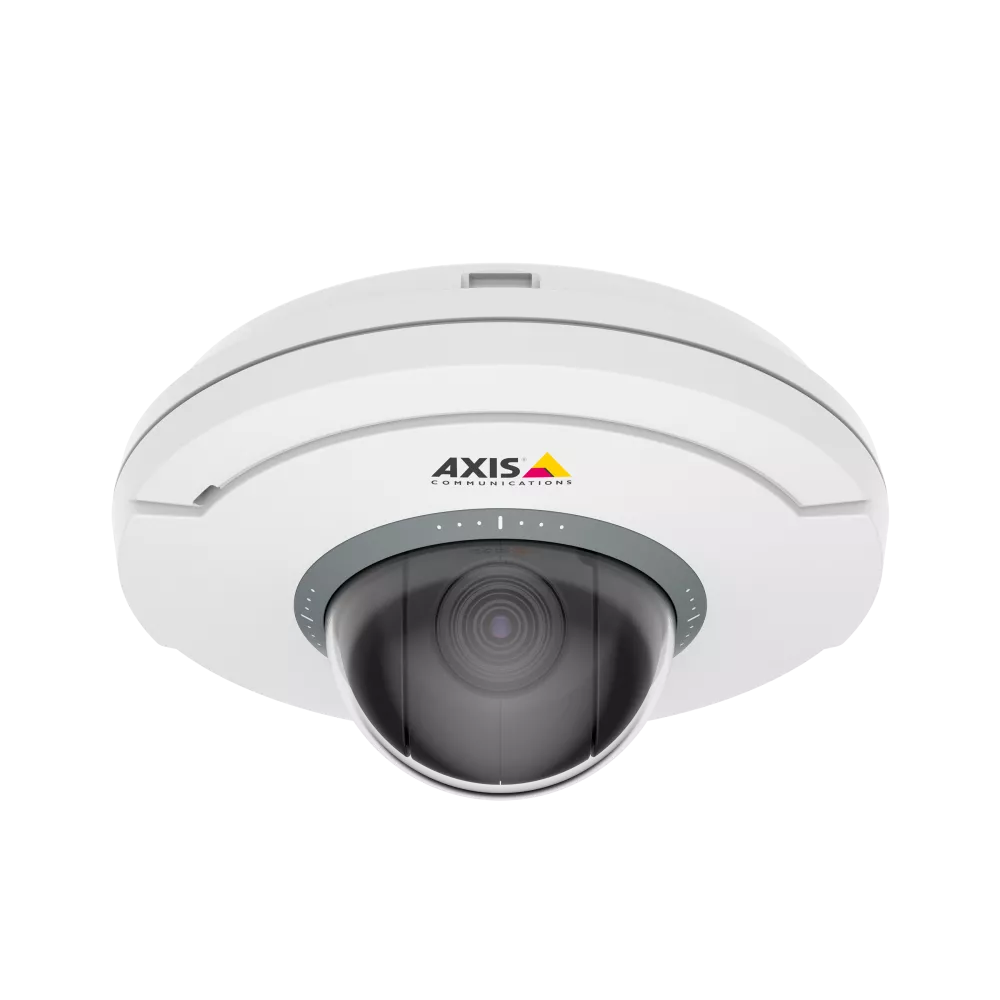

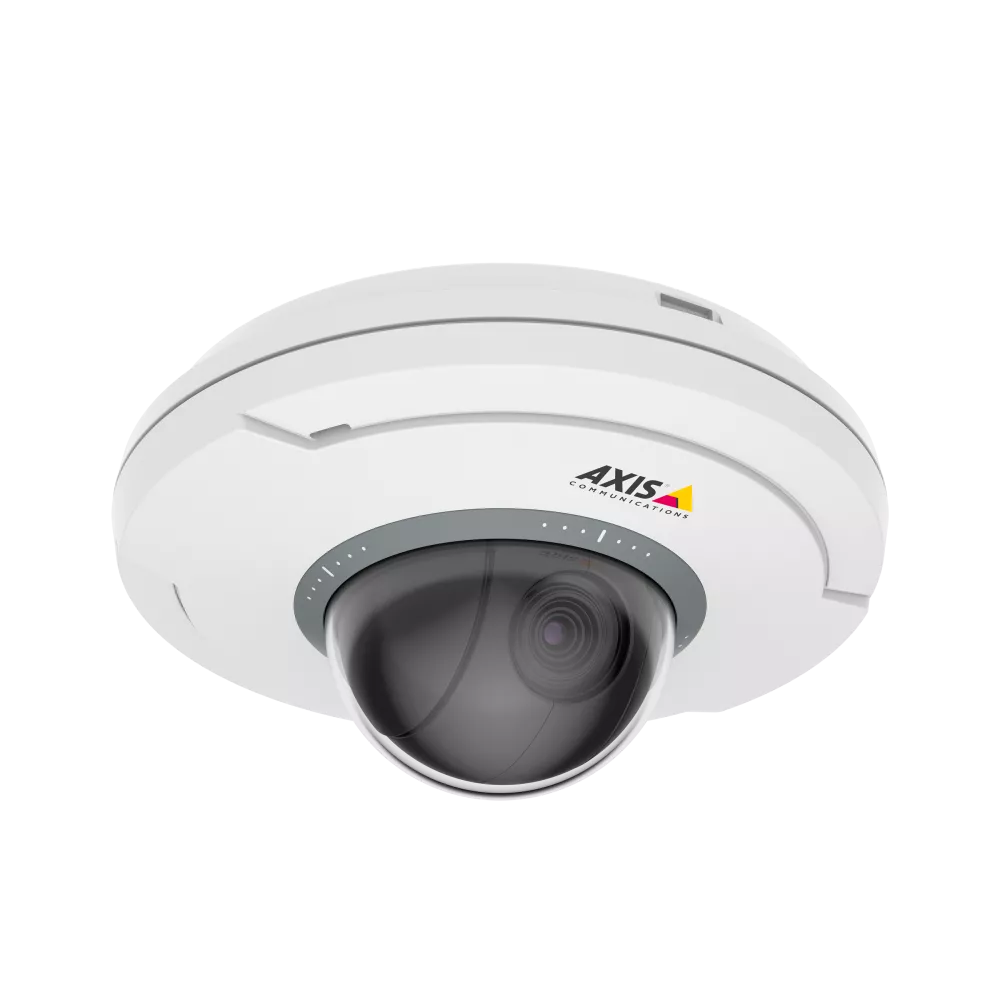

The Axis M5074 is a compact, high-performance indoor PTZ camera ideal for retail stores, offices, banks, and reception areas. Despite its small size, it offers powerful functionality—full HD resolution, pan-tilt-zoom control, and advanced analytics—all in one affordable package. With a built-in microphone, HDMI output, and support for smart events, the M5074 provides complete situational awareness while blending seamlessly into any environment.
Features
-
Pan-Tilt-Zoom Coverage: Monitor entire rooms with smooth 360° pan, 170° tilt, and 5x digital zoom for flexible viewing angles.
-
Built-in Analytics: Smart motion and object detection help reduce false alarms and enable efficient monitoring.
-
Compact & Discreet Design: Fits in tight indoor spaces and blends easily into modern interiors without drawing attention.
-
Full HD 1080p Resolution: Delivers crisp, clear video ideal for identifying faces, objects, and incidents.
-
Edge Storage Support: Record footage directly to local microSD cards or network storage for reliable backup.
-
HDMI Output: Stream camera feed directly to a public monitor for deterrence or internal review.
-
Built-in Microphone: Capture audio alongside video for added context during investigations.
-
Axis Zipstream with H.264/H.265: Save bandwidth and storage without compromising video quality.
-
Cybersecurity Features: Signed firmware and secure boot help protect your system from unauthorized access.
Downloads
Extra Info
Precision Indoor Monitoring
The Axis M5074 uses high-speed pan and tilt functionality to give you complete situational coverage of indoor environments. It’s ideal for watching over entrances, counters, and aisles without the need for multiple fixed cameras.
Smart Surveillance With Less Hassle
With built-in analytics like motion detection, audio detection, and tampering alerts, the M5074 makes it easier to manage security proactively. These intelligent functions help security teams respond faster and reduce time spent reviewing footage.
Designed for Modern Spaces
The compact dome form factor—just 130 x 63 mm—makes it a great fit for modern office ceilings, retail shops, or anywhere discretion is key. It installs easily and doesn’t disrupt the aesthetics of your interior space.
Live Viewing on Any Monitor
Thanks to its HDMI output, you can connect the camera directly to a wall-mounted monitor to display live views. This feature is especially useful for visible deterrence in customer-facing environments.
Reliable and Secure
Axis prioritizes cybersecurity. With support for signed firmware, secure boot, and HTTPS, you can be confident your video feed stays secure from tampering or unauthorized access.
Tech Specs
| Camera Type |
Indoor PTZ Network Camera |
| Image Sensor |
1/2.8" progressive scan RGB CMOS |
| Lens |
Fixed focal length: 2.8 mm
Horizontal FOV: 105°
Vertical FOV: 56°
Diagonal FOV: 125° |
| Minimum Illumination |
Color: 0.1 lux at 50 IRE, F2.0 |
| Shutter Speed |
1/31500 s to 1/2 s |
| Pan/Tilt/Zoom |
Pan: 360° endless
Tilt: +90° to -90°
Zoom: 5x digital zoom |
| Video Compression |
H.264 (Baseline, Main, High profile)
H.265 (Main profile)
Motion JPEG |
| Resolution |
1920x1080 to 320x180 |
| Frame Rate |
Up to 25/30 fps (50/60 Hz) |
| Video Streaming |
Multiple configurable streams in H.264/H.265 and Motion JPEG
Axis Zipstream technology |
| Image Settings |
Compression, color, brightness, sharpness, white balance, exposure control, exposure zones, rotation, mirroring, text and image overlay, privacy masks, polygonal privacy masks |
| Audio Capabilities |
Built-in microphone (mono)
Audio streaming in H.264
Audio compression: AAC-LC, G.711, G.726 |
| Analytics |
Axis Video Motion Detection
Audio detection
Active tampering alarm
Support for AXIS Camera Application Platform |
| Event Triggers |
Analytics, edge storage events, virtual inputs |
| Event Actions |
File upload via FTP, SFTP, HTTP, HTTPS, network share
Email notification
PTZ preset, guard tour
Local recording
External output activation |
| Video Management |
AXIS Companion, AXIS Camera Station, third-party VMS via ONVIF |
| Security |
Signed firmware
Secure boot
HTTPS
IEEE 802.1X (EAP-TLS) |
| Local Storage |
microSD/microSDHC/microSDXC slot (card not included) |
| Connectors |
RJ45 Ethernet 10/100 Mbps
HDMI Type D (micro) for digital display |
| Power |
Power over Ethernet (IEEE 802.3af Class 2) |
| Power Consumption |
Typical: 3.7 W
Max: 4.3 W |
| Operating Conditions |
0 °C to 40 °C (32 °F to 104 °F)
Humidity: 10–85% RH (non-condensing) |
| Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F) |
| Approvals |
EMC: EN 55032 Class A, EN 55035, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A
Safety: IEC/EN/UL 62368-1
Environment: IEC 60068-2-1, 2-2, 2-6, 2-14, 2-27 |
| Dimensions |
130 x 63 mm (5.1 x 2.5 in) |
| Weight |
300 g (0.66 lb) |
| Included Accessories |
Installation guide
Windows decoder 1-user license
Mounting kit |
| Optional Accessories |
AXIS Surveillance Cards
Axis T91A10 Mounting kit
Axis TP3603 Plenum Mount
More at axis.com |
| Warranty |
5-year Axis warranty |
Q&A
Q: Is the Axis M5074 suitable for outdoor use?
A: No, the M5074 is designed for indoor environments only. It does not have weatherproofing or outdoor housing.
Q: Does this camera have audio capabilities?
A: Yes, it has a built-in microphone to capture audio, which can be valuable for incident review and monitoring.
Q: Can I view the footage on a regular display monitor?
A: Absolutely. The M5074 has an HDMI output for direct connection to a display, making it easy to monitor in real time without a computer.
Q: What kind of zoom does the camera support?
A: It features 5x digital zoom combined with 360° pan and 170° tilt for full-room coverage.
Q: Can this camera record video on its own?
A: Yes, it supports local storage via a microSD card as well as network storage options, allowing it to function independently of a recorder.
Q: Does it support smart detection features?
A: Yes, it comes with Axis’ built-in analytics for motion detection, audio detection, and tampering alerts.
