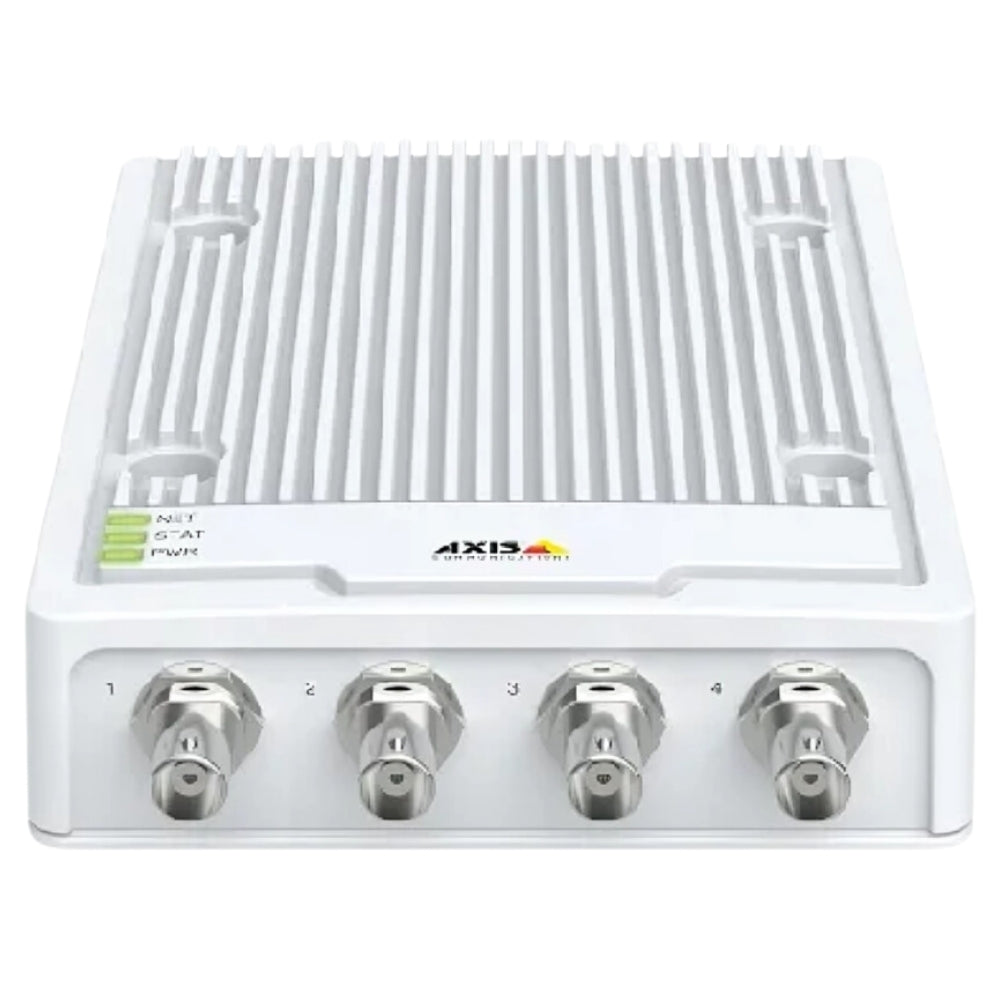

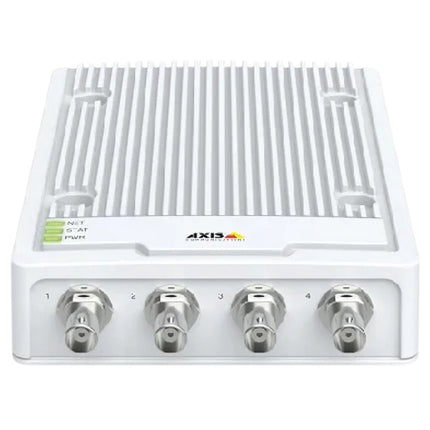

The AXIS M7104 is a cost-effective 4-channel video encoder that adds IP surveillance capabilities to any analog system. It features full frame rate in all resolutions, PTZ control, PoE support, and strong cybersecurity measures. With Zipstream and H.264/H.265 compression, it helps reduce bandwidth and storage needs without sacrificing image quality—ideal for modernizing small-scale analog setups.
Features
-
Full Frame Rate in All Resolutions – Smooth, real-time video encoding (30 fps).
-
Zipstream with H.264/H.265 – Optimises bandwidth and storage usage.
-
PTZ Support – RS-485/422 interface for analog PTZ camera control.
-
PoE Powered – Supports IEEE 802.3af/at PoE for simplified installation.
-
Edge Storage Support – microSD slot with encryption and NAS compatibility.
-
Secure Boot & Signed Firmware – Ensures software integrity and protection.
-
Built-in Analytics – Includes motion detection, tampering alarm, and more.
-
ONVIF Compliant – Profiles G, S, and T for wide VMS compatibility.
What’s Included:
- AXIS M7104 Video Encoder
- Windows® decoder 1-user license
- DC input plug
- 2x RS485/RS422 2-pin terminal plugs
- Installation guide
- 5-Year Warranty
DOWNLOADS
Tech Specs
| Specification |
Details |
| Channels |
4 BNC analog video inputs |
| Video Compression |
H.264, H.265, Motion JPEG |
| Max Resolution |
720x576 (PAL), 720x480 (NTSC) |
| Frame Rate |
30 fps per channel |
| Streaming |
Multiple streams, Zipstream, H.264/H.265 |
| PTZ Control |
RS-485/RS-422 (full duplex), preset & guard tour |
| Edge Storage |
microSD/microSDHC/microSDXC with AES-XTS-Plain64 encryption |
| Network |
1x RJ45 (1 Gbps), 1 IP for all 4 channels |
| Security |
HTTPS, secure boot, signed firmware, 802.1X, TLS 1.2/1.3 |
| PoE Support |
IEEE 802.3af/at, 4.7 W max |
| Operating Temp. |
0 °C to 50 °C (32 °F to 122 °F) |
| Casing |
Standalone metal enclosure, wall-mountable |
| Dimensions |
187 x 37 mm (7.4 x 1.5 in) |
| Weight |
650 g (1.4 lb) |
| VMS Compatibility |
AXIS Camera Station, AXIS Companion, ONVIF VMS |
| Warranty |
3-year limited warranty |
Q&A
Q1: How many cameras does the M7104 support?
A: Up to 4 standard analog cameras through BNC inputs.
Q2: Can it control PTZ functions?
A: Yes, via RS-485/RS-422 interface with support for presets and tours.
Q3: Can it be powered by PoE?
A: Yes, it supports PoE IEEE 802.3af/at.
Q4: Is storage possible without a VMS?
A: Yes, via local SD card or direct-to-NAS recording with encryption.
Q5: What analytics are built-in?
A: Motion detection, active tampering alarm, Fence Guard, Loitering Guard, and more.
