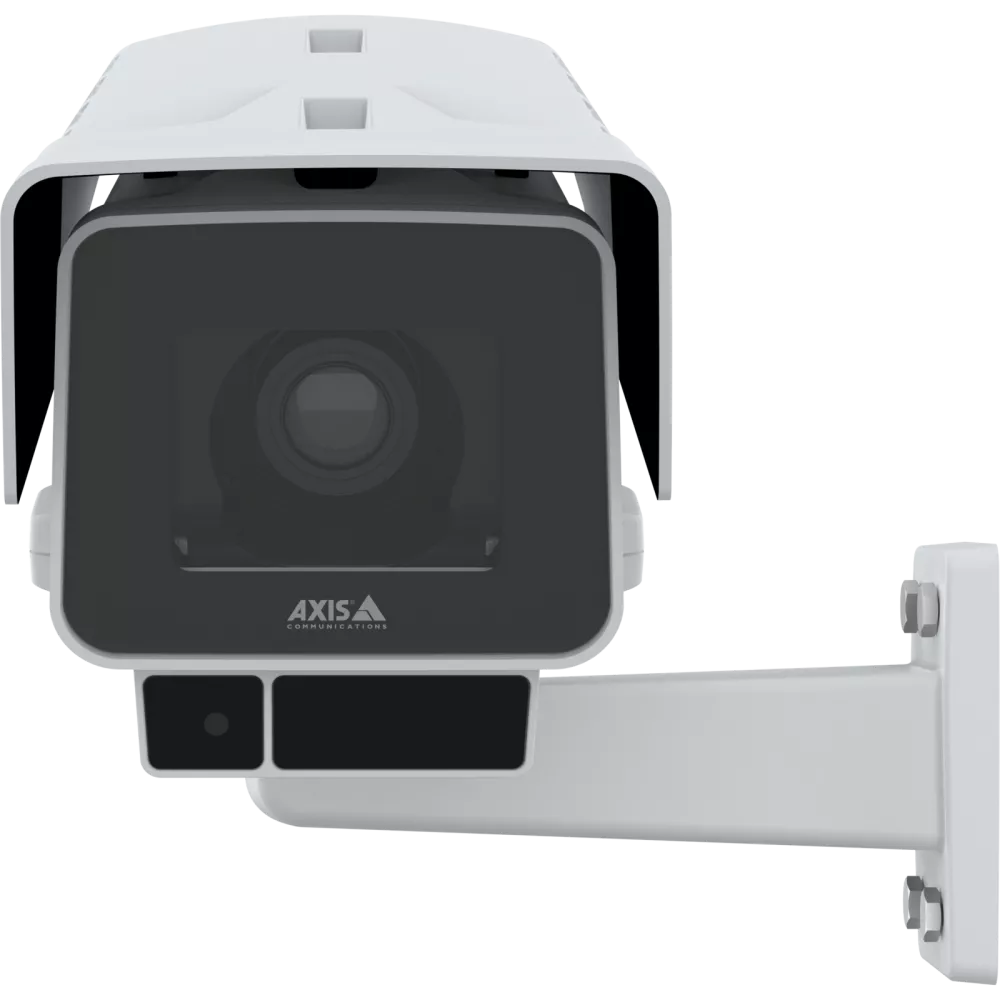

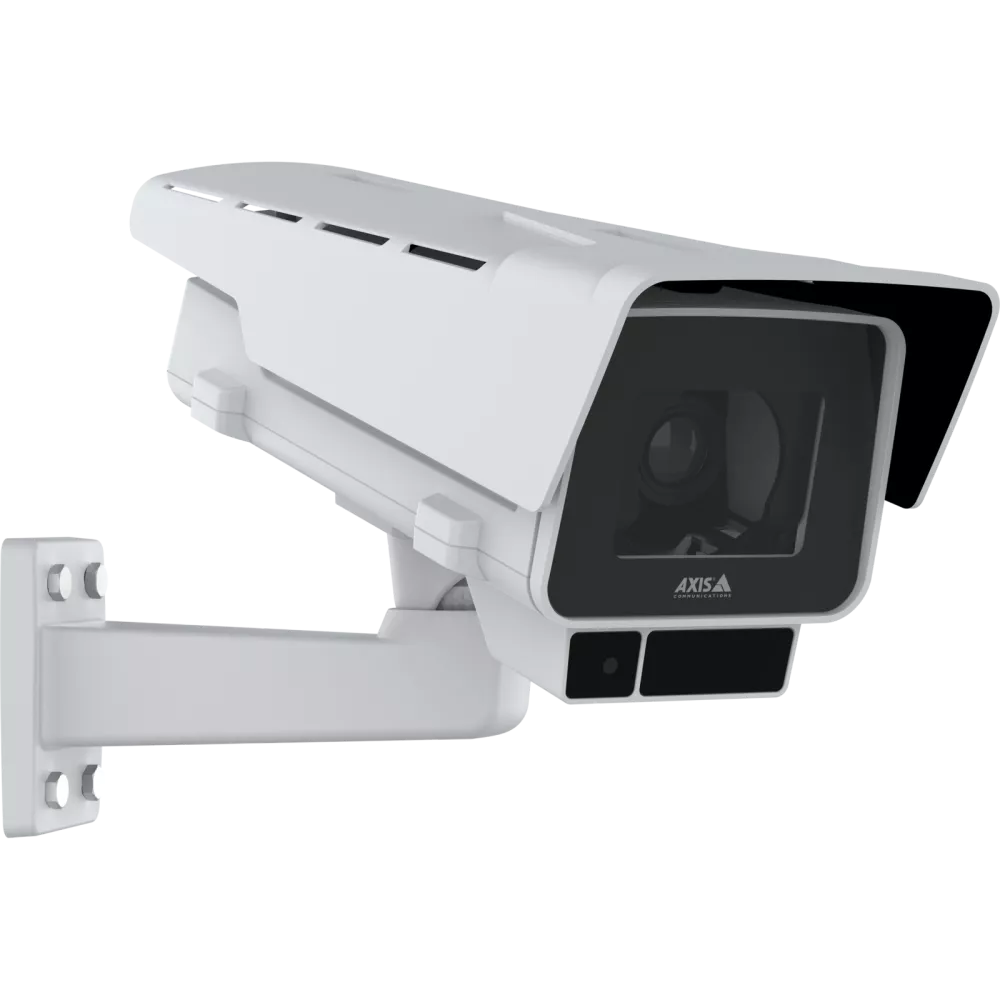

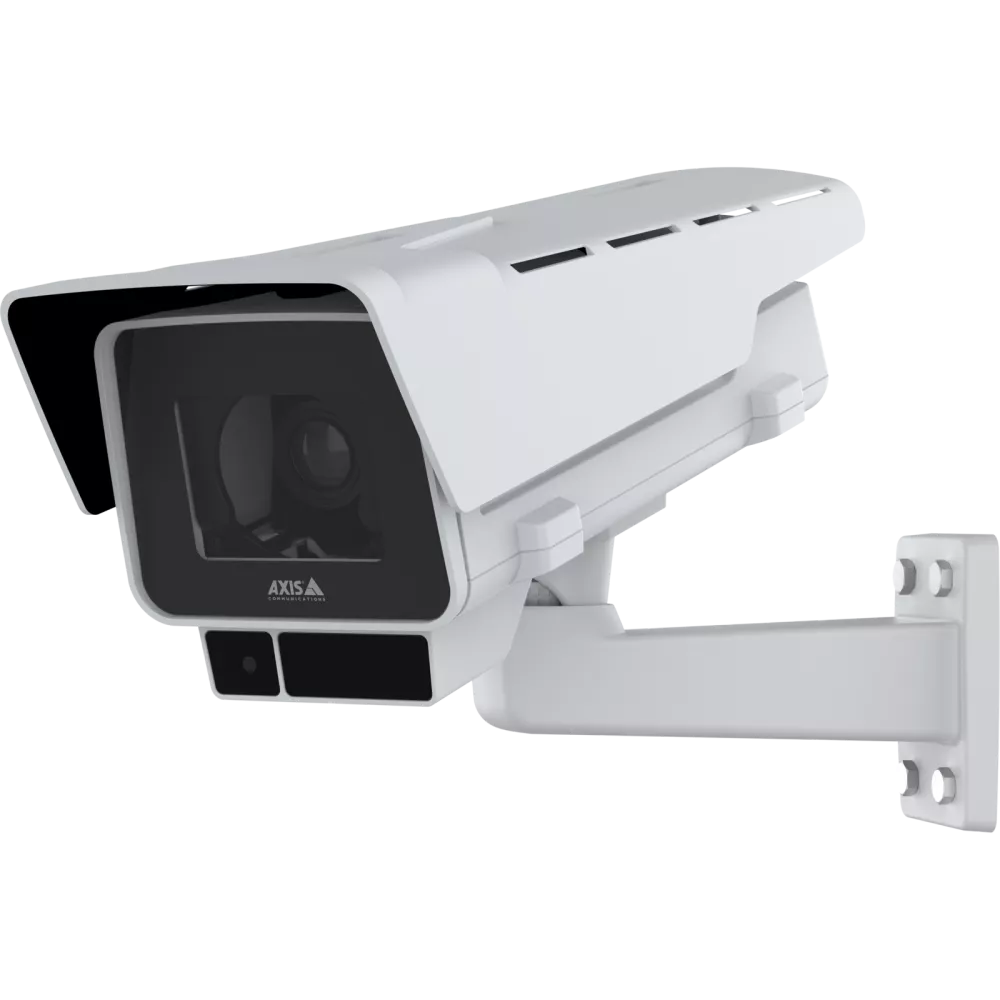

The AXIS P1388-LE is a high-performance box-style IP camera designed for detailed video surveillance in outdoor or demanding indoor environments. With outstanding image quality, low-light clarity, and robust cybersecurity features, it delivers reliable 24/7 monitoring for commercial, industrial, and perimeter security applications. Ideal for installers, businesses, and critical infrastructure, it’s part of Axis’ professional-grade P13 Series known for durability, advanced analytics support, and long-term reliability.
Features
-
Exceptional Image Quality – Delivers crystal-clear 4-megapixel video with superior detail for accurate identification and monitoring.
-
Lightfinder 2.0 – Captures full-color images in near-darkness for more usable footage in low-light scenarios.
-
OptimizedIR – Built-in infrared with range-adaptive LEDs provides clear black-and-white footage in complete darkness up to 40 meters.
-
Electronic Image Stabilization – Reduces motion blur from wind or vibration, maintaining sharp video even in unstable installations.
-
Remote Varifocal Lens – Easily adjust zoom and focus remotely, saving time during installation and maintenance.
-
Robust Cybersecurity – Hardware-based Axis Edge Vault secures device ID and firmware integrity to protect against cyber threats.
-
Outdoor-Ready – IP66/IP67 and NEMA 4X-rated for harsh environments; operates in -40 °C to 60 °C conditions.
-
Advanced Analytics-Ready – Supports third-party and Axis-developed analytics via deep learning processing unit.
-
Efficient Video Compression – H.264/H.265 with Zipstream reduces bandwidth and storage without compromising image quality.
Downloads
Extra Info
Low-Light Performance with Lightfinder 2.0
Unlike traditional cameras that switch to black-and-white early in low light, Lightfinder 2.0 keeps color detail visible longer—useful for capturing accurate clothing colors, license plates, or intruder features even at night.
Reliable Surveillance Anytime, Anywhere
This camera is built for extremes. Whether monitoring a warehouse in sub-zero temperatures or an exterior gate under harsh rain, the rugged housing and electronic image stabilization ensure continuous operation and consistent footage.
Analytics Support with Deep Learning
The built-in deep learning processing unit (DLPU) makes this camera ideal for smart video analytics—such as license plate recognition or motion tracking—without needing external hardware, perfect for facilities aiming to automate alerts or behavior detection.
Secure and Future-Ready
With Axis Edge Vault, secure boot, and signed firmware, your surveillance system is protected from unauthorized access and malware. It’s a smart investment for installations where security integrity is as important as image quality.
Tech Specs
| Camera Image Sensor |
1/1.8” progressive scan RGB CMOS |
| Lens |
CS-mount, IR-corrected
Focal length: 9 mm
Horizontal field of view: 35°
Vertical field of view: 19° |
| Day and Night |
Automatically removable infrared-cut filter |
| Minimum Illumination |
Color: 0.06 lux at 50 IRE, F1.6
B/W: 0.01 lux at 50 IRE, F1.6
0 lux with IR illumination on |
| Shutter Time |
1/66500 s to 2 s |
| Camera Angle Adjustment |
Pan: ±180°
Tilt: ±90°
Rotation: ±180° |
| Video Compression |
H.264 (MPEG-4 Part 10/AVC), H.265 (HEVC), Motion JPEG |
| Resolutions |
2688x1512 (4 MP) to 320x180 |
| Frame Rate |
Up to 60 fps (50/60 Hz) with power line frequency |
| Video Streaming |
Multiple, individually configurable streams
Controllable frame rate and bandwidth
Axis Zipstream technology in H.264 and H.265 |
| Image Settings |
Compression, Color, Brightness, Sharpness, Contrast
White balance, Exposure control, WDR, Rotation
Text/image overlay, Privacy masks, Mirroring |
| Wide Dynamic Range |
130 dB WDR – Forensic Capture |
| IR Illumination |
OptimizedIR with 850 nm IR LEDs
Range: Up to 40 m (131 ft) |
| Audio Support |
Two-way audio
Audio input/output (terminal block)
G.711, G.726, LPCM audio codecs |
| Video Analytics |
AXIS Object Analytics
Support for AXIS Camera Application Platform (ACAP) version 4 |
| Event Triggers |
Analytics, Edge storage events
Input signal, Manual trigger, Time schedule
System start-up, PTZ movement, Temperature |
| Event Actions |
File upload: FTP, SFTP, HTTP, HTTPS, network share, email
Notification: email, HTTP, HTTPS
Overlay text, Video recording, External output activation |
| Video Management |
ONVIF® Profile G, M, S, T compliant |
| Security |
Signed firmware, Secure boot, Axis Edge Vault
TPM 2.0, IEEE 802.1x (EAP-TLS), IP address filtering
Password protection, HTTPS, SSL/TLS, Digest authentication |
| Connectors |
RJ45 10BASE-T/100BASE-TX PoE
Terminal blocks for audio I/O, I/O, DC power
microSD/microSDHC/microSDXC slot |
| Storage Options |
Edge storage with SD card and NAS support
Support for recording to network-attached storage (NAS) |
| Operating Conditions |
-40 °C to 60 °C (-40 °F to 140 °F)
Humidity: 10–100% RH (condensing) |
| Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F) |
| Approvals |
EMC: EN 55032, EN 55035, EN 61000-6-1, FCC Part 15
Safety: IEC/EN/UL 62368-1
Environment: IEC 60068-2-1/2/6/14/27/30
Ingress: IP66/IP67, NEMA 4X
Impact: IK10 |
| Casing |
Aluminum casing with impact-resistant IP67 front window
Color: White NCS S 1002-B |
| Dimensions |
Camera: 200 x 94 x 92 mm (7.9 x 3.7 x 3.6 in) |
| Weight |
1.2 kg (2.6 lb) |
| Power |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1
Typical: 10.5 W, Max: 13.8 W |
| Included Accessories |
Installation guide, Windows® decoder 1-user license, Resistorx® L-key |
| Optional Accessories |
AXIS TQ1808-LE, AXIS T94P01B, AXIS T94M01P
AXIS T94T02D, AXIS T91B47, CS-mount lenses, SD cards |
| Warranty |
5-year limited hardware warranty |
Q&A
Q: Is this camera suitable for outdoor use?
A: Yes, it’s fully outdoor-rated (IP66/IP67, NEMA 4X) and can handle temperatures from -40°C to 60°C.
Q: Can this camera capture usable footage at night?
A: Absolutely. With Lightfinder 2.0 and built-in OptimizedIR, it provides detailed color images in low light and clear black-and-white video in complete darkness up to 40m.
Q: Does it support video analytics?
A: Yes, it includes a deep learning processing unit for powerful analytics support, including behavior monitoring and third-party applications.
Q: Can I adjust the lens remotely?
A: Yes, it features a remote zoom and focus function, allowing easy adjustments without manual intervention.
Q: What cybersecurity features are included?
A: It offers Axis Edge Vault for secure device ID, secure boot, and signed firmware to protect against cyber threats.
Q: What lens does it come with?
A: The camera includes a remote varifocal 9 mm telephoto lens (CS-mount), with optional accessories for different lens configurations.
