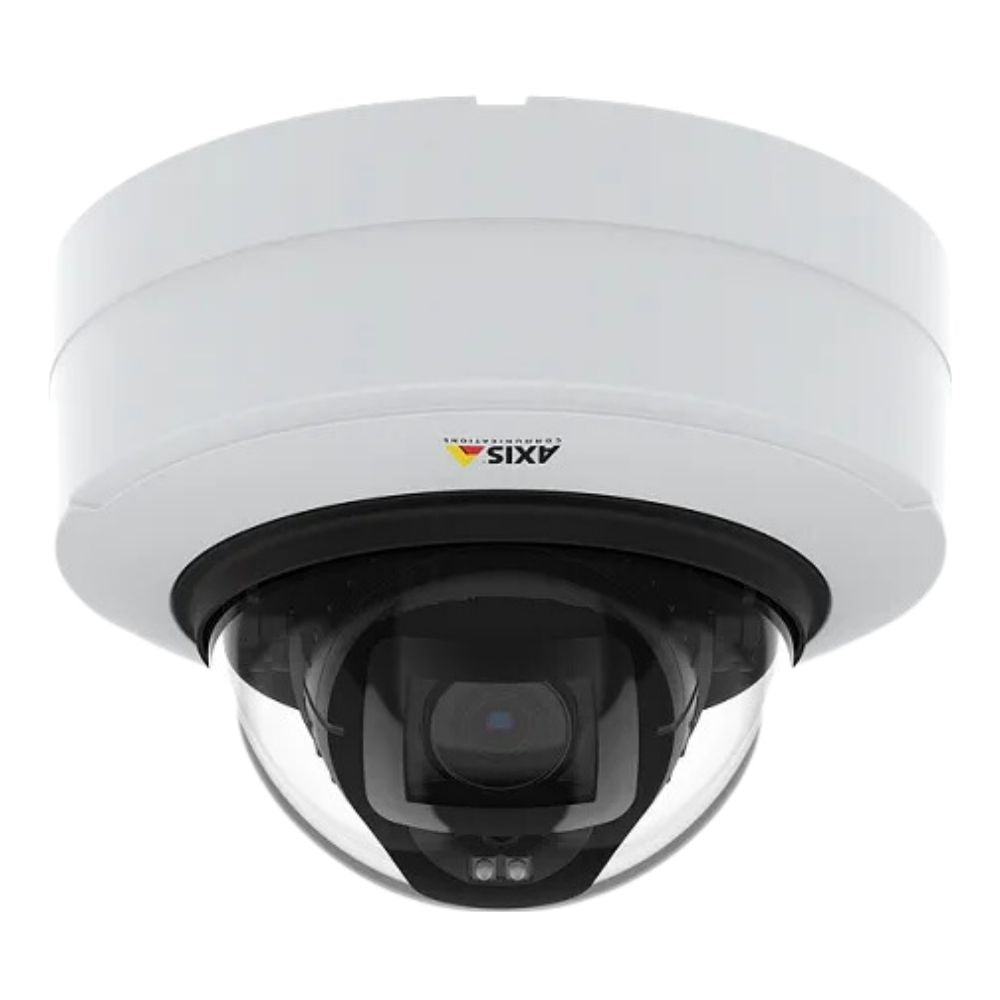

Engineered for demanding environments, the Axis P3247-LVE delivers superior 5-megapixel video with advanced edge analytics to support proactive surveillance. Ideal for businesses, schools, retail environments, and public safety projects, it combines rugged outdoor protection with forensic-level image clarity. With deep learning processing built in, it can identify threats faster and reduce false alarms, saving time and improving response. From poor lighting to harsh weather, this camera doesn’t miss a beat.
Features
-
Deep Learning AI – Accurately detects vehicles and humans using built-in object classification, reducing false alarms.
-
Optimized IR Illumination – Delivers sharp monochrome video in total darkness up to 40 meters.
-
Lightfinder 2.0 – Captures vivid, color-accurate images even in extremely low light for true identification.
-
Outdoor-Rated IK10/IP66 – Withstands vandalism, rain, and dust—ideal for exposed or high-risk areas.
-
Varifocal Lens with Remote Zoom & Focus – Adjust lens remotely for flexible installations without climbing ladders.
-
Forensic WDR – Retains critical detail in scenes with mixed lighting (e.g., storefronts, loading docks).
-
Compact, Low-Profile Dome Design – Discreet yet durable, blends easily into modern or high-traffic settings.
-
Edge Analytics & Storage – Supports local event handling and SD card recording to reduce bandwidth costs.
-
P32 Series Reliability – Part of Axis’ trusted P32 line, known for consistent performance in 24/7 surveillance environments.
Downloads
Extra Info
Advanced Object Detection
At the heart of the P3247-LVE is an advanced deep learning processing unit (DLPU). This allows the camera to differentiate between vehicles and people in real time, making it easier to trigger the right events and alerts. For example, you can set it to notify only when a person enters a restricted area, not when a car passes by—a vital benefit for perimeter and access control.
Performance in Challenging Light
The camera features both Lightfinder 2.0 and Forensic WDR. Lightfinder 2.0 helps the camera retain natural color and sharpness even at night or in low-light hallways, while Forensic WDR ensures critical image detail is preserved in high-contrast scenes, such as when a person enters through a sunlit doorway.
Built for the Outdoors
With its IP66 and IK10 ratings, the P3247-LVE is built to survive rain, snow, dust, and impacts. The integrated IR LEDs extend visibility in total darkness up to 40 meters, making it suitable for schoolyards, parking lots, and commercial perimeters. The camera is also NDAA-compliant, making it suitable for government projects.
Easy Installation & Remote Adjustments
Installers will appreciate the remote zoom and focus capabilities, which allow precise lens adjustments without physical contact once mounted. The varifocal lens offers flexible field-of-view options depending on the scene—whether wide-area monitoring or tighter entry-point coverage.
Tech Specs
| Camera Image Sensor |
1/2.8" progressive scan CMOS |
| Minimum Illumination |
Color: 0.16 lux at 30 IRE (50/60 Hz)
B/W: 0.03 lux at 30 IRE (50/60 Hz) |
| Shutter Time |
1/66500 s to 1 s |
| Camera Angle of View (H/V) |
61.8°–3.0° / 36.7°–1.7° |
| Focal Length |
4.7–94 mm, 21x optical zoom |
| Maximum Aperture |
F1.6–F4.5 |
| Day/Night Function |
Automatically removable IR-cut filter |
| Pan Range |
360° endless |
| Tilt Range |
–90° to +90° |
| Pan/Tilt Speed |
Pan: 0.05°/s to 450°/s
Tilt: 0.05°/s to 450°/s |
| Preset Positions |
100 |
| Video Compression |
H.264 (MPEG-4 Part 10/AVC)
H.265 (MPEG-H Part 2/HEVC)
Motion JPEG |
| Resolution |
1920x1080 (1080p) to 320x180 |
| Frame Rate |
Up to 50/60 fps (50/60 Hz) |
| Video Streaming |
Multiple configurable streams
Axis Zipstream technology |
| Image Settings |
Compression, color, brightness, sharpness, white balance, exposure, WDR,
day/night shift level, text/image overlay, privacy masks, mirroring |
| Audio Support |
Two-way audio
Audio compression: AAC-LC, G.711, G.726
Built-in microphone
External mic/speaker support |
| Event Triggers |
Analytics, edge storage events, manual trigger, input port, PTZ preset,
virtual inputs via VAPIX, shock detection, tampering |
| Video Analytics |
Motion detection, autotracking 2, object classification
Support for AXIS Camera Application Platform (ACAP) |
| Network Protocols |
IPv4, IPv6, HTTP, HTTPS, SSL/TLS, QoS, FTP, SFTP, CIFS/SMB, SMTP, SNMP, DNS,
NTP, RTSP, RTP, TCP, UDP, IGMP, DHCP, ARP, SSH, LLDP, MQTT |
| Security |
Signed firmware, secure boot, HTTPS, IEEE 802.1x (EAP-TLS),
IP address filtering, user access log |
| Edge Storage |
microSD/microSDHC/microSDXC card slot
Support for recording to network-attached storage (NAS) |
| Operating Conditions |
–30°C to 50°C (–22°F to 122°F)
Humidity: 10–100% RH (condensing) |
| Protection Rating |
IP66, IP67, NEMA 4X, IK10 |
| Power |
High Power over Ethernet (PoE++) IEEE 802.3bt Type 4 Class 8 |
| Power Consumption |
Typical: 17.1 W
Max: 24.5 W |
| Connectors |
RJ45 10BASE-T/100BASE-TX PoE
Audio I/O, 2 configurable I/Os, microSD slot |
| Dimensions |
Φ 160 mm x 205 mm (6.3 in x 8.1 in) |
| Weight |
2.2 kg (4.85 lb) |
| Included Accessories |
Installation guide, Windows decoder 1-user license, drill template,
connector guards, terminal connector |
| Warranty |
5-year Axis warranty |
Q&A
Q: Does this camera support person and vehicle detection?
A: Yes. The built-in deep learning processor enables real-time analytics to distinguish between humans and vehicles for smarter alerts.
Q: Can this be used in areas with no lighting at night?
A: Absolutely. The integrated IR LEDs provide clear night vision up to 40 meters, and Lightfinder 2.0 ensures great low-light color performance.
Q: Is this camera weatherproof and vandal-resistant?
A: Yes. It's rated IP66 for water and dust resistance and IK10 for impact protection, making it ideal for outdoor or high-risk areas.
Q: Can the lens be adjusted after installation?
A: Yes. The remote zoom and focus features allow you to fine-tune the lens settings from your computer or mobile device.
Q: Does it work with edge storage?
A: Yes. It supports microSD cards for local recording and edge storage, which helps reduce bandwidth and recording costs.
