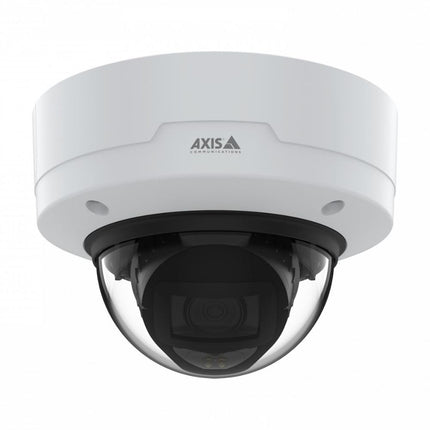

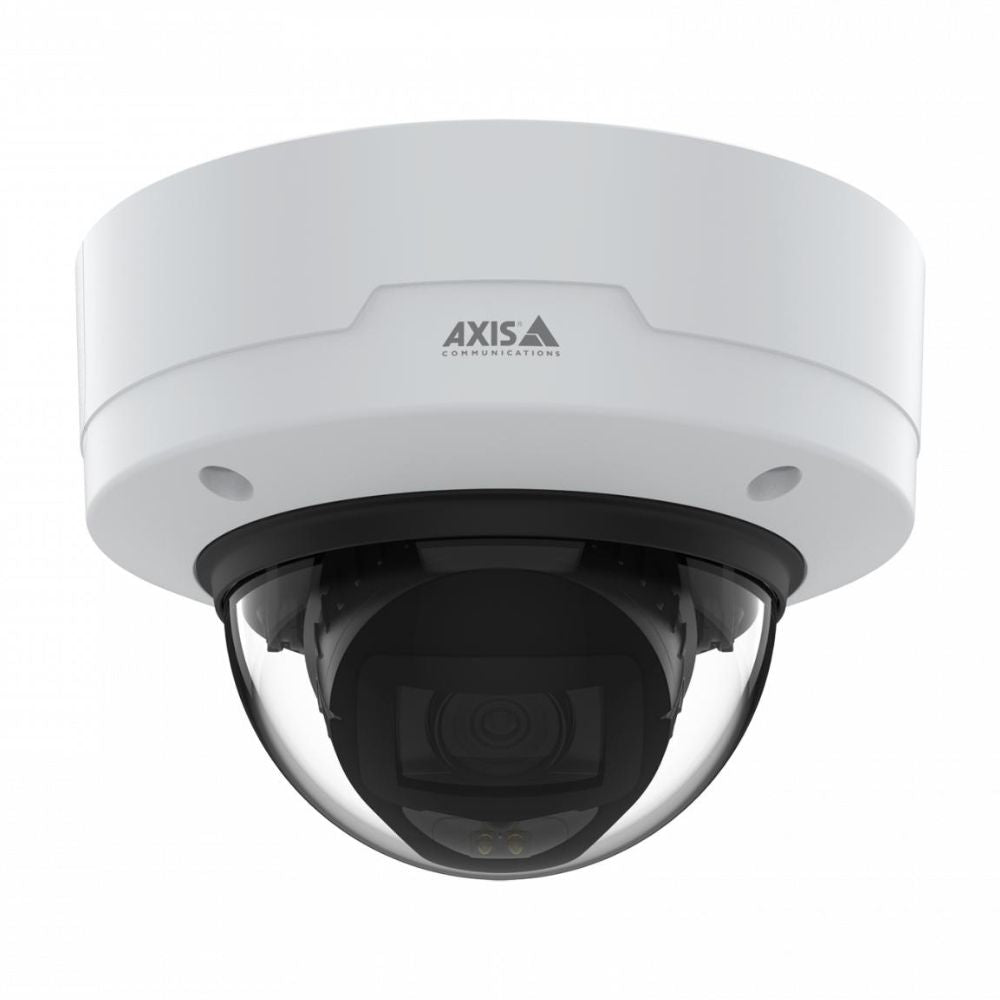

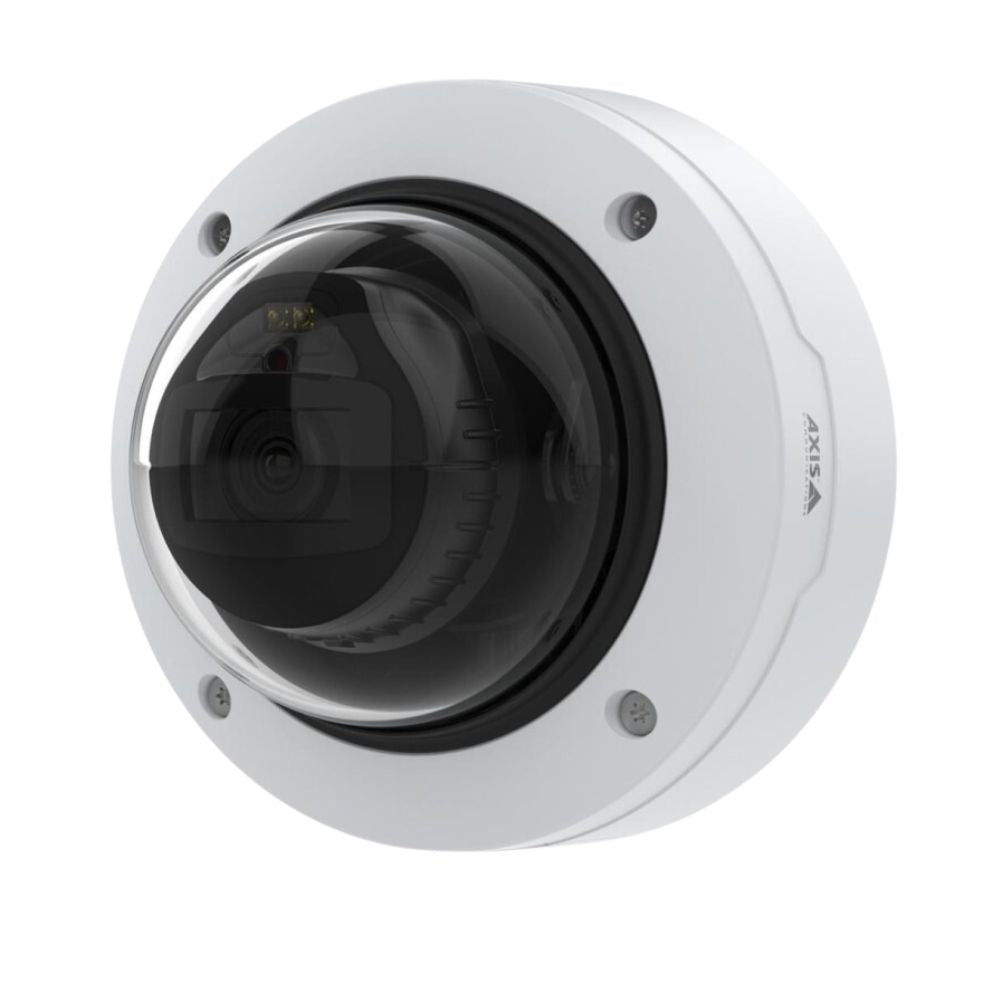

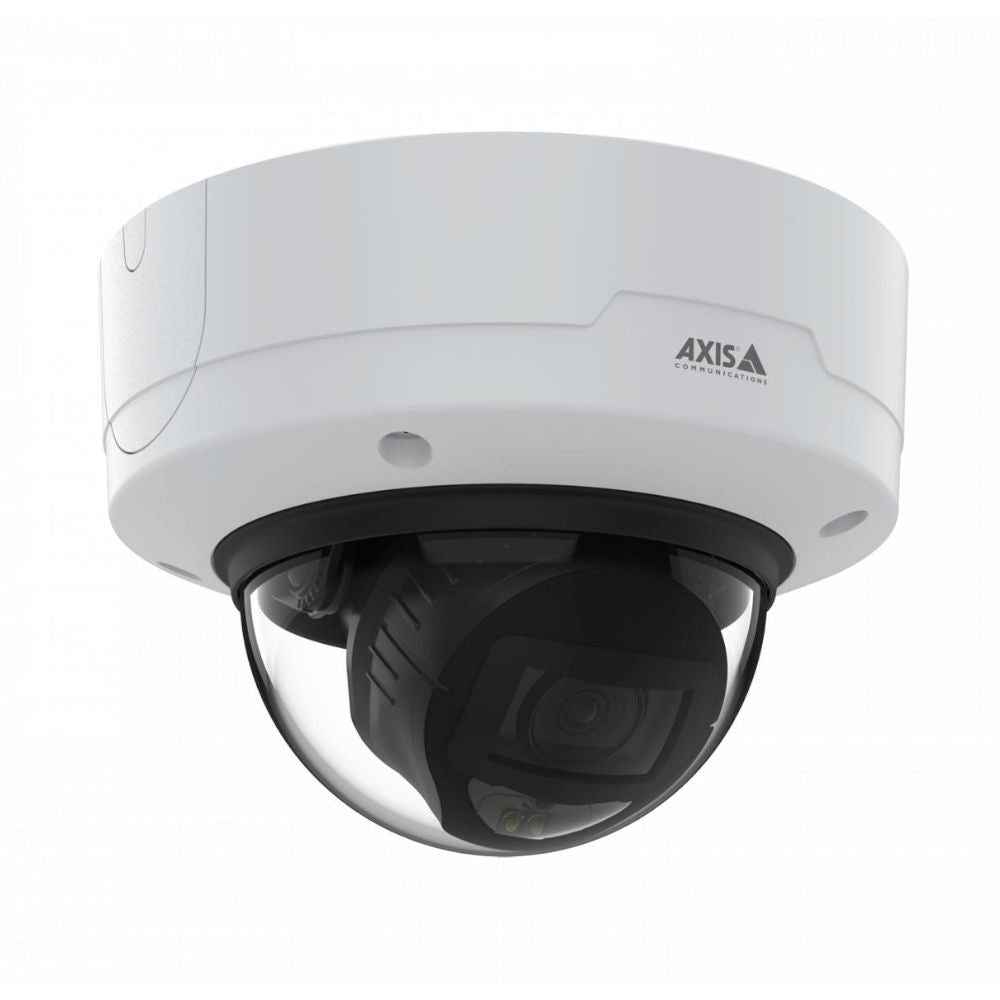

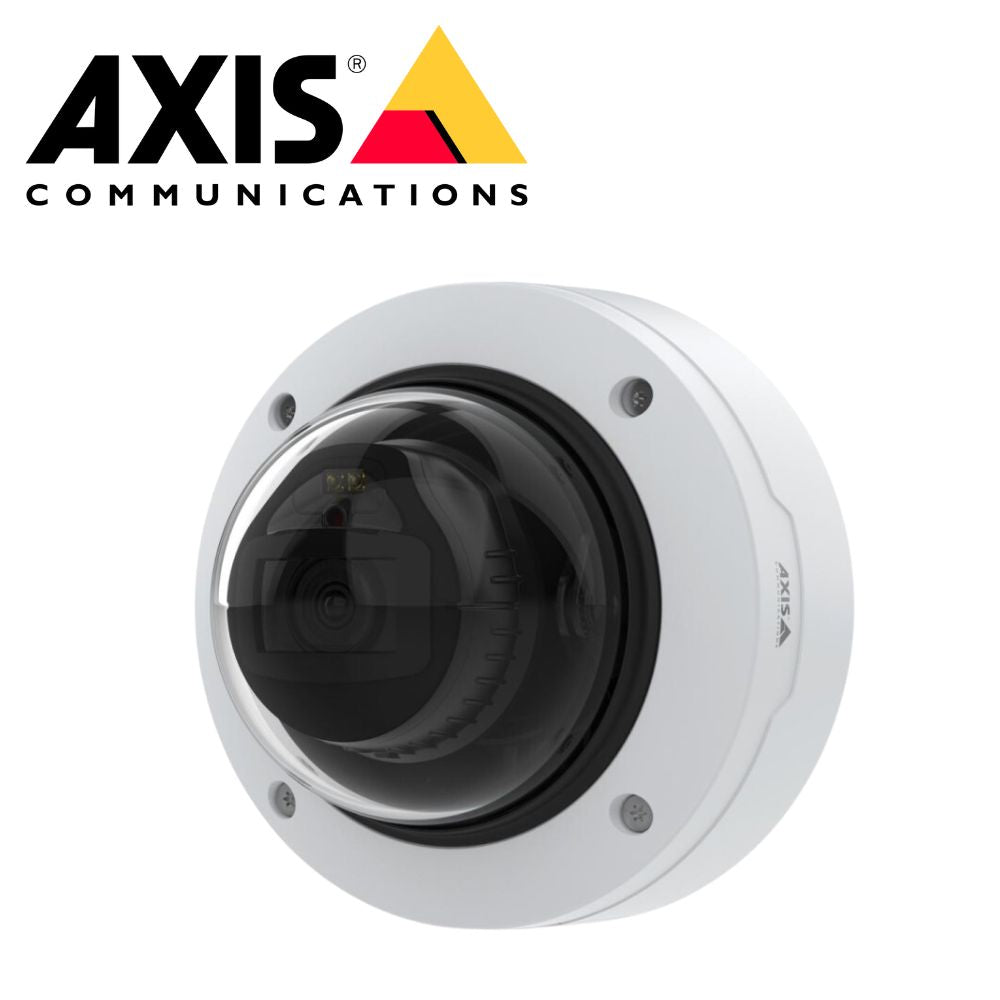

The AXIS P3267-LV is a 5 MP indoor dome camera with Lightfinder 2.0, Forensic WDR, and Optimised IR for clear video in any light. Powered by ARTPEC-8 with deep learning, it supports advanced edge analytics, audio/I/O, and remote zoom/focus for easy setup and secure surveillance.
Features
-
5 MP Resolution – Offers crisp and clear video with a 3–8 mm varifocal lens.
-
Superior Low-Light Performance – Lightfinder 2.0, Forensic WDR (up to 120 dB), and IR for challenging lighting.
-
Edge-Based Deep Learning – DLPU enables real-time analytics for humans, vehicles, and license plates.
-
Smart Object Analytics – Supports up to 10 scenarios like line crossing or object-in-area with bounding box overlays.
-
Audio and I/O Integration – External mic support, I/O ports for alarms and automation.
-
Built-In Cybersecurity – Axis Edge Vault, signed firmware, and SD encryption for secure operations.
-
Zipstream Compression – Efficient video compression in H.264/H.265 without compromising quality.
What's Included:
- AXIS P3267-LV Camera
- Installation guide
- Terminal block connectors
- Drill template
- RESISTORX T20 screw bit
- Cable gaskets
- Connector guard
DOWNLOADS
Key Info
Advanced Edge Analytics
The AXIS P3267-LV includes a deep learning processing unit (DLPU) built on the ARTPEC-8 SoC, allowing it to perform real-time analytics directly on the camera.
Reliable Indoor Surveillance
With IP52 weather protection and IK10 impact resistance, the P3267-LV is built to withstand dust, dripping water, and physical tampering, making it perfect for indoor environments like retail stores, banks, schools, and offices.
High-Quality Imaging in Any Light
Lightfinder 2.0 ensures vibrant, color-accurate images in near darkness, while Forensic WDR enables visibility in high-contrast scenes such as entryways or window-facing views. Optimised IR provides infrared illumination up to 40 meters, ensuring clear footage in complete darkness.
Integrated Audio and Automation
Equipped with a 3.5 mm audio input, digital I/O ports, and support for SIP (VoIP), the camera can be used for two-way audio communication or to trigger alarms, lights, or recording systems in real time.
Smart Video Analysis Detect and classify people, cars, buses, trucks, and bikes with deep learning-based analytics and real-time alerts.
Secure and Efficient Includes signed firmware, secure boot, encrypted storage, and Zipstream compression for secure and efficient performance.
VoIP and Cloud Ready Supports SIP and ONVIF profiles for easy integration with VoIP systems and cloud-based VMS.
Tech Specs
| Specification |
Details |
| **Camera** |
|
| Image Sensor |
1/2.7" progressive scan RGB CMOS |
| Lens |
Varifocal 3–8 mm, F1.3, IR corrected, remote zoom & focus, P-Iris |
| Field of View |
H: 104–40°, V: 74–29° |
| Day/Night |
IR-cut filter, automatic |
| Min. Illumination |
Color: 0.13 lux, B/W: 0 lux (IR on) |
| IR Range |
Up to 40 m |
| Shutter Speed |
1/33500 s to 1/5 s |
| Angle Adjustment |
Pan ±190°, Tilt -10° to +80°, Rotation ±190° |
| SoC |
ARTPEC-8 |
| Memory |
2048 MB RAM, 8192 MB Flash |
| **Video** |
|
| Compression |
H.264, H.265, Motion JPEG with Zipstream |
| Resolution |
2592x1944 (5 MP) to 160x90 |
| Frame Rate |
25/30 fps (50/60 Hz) |
| Streaming |
Multiple configurable streams, VBR/ABR/MBR |
| WDR |
Forensic WDR up to 120 dB |
| PTZ |
Digital PTZ, preset positions |
| **Audio** |
|
| Audio In/Out |
3.5 mm mic/line in, I/O audio streaming |
| Audio Encoding |
LPCM, AAC-LC, G.711, G.726, Opus |
| **Network** |
|
| Protocols |
IPv4/6, HTTPS, TLS, SIP, RTSP, MQTT, SNMP, etc. |
| Connectors |
RJ45 PoE, 4-pin I/O terminal block, 3.5 mm audio |
| **System Integration** |
|
| API |
VAPIX, ACAP, ONVIF (G/M/S/T), SIP |
| Triggers/Actions |
Events, overlays, recording, MQTT, SIP, alarms |
| Tools |
Remote zoom/focus, level grid, pixel counter |
| **Analytics** |
|
| Included |
AXIS Object Analytics, Motion Detection, Tampering Alarm |
| Detection Targets |
Humans, vehicles, faces, license plates |
| Scenario Support |
Up to 10, with include/exclude zones |
| **Cybersecurity** |
|
| Software Security |
Signed firmware, password protection, SD encryption |
| Hardware Security |
Secure boot, Edge Vault, secure keystore |
| Network Security |
HTTPS, IEEE 802.1X, TLS 1.2/1.3, X.509 PKI |
| **General** |
|
| Casing |
IP52-, IK10-rated, polycarbonate dome |
| Power |
PoE IEEE 802.3af/at, typical 6.4 W, max 9 W |
| Storage |
microSD/microSDHC/microSDXC, encrypted, NAS support |
| Operating Temp |
0 °C to 50 °C |
| Dimensions |
Ø 149 mm x H 107 mm |
| Weight |
800 g (1.8 lb) |
| Warranty |
5-year warranty |
Q&A
Q1: Can this camera recognize different types of vehicles or just detect motion?
A: Yes. Thanks to its DLPU and AXIS Object Analytics, it can classify and differentiate between cars, buses, trucks, and bikes—along with detecting human movement and license plates.
Q2: Does it require a separate NVR for recording?
A: Not necessarily. It supports edge recording to a microSD/microSDHC/microSDXC card and can also store video on a network-attached storage (NAS) device. You can also integrate it into a VMS or use Axis Camera Station.
Q3: What cybersecurity protections are in place?
A: The P3267-LV includes Axis Edge Vault for secure device identity, secure boot, signed firmware, encrypted SD card storage, and network protocols supporting TLS 1.2/1.3, HTTPS, and 802.1X authentication.
Q4: Can I use third-party applications with this camera?
A: Yes, it supports the AXIS Camera Application Platform (ACAP), enabling installation of custom or third-party applications to extend functionality, such as specialized analytics or cloud integrations.
Q5: How far can the infrared (IR) reach?
A: The Optimised IR system offers IR illumination up to 40 meters (130 feet), depending on the environment and installation angle, providing clear monochrome footage even in total darkness.
