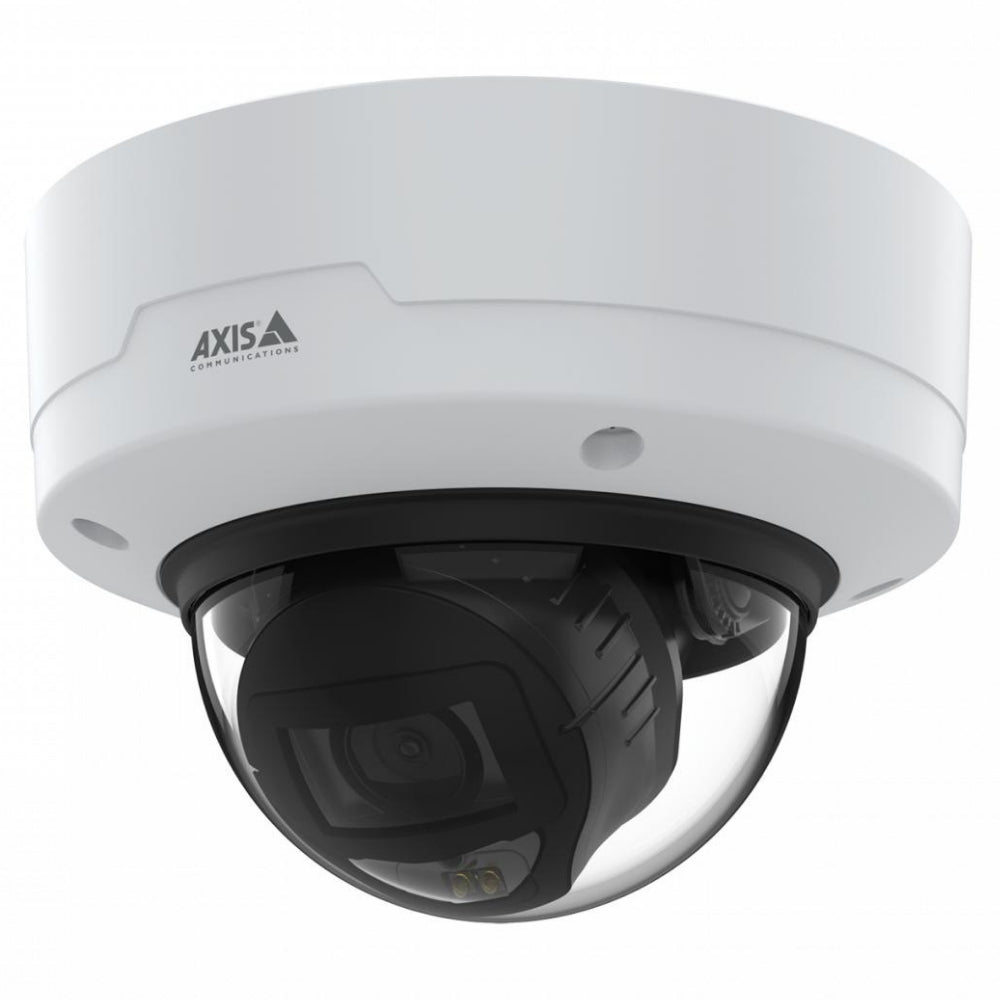

Axis P3268-LV 8MP (4K) Indoor Dome Camera – 4.3–8.6mm Varifocal, Edge Analytics, IP52/IK10 – 02331-001

Description

The AXIS P3268-LV is a robust 8 MP indoor dome camera with Lightfinder 2.0, Forensic WDR, and OptimisedIR for sharp imaging in any light. With built-in deep learning and AXIS Object Analytics, it enables real-time object detection, making it ideal for smart indoor surveillance.

Feature

  • Brilliant 4K Imaging – Captures sharp, detailed footage with 8 MP resolution, Lightfinder 2.0, and Forensic WDR.
  • Built-in Deep Learning – Equipped with DLPU for advanced edge-based analytics.
  • AXIS Object Analytics – Enables custom rules for detecting humans and vehicles with precision.
  • Optimised IR with 40 m Range – Delivers clear images even in total darkness.
  • Audio and I/O Support – External mic, network speaker pairing, supervised input/output integration.
  • Edge Vault Cybersecurity – Secure boot, signed OS and video, and secure keystore protect your system.
  • Multi-View Streaming – Stream up to 2 individually cropped views with full frame rate.
  • Efficient Streaming – Zipstream with H.265 reduces bandwidth and storage requirements.

What's Included:

  • AXIS P3268-LV Camera
  • Installation guide
  • Terminal block connectors
  • Cable gaskets
  • Connector guard

DOWNLOADS

Datasheet  AXIS P3268-LV Datasheet
Installation Guide  AXIS P3268-LV Installation Guide
User Manual  AXIS P3268-LV User Manual



Key Info

Smart Indoor Monitoring with Deep Learning
The AXIS P3268-LV features the ARTPEC-8 SoC and DLPU to power AI-driven analytics at the edge. Detect and classify humans and vehicles in real time using AXIS Object Analytics, reducing false alarms and server load.

Outstanding Detail in Any Lighting
Advanced imaging tech including Lightfinder 2.0, Forensic WDR, and Optimised IR ensure vivid detail in bright light, shadows, or complete darkness. Ideal for lobbies, offices, classrooms, and other indoor spaces.

Secure and Connected
With Axis Edge Vault, secure boot, encrypted storage, and support for network audio and I/O devices, this camera ensures operational integrity while enabling integration with alarms, mics, or speakers.

Tech Specs

Specification Details
**Camera**
Image Sensor 1/1.8" progressive scan RGB CMOS
Lens Varifocal, 4.3–8.6 mm, F1.5, IR-corrected, P-Iris
Field of View H: 100°–53°, V: 54°–30°
IR Illumination Optimised IR, range up to 40 m
Day/Night Automatic IR-cut filter
Minimum Illumination Color: 0.14 lux / B&W: 0 lux
Shutter Speed 1/8500 s to 1/5 s
Angle Adjustment Pan ±190°, Tilt -10 to +80°, Rotation ±190°
SoC ARTPEC-8 with DLPU
Memory 2048 MB RAM, 8192 MB Flash
**Video**
Compression H.264 (Baseline/Main/High), H.265 (Main), Motion JPEG
Resolution 3840x2160 (4K UHD) to 160x90
Frame Rate Up to 30 fps with WDR
Streaming Multiple configurable streams, Zipstream (H.264/H.265), VBR/ABR/MBR
WDR Forensic WDR up to 120 dB
Image Settings Tone mapping, exposure zones, corridor format, overlays, privacy masks
PTZ Digital PTZ, preset positions
**Audio**
Audio Streaming 2-way via edge-to-edge, automatic gain control
Audio Encoding LPCM, AAC-LC, G.711, G.726, Opus
Audio I/O External mic, line in, digital input/output
**Network**
Protocols IPv4/6, HTTPS, HTTP/2, TLS, FTP, SFTP, SNMP, SIP, RTSP, MQTT, LLDP, mDNS, etc.
Connectors RJ45 PoE, Terminal block (I/O), 3.5 mm audio in
**System Integration**
API VAPIX, ONVIF (G/M/S/T), SIP, ACAP, cloud connect
Event Triggers Analytics, I/O, temp alerts, schedule, MQTT, casing open
Event Actions Recording, LED flash, overlay, SIP call, MQTT publish
Built-in Tools Pixel counter, level grid, remote zoom/focus
**Analytics**
Included AXIS Object Analytics, Motion Detection, Audio Detection, Tampering
Object Detection Humans, vehicles (cars, buses, trucks, bikes)
Scenarios Up to 10, with line crossing and area triggers
Cybersecurity
Software Security Signed OS, secure boot, encrypted storage
Hardware Security Axis Edge Vault, TPM, secure keystore
Network Security 802.1X, HTTPS, TLS 1.2/1.3, firewall
**General**
Casing IK10- and IP52-rated polycarbonate
Power PoE IEEE 802.3af/at, Typical 5.5W, Max 10W
Storage microSD/microSDHC/microSDXC with encryption, NAS support
Operating Conditions 0 °C to 50 °C, 10–85% RH
Dimensions H: 107 mm, Ø 149 mm
Weight 800 g
Languages EN, DE, FR, ES, IT, RU, ZH, JA, KO, PT, PL, etc.
Warranty 5-year warranty

Q&A

Q1: What resolution does the AXIS P3268-LV provide?
A: It offers brilliant 4K resolution (8 MP) with sharp details supported by advanced light and color technologies.

Q2: Can it be used outdoors?
A: While robust and IK10-rated, the P3268-LV is designed primarily for indoor use. For full outdoor use, consider the P3268-LVE variant.

Q3: Is it effective in low-light conditions?
A: Yes, it features Lightfinder 2.0, Forensic WDR, and Optimised IR to ensure clear footage in low or mixed lighting.

Q4: What analytics are included?
A: It supports AXIS Object Analytics with real-time classification of humans and vehicles, plus custom rule setup.

Q5: How does it protect against cybersecurity threats?
A: It includes Axis Edge Vault, secure boot, signed firmware and video, SD card encryption, and more for comprehensive protection.
