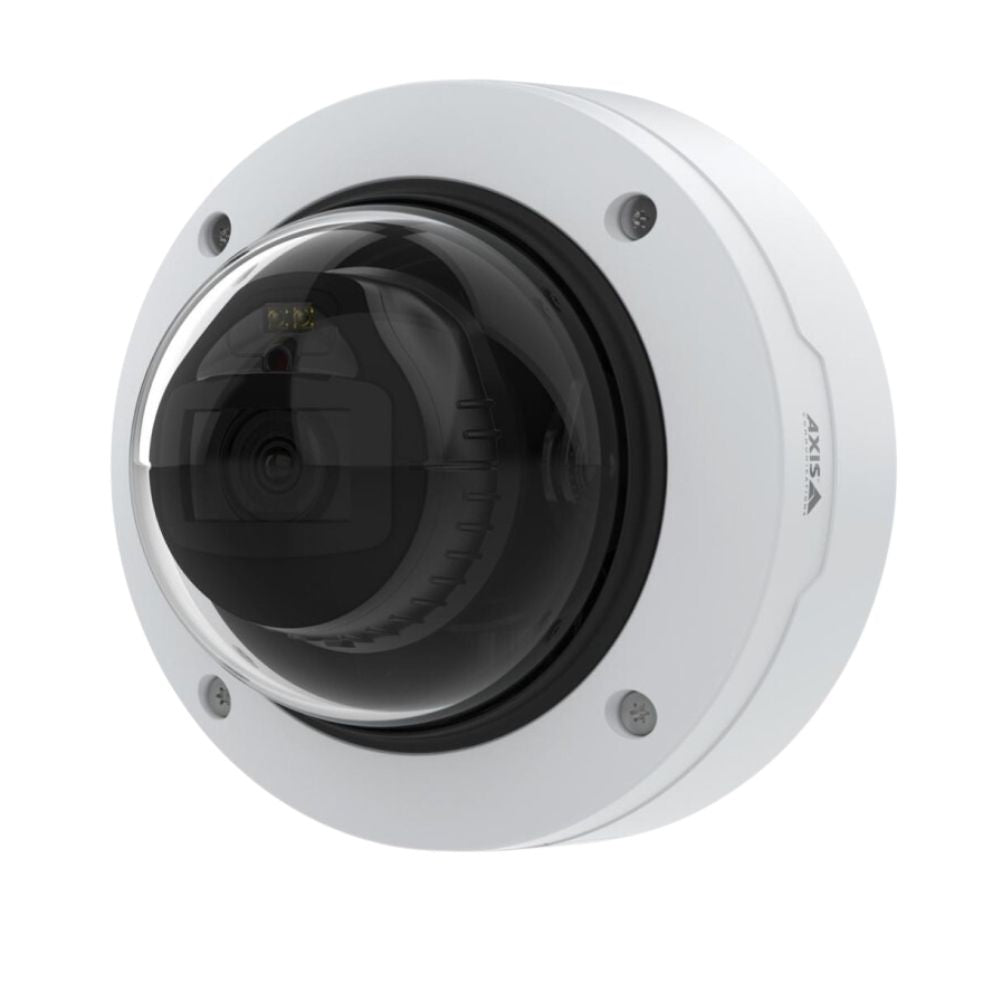

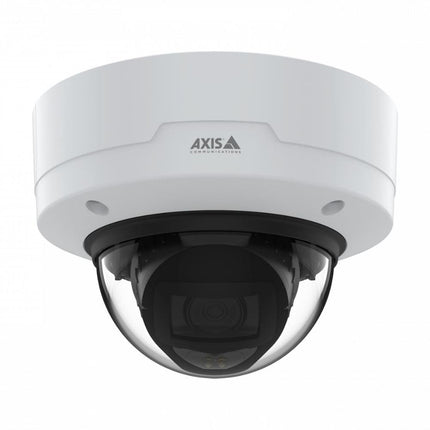

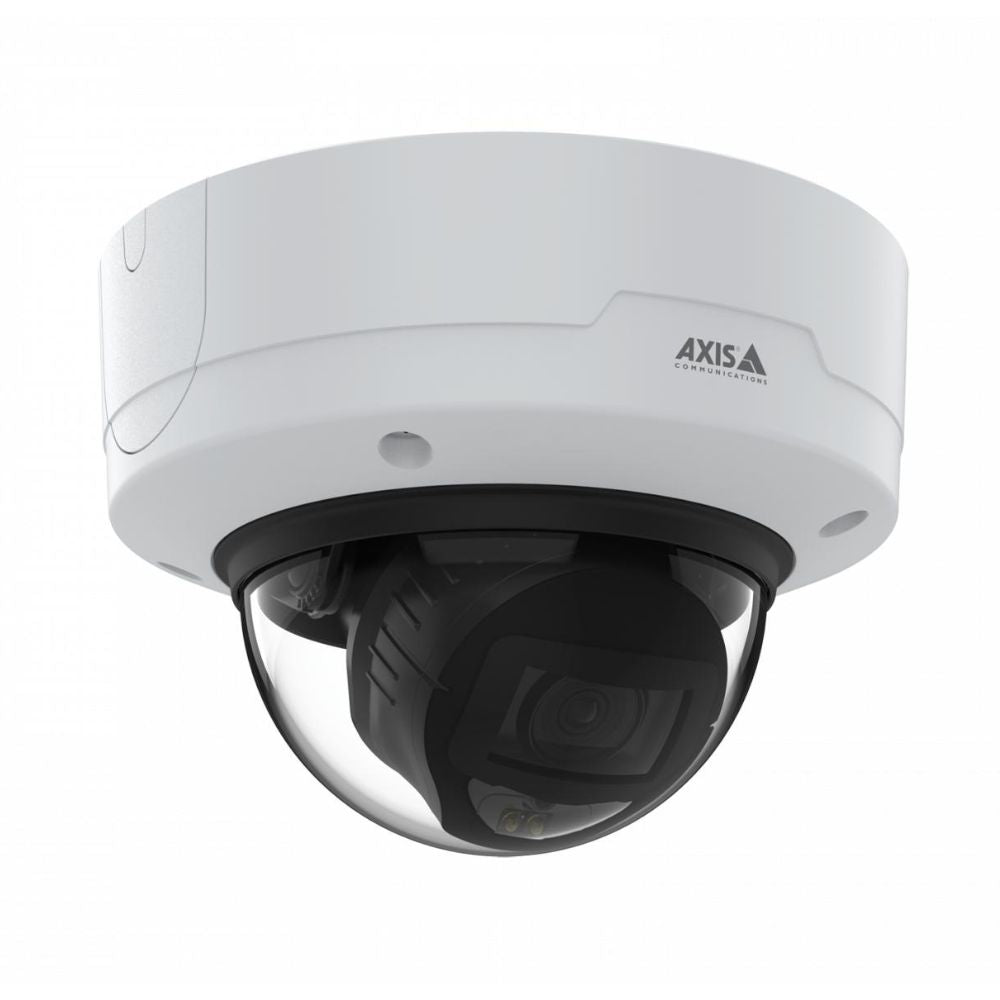

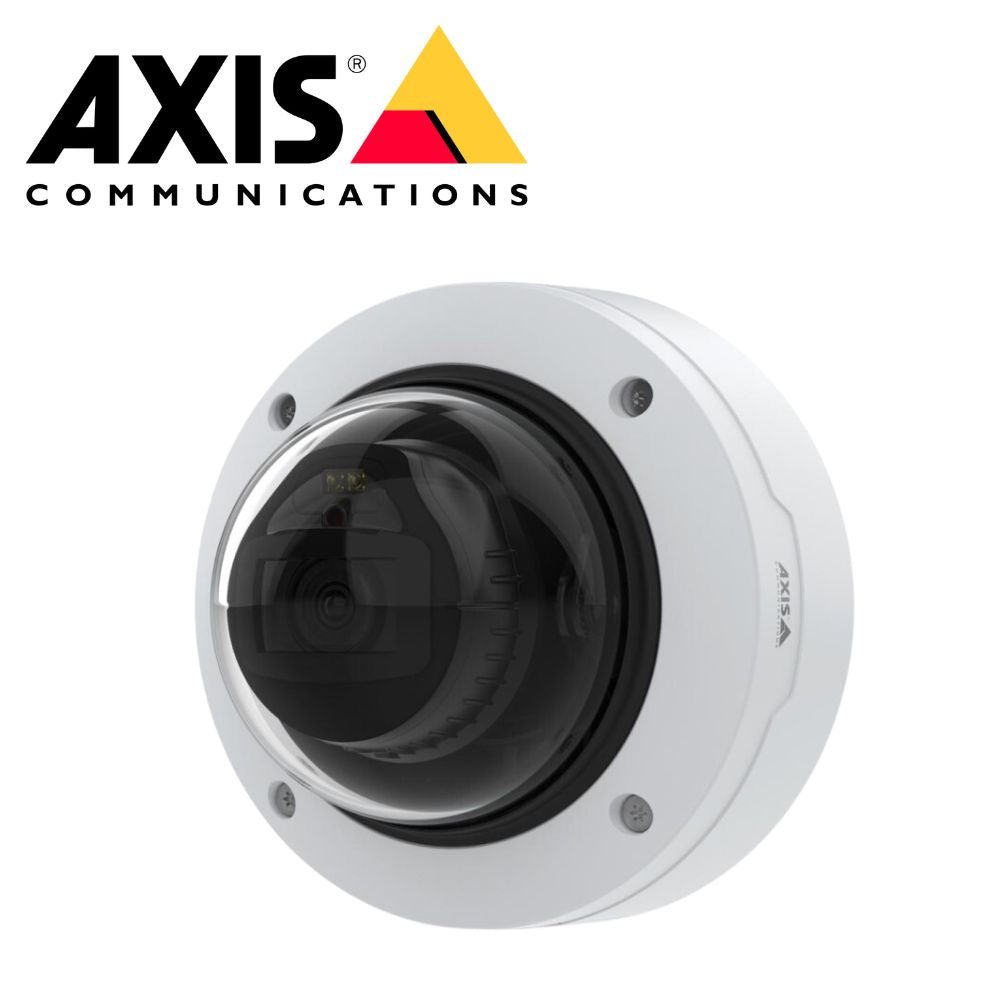

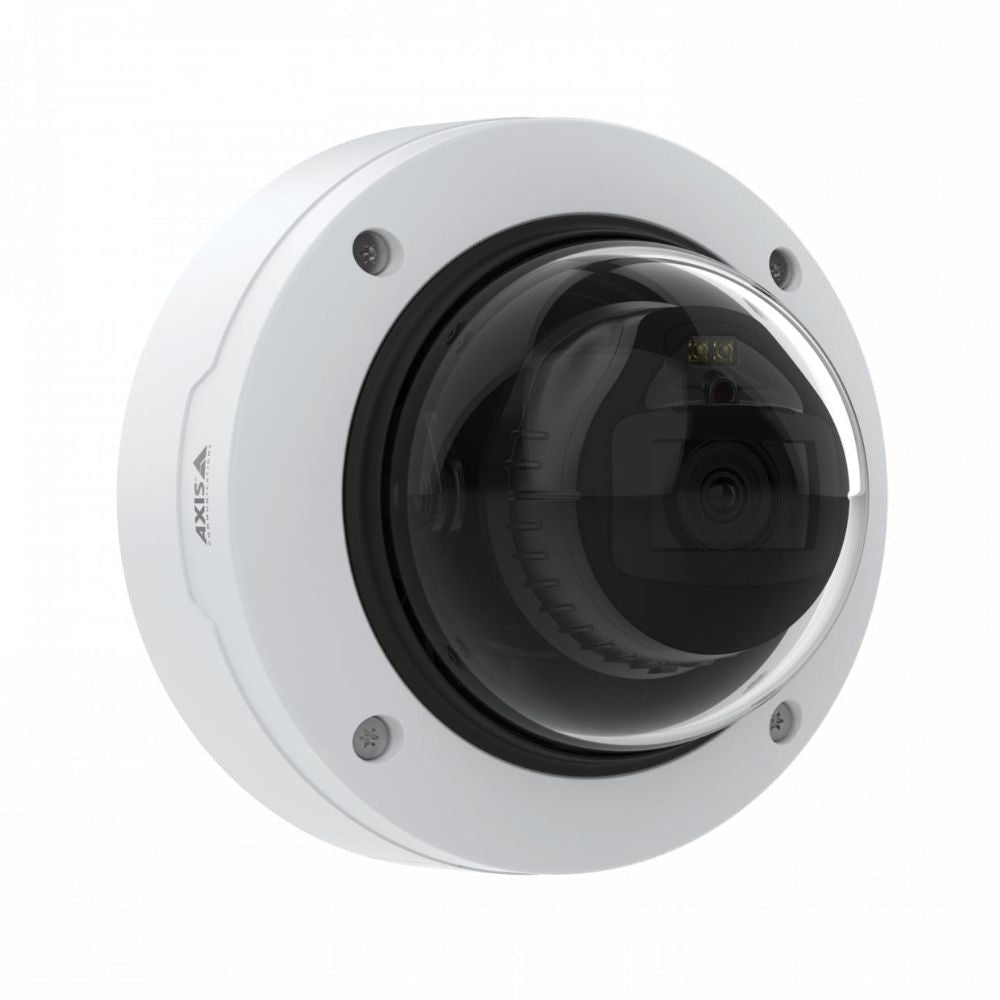

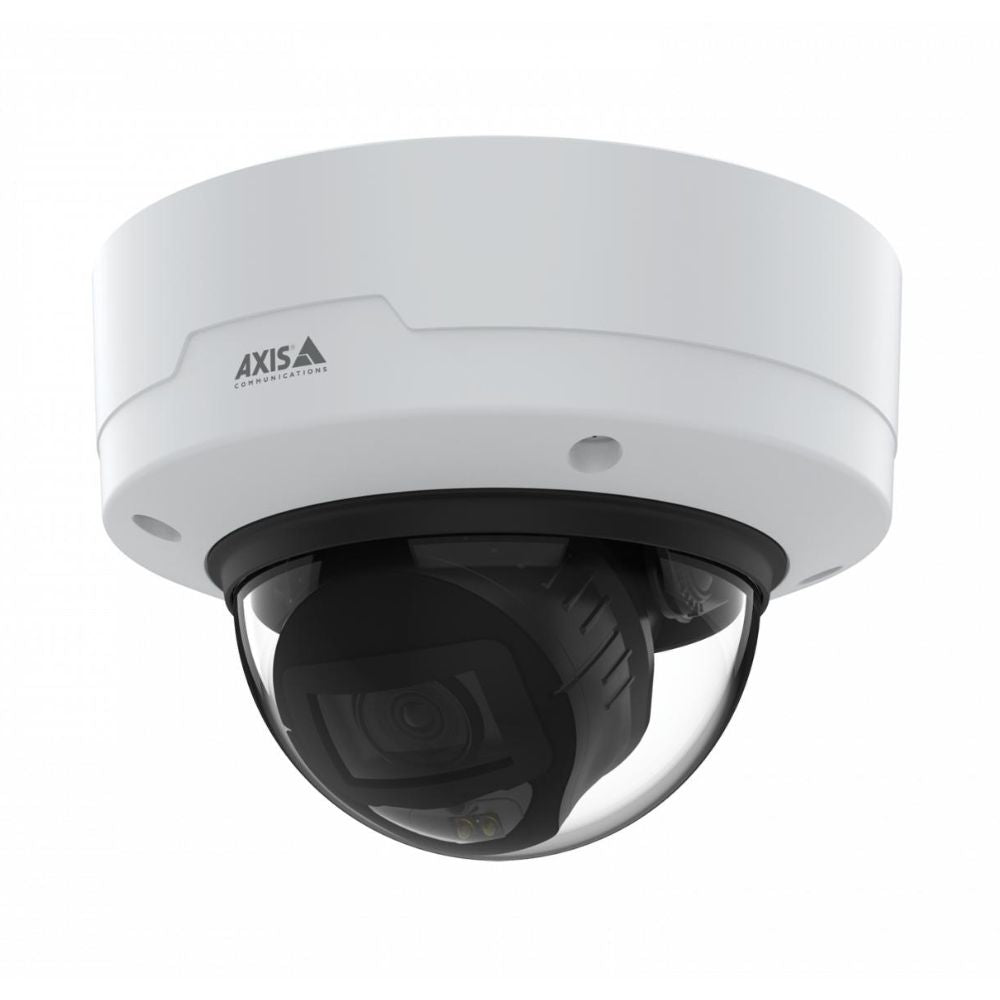

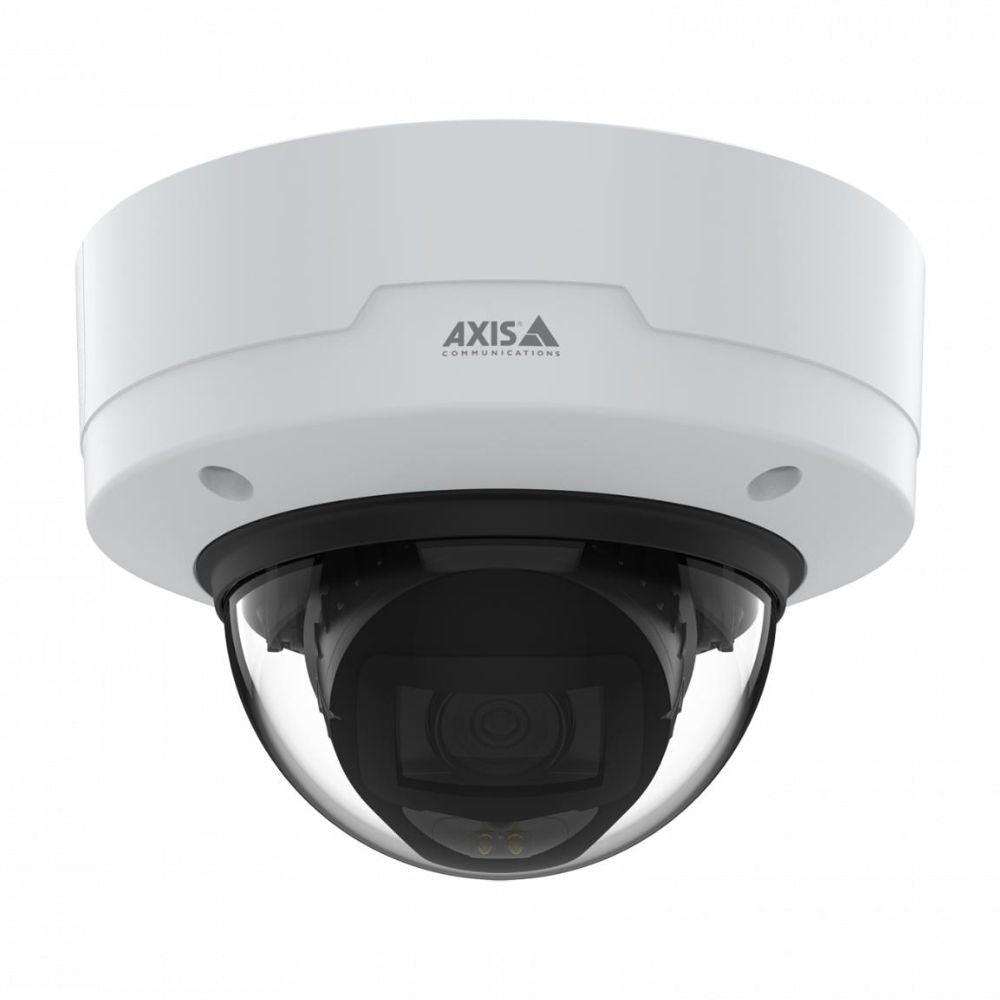

The AXIS P3268-LV is an 8 MP indoor dome camera with 4K video, Lightfinder 2.0, Forensic WDR, and Optimised IR for clear images in any light. Powered by ARTPEC-8 with deep learning, it supports advanced edge analytics, audio/I/O, and strong cybersecurity in a robust IK10-rated design.
Feature
-
Brilliant 4K Resolution – Captures crisp, high-detail video with 8 MP sensor and varifocal lens.
-
Optimised for Any Light – Lightfinder 2.0, Forensic WDR (up to 120 dB), and IR illumination for full-scene clarity.
-
Deep Learning on the Edge – Built-in DLPU enables accurate classification of humans and vehicle types.
-
Smart Analytics – AXIS Object Analytics supports up to 10 scenarios including object in area, line crossing, and more.
-
Audio and I/O Ports – Integrate external microphones or trigger alarms via digital inputs/outputs.
-
Strong Cybersecurity – Edge Vault, signed firmware, encrypted storage, and secure boot ensure data protection.
-
Efficient Compression with Zipstream – Reduces bandwidth and storage use while preserving crucial details.
What's Included:
- AXIS P3268-LV Camera
- Installation guide
- Terminal block connectors
- Drill template
- RESISTORX T20 screw bit
- Cable gaskets
- Connector guard
DOWNLOADS
Key Info
Advanced AI at the Edge This camera uses a DLPU (deep learning processing unit) to process analytics locally, offering fast, efficient detection and classification of humans, cars, buses, trucks, and bikes.
4K Imaging in Low Light Combining Lightfinder 2.0 and Forensic WDR, the AXIS P3268-LV delivers exceptional clarity in challenging lighting. Optimised IR ensures visibility up to 40 m in total darkness.
Indoor-Ready and Tamper-Resistant Its IK10-rated polycarbonate casing is designed for durability in indoor settings such as retail, offices, and public spaces.
Integrated Audio and I/O Audio support via 3.5 mm jack and I/O ports make it easy to connect microphones, alarm systems, and other peripherals.
Robust Cybersecurity Includes Axis Edge Vault for device identity protection, signed firmware, secure keystore, and encrypted SD card support.
Efficient Bandwidth Use Supports H.264, H.265, and Motion JPEG with Zipstream for optimised video compression without loss of detail.
Tech Specs
| Specification |
Details |
| **Camera** |
|
| Image Sensor |
1/1.8" progressive scan RGB CMOS |
| Lens |
Varifocal 4.3–8.6 mm, F1.5, IR corrected, remote zoom & focus, P-Iris |
| Field of View |
H: 100–53°, V: 54–30° |
| Day/Night |
IR-cut filter, automatic |
| Min. Illumination |
Color: 0.14 lux, B/W: 0 lux (IR on) |
| IR Range |
Up to 40 m |
| Shutter Speed |
1/8500 s to 1/5 s |
| Angle Adjustment |
Pan ±190°, Tilt -10° to +80°, Rotation ±190° |
| SoC |
ARTPEC-8 |
| Memory |
2048 MB RAM, 8192 MB Flash |
| **Video** |
|
| Compression |
H.264 (Baseline/Main/High), H.265 (Main), Motion JPEG |
| Resolution |
3840x2160 (4K) to 160x90 |
| Frame Rate |
25/30 fps (50/60 Hz) |
| Streaming |
Multiple configurable streams, Zipstream, VBR/ABR/MBR |
| WDR |
Forensic WDR up to 120 dB |
| Image Settings |
Saturation, contrast, brightness, tone mapping, privacy mask, overlays, etc. |
| PTZ |
Digital PTZ, preset positions |
| **Audio** |
|
| Audio In/Out |
3.5 mm mic/line in, two-way audio via edge-to-edge |
| Audio Encoding |
LPCM, AAC-LC, G.711, G.726, Opus |
| **Network** |
|
| Protocols |
IPv4/6, HTTP/HTTPS, TLS, FTP/SFTP, SNMP, RTP, SRTP, MQTT, mDNS, etc. |
| Connectors |
RJ45 PoE, 4-pin I/O terminal block, 3.5 mm audio |
| System Integration |
|
| API |
VAPIX, ONVIF (G/M/S/T), SIP, ACAP, cloud connect |
| Triggers/Actions |
Events, MQTT, overlays, LED flash, SIP calls, recording/upload, etc. |
| Tools |
Level grid, pixel counter, remote zoom/focus |
| **Analytics** |
|
| Included |
AXIS Object Analytics, Motion Detection, Tampering Alarm |
| Detection Targets |
Humans, cars, trucks, bikes, faces, license plates |
| Scenario Support |
Up to 10, with include/exclude areas and bounding boxes |
| **Cybersecurity** |
|
| Software Security |
Signed OS, password protection, SD encryption |
| Hardware Security |
Secure boot, Edge Vault, secure keystore |
| Network Security |
HTTPS, IEEE 802.1X, TLS 1.2/1.3, X.509 PKI |
| **General** |
|
| Casing |
IP52-, IK10-rated, polycarbonate dome |
| Power |
PoE IEEE 802.3af/at, typical 5.5 W, max 10 W |
| Storage |
microSD/microSDHC/microSDXC, encrypted, NAS support |
| Operating Temp |
0 °C to 50 °C |
| Dimensions |
Ø 149 mm x H 107 mm |
| Weight |
800 g (1.8 lb) |
| Languages |
Multiple including EN, FR, ES, DE, ZH, JA, KO, RU, PL, etc. |
| Warranty |
5-year warranty |
Q&A
Q1: Is this camera suitable for outdoor use? A: No, the AXIS P3268-LV is designed for indoor use and carries an IP52 rating for dust and drip resistance.
Q2: How far can the IR LEDs illuminate? A: The Optimised IR system can reach up to 40 meters depending on the scene.
Q3: What analytics features are built in? A: AXIS Object Analytics with deep learning-based object classification and scene metadata, including up to 10 scenarios.
Q4: Does it support encrypted video storage? A: Yes, it offers AES-XTS-Plain64 256-bit SD card encryption for secure edge storage.
Q5: Can it be integrated with existing VoIP systems? A: Yes, it supports SIP for seamless integration with VoIP/SIP-PBX systems.
