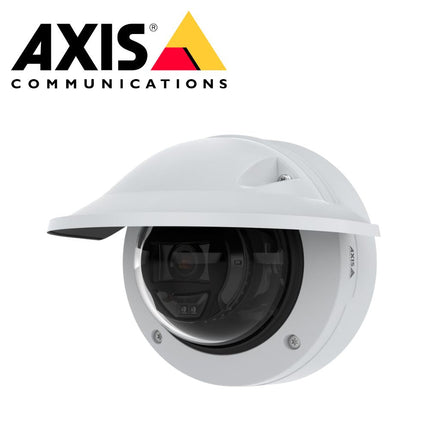

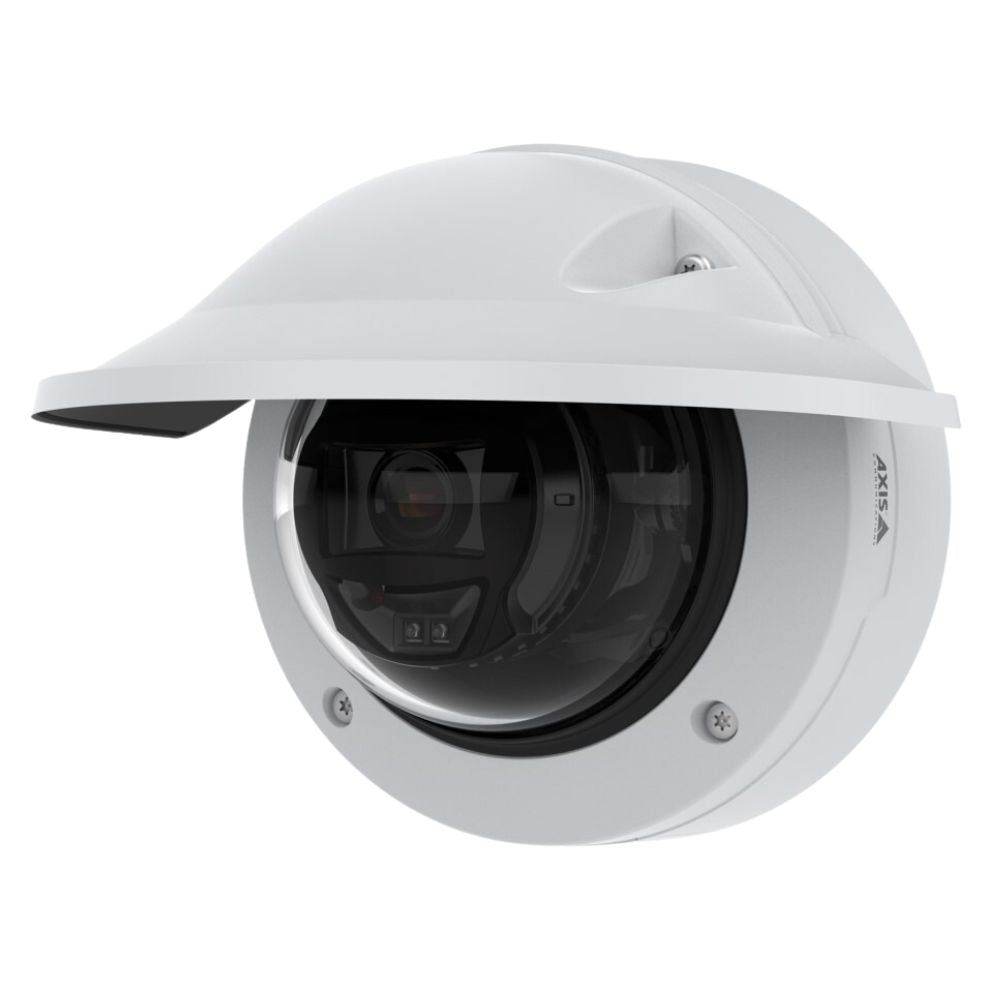

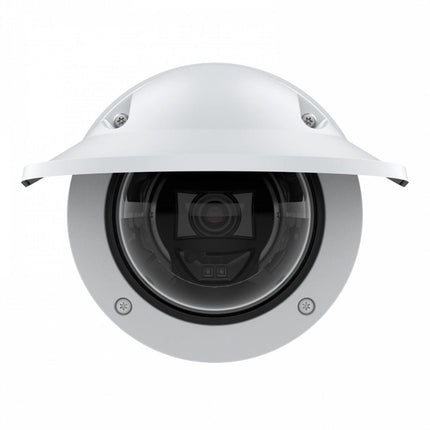

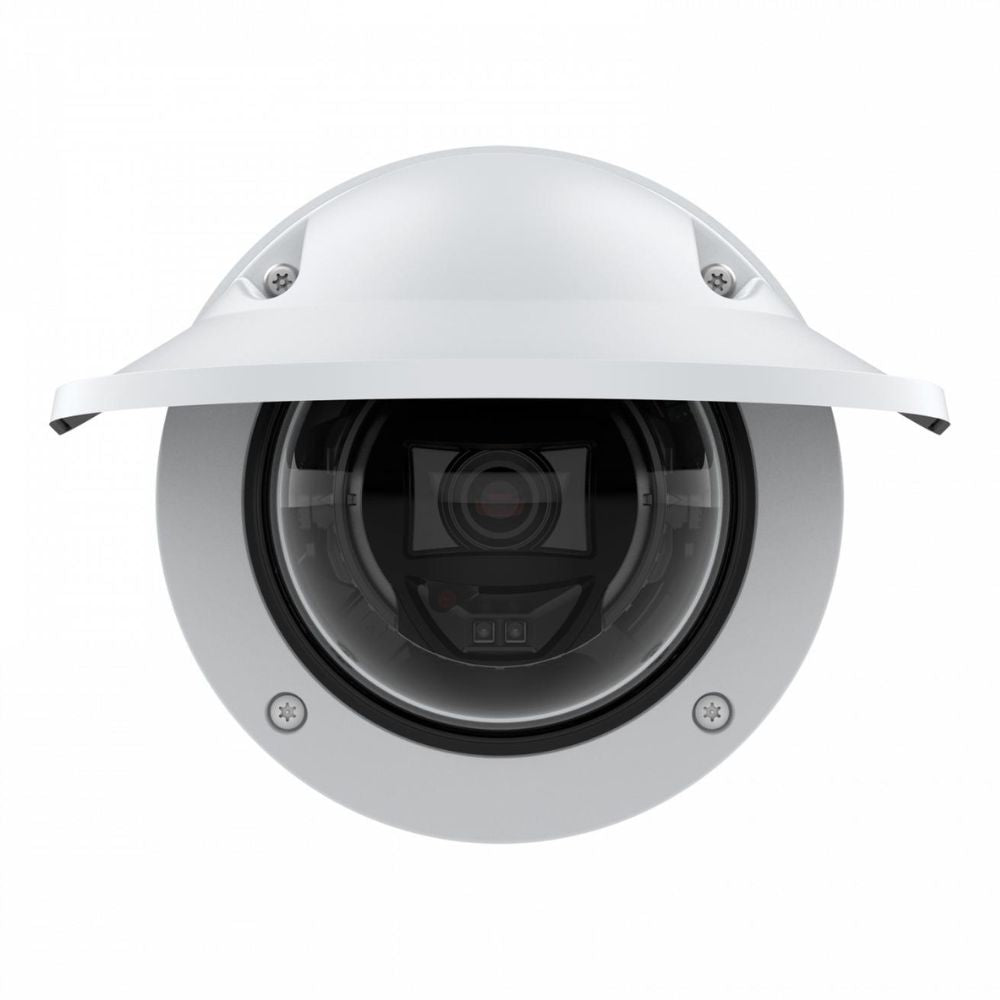

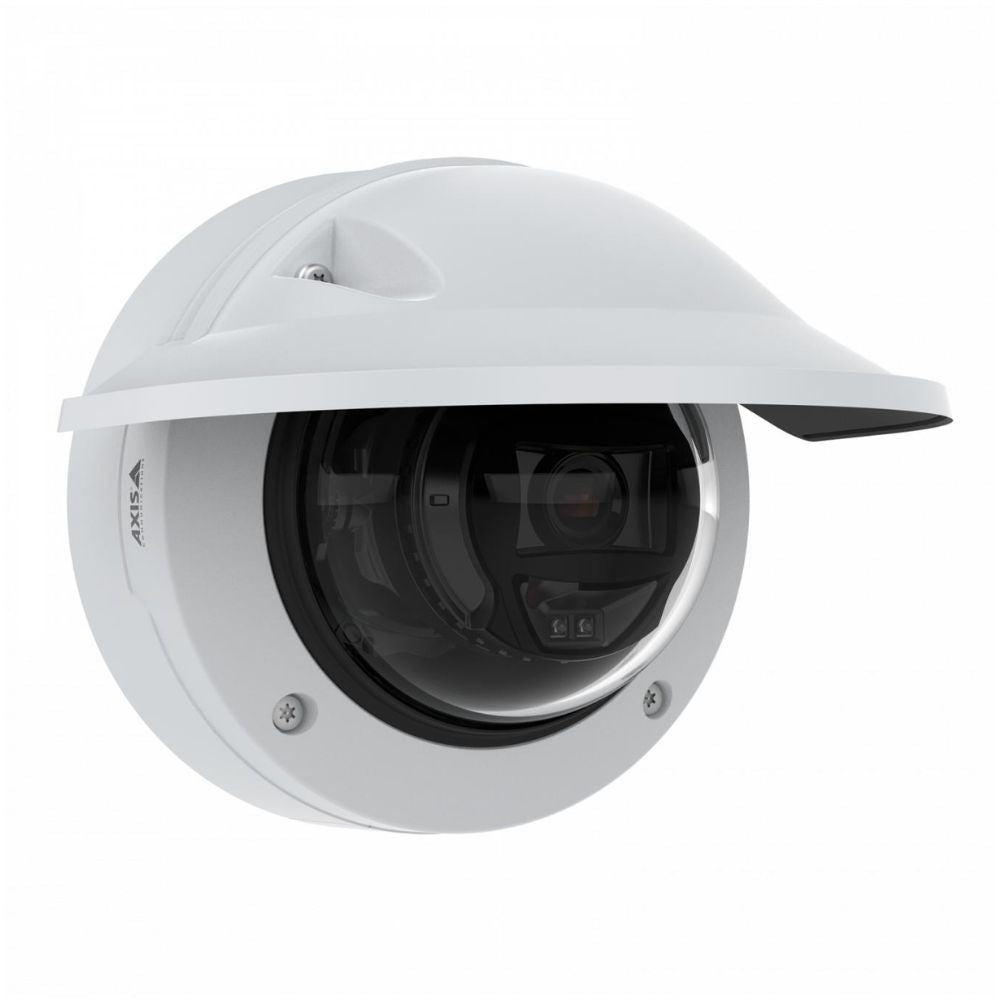

Axis P3268‑LVE 8 MP (4 K), Outdoor Dome, Forensic WDR, Varifocal 4.3–8.6 mm Lens, IP66 IK10, 02332‑001

Description

The AXIS P3268-LVE is a high-performance, outdoor-ready 8 MP dome camera built for detailed surveillance in any lighting. It features Lightfinder 2.0, Forensic WDR, and Optimised IR to deliver crisp, clear images 24/7. Equipped with a powerful ARTPEC-8 chip and DLPU, it supports advanced edge analytics, including human and vehicle detection.

Features

  • Excellent 4K Image Quality – Brilliant 8 MP resolution with advanced imaging features like Lightfinder 2.0 and Forensic WDR.
  • Deep Learning Analytics – DLPU enables real-time detection and classification of humans and vehicles at the edge.
  • AXIS Object Analytics – Supports up to 10 scenarios with classification of cars, buses, trucks, and bikes.
  • Optimised IR with 40m Range – Built-in IR LEDs ensure clear monochrome imaging even in complete darkness.
  • Audio & I/O Connectivity – Includes mic/line input, digital I/O, and SIP/VoIP integration for alarms and alerts.
  • Hardened Design – IP66-, IK10-, and NEMA 4X-rated for use in harsh outdoor conditions.
  • Edge Vault Cybersecurity – Secure boot, signed firmware, encrypted SD support, and device ID protection.
  • Efficient Streaming – Zipstream with H.264/H.265 minimizes bandwidth and storage without losing detail.

What's Included:

  • AXIS P3268-LVE Camera
  • Installation Guide
  • Windows Decoder 1-user License
  • Terminal Block
  • Cable Gaskets
  • Weather Shield
  • Connector Guard
  • Drill Template
  • T20 Bit

DOWNLOADS

Datasheet  AXIS P3268‑LVE Datasheet
Installation Guide  AXIS P3268‑LVE Installation Guide
User Manual  AXIS P3268‑LVE User Manual



Key Info

Superior Image in Any Light
Forensic WDR and Lightfinder 2.0 provide detailed color video in challenging light, with IR support for total darkness.

Ready for Harsh Conditions
Its IK10-, IP66-, and NEMA 4X-rated body handles rain, dust, vandalism, and extreme temperatures from -40°C to 50°C.

Complete System Integration
Audio support, I/O terminals, SIP integration, and multi-streaming ensure flexible deployment and integration.

Cybersecurity by Default
Axis Edge Vault, encrypted SD card support, and TLS protocols protect device identity and video data.

Tech Specs

Specification Details
**Camera**
Image Sensor 1/1.8" progressive scan RGB CMOS
Lens Varifocal 4.3–8.6 mm, F1.5; Remote zoom/focus, P-Iris, IR corrected
Field of View H: 100°–53°, V: 54°–30°
Day/Night Automatically removable IR-cut filter
Min. Illumination Color: 0.14 lux, B/W: 0 lux at 50 IRE, F1.5
Shutter Speed 1/8500 s to 1/5 s
Camera Angle Adj. Pan ±190°, Tilt -10° to +80°, Rotation ±190°
SoC ARTPEC-8
Memory 2048 MB RAM, 8192 MB Flash
Compute Capabilities Deep learning processing unit (DLPU)
**Video**
Compression H.264 (Baseline/Main/High), H.265 (Main), Motion JPEG
Resolution 3840x2160 to 160x90
Frame Rate Up to 25/30 fps (H.264/H.265)
Streaming Multi-stream, Zipstream (H.264/H.265), VBR/ABR/MBR, low latency, multi-view
Image Settings WDR (120 dB), defog, tone mapping, distortion correction, rotation, privacy mask, overlay
PTZ Digital PTZ, presets
**Audio**
Streaming Audio in, two-way via edge-to-edge
Encoding LPCM, AAC-LC, G.711, G.726, Opus
Input/Output Mic in, line in, 1 digital I/O with ring power
**Network**
Security Axis Edge Vault, signed firmware, HTTPS, IEEE 802.1X, secure boot
Protocols IPv4/6, HTTPS, FTP, SNMP, RTSP, SIP, MQTT, SSH, LLDP, NTP, and more
Connectors RJ45 PoE; 4-pin I/O terminal; 3.5 mm mic/line in
**Integration**
API VAPIX, ONVIF (G/M/S/T), ACAP, SIP/VoIP
Event Triggers Motion, analytics, I/O, schedule, tampering, casing open, SIP state
Event Actions Notifications, overlays, recording, SIP call actions, MQTT publish
Built-in Tools Remote zoom/focus, straighten, pixel counter, level grid
**Analytics**
Included AXIS Object Analytics, Motion Detection, Tampering, Audio Detection
Detection Humans, vehicles (cars, buses, trucks, bikes); up to 10 scenarios
Advanced Features Bounding boxes, perspective setup, privacy zones, ONVIF Motion Alarm
**Cybersecurity**
Software Security Signed OS, secure boot, SD card encryption, password protection
Hardware Security Axis Edge Vault, secure keystore
**General**
Casing IP66-, IK10-, NEMA 4X-rated; polycarbonate dome and casing
Power PoE IEEE 802.3af/at Class 3; Typical 5.5 W, Max 11.2 W
IR Illumination Optimised IR, 850 nm LEDs, range ≥ 40 m
Storage microSD/microSDHC/microSDXC with encryption, NAS supported
Operating Conditions -40°C to 50°C; startup -30°C; 10–100% RH
Dimensions H: 107 mm, Ø: 149 mm
Weight 900 g with weathershield
Languages EN, DE, FR, ES, IT, RU, JA, KO, PT, PL, ZH (Simplified/Traditional)
Warranty 5-year warranty



Q&A

Q1: Can the AXIS P3268-LVE withstand outdoor conditions?
A: Yes, it's IP66-, IK10-, and NEMA 4X-rated, built for extreme weather and impact resistance.

Q2: What makes its video quality superior?
A: It delivers 4K clarity with Lightfinder 2.0, Forensic WDR up to 120 dB, and Optimised IR for complete scene coverage.

Q3: Does it support audio and alarms?
A: Yes, it includes audio input, line input, and digital I/O, ideal for alarms, microphones, and speakers.

Q4: How secure is the camera?
A: It features Axis Edge Vault, signed firmware, secure boot, SD encryption, and strong network protections like TLS and IEEE 802.1X.

Q5: What analytics are supported?
A: AXIS Object Analytics detects and classifies humans and vehicles (cars, trucks, buses, bikes). Up to 10 scenarios can be configured.

Videos

Read more

Product form

Axis P3268‑LVE 8 MP (4 K), Outdoor Dome, Forensic WDR, Varifocal 4.3–8.6 mm Lens, IP66 IK10, 02332‑001

SKU: P3268-LVE Datasheet
Part Number: 02332-001

🟢 IN STOCK— Delivery in 1–3 days.

$2,007.00 Incl. GST

10% Off Discount Code: Axis-2025
Copied!
    PayPalAmerican Express Apple Pay Google Pay MastercardShop Pay Visa

    Trusted by 5000+ happy customers

    FREE Express Delivery over $200

    Easy 30-Day Returns Policy

    Australian Warranty & Tech Support

    5-Year Axis Warranty
