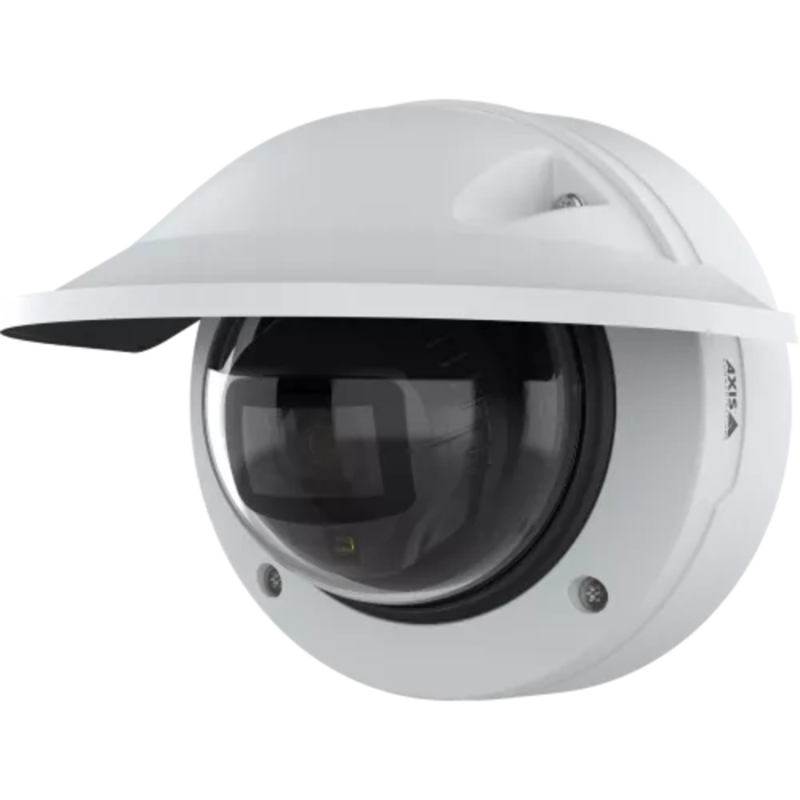

The AXIS P3277-LVE is a high-performance 5MP outdoor dome camera designed for demanding surveillance applications requiring superior image quality, AI-powered analytics, and reliable outdoor operation. Equipped with a Deep Learning Processing Unit (DLPU), Lightfinder 2.0, Forensic WDR, OptimizedIR, and a motorized varifocal lens, it delivers exceptional detail and intelligent event detection in challenging environments. Ideal for schools, commercial facilities, retail centers, industrial sites, and perimeter security applications.
Features
-
5MP Resolution – Captures highly detailed video for improved identification and forensic investigations.
-
3.4–8.9mm Varifocal Lens – Remote zoom and focus provide flexible coverage and simplified installation.
-
Deep Learning Processing Unit (DLPU) – Enables advanced AI-powered analytics directly on the camera.
-
AXIS Object Analytics – Detects, classifies, and tracks people and vehicles with high accuracy.
-
Lightfinder 2.0 – Delivers vivid color images in challenging low-light conditions.
-
Forensic WDR – Preserves image detail in scenes with strong backlighting and shadows.
-
OptimizedIR – Provides reliable surveillance in complete darkness.
-
Zipstream with H.265 – Minimizes bandwidth and storage requirements while maintaining image quality.
-
Axis Edge Vault – Hardware-based cybersecurity protection with secure key storage.
What's Included:
- AXIS P3277-LVE Dome Camera
- Weather Shield
- Installation Hardware
- Terminal Connectors
- Quick Installation Guide
- Windows Decoder License
DOWNLOADS
Key Info
Professional Outdoor Surveillance
The AXIS P3277-LVE combines advanced imaging technologies, intelligent analytics, and robust environmental protection in a compact outdoor dome design. Its motorized varifocal lens enables flexible deployment while delivering excellent image quality across a wide range of surveillance applications.
Outstanding Image Quality Day and Night
Designed to provide exceptional video performance regardless of lighting conditions.
-
Lightfinder 2.0 for superior low-light color images
-
Forensic WDR for balanced exposure in high-contrast scenes
-
OptimizedIR for surveillance in complete darkness
-
5MP Resolution for enhanced detail and identification
Advanced AI Analytics
The integrated Deep Learning Processing Unit enables intelligent analytics directly on the camera, reducing server requirements and increasing operational efficiency.
- AXIS Object Analytics
- People and vehicle classification
- Object tracking and detection
- Metadata generation for forensic search
Built for Harsh Environments
- IP66 and IP67 weather protection
- IK10 vandal-resistant housing
- NEMA 4X corrosion resistance
- Axis Edge Vault cybersecurity platform
Tech Specs
| Specification |
Details |
| Model |
P3277-LVE (03153-001) |
| Camera Type |
Outdoor Dome Camera |
| Image Sensor |
1/2.7" Progressive Scan RGB CMOS |
| Resolution |
2592 × 1944 (5MP) |
| Lens |
Varifocal 3.4–8.9 mm, F1.9, Remote Zoom and Focus |
| Field of View |
Horizontal: 100°–38°, Vertical: 73°–28° |
| Frame Rate |
Up to 30 fps |
| Day/Night Function |
Automatic IR-cut Filter |
| Minimum Illumination |
Color: 0.05 lux, B/W: 0 lux with IR on |
| Lightfinder |
Lightfinder 2.0 |
| Wide Dynamic Range |
Forensic WDR |
| IR Illumination |
OptimizedIR |
| System on Chip |
ARTPEC-8 |
| AI Processing |
Deep Learning Processing Unit (DLPU) |
| Analytics |
AXIS Object Analytics, Motion Detection, Audio Detection |
| Video Compression |
H.264, H.265, Motion JPEG, Zipstream |
| Memory |
2048 MB RAM, 1024 MB Flash |
| Storage |
microSD/microSDHC/microSDXC Support |
| Power |
PoE IEEE 802.3af/802.3at |
| Protection Ratings |
IP66, IP67, IK10, NEMA 4X |
| Operating Temperature |
-40°C to 50°C |
| Warranty |
5-Year Warranty |
Q&A
Q: Is the P3277-LVE suitable for outdoor environments?
Yes. The camera is rated IP66, IP67, IK10, and NEMA 4X, making it suitable for demanding outdoor installations.
Q: Does the camera support AI analytics?
Yes. The integrated DLPU enables AXIS Object Analytics for intelligent people and vehicle detection, classification, and tracking.
Q: Can the camera capture clear images at night?
Yes. Lightfinder 2.0 and OptimizedIR work together to provide excellent image quality in low-light and complete darkness.
Q: Is the lens adjustable after installation?
Yes. The motorized varifocal lens supports remote zoom and focus adjustments without requiring physical access to the camera.
Q: What applications is the P3277-LVE best suited for?
It is ideal for schools, commercial facilities, retail centers, industrial sites, parking areas, and perimeter security installations.
Q: What cybersecurity features are included?
Axis Edge Vault provides hardware-based protection, secure key storage, secure boot, and signed firmware to help protect against cyber threats.
