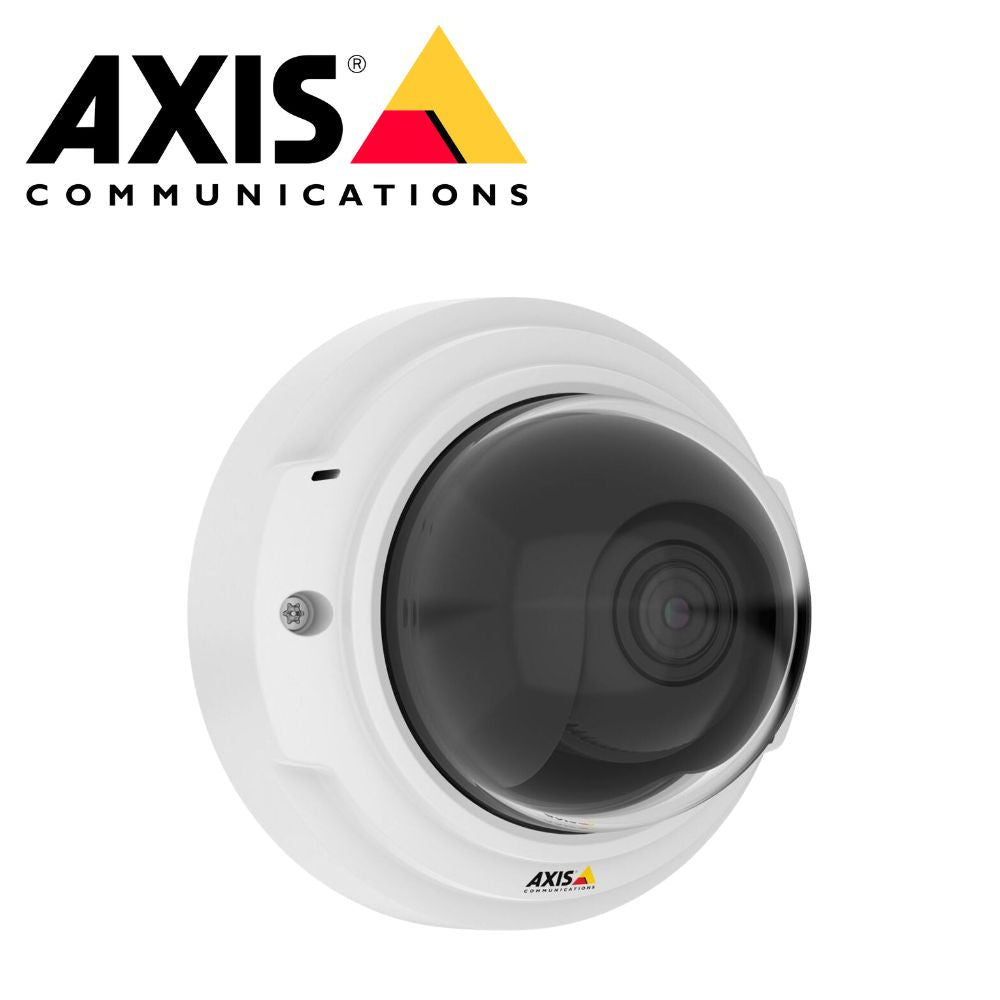

The AXIS P3374-LV is a vandal-resistant indoor dome camera with HDTV 720p, Lightfinder, WDR, and OptimizedIR for clear images in any light. It offers Zipstream, remote zoom/focus, and audio/I/O support—ideal for offices, retail, and schools.
Features
-
HDTV 720p Resolution – Delivers clear, detailed video for accurate identification and monitoring.
-
Lightfinder and OptimizedIR – Provides full-color video in low light and up to 30m IR illumination in darkness.
-
WDR – Forensic Capture – Ensures detail in scenes with high contrast and backlight.
-
Remote Zoom and Focus – Motorized varifocal lens with P-Iris control simplifies setup and image fine-tuning.
-
Zipstream Technology – Reduces bandwidth and storage requirements without compromising image quality.
-
Two-Way Audio & I/O Ports – Built-in ports and audio support allow interactive monitoring and device integration.
-
Secure and Durable – IK10-rated casing, encrypted firmware, and SD card encryption ensure data and physical protection.
What’s Included:
- AXIS P3374-LV Camera
- Installation Guide
- Windows Decoder 1-user License
- Drill Hole Template
- Resistorx® T20 L-key
- I/O Connector
DOWNLOADS
Key Info
Exceptional Low-Light Performance
The camera captures full-color images even in near darkness using Lightfinder technology. Built-in IR LEDs provide up to 30 meters of illumination in total darkness.
Efficient Bandwidth and Storage
Axis Zipstream with H.264 compression minimizes storage and network load while preserving forensic detail.
Easy to Install and Adjust
Motorized lens with remote focus and zoom, plus pixel counter and rotation options, make setup efficient and precise.
Discreet Yet Tough Design
Its compact dome and IK10-rated casing offer resistance to vandalism, while fitting discreetly into any indoor space.
Advanced Video Analytics
Includes AXIS Motion Guard, Fence Guard, Loitering Guard, and support for third-party analytics via ACAP.
Secure Integration
Supports HTTPS, IEEE 802.1X, signed firmware, and SD card encryption for secure communication and data storage.
Flexible System Compatibility
Integrates easily via VAPIX API, ONVIF Profiles G/S/T, and supports SIP and MQTT for system events.
Tech Specs
| Specification |
Details |
| **Camera** |
|
| Image Sensor |
1/3” progressive scan RGB CMOS |
| Lens |
Varifocal, 3–10 mm, F1.4, remote focus and zoom, P-Iris, IR corrected |
| Field of View |
H: 90°–34°, V: 50°–20° |
| Day/Night |
IR-cut filter |
| Min. Illumination |
Color: 0.16 lux / B&W: 0.03 lux / 0 lux with IR |
| Shutter Speed |
1/66500 s to 1 s |
| Angle Adjustment |
Pan ±180°, tilt -30° to +75°, rotation ±95° |
| **Video** |
|
| Compression |
H.264 Baseline/Main/High, Motion JPEG |
| Resolution |
1280x720 to 160x90 |
| Frame Rate |
Up to 60 fps (no WDR), up to 30 fps (with WDR) |
| Streaming |
Multiple configurable streams, Zipstream (H.264), VBR/ABR/MBR |
| Multi-View |
2 individually cropped view areas |
| PTZ |
Digital PTZ, preset positions |
| Image Settings |
WDR up to 120 dB, rotation, privacy mask, exposure, overlays, fine tuning |
| **Audio** |
|
| Input/Output |
Two-way audio, 3.5 mm mic/line in, 3.5 mm line out |
| Encoding |
AAC LC, G.711, G.726, Opus, LPCM |
| **Network** |
|
| Protocols |
IPv4/6, HTTPS, TLS, FTP, SIP, SNMP, DHCP, MQTT, and more |
| Security |
HTTPS, IEEE 802.1X, digest auth, signed firmware, brute force protection |
| Connectors |
RJ45 PoE, I/O terminal block, 3.5 mm audio jacks |
| **System Integration** |
|
| API |
VAPIX, ONVIF (G/S/T), ACAP |
| Events |
Motion, input/output, edge storage, analytics, SIP call |
| Actions |
Recordings, notifications, overlays, PTZ presets, play audio |
| **Analytics** |
|
| Included |
Motion Guard, Fence Guard, Loitering Guard, tampering, audio detection |
| Supported |
Cross Line Detection, Digital Autotracking, third-party apps via ACAP |
| **Cybersecurity** |
|
| Storage |
microSD/microSDHC/microSDXC, encrypted, NAS support |
| Certifications |
IK10, EN/UL 62368-1, EN 62471, IP protocols |
| **General** |
|
| Casing |
Polycarbonate dome, aluminum base, IK10 rated |
| Power |
PoE IEEE 802.3af/at, Max: 8.2 W, Typical: 5 W |
| Operating Conditions |
0°C to 50°C, 10–85% RH (non-condensing) |
| Dimensions |
Ø 148 x 99 mm |
| Weight |
0.7 kg (1.5 lb) |
| Warranty |
5-year warranty |
Q&A
Q1: Is the camera suitable for dark indoor areas?
A: Yes, it uses Lightfinder and OptimizedIR to deliver high-quality images in darkness up to 30 meters.
Q2: Can it handle scenes with both bright and dark areas?
A: Yes, it features WDR – Forensic Capture for clear detail in high-contrast lighting.
Q3: Is installation complicated?
A: No, it features remote focus and zoom, and built-in tools like a pixel counter for fast, accurate setup.
Q4: What audio support is available?
A: It supports full two-way audio with built-in microphone and speaker ports for communication and alerts.
Q5: How secure is the device?
A: It offers strong cybersecurity features including signed firmware, encrypted SD storage, and secure boot support.
