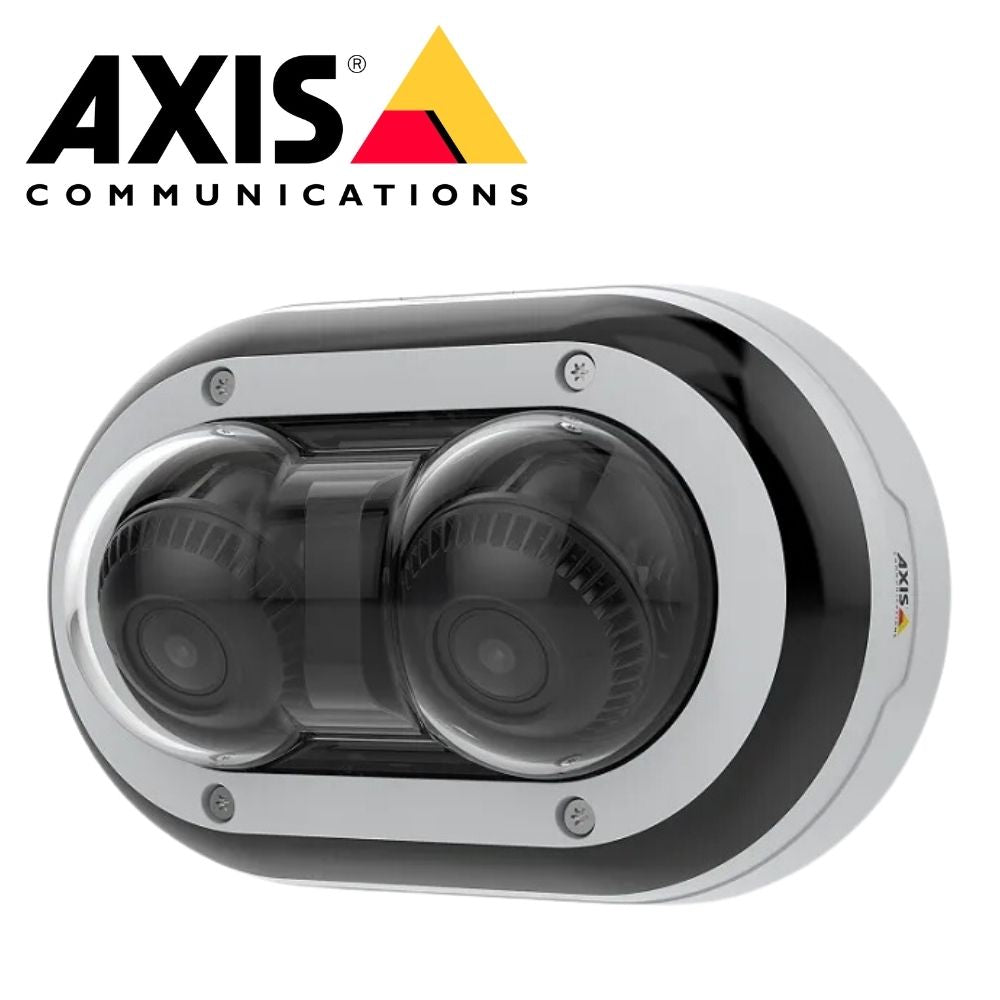

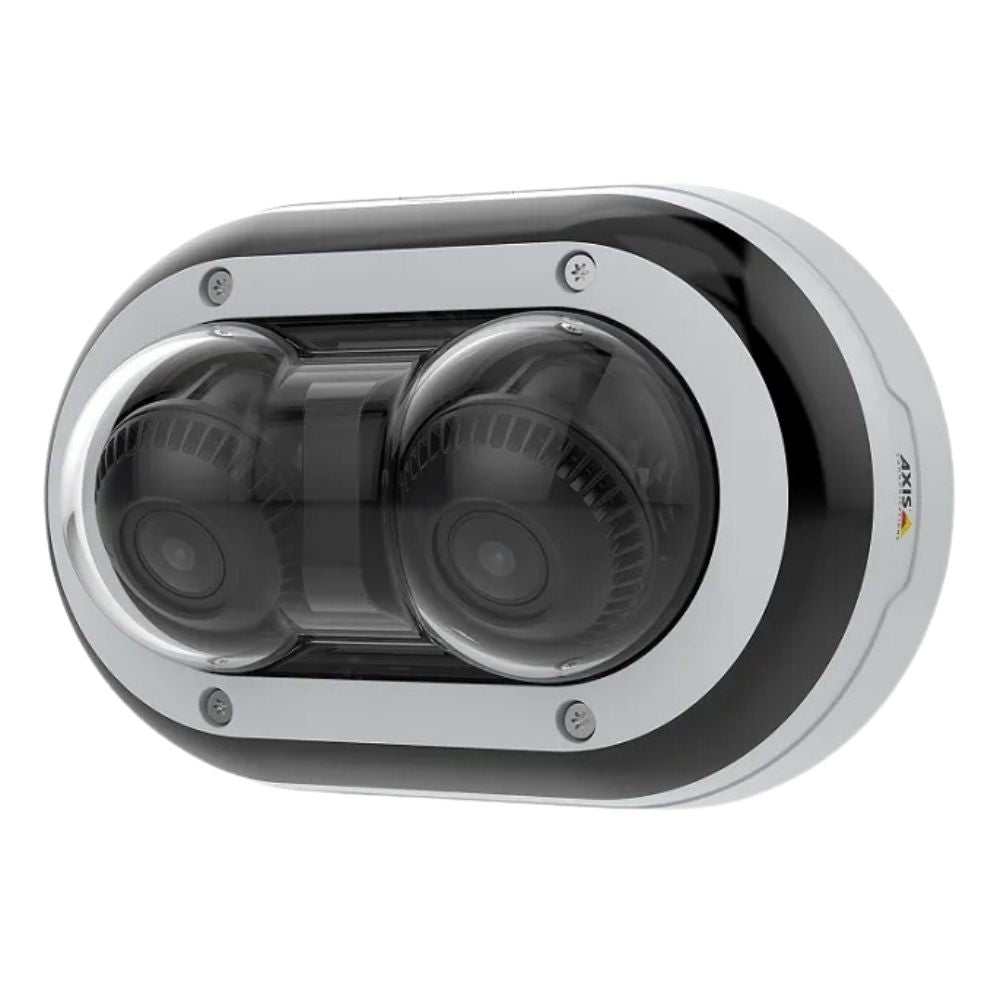

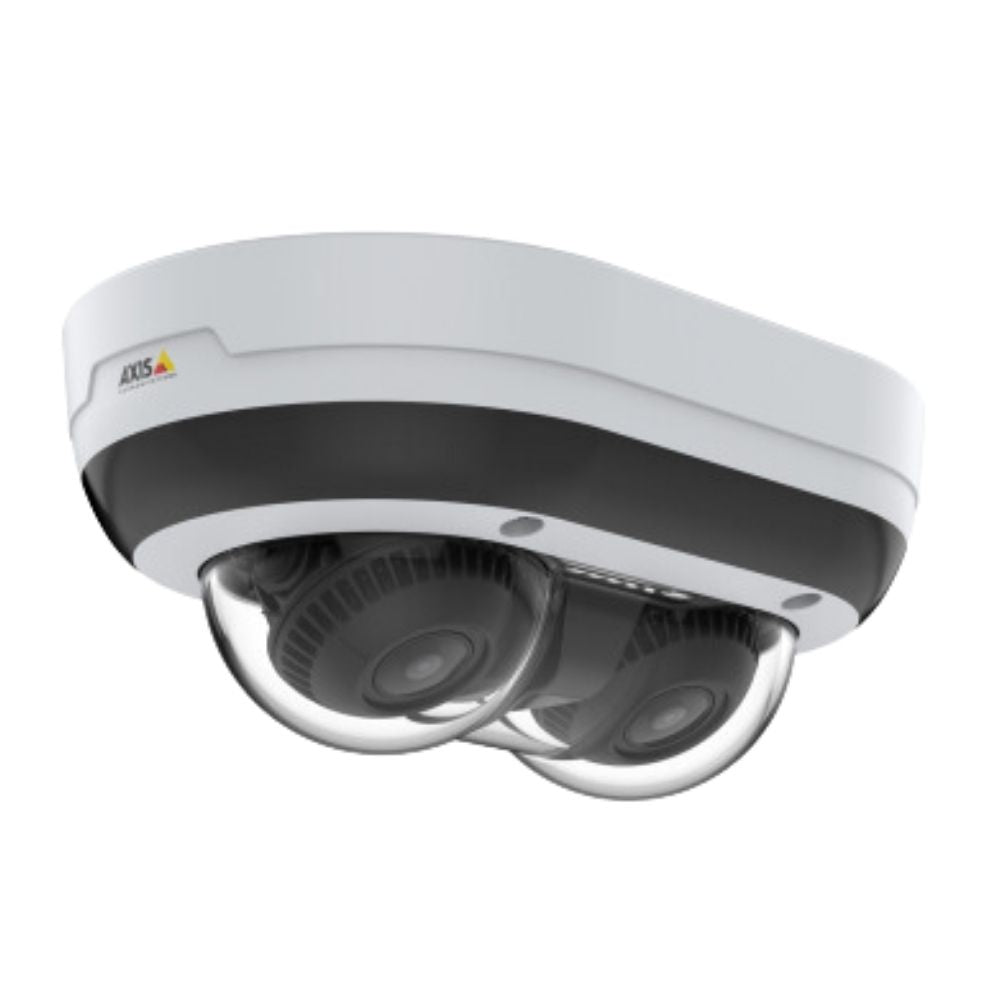

Get complete situational awareness with the Axis P3715-PLVE, a dual-sensor multidirectional camera built for demanding outdoor environments. Ideal for monitoring wide-open spaces such as parking lots, campuses, industrial facilities, and intersections, this powerful camera combines sharp detail, advanced analytics, and robust durability in one compact unit. With two 2K varifocal lenses and intelligent IR, users get highly customizable views without blind spots — even in total darkness.
Features
-
Dual Varifocal Lenses – Capture two scenes at once with customizable angles for complete area coverage.
-
15 Megapixel Total Resolution – High-detail imaging across wide areas helps identify people, vehicles, and incidents clearly.
-
Forensic WDR & Lightfinder – Maintain sharp video in harsh lighting and near-darkness for reliable 24/7 coverage.
-
Intelligent IR Illumination – Adaptive IR LEDs provide clear night surveillance up to 20 meters with zero glare.
-
Outdoor-Ready IP66/IK10 Housing – Built tough to withstand rain, dust, and vandalism for long-term reliability.
-
Edge-Based Analytics – Detect motion, tampering, and objects using built-in AXIS Object Analytics.
-
Efficient Zipstream Compression – Reduces bandwidth and storage needs while preserving critical image quality.
-
Discrete and Compact Design – A low-profile profile ideal for schools, retail sites, and city surveillance.
-
P37 Series Integration – Seamless compatibility with VMS systems and Axis ecosystem for professional deployment.
Downloads
Extra Info
Flexible Wide-Area Monitoring
The P3715-PLVE features two independently adjustable camera heads, each equipped with a 2.5–6.0 mm varifocal lens. This allows installers to tailor coverage across two directions from a single mounting point, drastically cutting installation time and costs. It's particularly useful in settings where you’d typically need two separate cameras.
Smart Surveillance in Any Lighting
With Forensic Wide Dynamic Range (WDR) and Axis Lightfinder, the camera handles complex lighting conditions like shadows, bright entrances, or headlights without losing detail. These technologies ensure that critical evidence — like license plates or facial features — stays visible and useful, regardless of the time of day.
Infrared Night Vision with Smart Adjustment
Smart IR LEDs automatically adjust their intensity based on the scene, preventing overexposure in close-up objects and maintaining clarity up to 20 meters in total darkness. This makes it ideal for 24-hour perimeter protection or dimly lit entrances.
Durable Outdoor Protection
Certified to IP66 (weatherproof) and IK10 (vandal-resistant) standards, the P3715-PLVE can withstand harsh weather and impact, making it suitable for exposed public areas, transit stations, or high-crime zones.
Smarter Security with Edge Analytics
With AXIS Object Analytics pre-installed, users can deploy real-time detection for humans, vehicles, or motion events without extra servers or licenses. It’s easy to configure in the Axis interface and adds actionable intelligence to routine surveillance.
Tech Specs
| Camera Type |
Multidirectional, Outdoor-Ready Network Camera |
| Image Sensor |
2 × 1/2.9" Progressive Scan RGB CMOS |
| Minimum Illumination |
Color: 0.19 lux at 30 IRE (50 Hz)
B/W: 0.04 lux at 30 IRE (50 Hz)
0 lux with IR illumination on |
| Lens |
2 × Varifocal 2.5–6.0 mm, F1.9
Horizontal field of view: 100°–41°
Vertical field of view: 53°–23°
Motorized zoom and focus |
| IR Illumination |
OptimizedIR with 2 LEDs per sensor
Range: Up to 20 m (65 ft) |
| Day and Night Functionality |
IR-cut filter with auto-switching |
| Shutter Speed |
1/66500 s to 1/5 s |
| Camera Angle Adjustment |
Pan: ±100°
Tilt: 0° to 75°
Rotation: ±180° |
| Video Compression |
H.264 (Main, High), H.265 (Main), MJPEG |
| Resolution |
2 × 2560x1920 (5 MP) to 320x240
Frame rate: Up to 30 fps in all resolutions |
| Video Streaming |
Multiple, individually configurable streams
Axis Zipstream technology in H.264/H.265 |
| Image Settings |
Compression, Color, Brightness, Sharpness, Contrast, White Balance, Exposure Control,
Exposure Zones, WDR – Forensic Capture, Rotation, Mirroring, Text and Image Overlay,
Dynamic Text, Privacy Masks |
| Video Analytics |
AXIS Object Analytics
Motion Detection, Tampering Alarm, Fence Guard, Motion Guard, Loitering Guard |
| Event Triggers |
Analytics, External Input, Edge Storage Events, Time Schedule, Manual Trigger,
System Events, Guard Tour, Virtual Inputs |
| Event Actions |
File Upload (FTP/HTTP/HTTPS/Network Share), Email Notification,
Notification to VMS, Overlay Text, Output Activation, PTZ Preset, WDR Mode |
| Operating Conditions |
-40 °C to 60 °C (-40 °F to 140 °F), Humidity 10–100% RH (condensing) |
| Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F) |
| Protection Rating |
IP66, IP67, NEMA 4X, IK10, IEC 60068-2-6 (Vibration), EN 50155 |
| Power |
Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4
Typical: 15.6 W
Max: 22.8 W |
| Connectors |
RJ45 10BASE-T/100BASE-TX PoE
2 × Configurable I/O Ports (1 Input/1 Output)
Audio In/Out |
| Local Storage |
MicroSD/SDHC/SDXC Slot (supports up to 512 GB) |
| Casing |
IP66/IP67-rated, IK10 vandal-resistant enclosure
Polycarbonate dome, Aluminum base, EN 45545-2 certified |
| Dimensions |
Height: 86 mm (3.4 in)
Diameter: 194 mm (7.6 in) |
| Weight |
1.6 kg (3.5 lb) |
| Included Accessories |
Installation Guide, Windows Decoder License, Connector Guard, Mounting Bracket |
| Optional Accessories |
AXIS T94V01L Recessed Mount, AXIS TP3603-E Dome, AXIS Surveillance Cards |
| System Integration |
Open API, ONVIF Profile S and G, VAPIX®, Camera Application Platform (ACAP) |
| Warranty |
5-year limited warranty |
Q&A
Q: Can the camera view two different directions at once?
A: Yes, the P3715-PLVE features two independently adjustable lenses that can monitor two separate scenes simultaneously from a single mount.
Q: Does this camera work at night without extra lighting?
A: Absolutely. It includes adaptive IR night vision up to 20 meters and Axis Lightfinder for low-light color performance.
Q: Is this camera suitable for outdoor use?
A: Yes, it's built with an IP66 weather-resistant and IK10 vandal-resistant housing for reliable performance in harsh outdoor conditions.
Q: Does the camera support AI features like motion or object detection?
A: Yes. It includes AXIS Object Analytics, which allows real-time detection of people, vehicles, or motion events directly on the camera.
Q: Can it reduce storage usage without compromising quality?
A: Yes, thanks to Axis Zipstream, which compresses video intelligently while preserving detail where it matters most.
Q: What environments is this camera best suited for?
A: It's ideal for wide-area surveillance needs — including parking lots, industrial sites, school campuses, public squares, and intersections.
