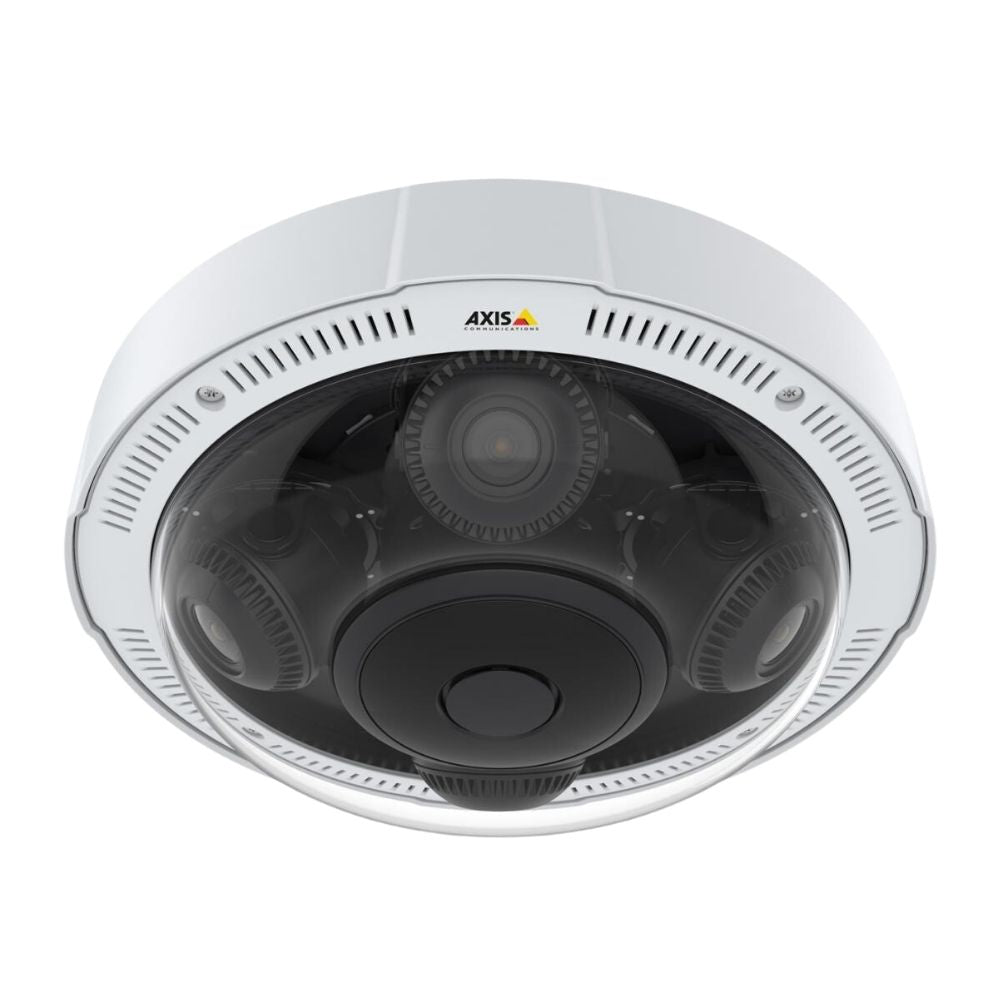

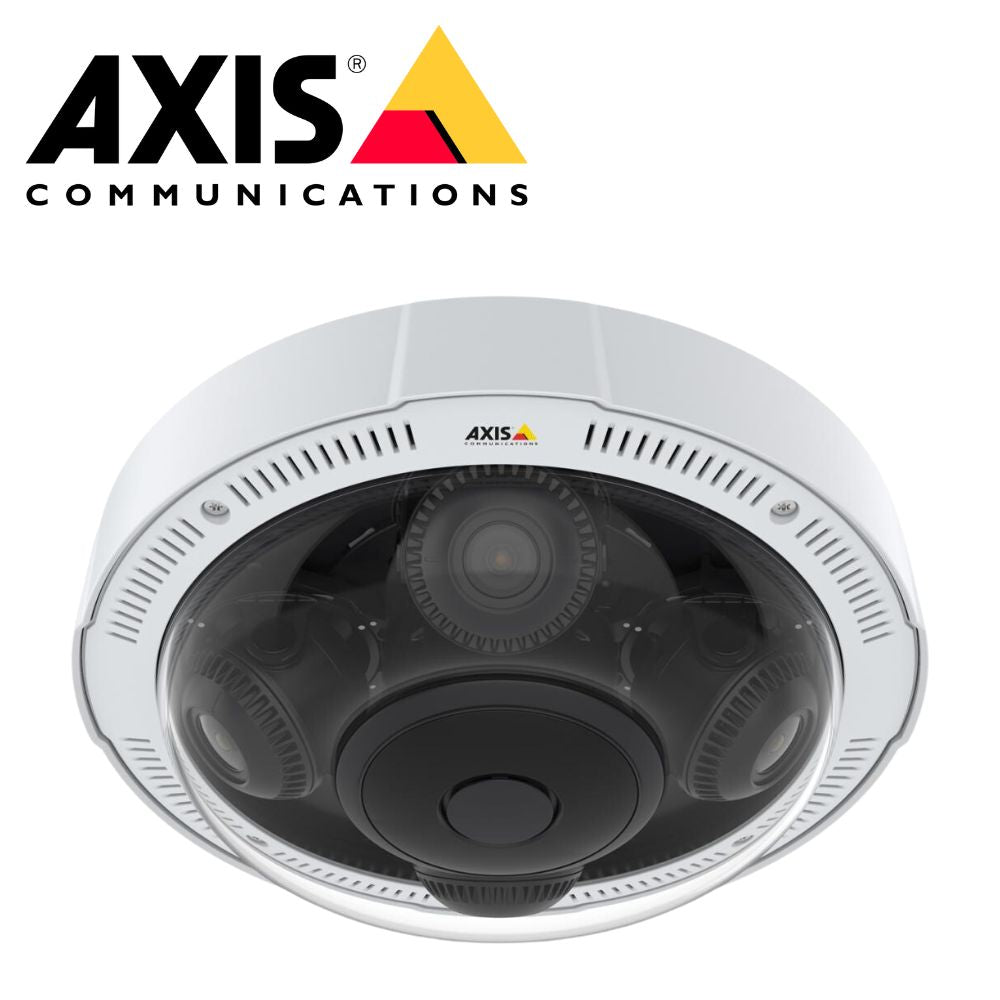

The AXIS P3717-PLE is a compact and powerful 8 MP multidirectional camera with four independently adjustable varifocal lenses and 360° IR illumination, delivering exceptional flexibility for detailed coverage of large areas. With just one IP address and cable, this four-in-one unit offers a cost-effective solution for multidirectional surveillance. Its Lightfinder, Forensic WDR, and remote zoom/focus ensure excellent performance in any light..
Feature
-
Four Cameras in One – Each of the four varifocal camera heads can be individually positioned and adjusted for full area coverage using a single network cable and IP address.
-
360° IR Illumination – Integrated infrared LEDs provide clear night vision up to 15 meters per lens, even in complete darkness.
-
Remote Zoom and Focus – Motorized varifocal lenses with remote setup simplify installation and reduce the need for on-site manual adjustment.
-
Lightfinder and Forensic WDR – Delivers clear color images in low light and high-contrast scenes for reliable identification and monitoring.
-

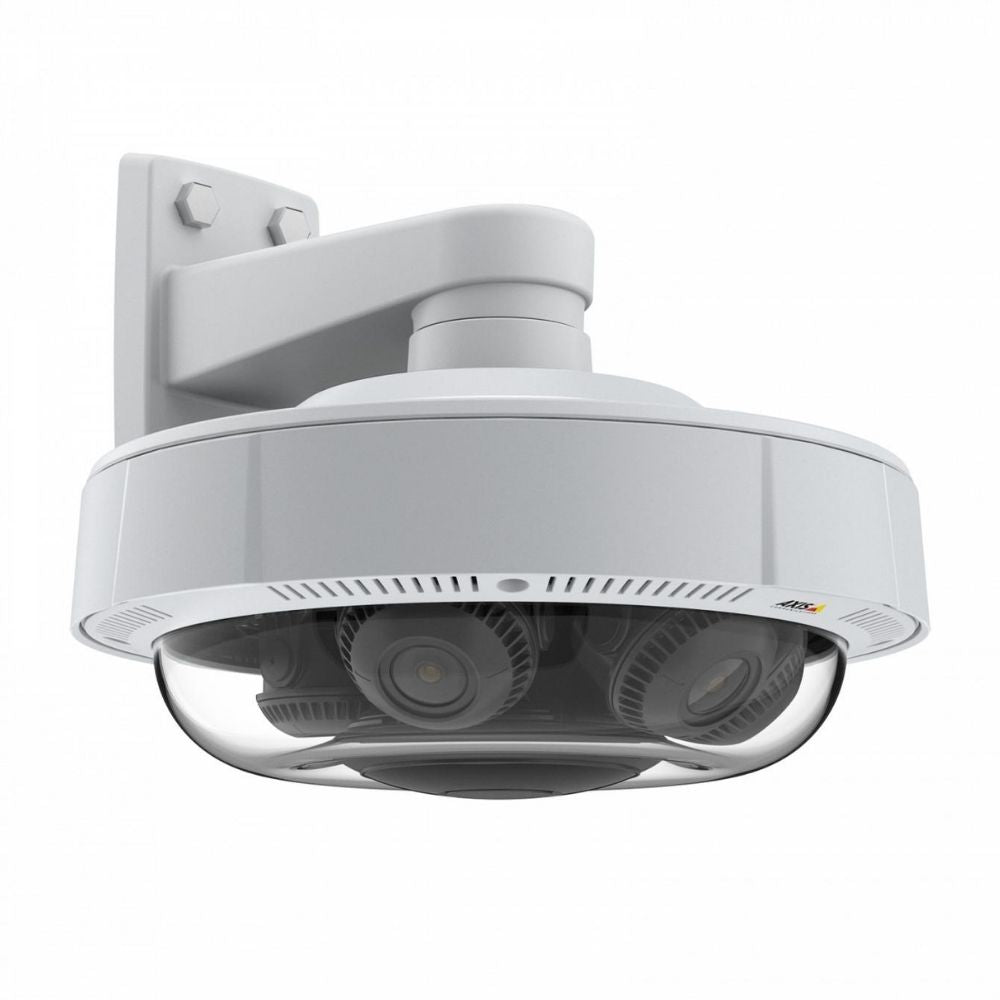

Flexible Mounting Design – Compact form factor with built-in weather shield and junction box compatibility allows easy ceiling or wall installation.
-
Zipstream Technology – Optimizes video compression, reducing storage and bandwidth needs without compromising image quality.
-
Rugged and Weatherproof – With IK09, IP66/IP67, and NEMA 4X ratings, the camera is built to withstand outdoor environments and harsh weather.
What’s Included
- AXIS P3717-PLE Camera
- RJ45 Mounting Tool
- Screw Bit T20
- Installation Guide
- Windows Decoder 1-user License
DOWNLOADS
Key Info
Comprehensive 360° Surveillance in One Camera
With four independently controlled camera heads, this device allows flexible coverage in four directions, replacing multiple traditional cameras and minimizing cabling needs.
Ready for Any Light or Weather
Equipped with Forensic WDR, Lightfinder, and four IR LED modules, the P3717-PLE ensures clear imaging in full daylight or total darkness, while its IP66/IP67 and IK09 ratings guarantee durability.
Simplified Installation & Smart Design
Each lens offers remote zoom and focus, plus pan/tilt/rotation adjustments, enabling quick installation and fine-tuning without needing physical access to each camera.
Smart Bandwidth Management
Axis Zipstream technology ensures high-quality footage is retained while minimizing bandwidth and storage requirements, ideal for long-term or high-volume recording.
Built-in Analytics and Integration
Includes AXIS Motion Guard, Loitering Guard, and Fence Guard, and supports ACAP and ONVIF Profiles G/S/M/T for compatibility with third-party systems.
Strong Cybersecurity
Comes with signed firmware, centralized certificate management, IEEE 802.1X, and secure boot for complete device and data protection.
Scalable & Versatile
Supports dual SD cards and NAS for local recording, plus audio input/output via portcast for use in diverse applications, from city surveillance to retail and transportation hubs.
Tech Specs
| Specification |
Details |
| **Camera** |
|
| Image Sensor |
4 x 1/2.8" progressive scan RGB CMOS |
| Lens |
Varifocal 3–6 mm, F1.8–2.6, motorized zoom/focus |
| Field of View |
H: 96°–49°, V: 53°–27°, D: 113°–55° |
| Min. Illumination |
Color: 0.17 lux, B/W: 0.04 lux, 0 lux with IR |
| Shutter Speed |
1/32500 s to 2 s |
| Angle Adjustment |
Pan ±90°, tilt +25 to +95°, rotation –5 to +95°, twist ±20° |
| SoC |
ARTPEC-6 |
| Memory |
1024 MB RAM, 512 MB Flash |
| **Video** |
|
| Compression |
H.264 Baseline/Main/High, Motion JPEG |
| Resolution |
4 x 1920x1080 (HDTV 1080p) to 160x90 |
| Frame Rate |
Up to 30 fps per channel (50/60 Hz) |
| Streaming |
Multiple configurable streams, Zipstream, VBR/ABR/MBR |
| Image Settings |
Forensic WDR, Lightfinder, overlays, privacy masks, rotation, corridor mode |
| **Audio** |
|
| Audio I/O |
Via portcast technology (requires midspan Class 4 PoE) |
| **Network** |
|
| Protocols |
IPv4/v6, HTTPS, TLS, FTP, CIFS, SNMP, RTSP, RTP, SFTP, MQTT, etc. |
| Security |
Signed firmware, HTTPS encryption, IEEE 802.1X, brute force protection |
| IP Address |
One IP address for all four channels |
| **System Integration** |
|
| API |
VAPIX, ACAP, ONVIF G/M/S/T |
| Event Triggers |
Detectors, input, system, storage, analytics, MQTT subscribe |
| Event Actions |
Recording, FTP/HTTP/SFTP uploads, SNMP trap, MQTT publish |
| Built-in Tools |
Pixel counter, remote zoom and focus, focus assistant |
| **Analytics** |
|
| Included |
Motion Guard, Fence Guard, Loitering Guard, VMD, Tampering Alarm |
| ACAP Support |
Yes, supports third-party analytics via AXIS Camera Application Platform |
| **Cybersecurity** |
|
| Software Security |
Signed firmware, certificate management, password protection |
| Hardware Security |
AES-XTS encrypted SD support |
| **General** |
|
| Casing |
IP66/IP67, IK09, NEMA 4X, polycarbonate dome, aluminum/plastic housing |
| Power |
PoE IEEE 802.3at Type 2 Class 4, max 17W |
| Connectors |
Shielded RJ45, audio and I/O via portcast technology |
| IR Illumination |
Four individually controlled IR LEDs, range up to 15 m per camera |
| Storage |
Dual microSD/microSDHC/microSDXC, NAS, SD encryption support |
| Operating Conditions |
-30 °C to 50 °C, 10–100% RH (condensing) |
| Dimensions |
Ø 255 mm × H 91.5 mm |
| Weight |
2.0 kg (4.4 lb) |
| Languages |
EN, FR, DE, ES, ZH (S/T), JA, KO, RU, IT, PL, PT, NL, TR, TH, VI, CZ, SV, FI |
| Warranty |
5-year warranty |
Q&A
Q1: Can the AXIS P3717-PLE be used in low light environments?
A: Yes, it features Lightfinder and Forensic WDR along with built-in IR LEDs for excellent performance in low light or complete darkness.
Q2: How many network cables or IP addresses does this camera require?
A: Just one. All four camera heads are managed under a single IP address and network cable.
Q3: Is this camera suitable for outdoor installations?
A: Absolutely. It's rated IP66/IP67 and NEMA 4X with an IK09 impact-resistant casing, ideal for harsh environments.
Q4: Does it support third-party VMS and analytics?
A: Yes, it supports ONVIF and Axis Camera Application Platform for compatibility with third-party software and analytics.
Q5: Can I store recordings locally?
A: Yes, it supports dual SD cards with encryption as well as NAS for reliable local or network storage.
