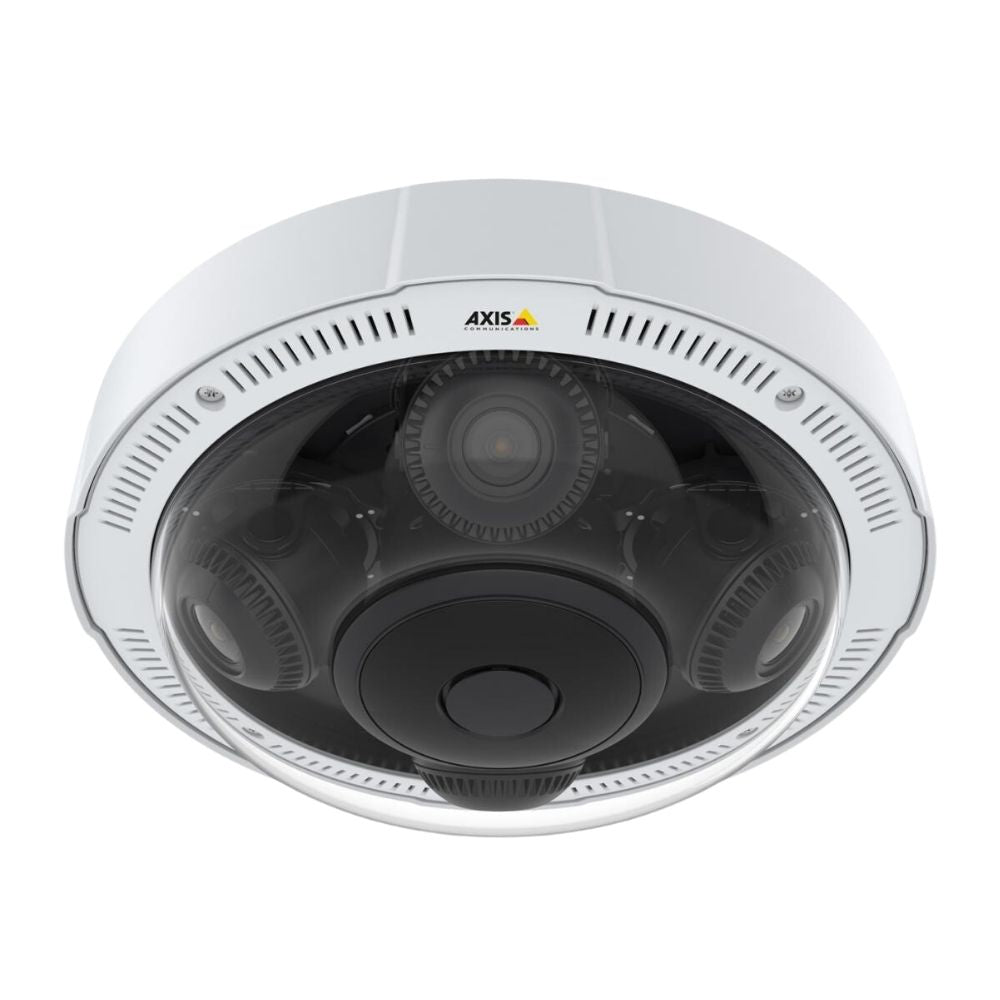

The Axis P3719-PLE is a cutting-edge, multi-directional outdoor dome camera designed for wide-area surveillance with minimal installation footprint. Featuring four individually adjustable varifocal lenses in one compact unit, this camera delivers seamless 180° or 360° panoramic coverage — perfect for parking lots, intersections, school campuses, and large commercial sites. Built-in infrared illumination, deep learning-based analytics, and robust outdoor protection make it a reliable choice for professional-grade perimeter and situational awareness monitoring.
Features
-
Multi-Directional Coverage – Four 5 MP sensors provide up to 15 MP total resolution with adjustable viewing angles for 180° or 360° surveillance.
-
Integrated Infrared Illumination – Discreet, built-in IR LEDs per lens ensure clear night-time footage in complete darkness (up to 20 meters).
-
Lightfinder Technology – Delivers sharp, color-accurate images in near-dark conditions without reliance on IR, ideal for low-light zones.
-
Forensic WDR – Balanced exposure in challenging lighting such as entrances or parking areas with headlights or shadows.
-
Weather & Impact Resistant – Rated IP66/IP67 and IK10, making it highly durable for extreme outdoor conditions and vandal resistance.
-
Remote Zoom & Focus – Easily adjust all four lenses remotely, saving time on ladder-based tweaks and enabling flexible scene adaptation.
-
Edge Storage & Zipstream – Efficient H.264/H.265 compression with Axis Zipstream reduces bandwidth and storage needs while preserving detail.
-
AXIS Object Analytics – Built-in AI detects and classifies people and vehicles for proactive, targeted monitoring.
-
Discrete Yet Powerful Design – Blends into architectural environments without compromising on coverage or performance.
Downloads
Extra Info
Versatile Wide-Area Coverage in a Single Device
The Axis P3719-PLE combines four varifocal camera heads into one housing, each adjustable individually. This allows for detailed monitoring of large areas from a single installation point, reducing total camera count, cabling, and network strain.
Reliable in Harsh Outdoor Environments
Engineered for durability, this camera holds up in extreme rain, dust, heat, or cold thanks to its IP66/IP67 and IK10 certifications. It's ideal for demanding outdoor settings like loading docks, transit hubs, or schoolyards.
Night Vision and Low-Light Performance
With built-in infrared LEDs on each lens and Axis Lightfinder technology, the P3719-PLE captures critical footage in pitch darkness or low-light without losing clarity — a must for after-hours security or unlit areas.
AI-Driven Object Detection
Equipped with AXIS Object Analytics, the camera automatically identifies and classifies moving people or vehicles, allowing for smarter alerts and reduced false alarms. Great for perimeter intrusion detection, loitering, or vehicle access monitoring.
Efficient Video Management
Axis Zipstream supports H.264 and H.265 encoding while optimizing bandwidth and storage — ideal for systems that need long retention periods or have limited network capacity. Local edge storage also provides backup in case of connection loss.
Tech Specs
| Camera Type |
Multi-sensor panoramic camera with four varifocal camera heads |
| Image Sensor |
4 × 1/2.8" progressive scan RGB CMOS |
| Lens |
4 × Varifocal lenses
3–6 mm, ƒ/1.8
Horizontal field of view: 52°–100°
Vertical field of view: 30°–55° |
| Minimum Illumination |
Color: 0.18 lux (50 IRE, F1.8)
B/W: 0.03 lux (50 IRE, F1.8)
0 lux with IR illumination on |
| Infrared Illumination |
Optimized IR with 4 IR LEDs (one per sensor)
Range: Up to 20 m (66 ft) per sensor |
| Video Compression |
H.264 (Baseline, Main, High Profile), H.265 (Main Profile), Motion JPEG |
| Resolution |
4 × 5 MP sensors (1920×1440 per sensor)
Up to 15 MP total (up to 7680×2880 combined) |
| Frame Rate |
15 fps per sensor at 1920×1440 (WDR and capture mode set to Forensic WDR) |
| Day/Night Functionality |
Automatically removable infrared-cut filter |
| Wide Dynamic Range |
Forensic WDR |
| Image Settings |
Compression, color, brightness, sharpness, contrast, local contrast, white balance
Wide dynamic range (WDR), exposure control, exposure zones
Fine-tuning of behavior at low light, rotation: 0°, 90°, 180°, 270° including corridor format |
| Analytics |
AXIS Object Analytics
Motion detection, tampering alarm, audio detection |
| Audio |
Two-way audio
External microphone input
Line input/output |
| Event Triggers |
Analytics, edge storage events, input signal, manual trigger, motion detection, system events |
| Video Streaming |
Multiple, individually configurable streams per sensor
Controllable frame rate and bandwidth
VBR/CBR H.264/H.265 |
| Network Interface |
RJ45 10BASE-T/100BASE-TX PoE |
| Security |
Signed firmware, secure boot, Axis Edge Vault
HTTPS, IEEE 802.1X, IP address filtering
Password protection, network access control |
| Storage |
MicroSD/microSDHC/microSDXC slot
Support for SD card encryption |
| Operating Conditions |
-40 °C to 60 °C (-40 °F to 140 °F)
Humidity 10–100% RH (condensing) |
| Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F) |
| Ingress Protection |
IP66/IP67, NEMA 4X |
| Impact Resistance |
IK10 |
| Power |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3
Typical: 10.8 W
Max: 12.95 W |
| Dimensions |
Height: 63 mm (2.5 in)
Diameter: 219 mm (8.6 in) |
| Weight |
1.6 kg (3.5 lb) |
| Included Accessories |
Installation guide, Windows decoder 1-user license, connector kit |
| Optional Accessories |
Mounts, pole brackets, protective housings, and more (sold separately) |
| Certifications |
CE, FCC, ICES, VCCI, RCM, UL, BIS, KC, EAC, UKCA, and others |
Q&A
Q: How many areas can the Axis P3719-PLE monitor at once?
A: It can simultaneously monitor up to four distinct areas with its individually adjustable camera heads, offering either panoramic or multi-directional views.
Q: Does the camera work at night without visible light?
A: Yes. Each lens includes built-in IR LEDs (up to 20 m range) and Lightfinder technology to capture clear footage in complete darkness or low-light settings.
Q: Is it suitable for harsh weather or vandal-prone areas?
A: Absolutely. It’s rated IP66/IP67 for water and dust resistance, and IK10 for impact protection — built for rugged environments.
Q: Can I adjust the lenses remotely?
A: Yes. The remote zoom and focus capability allows you to fine-tune all four views after installation without manual access.
Q: What smart features does it include?
A: It features AXIS Object Analytics, which can automatically detect and classify people and vehicles to reduce false alarms and enhance real-time awareness.
