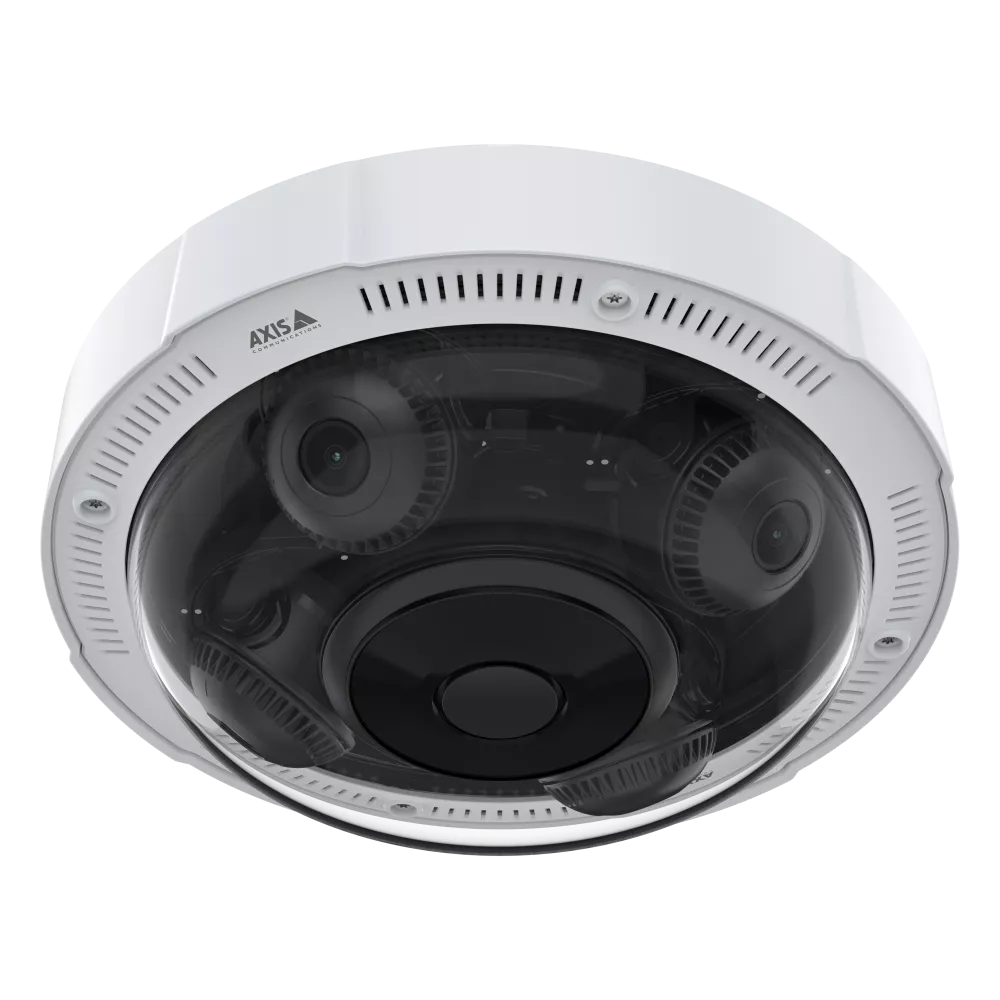

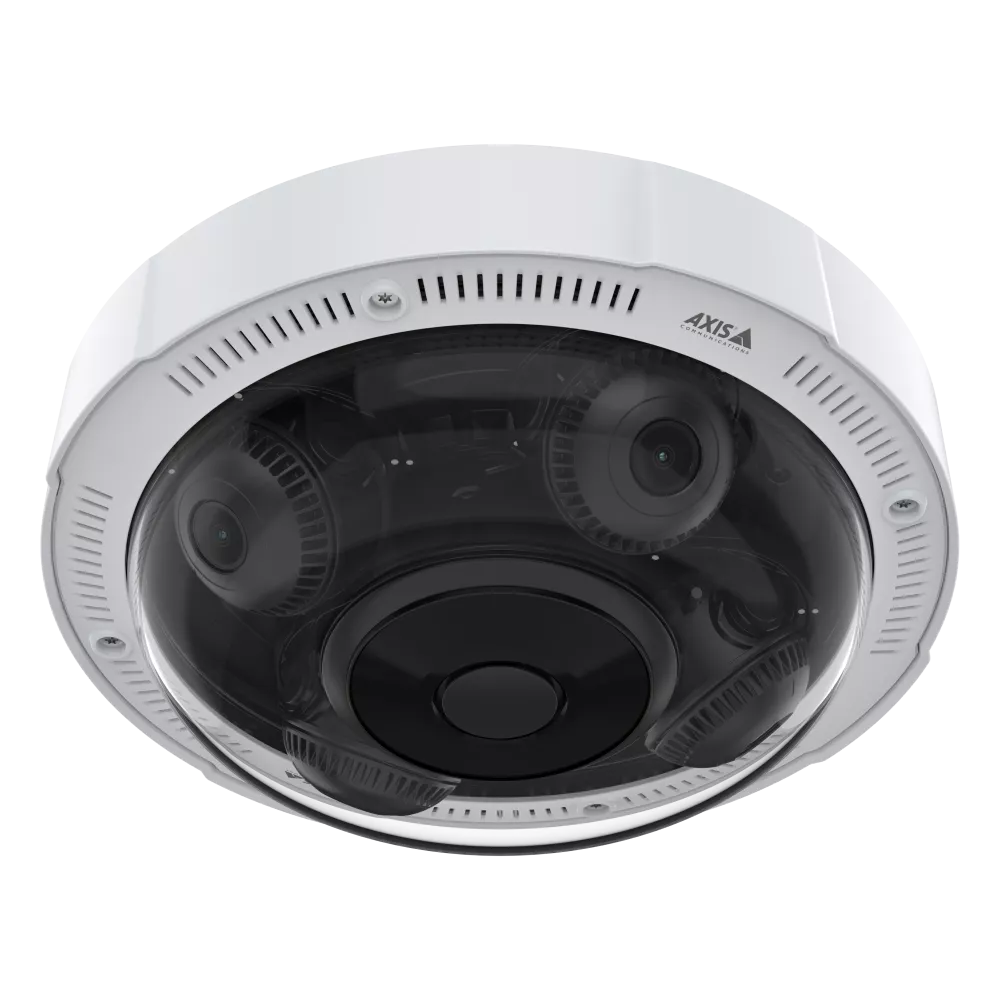

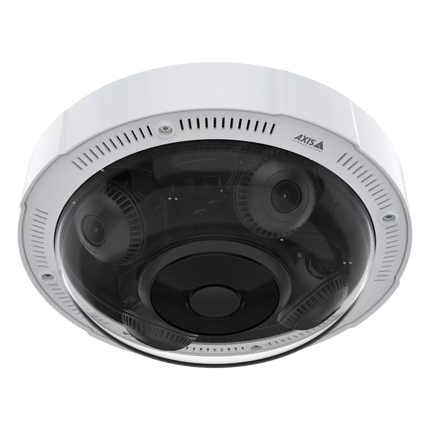

The Axis P3735-PLE is a professional-grade, multidirectional panoramic camera built for wide-area surveillance with maximum detail in every direction. Featuring four individually controllable varifocal lenses and built-in infrared for each channel, this unit offers complete 360° situational awareness—even in total darkness. Perfect for securing large spaces like shopping centers, school campuses, parking lots, and intersections, it allows you to monitor multiple zones from a single mounting point, reducing installation time and cost.
Features
-
Four Varifocal Lenses – Monitor four directions at once with individually adjustable viewing angles for precise coverage.
-
Built-In Infrared (IR) LEDs – Get sharp images in complete darkness across all channels with optimized IR for each sensor.
-
15 Megapixel Total Resolution – Capture every detail across the field with ultra-clear, high-resolution video.
-
Lightfinder and Forensic WDR – Ensure true-to-life color in low light and manage challenging lighting contrasts seamlessly.
-
Weather and Impact Rated – IP66, IK10, and NEMA 4X certified for reliable outdoor or tough indoor installations.
-
Flexible Field of View – Use as a 360° panoramic camera or split coverage for wide-area zones like building perimeters or warehouse interiors.
-
Zipstream with H.264/H.265 – Reduce storage and bandwidth without sacrificing important forensic detail.
-
Remote Zoom and Focus – Save install time with motorized lens adjustment directly through the interface.
-
P37 Series Engineering – Engineered for mission-critical, multi-directional surveillance in a single, compact form.
Downloads
Extra Info
Precision Coverage from One Camera

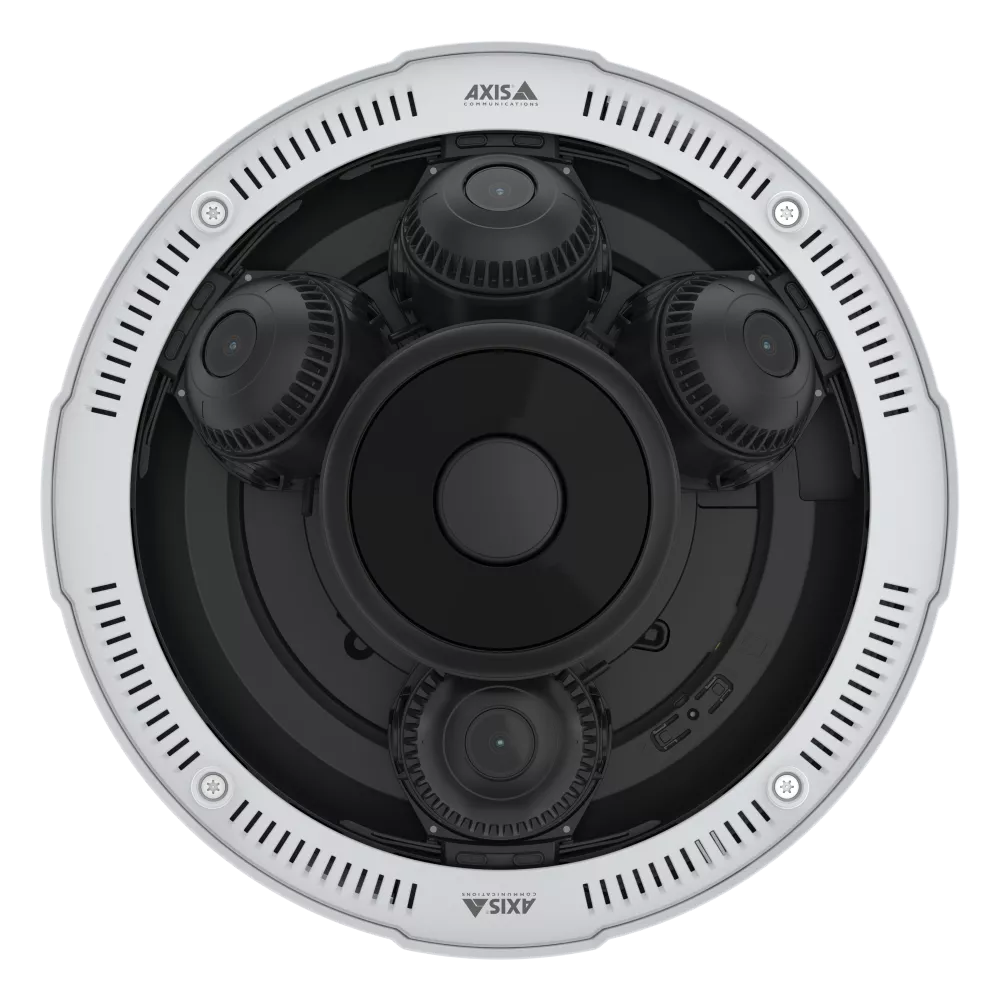

The Axis P3735-PLE replaces the need for multiple single-direction cameras by offering four motorized varifocal lenses in a single housing. Each lens can be positioned and zoomed independently, enabling full customization of your coverage layout—whether you're overseeing four separate entry points or scanning an expansive open area. This saves time, cabling, and mounting infrastructure.
See in Complete Darkness
Thanks to dedicated IR LEDs for each sensor, this camera provides excellent detail in nighttime scenes. The IR is automatically adjusted per channel, minimizing overexposure and delivering balanced nighttime imaging without needing external lighting.
Optimized for Challenging Light
Equipped with Lightfinder and Forensic Wide Dynamic Range, the P3735-PLE excels in high-contrast scenes like storefronts or outdoor entrances where shadows and sunlight collide. You get clean, color-accurate footage, even when lighting conditions are constantly shifting.
Tough Enough for Any Environment
With its IP66 and IK10 ratings, plus NEMA 4X protection, this unit can withstand rain, dust, vandalism, and even coastal or industrial settings. It’s built to endure harsh environments without compromising performance.
Efficient Video Storage
Axis Zipstream technology ensures the P3735-PLE uses storage and bandwidth smartly—only preserving crucial detail while cutting down on unnecessary data. You’ll save on long-term video archiving without compromising image integrity.
Tech Specs
| Camera Model |
Axis P3735-PLE |
| Image Sensor |
4 × 1/1.8" progressive scan RGB CMOS |
| Lens |
4 × Varifocal lenses, 3.3–5.9 mm, F1.9
Horizontal field of view: 36°–67°
Vertical field of view: 20°–38° |
| Minimum Illumination |
Color: 0.16 lux (50 IRE, F1.9)
BW: 0.03 lux (50 IRE, F1.9)
0 lux with IR illumination on |
| Infrared Illumination |
4 × Optimized IR LEDs, range up to 20 m (66 ft) per channel
Automatic IR cut filter |
| Shutter Speed |
1/31500 s to 1/2 s |
| Video Compression |
H.264 (Baseline, Main, High profiles)
H.265 (Main profile)
Motion JPEG |
| Video Streaming |
Individually configurable streams per channel
Multiple streaming profiles |
| Resolution |
4 × 2048x2048 to 160x120 (up to 15 MP total) |
| Frame Rate |
Up to 20 fps per channel at 5 MP
Total frame rate up to 80 fps |
| Day/Night Function |
Yes, with automatic IR-cut filter |
| Wide Dynamic Range |
Forensic WDR |
| Low Light Performance |
Lightfinder technology |
| Pan, Tilt, Zoom (Digital) |
Digital PTZ |
| Video Analytics |
Axis Object Analytics
Motion Detection
Active Tampering Alarm |
| Audio |
Two-way audio
Built-in microphone
Audio input/output via terminal block |
| Network Interface |
RJ45 10BASE-T/100BASE-TX PoE |
| Security |
Signed firmware
Secure boot
Axis Edge Vault
TPM 2.0 FIPS 140-2 level 2 certified |
| Storage Options |
MicroSD/microSDHC/microSDXC slot
Support for recording to NAS |
| Operating Conditions |
-40 °C to 60 °C (-40 °F to 140 °F)
Humidity: 10–100% RH (condensing) |
| Outdoor Protection |
IP66, IP67, NEMA 4X, IK10-rated |
| Power |
Power over Ethernet (PoE) IEEE 802.3bt Type 4
Typical: 28.2 W
Max: 44.3 W |
| Mounting Options |
Surface mount (included)
Optional accessories for recessed, pendant, pole, corner mounting |
| Dimensions |
Height: 109 mm (4.3 in)
Diameter: 232 mm (9.1 in) |
| Weight |
2.3 kg (5.1 lb) |
| Approvals |
EMC, Safety, Environment, Network and Security standards
UL, FCC, ICES, VCCI, CE, etc. |
| Warranty |
5-year Axis limited warranty |
Q&A
Q: Can each lens be adjusted separately?
Yes. Each of the four lenses can be individually positioned and zoomed to provide different angles and focal lengths depending on your surveillance needs.
Q: Does this camera work in complete darkness?
Yes. The P3735-PLE includes integrated infrared LEDs for all four lenses, delivering excellent clarity even in zero-light environments.
Q: What kind of environments can it be installed in?
It’s built for both indoor and outdoor use, rated IP66 for water resistance, IK10 for impact protection, and NEMA 4X for added resilience in harsh weather or corrosive environments.
Q: How is video storage managed efficiently?
Axis Zipstream technology paired with H.264 and H.265 compression ensures reduced storage and bandwidth usage, focusing on forensic detail and minimizing data waste.
Q: What are typical use cases for this camera?
Ideal for shopping malls, large parking areas, school campuses, building perimeters, intersections, or anywhere that needs multi-directional coverage from one device.
