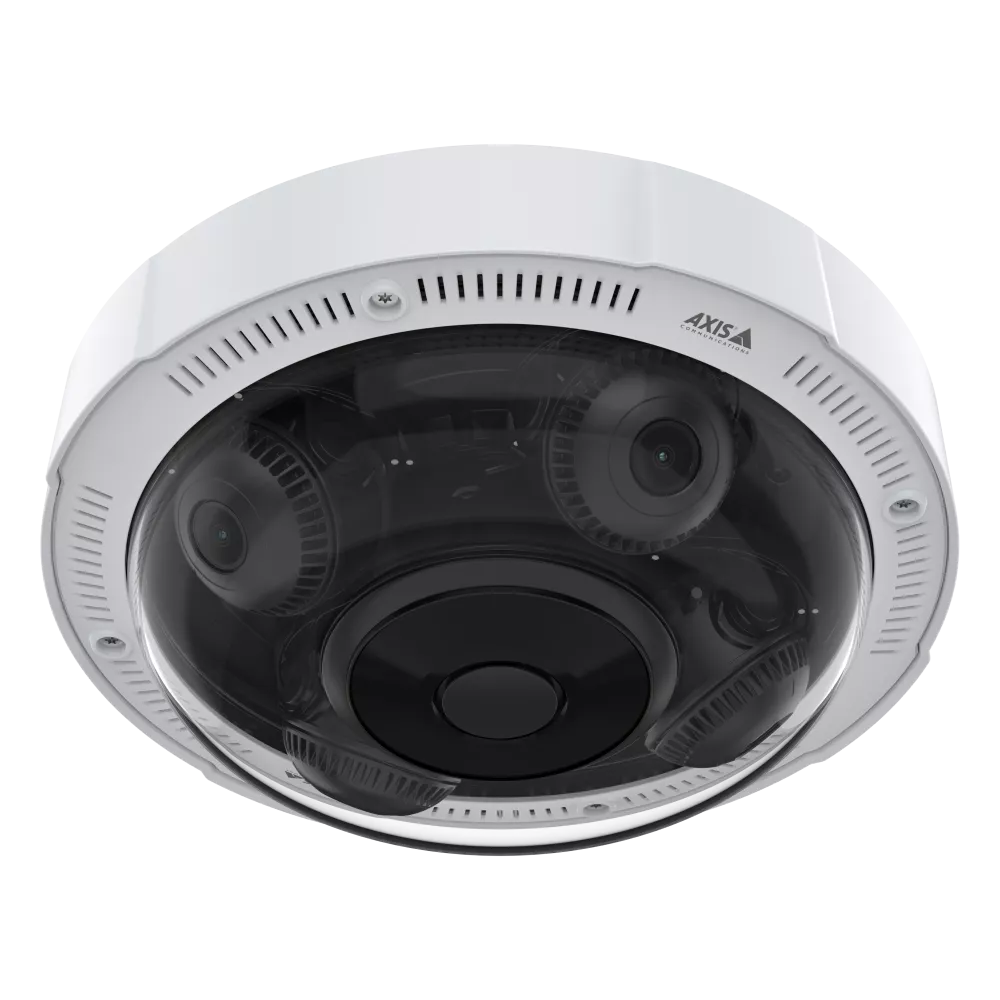

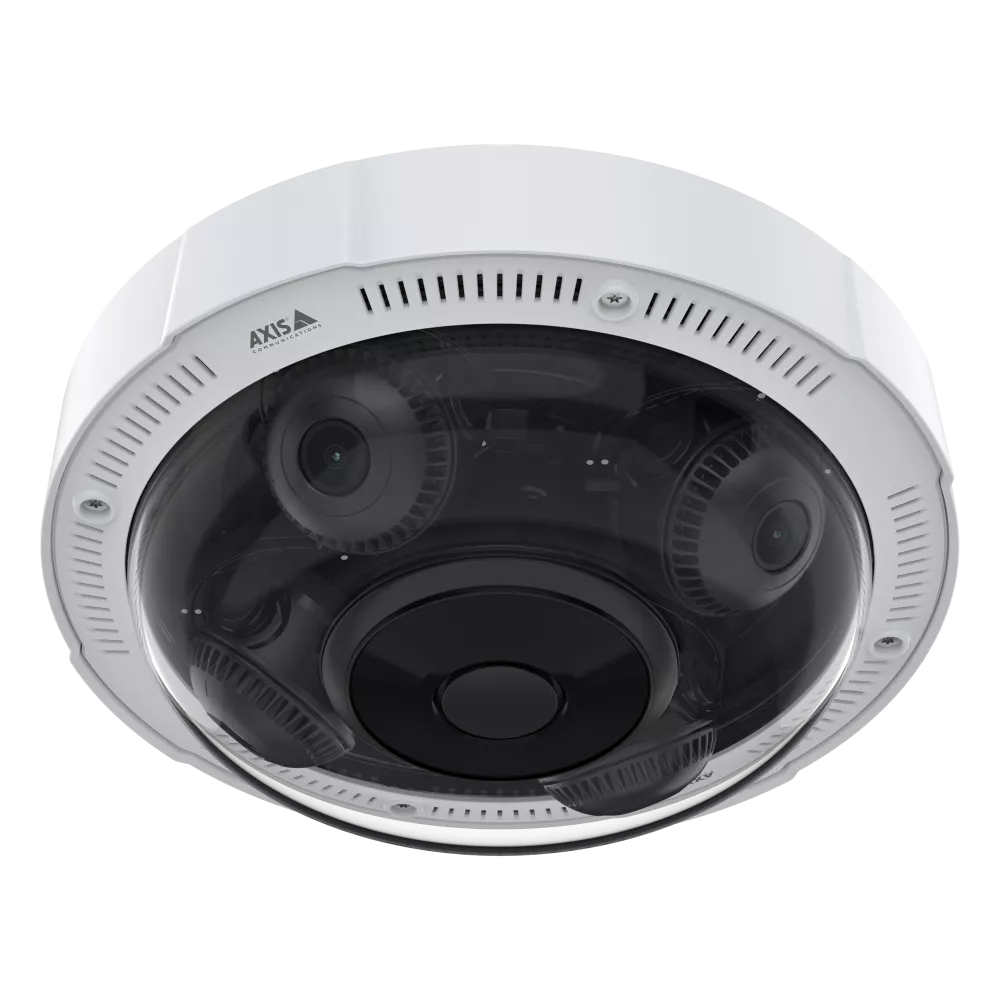

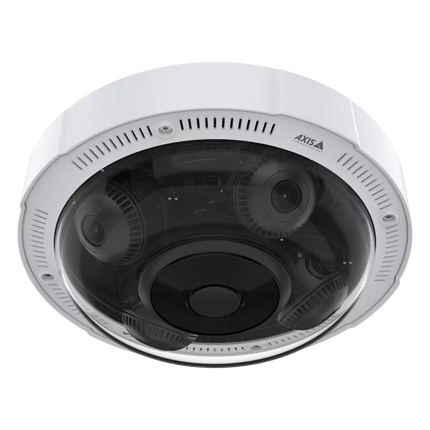

Protect large-scale spaces with a single, powerful solution. The Axis P3737-PLE Panoramic Camera delivers seamless multi-directional coverage with four individually controlled sensors — ideal for parking lots, airports, campuses, warehouses, and more. This all-in-one outdoor-ready camera helps cut installation costs while enhancing security insight with built-in AI analytics.
Features
-
Panoramic Four-Lens Design – Covers multiple directions at once with adjustable varifocal lenses for flexible scene monitoring.
-
4x 5 MP – Delivers sharp, detailed video across all four views with a single camera.
-
Built-in Deep Learning Analytics – Get smart object detection and reduced false alerts using onboard AI processing.
-
Infrared Night Vision (IR) – See clearly in total darkness up to 20 meters, making 24/7 surveillance effective.
-
Lightfinder Technology – Maintains color accuracy and clarity even in low-light scenes.
-
Forensic WDR – Handles high-contrast lighting (like entrances or glass walls) without sacrificing detail.
-
Outdoor-Ready Design – IP66/IK10-rated for harsh weather and vandal protection; works in extreme temperatures.
-
Remote Zoom & Focus – Easy setup and lens calibration without physical adjustments.
-
Efficient Video Compression (Zipstream + H.265) – Reduces bandwidth and storage use without compromising quality.
Downloads
| Datasheet |
AXIS P3737-PLE Panoramic Camera
|
| Installation Guide |
Installation Guide AXIS P37 PLE series
|
| User Manual |
AXIS P37-PLE Panoramic camera series - User Manual
|
Extra Info
Smart, Multi-Directional Monitoring

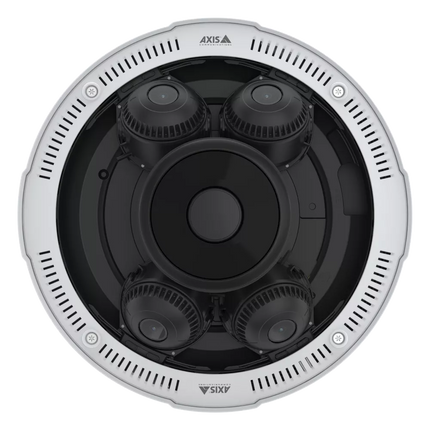

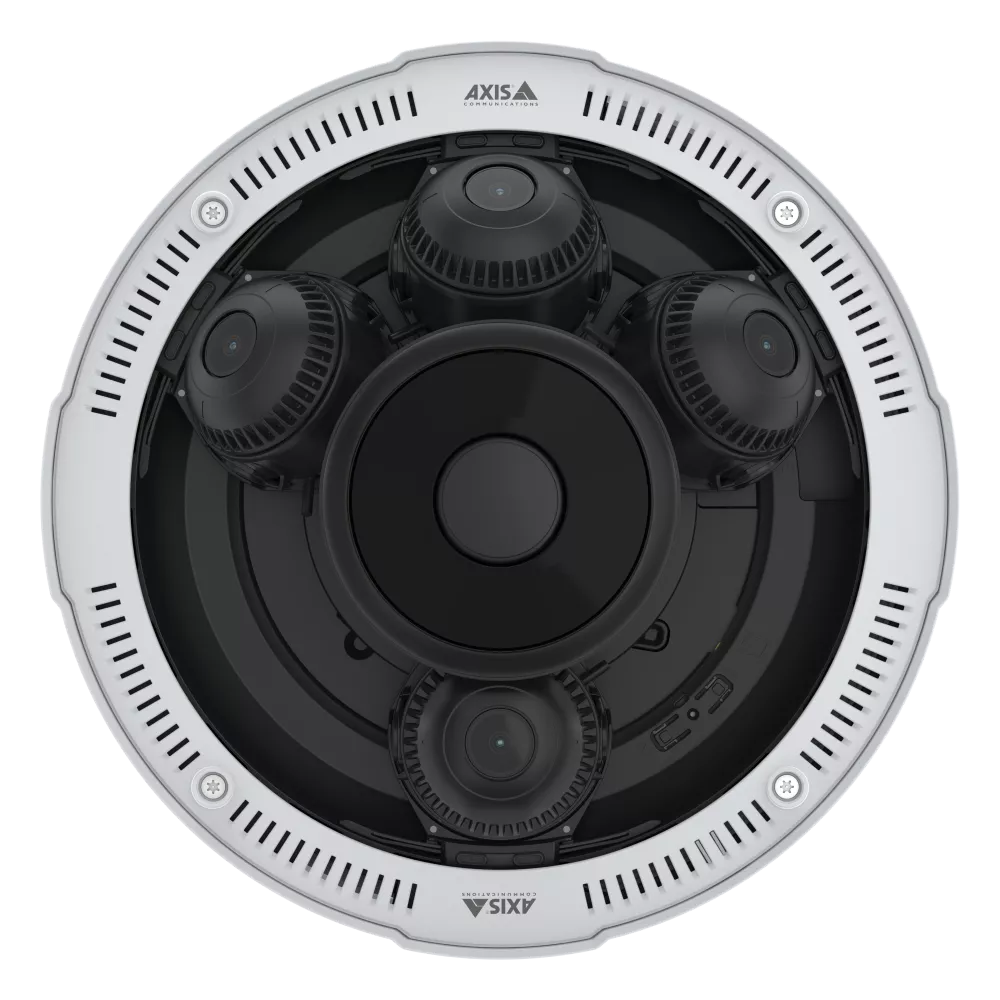

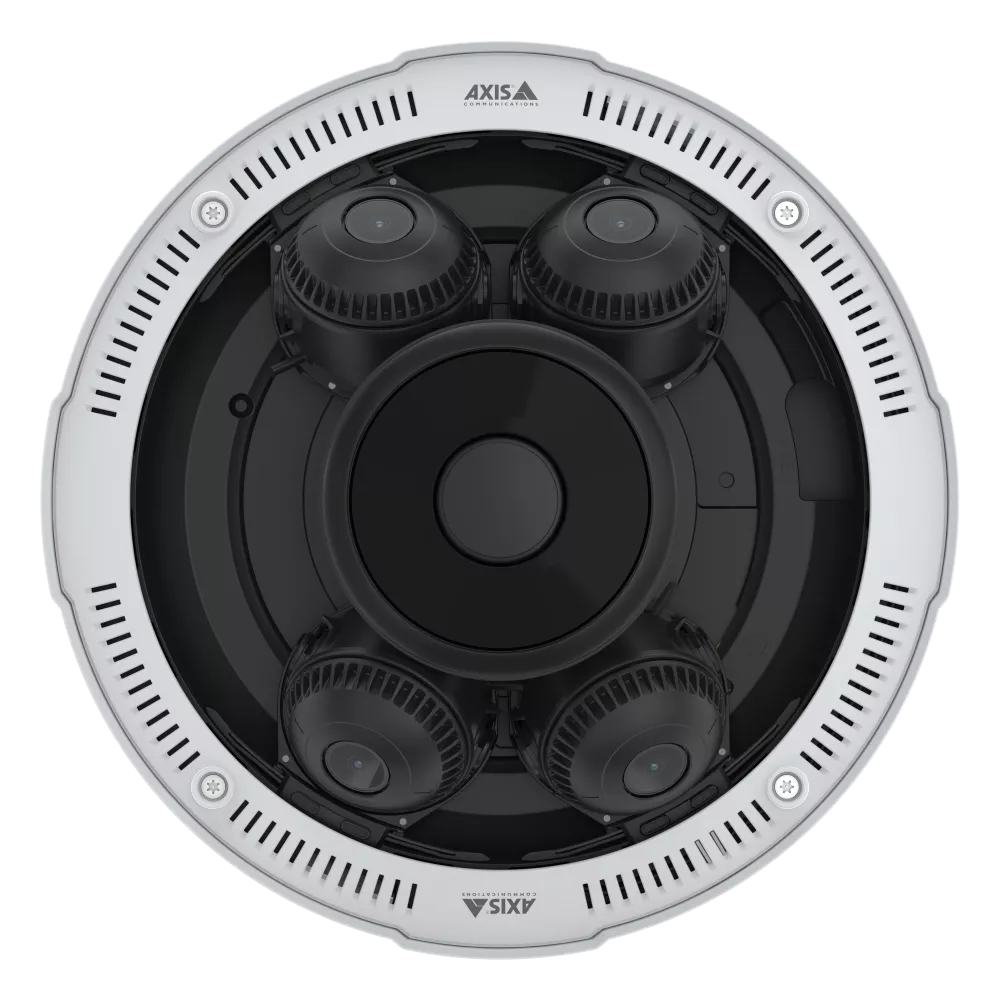

The Axis P3737-PLE is engineered for complex surveillance environments. Its four adjustable varifocal lenses give you the ability to monitor multiple directions or areas with precision — from one install point. Ideal for spaces with intersecting hallways, parking bays, or large open zones, it helps reduce camera count while covering more.
AI-Powered Intelligence
Equipped with an advanced chipset, this camera includes Axis Object Analytics powered by deep learning. This means better motion detection, smarter object classification (e.g., distinguishing people vs vehicles), and fewer nuisance alerts — especially helpful in busy or outdoor areas.
Reliable in Harsh Conditions
With an IP66 and IK10 rating, the P3737-PLE can handle anything from dust storms to vandal attempts. It functions in temperatures ranging from -40 °C to 60 °C, making it suitable for extreme climates. The integrated IR LEDs adapt to each lens’s field of view, ensuring night coverage exactly where you need it.
Flexible Installation & Reduced Costs
The camera’s remote zoom and focus allow technicians to fine-tune each lens after mounting, minimizing labor and setup time. With multiple sensors in one housing and a single Ethernet connection, it reduces infrastructure costs compared to deploying four separate cameras.
Tech Specs
| Camera Image Sensor |
1/1.8" progressive scan RGB CMOS |
| Minimum Illumination |
Color: 0.14 lux (50 IRE, F1.8)
B/W: 0.03 lux (50 IRE, F1.8)
0 lux with IR illumination on |
| Shutter Speed |
1/32,000 s to 1/5 s |
| Camera Angle of View |
Horizontal: 47°–100° per channel
Vertical: 26°–53° per channel |
| Camera Lens |
Varifocal, 3.1–8.6 mm, F1.8
Horizontal field of view: 47°–100°
Vertical field of view: 26°–53°
Remote focus and zoom
P-Iris control |
| Day and Night Function |
IR-cut filter with auto-switching |
| IR Illumination |
Optimized IR with 4 LEDs (850 nm)
Range: Up to 20 m (65 ft) per channel |
| Video Compression |
H.264 (MPEG-4 Part 10/AVC), H.265 (HEVC), Motion JPEG |
| Resolution |
3840×2880 (per channel)
Max total resolution: 15 MP (combined) |
| Frame Rate |
15 MP at 20 fps (all four channels) |
| Video Streaming |
Multiple, individually configurable streams per channel
Dynamic frame rate and bandwidth
Axis Zipstream technology in H.264/H.265 |
| Image Settings |
Compression, color, brightness, sharpness, white balance,
exposure control, exposure zones, WDR – Forensic Capture,
rotation, text/image overlay, privacy masks, mirroring,
barrel distortion correction, dynamic contrast,
local contrast, defogging |
| Video Analytics |
Axis Object Analytics
Motion detection, tampering alarm, shock detection,
audio detection, fence guard, loitering guard, object counter |
| Audio |
Two-way audio
Built-in microphone (can be disabled)
External mic input or line in
Line-level output |
| Audio Encoding |
AAC-LC 8/16 kHz, G.711 PCM, G.726 ADPCM |
| Network Protocols |
IPv4, IPv6, HTTP, HTTPS, SSL/TLS, QoS, FTP, SFTP, CIFS/SMB,
SMTP, Bonjour, UPnP™, SNMP v1/v2c/v3, DNS, DynDNS, NTP,
RTSP, RTP, TCP, UDP, IGMP, DHCP, ARP, SOCKS, SSH, LLDP, MQTT |
| Security Features |
Signed firmware, secure boot, secure keystore, Axis Edge Vault,
TPM 2.0, HTTPS, encrypted microSD storage, IEEE 802.1x, brute force delay protection |
| Storage Options |
microSD/microSDHC/microSDXC slot
Support for recording to network-attached storage (NAS) |
| Operating Conditions |
-40 °C to 60 °C (-40 °F to 140 °F)
Humidity: 10–100% RH (condensing) |
| Ingress Protection |
IP66, IP67 (IEC 60529) |
| Impact Resistance |
IK10 (IEC 62262) |
| Power |
Power over Ethernet Plus (PoE+)
IEEE 802.3at Type 2 Class 4
Typical: 17.7 W
Max: 24.9 W |
| Dimensions |
Height: 79 mm (3.1 in)
Diameter: 259 mm (10.2 in) |
| Weight |
2.3 kg (5.1 lb) |
| Casing |
Aluminum, polycarbonate, clear bubble
Color: White NCS S 1002-B |
| Included Accessories |
Connector guard, installation guide,
Windows® decoder 1-user license |
| Compliance |
EN 55032 Class A, EN 55035, EN 61000-6-1,
EN 61000-6-2, FCC Part 15 Subpart B Class A,
ICES-003 Class A, RCM AS/NZS CISPR 32 Class A |
| Warranty |
5-year Axis limited hardware warranty |
Q&A
Q: Can this camera replace multiple fixed cameras in one area?
A: Yes. The four individually adjustable sensors allow coverage of different directions, making it ideal for replacing multiple traditional cameras.
Q: Does it work at night or in complete darkness?
A: Absolutely. The integrated IR LEDs provide up to 20 meters of clear night vision even in total darkness.
Q: Is this camera suitable for outdoor use?
A: Yes. It’s built to withstand harsh environments with an IP66 (weatherproof) and IK10 (vandal-resistant) rating.
Q: Can it detect people and vehicles separately?
A: Yes. It uses Axis Object Analytics with deep learning to accurately detect and classify objects like people and cars.
Q: How is it powered and connected?
A: It uses standard Ethernet (PoE), but installation is simplified by requiring just one cable for all four lenses.
Q: What kind of storage does it support?
A: It supports local storage via microSD card and integrates easily with network video recorders (NVRs).
