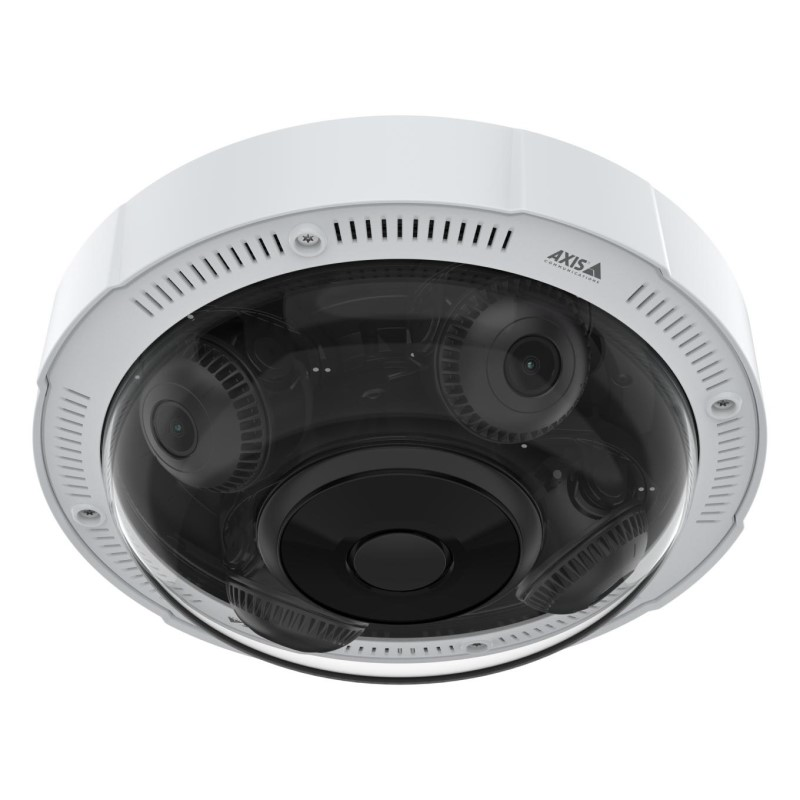

The AXIS P3737-PLE is a versatile 8MP multi-sensor panoramic camera featuring four individually adjustable 2MP camera heads in a single unit. Designed for comprehensive outdoor surveillance, it combines flexible coverage, built-in IR illumination, deep learning analytics, and outstanding image quality to monitor large areas with fewer cameras. Ideal for intersections, building exteriors, parking lots, campuses, and critical infrastructure.
Features
-
Four Adjustable Camera Heads – Provides flexible monitoring with independent positioning for optimized scene coverage.
-
8MP Total Resolution – Four 2MP sensors deliver detailed surveillance across multiple viewing angles.
-
Deep Learning Processing Unit (DLPU) – Enables advanced analytics directly on the camera.
-
AXIS Object Analytics – Detects, classifies, and tracks people and vehicles with high accuracy.
-
OptimizedIR – Integrated IR illumination enables surveillance in complete darkness.
-
Forensic WDR – Maintains image detail in challenging lighting environments.
-
Flexible Installation – One camera replaces multiple devices, reducing installation and maintenance costs.
-
H.265 with Zipstream – Optimizes bandwidth and storage efficiency.
-
Axis Edge Vault – Hardware-based cybersecurity protection with secure key storage.
What's Included:
- AXIS P3737-PLE Panoramic Camera
- Weather Shield
- Installation Hardware
- Terminal Connectors
- Quick Installation Guide
- Windows Decoder License
DOWNLOADS
Key Info
Four Cameras in One Device
The AXIS P3737-PLE features four individually adjustable camera heads that can monitor multiple directions simultaneously. This flexible design reduces installation complexity while delivering complete area coverage with a single network camera.
Comprehensive Outdoor Surveillance
Designed for demanding outdoor environments, the camera combines advanced imaging technologies with built-in IR illumination for reliable 24/7 operation.
-
OptimizedIR for complete darkness surveillance
-
Forensic WDR for challenging lighting conditions
-
Day/Night Functionality for around-the-clock monitoring
-
Weather-resistant housing for outdoor deployments
Advanced AI Analytics
The integrated Deep Learning Processing Unit enables intelligent analytics directly on the camera, reducing server load while improving event detection accuracy.
- AXIS Object Analytics
- People and vehicle classification
- Object tracking
- Metadata generation for forensic search
Built for Professional Security Applications
- Axis Edge Vault cybersecurity platform
- IP66, IP67 and IK09 protection ratings
- Single-camera multi-direction coverage
- Reduced installation and maintenance costs
Tech Specs
| Specification |
Details |
| Model |
P3737-PLE (02634-001) |
| Camera Type |
Outdoor Multi-Sensor Panoramic Camera |
| Image Sensors |
4 × 1/2.8" Progressive Scan RGB CMOS |
| Total Resolution |
8MP Total (4 × 2MP) |
| Resolution Per Sensor |
1920 × 1080 (2MP) |
| Lens |
2.8 mm Fixed Lens, F2.0 |
| Field of View |
Horizontal: 107°, Vertical: 56° per sensor |
| Frame Rate |
Up to 30 fps per sensor |
| Day/Night Function |
Automatic IR-cut Filter |
| Wide Dynamic Range |
Forensic WDR |
| IR Illumination |
OptimizedIR |
| System on Chip |
ARTPEC-8 |
| AI Processing |
Deep Learning Processing Unit (DLPU) |
| Analytics |
AXIS Object Analytics, Motion Detection, Audio Detection |
| Video Compression |
H.264, H.265, Motion JPEG, Zipstream |
| Memory |
2048 MB RAM, 8192 MB Flash |
| Storage |
microSD/microSDHC/microSDXC Support |
| Power |
PoE IEEE 802.3at Type 2 Class 4 |
| Protection Ratings |
IP66, IP67, IK09, NEMA 4X |
| Operating Temperature |
-40°C to 50°C |
| Warranty |
5-Year Warranty |
Q&A
Q: What makes the P3737-PLE different from a standard dome camera?
The P3737-PLE includes four individually adjustable camera heads in a single device, allowing multiple viewing directions and broader area coverage.
Q: Can each camera sensor be positioned independently?
Yes. Each of the four sensors can be individually adjusted to optimize coverage for different monitoring areas.
Q: Does the camera support AI analytics?
Yes. The integrated DLPU supports AXIS Object Analytics for advanced people and vehicle detection and classification.
Q: Is the camera suitable for night-time surveillance?
Yes. Built-in OptimizedIR provides reliable surveillance in complete darkness.
Q: Is the P3737-PLE designed for outdoor use?
Yes. It features IP66, IP67, IK09, and NEMA 4X ratings for reliable operation in harsh outdoor environments.
Q: What applications is the P3737-PLE best suited for?
It is ideal for intersections, building exteriors, campuses, parking areas, transportation hubs, and other locations requiring wide-area coverage with fewer cameras.
