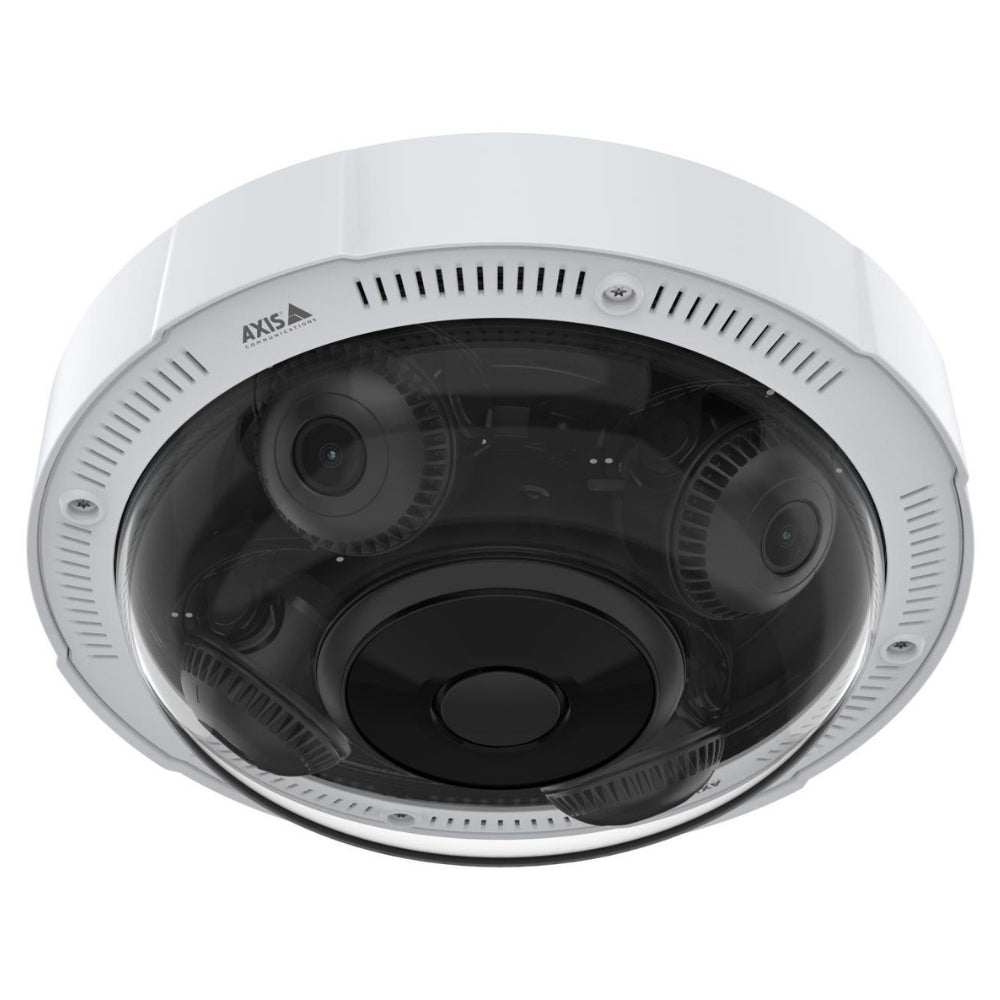

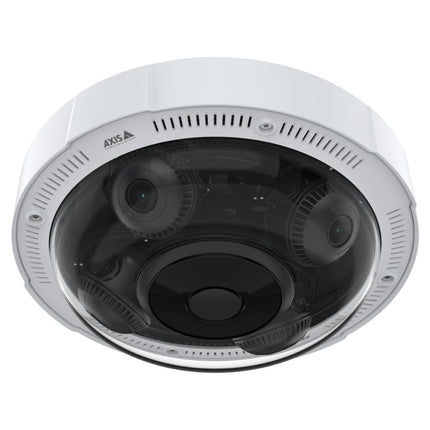

The AXIS P3738-PLE is a 4x 4K multidirectional panoramic camera built for wide-area surveillance. It delivers excellent coverage with 360° IR illumination, deep learning analytics, and flexible mounting options. Designed for both indoor and outdoor use, it’s ideal for airports, city surveillance, campuses, and critical infrastructure.
Features
-
4x 4K Video Streams – Each sensor provides 4K resolution at up to 15 fps for detailed, multi-angle coverage.
-
360° IR Illumination – Integrated Optimised IR with individually controlled LEDs ensures balanced night vision with no reflections.
-
Deep Learning Analytics – Includes AXIS Object Analytics for human and vehicle detection with scenario-based triggers.
-
Flexible Mounting Options – Supports recessed, ceiling, or pendant installations for tailored deployments.
-
Remote Zoom & Focus – All four varifocal lenses offer motorized zoom and focus for easy setup and adjustment.
-
Edge Vault Cybersecurity – Hardware-based security ensures device integrity, secure boot, and encrypted storage.
-
Forensic WDR & Lightfinder – Balanced contrast in challenging light conditions and vivid color even in low light.
What's Included:
- AXIS P3738-PLE Panoramic Camera
- Connector guard
- Cable gaskets
- Installation guide
- Windows® decoder 1-user license
DOWNLOADS
Extra Info
Panoramic 360° Clarity in 4K
With 4x 4K resolution sensors, the AXIS P3738-PLE ensures sharp, detailed coverage in four directions simultaneously. Perfect for large open areas such as city intersections, parking lots, and building perimeters.
IR Illumination in All Directions
Optimised IR with individually adjustable LEDs provides uniform lighting in all four views. Even in total darkness, the camera maintains clarity without reflections or hotspots.
AI-Powered Video Analytics
Equipped with ARTPEC-8 and DLPU, this camera delivers powerful edge-based deep learning. It detects and classifies humans, vehicles (cars, buses, trucks, bikes), and enables behavioral scene analysis with visual overlays.
Secure by Design
Protected by Axis Edge Vault, it ensures hardware-based encryption, secure boot, signed OS, and secure keystore—guaranteeing system integrity and protecting sensitive data from unauthorized access.
Install It Your Way
From recessed ceiling mounts to pendant or wall options, the camera is built to adapt. Remote zoom and focus make setup simple, with no need for physical adjustments after mounting.
Tech Specs
| Specification |
Details |
| **Camera** |
|
| Image Sensor |
4x 1/2.8” progressive scan RGB CMOS |
| Lens |
Varifocal 3.2–8.1 mm, F1.9–3.2, IR-corrected, remote zoom and focus |
| Field of View |
Horizontal: 108°–40°, Vertical: 55°–23°, Diagonal: 131°–46° |
| Day and Night |
Automatic IR-cut filter |
| Min. Illumination |
Color: 0.19 lux at 50 IRE (F1.9) / B/W: 0 lux with IR on |
| Shutter Speed |
WDR on: 1/8000 s to 2 s / WDR off: 1/16000 s to 2 s |
| Camera Angle Adjustment |
Pan ±90°, Tilt +25° to +95°, Rotation -5° to +95°, Twist ±20° |
| SoC |
ARTPEC-8 with Deep Learning Processing Unit (DLPU) |
| Memory |
4096 MB RAM, 8192 MB Flash |
| **Video** |
|
| Compression |
H.264 (Baseline/Main/High), H.265, Motion JPEG with Zipstream |
| Resolution |
4x 3840x2160 (4K) to 4x 320x180 |
| Frame Rate |
Up to 15 fps in all resolutions |
| Streaming |
Multiple configurable streams, low latency mode, VBR/ABR/MBR support |
| WDR |
Forensic WDR up to 120 dB |
| **Audio** |
|
| Audio Input/Output |
Two-way via AXIS T61 Mk II using Portcast, network speaker pairing |
| **Network** |
|
| Protocols |
IPv4/6, HTTP/HTTPS, TLS, FTP/SFTP, CIFS/SMB, MQTT, SNMP, SSH, LLDP, CDP, DHCP, mDNS, NTP/NTS, SRTP, etc. |
| **System Integration** |
|
| API |
VAPIX, ACAP (Native SDK & CV SDK), ONVIF Profiles G/M/S/T, One-click cloud connect |
| Event Triggers |
Motion, tampering, temperature, storage, manual trigger, virtual input, MQTT, schedule, etc. |
| Event Actions |
Recording, overlay, notifications, SNMP trap, IR control, MQTT publish, video upload |
| Built-in Tools |
Remote zoom/focus, pixel counter, distortion correction |
| **Analytics** |
|
| Included |
AXIS Object Analytics (humans/vehicles with behavior-based triggers), Scene Metadata, Motion Detection |
| Multisensor Support |
Yes, with 4 channels of analytics |
| **Cybersecurity** |
|
| Software Security |
Signed OS, password protection, brute force delay, secure boot, signed video |
| Hardware Security |
Axis Edge Vault, TPM 2.0, secure keystore (AES-XTS-Plain64 256-bit) |
| Network Security |
IEEE 802.1X, HTTPS, TLS 1.2/1.3, NTS, X.509 PKI, secure syslog, firewall |
| **General** |
|
| Casing |
IP66/IP67, IK09, NEMA 4X-rated aluminum & polycarbonate dome |
| Power |
PoE IEEE 802.3at Type 2 Class 4, Max 25.5W (with IR) |
| Storage |
microSD/SDHC/SDXC (AES-XTS encryption), NAS support |
| Operating Conditions |
-30 °C to 50 °C, Max 74 °C (NEMA TS 2), 10–100% RH |
| Weight |
2 kg (4.4 lb) |
| Warranty |
5-year warranty |
Q&A
Q1: Can each sensor be configured independently?
Yes, each of the four sensors is individually configurable for resolution, field of view, and orientation.
Q2: Is the camera suitable for outdoor installation?
Absolutely. It is IP66/IP67 and IK09 rated for protection against dust, water, and impact.
Q3: How is audio supported?
Two-way audio is supported via AXIS T61 Mk II using Portcast technology.
Q4: Does it support analytics on all four channels?
Yes. It supports multisensor analytics across all four channels with advanced classification and scene metadata.
Q5: What kind of storage does it support?
It supports encrypted microSD/SDHC/SDXC cards and NAS for reliable local and network recording.
