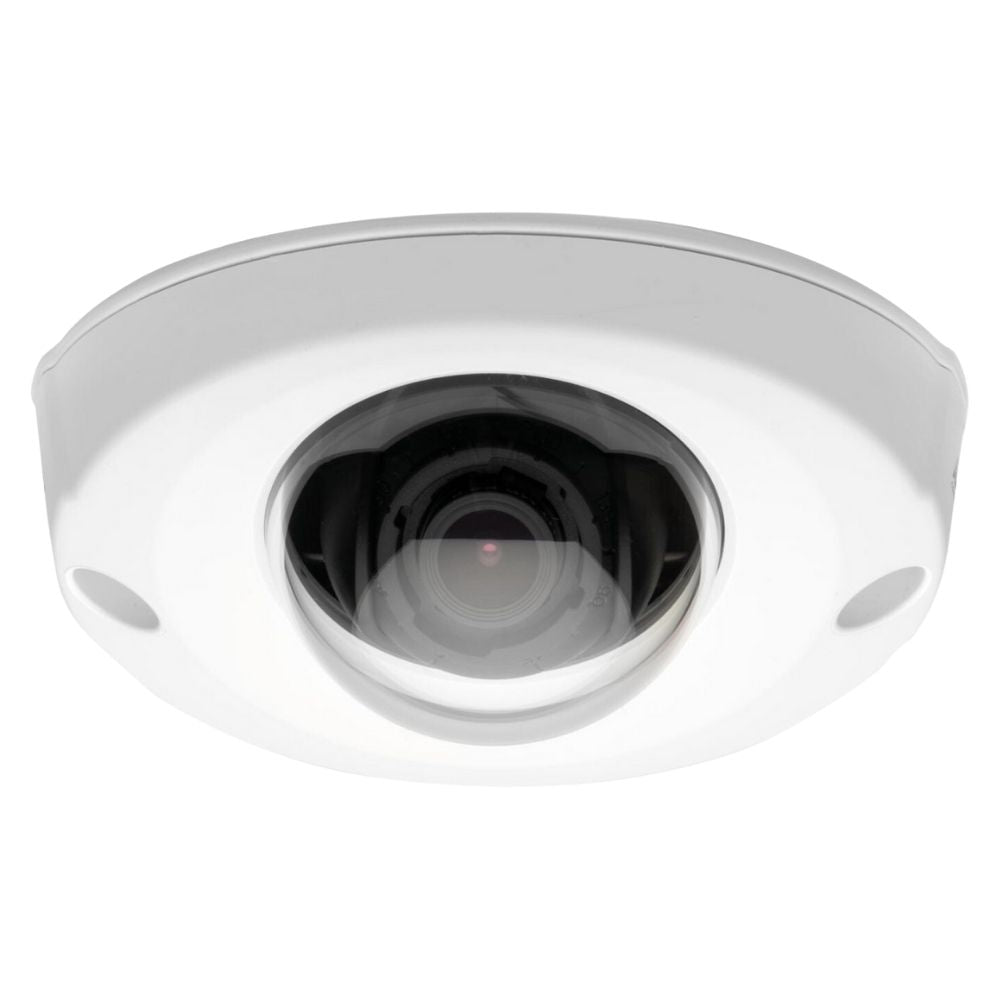

The Axis P3915-R Mk II Network Camera is a compact, purpose-built solution designed specifically for transportation surveillance—buses, trains, emergency vehicles, and more. Built to withstand vibration, shocks, temperature extremes, and tampering, this dome camera provides clear, forensic-quality video in both bright and low-light environments. Its robust build, discreet form factor, and onboard analytics make it ideal for capturing critical events in challenging mobile conditions.
Features
-
Optimized for Vehicles – Designed and certified for use in buses, trains, and emergency response fleets.
-
Lightfinder Technology – Captures sharp, full-color images in near darkness for accurate monitoring 24/7.
-
Wide Dynamic Range (WDR) – Maintains visibility and detail in high-contrast scenes, like tunnels or direct sunlight.
-
Built-In Microphone – Records clear onboard audio to support investigations and incident reviews.
-
Rugged and Tamper-Resistant – Withstands shocks, vibrations, dust, and wide temperature shifts for mobile reliability.
-
Discreet, Compact Form Factor – Easy to install in tight cabin spaces without drawing attention.
-
Fixed Wide-Angle Lens – Covers broad areas with minimal distortion—ideal for narrow corridors or vehicle interiors.
-
Edge Storage Support – Record directly to onboard storage for fail-safe video even if the network drops.
-
P39 Series Technology – Built on Axis’ trusted transportation-focused platform, ensuring proven performance and support.
Downloads
Extra Info
Designed for Transport Surveillance
This camera isn’t a repurposed indoor model—it’s purpose-built for mobile use. Certified to meet EN50155 and E-Mark standards, it handles vehicle vibrations, sudden shocks, and power fluctuations with ease. That makes it ideal for trains, subways, delivery trucks, and patrol vehicles.
Superior Imaging in Any Light
Thanks to Axis Lightfinder, the P3915-R Mk II delivers full-color video even in near darkness, crucial for identifying people and objects during night operations. Combined with WDR, the camera balances exposure across dark interiors and bright windows or headlights.
Audio Support Adds Context
Its integrated microphone captures synchronized audio, enhancing footage with valuable context—such as verbal altercations or procedural voice cues in emergency services.
Flexible Integration Options
The compact dome mounts easily to ceilings or walls in tight quarters. It supports Axis’ Zipstream compression, reducing bandwidth and storage costs without sacrificing detail—making it ideal for mobile data plans or onboard NVRs.
Tech Specs
| Camera Image Sensor |
Progressive scan RGB CMOS 1/3" |
| Lens |
Fixed iris, fixed focal length
2.8 mm, F2.0
Horizontal FOV: 110°
Vertical FOV: 61° |
| Minimum Illumination |
Color: 0.16 lux at 50 IRE, F2.0
B/W: 0.03 lux at 50 IRE, F2.0 |
| Shutter Time |
1/33500 s to 2 s |
| Camera Angle Adjustment |
Pan: ±180°
Tilt: ±30°
Rotation: ±180° |
| Video Compression |
H.264 (MPEG-4 Part 10/AVC)
Motion JPEG |
| Resolution |
1920x1080 (HDTV 1080p) to 160x90 |
| Frame Rate |
Up to 30/25 fps (60/50 Hz) in all resolutions |
| Video Streaming |
Multiple, individually configurable streams
Controllable frame rate and bandwidth
VBR/CBR H.264 |
| Image Settings |
Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, WDR, fine-tuning of behavior at low light
Rotation: 0°, 90°, 180°, 270° including corridor format
Text and image overlay
Privacy mask |
| Audio Streaming |
Two-way, full duplex |
| Audio Encoding |
AAC-LC 8/16 kHz
G.711 PCM 8 kHz
G.726 ADPCM 8 kHz
Axis T6101 required for audio out |
| Audio Input/Output |
Built-in microphone
External microphone input |
| Network Protocols |
IPv4, IPv6, HTTP, HTTPS, SSL/TLS, QoS, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP™, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| Security |
Password protection
IP address filtering
HTTPS encryption
IEEE 802.1X network access control
Digest authentication
User access log |
| Event Triggers |
Tampering, audio detection, edge storage events, AXIS Video Motion Detection |
| Event Actions |
File upload: FTP, SFTP, HTTP, HTTPS, network share, and email
Notification: email, HTTP, HTTPS, and TCP
External output activation
Pre- and post-alarm video buffering
Video and audio recording to edge storage
Day/night mode |
| Built-in Storage |
microSD/microSDHC/microSDXC slot
Support for SD card encryption |
| Power |
PoE IEEE 802.3af/802.3at Type 1 Class 2
Typical: 3.2 W
Max: 4.4 W |
| Operating Conditions |
-40 °C to 55 °C (-40 °F to 131 °F)
Humidity 10–100% RH (condensing) |
| Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F) |
| Approvals |
EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KCC KN32 Class A, KN35
EN 50121-4, IEC 62236-4, ECE R10 rev 5, IEC 60529 IP66 and IP67, IEC 62262 IK10, NEMA TS 2 (vibration, shock, and temperature)
EN 45545-2, EN 50155, IEC 60068-2-1, -2, -6, -27, -30, -64 |
| Casing |
Aluminum and polycarbonate casing with hard-coated dome
Color: Black NCS S 9000-N |
| Dimensions |
100 mm (3.9 in) diameter
Height: 45 mm (1.8 in) |
| Weight |
330 g (0.73 lb) |
| Included Accessories |
Installation guide, connector guard, I/O connector, AVHS authentication key, Windows decoder license |
| Optional Accessories |
AXIS T94A01L Recessed Mount, AXIS T94A02L Ceiling Mount, AXIS T94A02D Pendant Kit, Axis mounts and covers |
| Warranty |
5-year limited hardware warranty |
Q&A
Q: Can this camera handle the vibrations and temperature swings inside a vehicle?
Yes. It’s specifically designed for vehicle surveillance and certified to industry standards (EN50155, E-Mark) for shock, vibration, and temperature resistance.
Q: Does it capture audio as well as video?
Yes, it includes a built-in microphone for capturing onboard audio, which can be enabled or disabled as needed.
Q: How well does it perform in low-light environments?
The camera features Axis Lightfinder technology, enabling it to produce full-color video in extremely low-light conditions without needing IR.
Q: Can I install it in tight spaces like inside a bus ceiling panel?
Absolutely. Its compact, low-profile design is ideal for discreet mounting in vehicle interiors or confined areas.
Q: What kind of lens does it use?
It has a factory-focused fixed lens with a wide field of view, making it perfect for monitoring cabins, corridors, or aisleways.
Q: What series does it belong to, and what does that mean?
It belongs to the Axis P39 Series, which is engineered specifically for professional mobile surveillance applications—ensuring durability, performance, and ease of integration with transportation systems.
