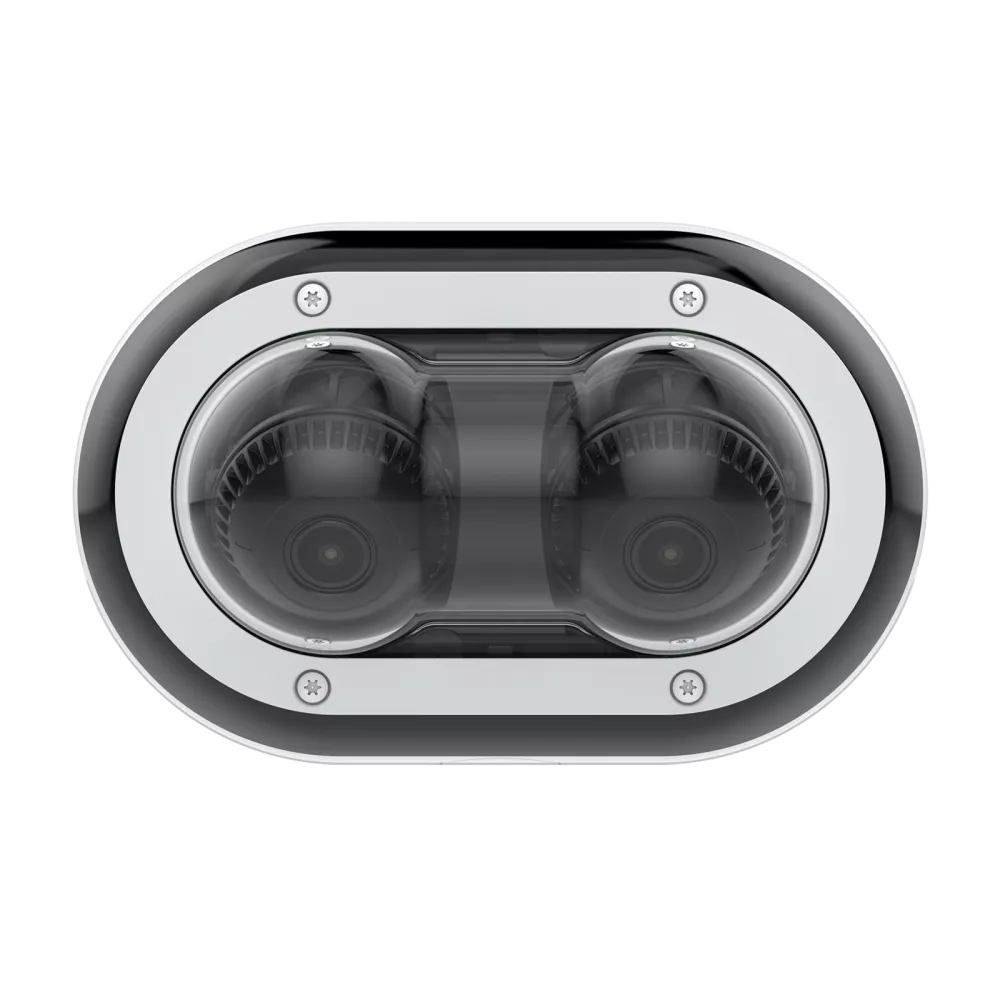

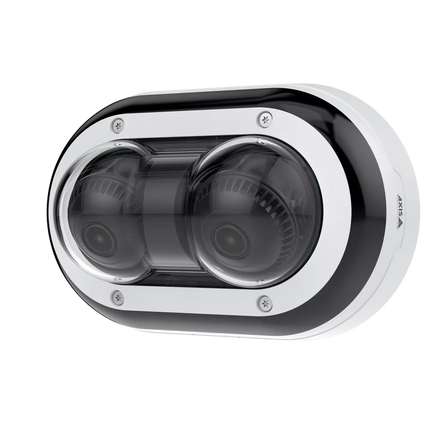

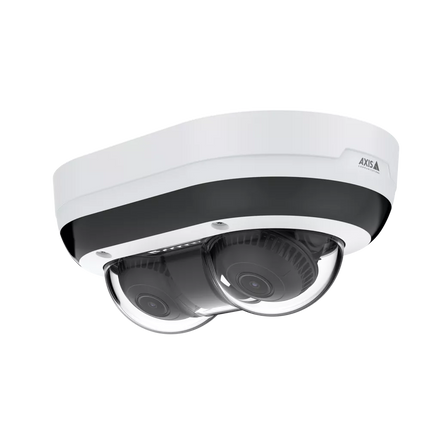

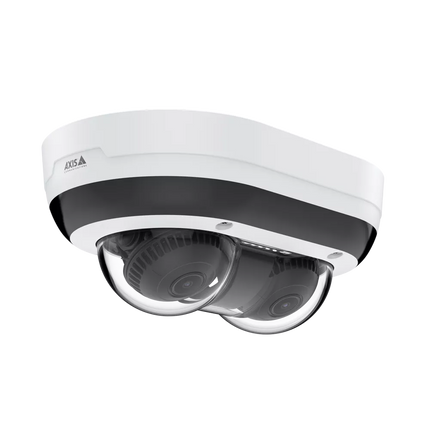

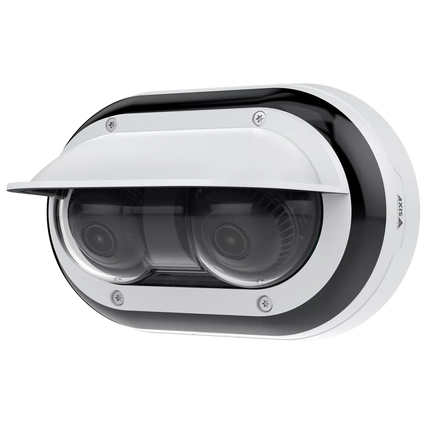

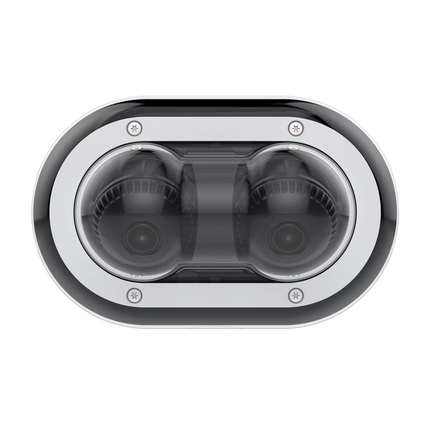

The Axis P4705-PLVE delivers wide-area monitoring with two 2x2 MP sensors in a single compact body—perfect for monitoring corridors, intersections, or large open areas like parking lots and lobbies. With advanced AI-based analytics, clear imaging in low-light conditions, and robust outdoor protection, this camera is engineered for reliability in both residential and commercial environments. Installers benefit from a simple setup, while property owners enjoy peace of mind with 24/7 intelligent coverage.
Features
-
Dual Sensors in One Housing – Monitor two directions at once with a single camera body, reducing install time and costs.
-
Deep Learning AI Analytics – Built-in object classification improves detection accuracy and reduces false alerts.
-
Forensic WDR – Preserves important details in high-contrast scenes, such as building entrances or storefronts.
-
Lightfinder Technology – Delivers color video even in near darkness, ideal for dusk or dimly lit areas.
-
IR Night Vision (30m) – See clearly in total darkness with integrated infrared illumination up to 98 feet.
-
Robust Outdoor Rating (IP66/IK10) – Built to withstand harsh weather and vandalism in exposed locations.
-
Remote Zoom & Focus (Varifocal Lens) – Flexibly adjust field of view post-install without needing a ladder.
-
Edge Storage with Zipstream – Saves bandwidth and storage using H.265 and H.264 compression without sacrificing quality.
-
M-Line Series Reliability – Trusted AXIS platform with long-term support and cybersecurity protection.
Downloads
Extra Info
Smarter Coverage with Fewer Devices
The P4705-PLVE combines two 5 MP varifocal lenses in a single unit, giving you flexible coverage of two scenes—like building corners, corridors, or aisles—without installing two separate cameras. Each sensor is independently adjustable, allowing precise coverage with fewer blind spots and lower infrastructure costs.
Intelligent Video for Smarter Security
With deep learning analytics onboard, the camera can classify humans, vehicles, and even types of motion. This makes it ideal for businesses or properties needing accurate event detection, even in high-traffic areas. Fewer false alarms mean faster, more reliable responses.
Reliable Image Quality, Day or Night
AXIS Lightfinder and Forensic WDR work together to deliver detailed color images in low-light and difficult lighting scenarios, such as lobbies with backlit glass or driveways at dusk. When visibility drops completely, integrated IR LEDs ensure full coverage up to 30 meters.
Built to Last Outdoors
The weather- and impact-resistant housing (IP66/IK10) is ready for rooftops, poles, or wall mounting in exposed outdoor locations. It includes electronic image stabilization (EIS) for steady footage even in windy conditions.
Efficient Storage Without Sacrificing Detail
Axis Zipstream with support for H.264 and H.265 ensures high-quality recording while optimizing storage and bandwidth. Edge storage support means the camera can record directly to local SD cards for backup or standalone operation.
Tech Specs
| Camera Type |
Dual sensor panoramic network camera |
| Image Sensor |
2 × 1/2.7" progressive scan RGB CMOS |
| Lens |
2 × Varifocal 3.3–8.7 mm, F1.3
Horizontal field of view: 112°–40°
Vertical field of view: 58°–23° |
| Minimum Illumination |
Color: 0.15 lux (50 IRE, F1.3)
B/W: 0.03 lux (50 IRE, F1.3)
0 lux with IR illumination on |
| Infrared Illumination |
Optimized IR with 850 nm high-efficiency LEDs
Range: Up to 30 m (98 ft)
Automatic IR cut filter |
| Shutter Speed |
1/28000 s to 1 s |
| Video Compression |
H.264 (MPEG-4 Part 10/AVC), H.265 (HEVC), MJPEG |
| Resolutions |
1920×1080 (1080p) to 160×90 |
| Frame Rate |
Up to 30 fps per channel at all resolutions |
| Image Settings |
Compression, Color, Brightness, Sharpness, Contrast,
White balance, Exposure control, Rotation,
WDR – forensic capture, Text and image overlay, Privacy masks |
| Day/Night Function |
Yes – with automatic IR-cut filter |
| Video Analytics |
AXIS Object Analytics
Support for additional analytics via Axis Camera Application Platform (ACAP) |
| Network Interface |
RJ45 10BASE-T/100BASE-TX PoE |
| Security |
Signed firmware, Secure boot, Axis Edge Vault
HTTPS, IEEE 802.1X, IP address filtering, password protection |
| Video Management |
ONVIF Profile G, S, and T compliant
Supports AXIS Companion, Camera Station, VMS integrations |
| Local Storage |
MicroSD/microSDHC/microSDXC slot
Support for SD card encryption |
| Power |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1
Max. 12.95 W |
| Operating Conditions |
-40°C to 50°C (-40°F to 122°F)
Humidity: 10–100% RH (condensing) |
| Storage Conditions |
-40°C to 65°C (-40°F to 149°F) |
| Approvals |
EMC: EN 55032 Class A, EN 55024, EN 61000-6-1,
FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A
Safety: IEC/EN/UL 62368-1
Environment: IEC 60529 IP66, NEMA 4X, IK10 |
| Vandal/Weather Rating |
IK10 impact-resistant
IP66 and NEMA 4X weather-resistant |
| Dimensions |
Φ 149 × 104 mm (Φ 5.9 × 4.1 in) |
| Weight |
950 g (2.1 lb) |
| Included Accessories |
Installation Guide, Windows® decoder license,
Resistorx T20 L-key, Cable gaskets, Connector guard, Weather shield |
| Optional Accessories |
Mounts, junction boxes, pole mounts, and more
See: axis.com/products/axis-p4705-plve#accessories |
| Warranty |
5-year Axis limited warranty |
Q&A
Q: Can this camera monitor two different areas at once?
A: Yes, the P4705-PLVE has two individually adjustable 5 MP sensors that can cover separate directions simultaneously.
Q: Is this camera suitable for outdoor use?
A: Absolutely. It’s IP66 and IK10 rated, making it weatherproof and vandal-resistant.
Q: Does it have night vision?
A: Yes, it has built-in IR LEDs that provide clear black-and-white imaging up to 30 meters in complete darkness.
Q: Can I zoom and adjust the view remotely?
A: Yes. It features remote zoom and focus for easy installation and post-install adjustments.
Q: What kind of smart features does it offer?
A: It uses deep learning to detect and classify people, vehicles, and movement types—improving event accuracy and reducing false alarms.
Q: Is it compatible with common video management systems (VMS)?
A: Yes, it's ONVIF compliant and easily integrates with most VMS platforms.
