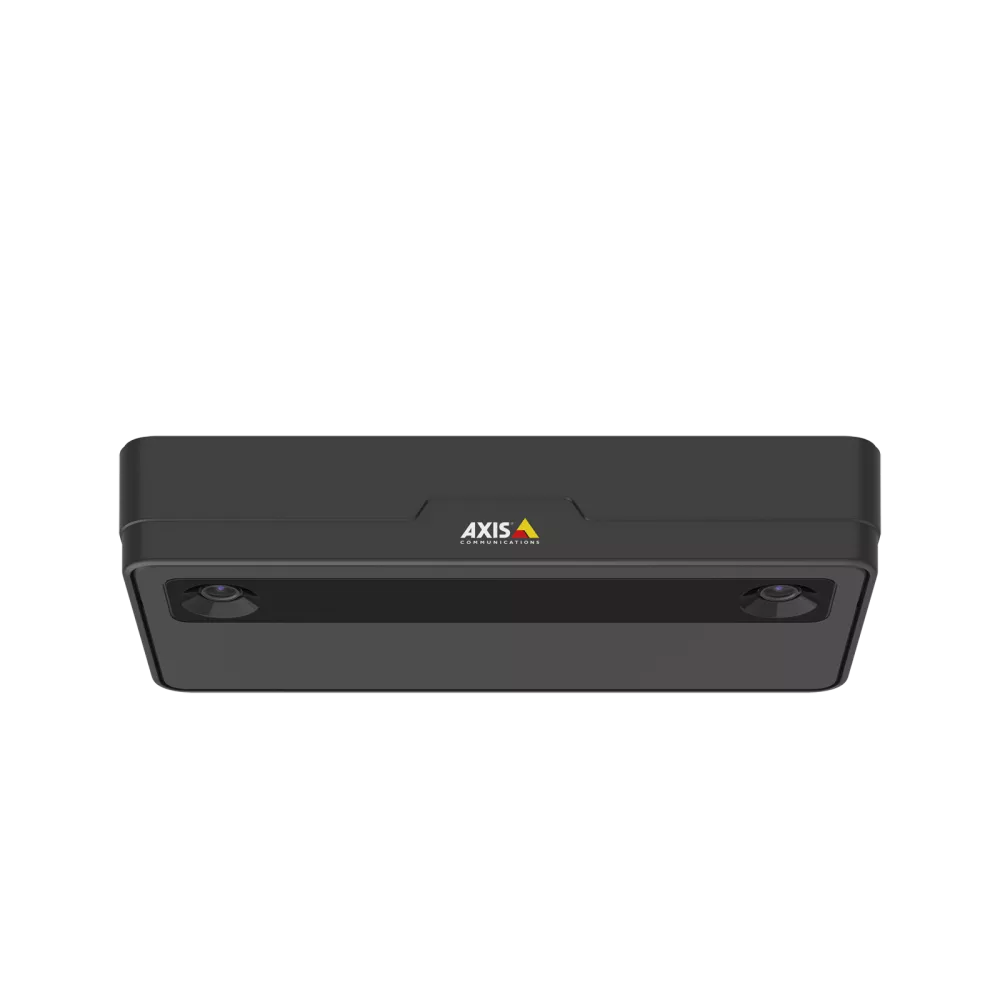

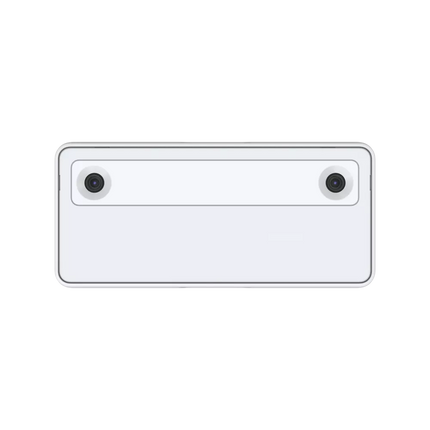

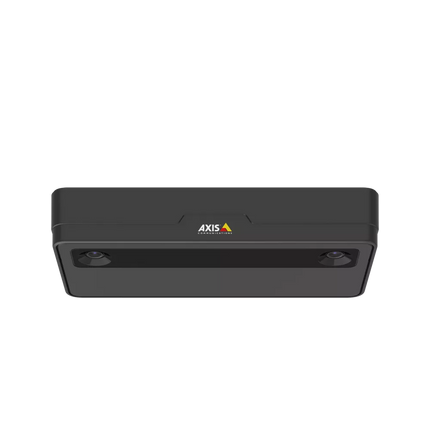

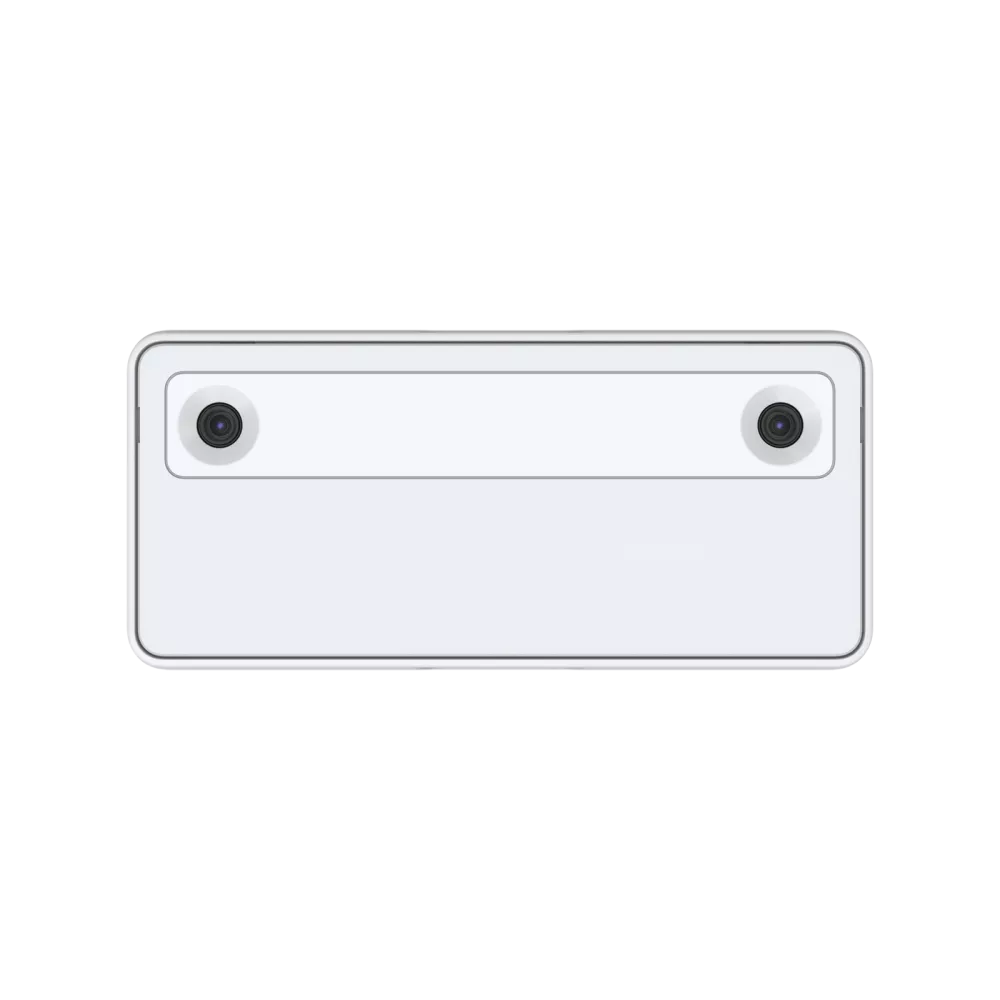

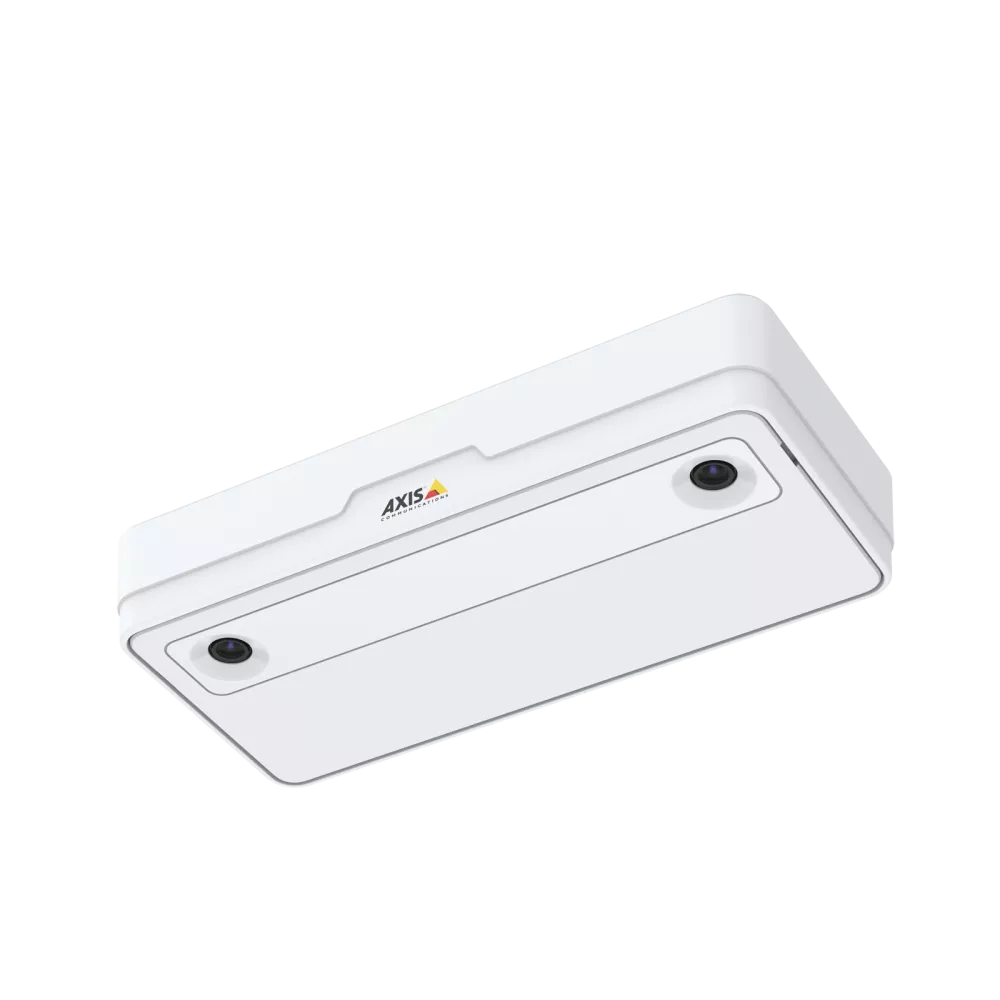

Track real-time foot traffic with precision using the Axis P8815-2, a dual-sensor, 3D analytics camera built specifically for accurate indoor people counting. Ideal for retail environments, public venues, airports, and smart buildings, this discreet ceiling-mounted solution uses stereoscopic imaging to deliver exact entry and exit counts—even during high-traffic moments or varying light conditions. Paired with Axis software and third-party integrations, it provides valuable insights for space optimization, staffing, and conversion tracking.
Features
-
3D Stereoscopic Imaging – Provides highly accurate people counting by capturing depth and movement in real-time.
-
Dual Sensor Design – Tracks directional movement (in/out) to prevent double counting or false data.
-
Integrated Analytics Software – Delivers real-time and historical data for traffic analysis, staffing, and space utilization.
-
High Performance in Varied Lighting – Maintains precision in bright sunlight or dim indoor lighting.
-
Flexible Mounting Height – Works optimally from 2.4 to 4.5 meters, suitable for most ceilings.
-
Privacy-Focused Design – No recognizable video is recorded, protecting personal identities.
-
Discreet Ceiling Mount – Minimal visual footprint for seamless integration into commercial spaces.
-
Open API & VMS Integration – Easily integrates with Axis Store Reporter or third-party business intelligence tools.
-
Low Maintenance, High ROI – Designed for long-term use without manual calibration or frequent upkeep.
Downloads
Extra Info
Advanced 3D Analytics for Accurate Counting
The Axis P8815-2 uses dual image sensors with stereo vision to capture a true 3D representation of the area below. Unlike traditional 2D counters that rely on shape or heat signatures, this model maps object height and direction, dramatically improving accuracy—especially in crowded conditions or with groups walking closely together.
Real-Time Data for Smarter Decisions
Thanks to its built-in analytics, you get instant access to real-time people flow data. This allows businesses to make decisions on-the-fly—whether adjusting staffing, planning store layouts, or measuring campaign effectiveness.
Privacy-Safe Monitoring
Since the unit doesn’t record recognizable video, it's fully compliant with strict data privacy requirements. This makes it ideal for environments like retail stores, libraries, healthcare facilities, or anywhere visitor tracking is needed without capturing personal details.
Seamless Integration
Whether you're using Axis Store Reporter, third-party business platforms, or video management systems, this device integrates effortlessly using an open API. This makes it easy for system installers and IT teams to build scalable analytics solutions.
Tech Specs
| Model |
Axis P8815-2 3D People Counter |
| Image Sensor |
Two 1/3.7” progressive scan RGB CMOS |
| Lens |
Fixed lens
Focal length: 2.0 mm
Horizontal field of view: 87° |
| Counting Range |
Mounting height: 2.4–4.5 m (7.9–14.8 ft) |
| Minimum Object Height |
50 cm (19.7 in) |
| Camera Angle |
Ceiling-mounted, facing downward |
| Data Output |
Real-time counting data
Event data via HTTP, TCP, FTP
Periodic data upload to AXIS Store Reporter or third-party system |
| API & Integration |
AXIS VAPIX® API
Open API for software integration
Compatible with Axis Store Data Manager, Axis Store Reporter |
| Privacy Features |
Does not record identifiable video
Data collected is non-personal |
| Network Protocols |
IPv4, HTTP, HTTPS, FTP, TCP, UDP, DHCP, DNS, NTP |
| Security |
HTTPS encryption
IEEE 802.1X network access control
Password protection
User access log |
| Operating Conditions |
Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Humidity: 10–85% RH (non-condensing) |
| Power |
Power over Ethernet (IEEE 802.3af Type 1 Class 2)
Max consumption: 5.5 W |
| Dimensions |
120 × 70 × 25 mm (4.7 × 2.8 × 1.0 in) |
| Weight |
180 g (0.4 lb) |
| Casing |
Plastic |
| Mounting Options |
Ceiling mount
Mounting bracket included |
| Included Accessories |
Installation guide
Mounting bracket
Windows decoder license
Connector guard |
| Optional Accessories |
Midspan
AXIS T8415 Wireless Installation Tool |
| Compliance |
CE
FCC
ICES
VCCI
RCM
UL
CB
KCC
RoHS
REACH
WEEE |
| Warranty |
5-year Axis limited hardware warranty |
| Product Part Number (SKU) |
01795-001 |
Q&A
Q: Does this camera record video of people?
A: No. The Axis P8815-2 is a 3D sensor used strictly for counting. It does not record identifiable video, making it privacy-safe.
Q: What’s the ideal mounting height?
A: Between 2.4 and 4.5 meters (approximately 8–15 feet) for optimal accuracy.
Q: Can it differentiate between people entering and exiting?
A: Yes. Its stereoscopic sensors detect direction and count in both directions.
Q: Is it suitable for low-light areas?
A: Yes. It works well across a wide range of lighting conditions, including dim interiors.
Q: Is software included with the camera?
A: Yes, the device includes built-in analytics and is compatible with Axis Store Reporter and various third-party solutions.
Q: Can I use this in a shopping mall or airport?
A: Absolutely. It's built for high-traffic indoor environments where precision matters.
