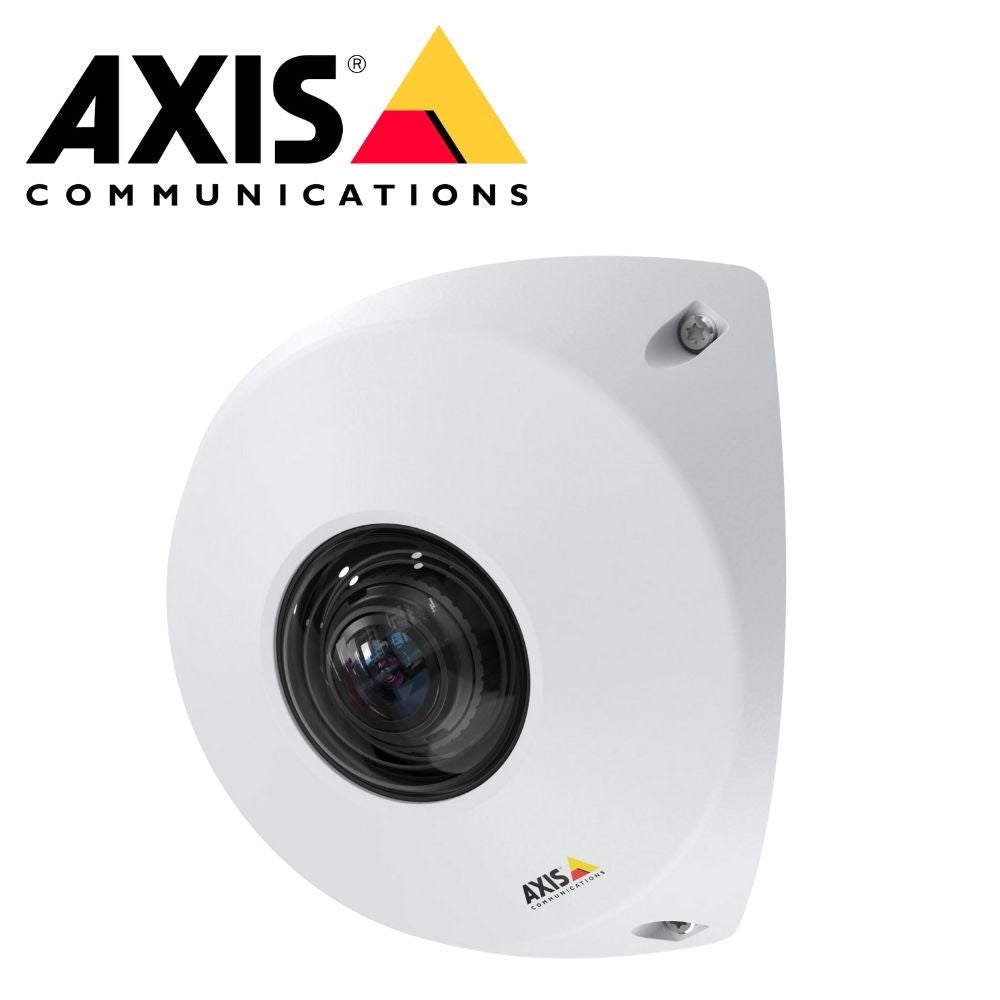

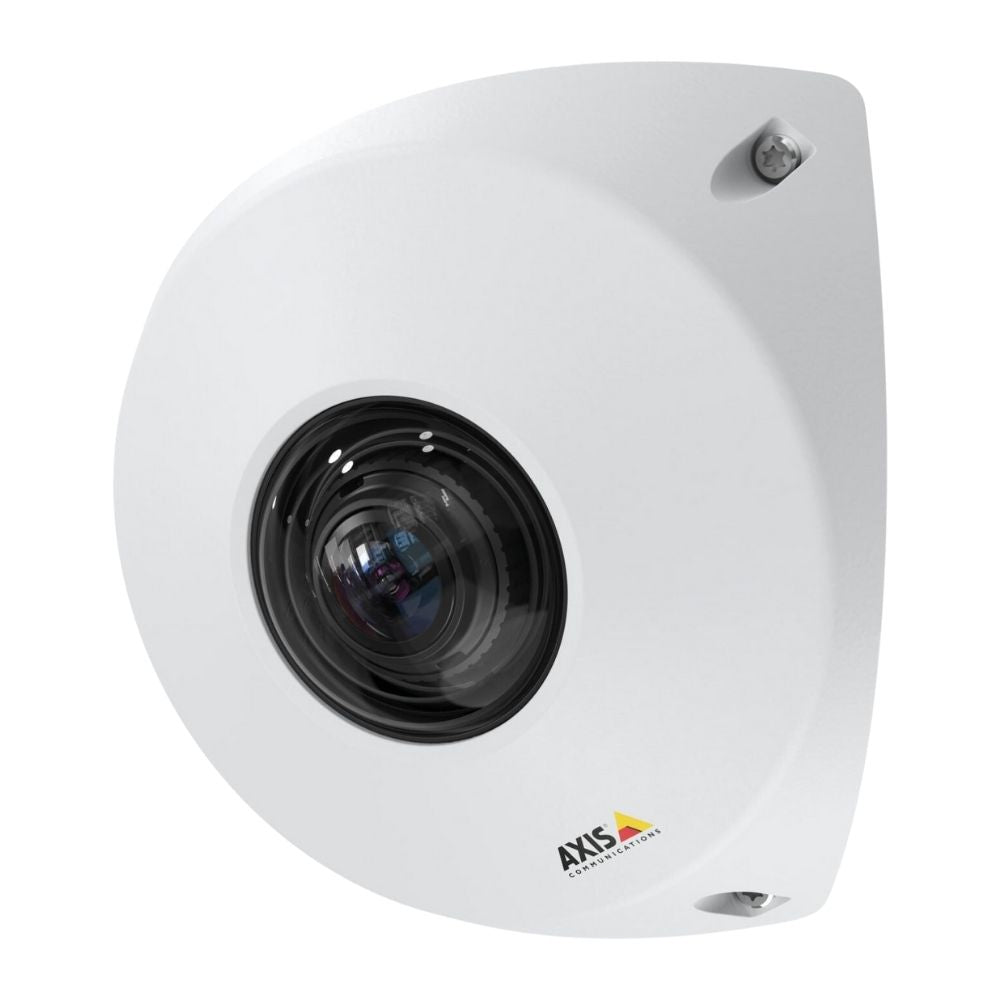

The Axis P9106-V Network Camera is a purpose-built, corner-mount surveillance solution designed to secure tight spaces like elevators, stairwells, and holding cells. Its anti-ligature, vandal-resistant housing makes it ideal for environments requiring high safety and reliability. With a wide-angle fixed lens and Axis image enhancement technologies, it delivers detailed 3-megapixel video even in challenging lighting. Built for real-world durability, it protects against impact, water, and dust, making it a go-to option for indoor or semi-exposed installations.
Features
-
Anti-Ligature Housing – Designed to eliminate attachment points, enhancing safety in behavioral health or correctional settings.
-
Corner-Mount Design – Captures an entire room with no blind spots, ideal for elevators, small rooms, and confined spaces.
-
Vandal and Tamper Resistant – IK10-rated dome withstands physical abuse, perfect for high-risk or unsupervised areas.
-
Ingress Protection IP66 – Sealed against dust and powerful water jets, suitable for damp or industrial interiors.
-
3-Megapixel Wide-Angle Lens – Delivers high-detail coverage with minimal distortion, excellent for monitoring small areas clearly.
-
Forensic WDR (Wide Dynamic Range) – Optimizes image clarity in scenes with mixed lighting or shadows, ensuring usable video in all conditions.
-
Zipstream Compression – Reduces bandwidth and storage needs without losing crucial image detail, saving system resources.
-
Hemispheric Coverage – Fixed 3.7 mm lens enables full corner-to-corner viewing with 130° horizontal field of view.
-
Discreet and Low Profile – Blends into surroundings, reducing its presence while still offering full surveillance coverage.
Downloads
Extra Info
Designed for Maximum Safety and Visibility
The P9106-V is engineered for zero-blind-spot coverage in confined areas. Mounted high in a corner, its hemispheric view ensures no part of the room is hidden—making it especially effective for monitoring in elevators, interrogation rooms, or anywhere space is limited but security is essential.
Purpose-Built for Tough Environments
With an IK10 impact rating and IP66 ingress protection, this camera is more than ready for vandal-prone or high-traffic locations. The anti-ligature design also means it's safe to deploy in psychiatric facilities, detention centers, and similar institutions, without risking misuse or tampering.
Optimized for Image Clarity in Every Scene
Thanks to Axis' Forensic WDR, the camera balances exposure in areas with backlighting or extreme contrast, such as when facing open elevator doors or stairwell windows. Combined with a wide-angle lens, it captures comprehensive footage without distortion.
Efficient Storage and Bandwidth Management
Axis Zipstream technology ensures that critical forensic details—like faces or movement—are preserved, while less essential data is compressed. This helps reduce storage costs and makes the camera an efficient addition to any IP surveillance system.
Tech Specs
| Camera Model |
Axis P9106-V |
| Image Sensor |
1/3" Progressive Scan RGB CMOS |
| Lens |
Fixed lens
Focal length: 3.7 mm
Horizontal field of view: 130°
Vertical field of view: 95° |
| Day and Night |
IR-cut filter |
| Minimum Illumination |
Color: 0.3 lux at 50 IRE, F2.0
B/W: 0.05 lux at 50 IRE, F2.0 |
| Shutter Speed |
1/33500 s to 1/2 s |
| Video Compression |
H.264 (Baseline, Main, High Profile)
Motion JPEG |
| Resolution |
2048x1536 (3 MP) to 160x120 |
| Frame Rate |
Up to 25/30 fps (50/60 Hz) in all resolutions |
| Video Streaming |
Multiple, individually configurable streams
Axis Zipstream technology in H.264 |
| Image Settings |
Compression, color, brightness, sharpness, white balance, exposure control, exposure zones, WDR – Forensic Capture, rotation, text and image overlay, mirroring |
| Pan/Tilt/Zoom |
Digital PTZ |
| Network Protocols |
IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP™, SNMP v1/v2c/v3, DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| Security |
Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, Digest authentication, User access log, Centralized certificate management |
| Edge Storage |
MicroSD/microSDHC/microSDXC slot
Support for recording to NAS (network-attached storage) |
| Power |
Power over Ethernet (PoE) IEEE 802.3af Type 1 Class 2
Typical: 2.9 W
Max: 3.4 W |
| Operating Conditions |
0 °C to 45 °C (32 °F to 113 °F)
Humidity: 10–85% RH (non-condensing) |
| Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F) |
| Approvals |
EMC: EN 55032 Class A, EN 55024, EN 50121-4, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KN35
Safety: IEC/EN/UL 62368-1
Environment: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, IEC 60068-2-30
Network: NIST SP500-267 |
| Material |
Aluminum and PC/ABS casing with PBT base
Smoked dome casing |
| Form Factor |
Corner-mount |
| Dimensions |
Height: 120 mm (4.7 in)
Width: 120 mm (4.7 in)
Depth: 90 mm (3.5 in) |
| Weight |
475 g (1.05 lb) |
| Impact Resistance |
IK10 |
| Ingress Protection |
IP66 |
| Mounting Options |
Corner-mount bracket (included) |
| Included Accessories |
Installation guide, Windows decoder 1-user license, Corner-mount bracket, Resistor for termination |
| Warranty |
5-year limited hardware warranty |
Q&A
Q: Is this camera suitable for outdoor use?
A: The Axis P9106-V is rated IP66 for dust and water protection, but it is designed primarily for indoor or semi-exposed environments such as parking garages or partially covered areas.
Q: Does this camera have night vision?
A: The P9106-V does not include built-in infrared LEDs, but it performs well in low-light scenarios with advanced wide dynamic range (Forensic WDR). For true night vision, supplemental lighting is recommended.
Q: Can it be used in elevators or behavioral health facilities?
A: Yes. The anti-ligature and corner-mount design make it an excellent fit for elevators, holding cells, and healthcare environments requiring tamper-resistant, discreet surveillance.
Q: Does this camera support two-way audio?
A: No, the P9106-V does not support audio capabilities. It is designed purely for visual monitoring.
Q: What is the field of view?
A: The fixed lens provides a 130° horizontal field of view, offering full room coverage when installed in a corner.
Q: How is video stored or managed?
A: Video can be streamed and stored via an NVR, VMS, or Axis Camera Station. The camera uses Axis Zipstream for efficient compression and bandwidth control.
