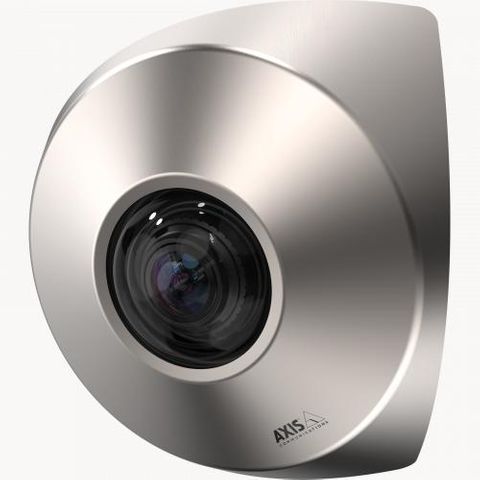

Axis P9117-PV 6MP Indoor Corner Camera, 360°/180° Stereographic Lens, Anti-Ligature Design, IK10+ – 02864-001

Description

The AXIS P9117-PV delivers full 180° x 180° corner-to-corner coverage with no blind spots. Designed for critical indoor spaces like elevators, holding cells, and corridors, it’s packed with advanced analytics, audio features, and robust cybersecurity. With deep learning AI, Forensic WDR, and Lightfinder, it delivers sharp footage day or night—plus powerful edge intelligence for real-time event response.

Features

  • 360° Corner Coverage in 6 MP – Ultra-wide stereographic lens ensures total scene capture without distortion or blind zones.
  • Deep Learning On the Edge – Built-in DLPU powers AXIS Object Analytics to detect, track, and classify people and vehicles.
  • Forensic WDR & Lightfinder – Ensures high clarity in extreme lighting, backlight, or near-dark conditions.
  • Built-In Microphone & Audio Analytics – Enables detection of screams and shouts, even if audio streaming is off.
  • Edge Vault Cybersecurity – Hardware-based secure boot, signed firmware, encrypted storage, and secure device ID.
  • Flexible Video Streams – Multiple configurable H.264/H.265 streams with Zipstream for bandwidth and storage savings.
  • Durable & Secure Housing – IK10 and IP66-rated to withstand tampering, dust, humidity, and extreme temperatures.

What’s Included

  • AXIS P9117-PV Corner Camera
  • RJ45 installation tool
  • Cable & screw gaskets
  • Quick start guide
  • Owner authentication key

DOWNLOADS

Datasheet  AXIS P9117–PV Datasheet
Installation Guide  AXIS P9117–PV Installation Guide
User Manual  AXIS P9117–PV User Manual

Extra Info

Smarter Surveillance with AI on the Edge
Powered by the ARTPEC-8 chipset and a deep learning processing unit (DLPU), the P9117-PV runs analytics directly on the camera—no server required. This allows fast, accurate detection of humans and vehicles using AXIS Object Analytics, enabling real-time, scenario-based alerts.

Total Clarity in Every Corner
Enjoy detailed video 24/7 with advanced imaging technologies:

  • Lightfinder captures full-color images in near darkness.
  • Forensic WDR ensures balanced exposure in scenes with strong backlight or shadows.
  • Stereographic 6 MP lens delivers full 180°x180° field of view with minimal distortion.

Audio Intelligence Built In
The integrated microphone enables two-way audio and supports AXIS Audio Analytics, which detects sound events like screams or shouts—even when audio streaming is disabled.

Cybersecurity at the Core
With Axis Edge Vault, this camera features secure boot, signed firmware, encrypted storage, and a unique Axis device ID. It protects against unauthorized access and ensures data integrity.

Tough Build, Seamless Integration
IK10 and IP66 ratings ensure resistance to impact, dust, and moisture—perfect for demanding environments. It supports SIP for VoIP systems, ONVIF for third-party compatibility, and ACAP for installing custom applications.

Green, Efficient, and Scalable
This camera is PVC- and BFR/CFR-free and supports Power over Ethernet (PoE) for easy installation. It also integrates with AXIS Companion, Camera Station, and third-party VMS platforms.

Tech Specs

Specification Details
**Camera**
Image Sensor 1/1.8” progressive scan RGB CMOS
Lens 1.1 mm, F2.2 (fixed iris, fixed focus, IR corrected)
Field of View Horizontal: 176° / Vertical: 176° (Overview 1:1) Horizontal: 115° / Vertical: 100° (Corner View 4:3)
Day/Night Automatically removable IR-cut filter
Minimum Illumination Color: 0.17 lux @ F2.2 B/W: 0.04 lux @ F2.2
Shutter Speed 1/33,500 s to 1/5 s
Camera Angle Adj. Digital roll: ±180°
SoC ARTPEC-8
Memory 2048 MB RAM, 8192 MB Flash
Compute Capabilities Deep Learning Processing Unit (DLPU)
**Video**
Compression H.264 (Baseline, Main, High), H.265 (Main), Motion JPEG
Resolution 2160x2160 to 160x160 (1:1) 2048x1536 to 320x240 (4:3) 2048x1152 to 256x144 (16:9)
Frame Rate 50/60 fps (WDR off) 25/30 fps (WDR on)
Streaming Multiple streams, Zipstream in H.264/H.265 VBR/ABR/MBR support, video indicator
WDR Forensic WDR up to 120 dB
Noise Reduction 2D (spatial), 3D (temporal)
Image Settings Saturation, contrast, sharpness, white balance, overlays, privacy mask, rotation
PTZ Digital PTZ, presets, guard tours
**Audio**
Streaming Two-way full duplex, analytics support even when off
Input Via speaker pairing or Portcast, auto gain control
Microphone Built-in MEMS (disabled by default)
Output Via speaker pairing or Portcast
Encoding LPCM (24-bit), AAC-LC, G.711, G.726, Opus
**Network**
Protocols IPv4/IPv6, HTTP/S, FTP/S, CIFS/SMB, SMTP, UPnP, SNMP, DNS, NTP, RTSP, RTP, SRTP, TCP/UDP, IGMP, DHCP, SIP, MQTT, LLDP, CDP, Syslog, IEEE 802.1X, 802.1AR
Security Password protection, signed firmware/video, Axis Edge Vault, secure boot, firewall
**System Integration**
API Open API (VAPIX, ACAP), metadata support
Cloud Connection One-click setup
ONVIF Profile G, M, S, T
SIP VoIP integration support
**Analytics**
Built-in AXIS Object Analytics, VMD, Audio Analytics, Tampering Alarm
Detection Humans, vehicles (cars, buses, bikes, trucks), license plates
Triggers Line crossing, object in area, time in area (Beta)
Event Actions Recording, notifications, overlays, audio triggers, uploads
**General**
Casing IK10, IP66-rated polycarbonate dome
Mounting Corner mount on 2 or 3 surfaces
Power PoE IEEE 802.3af/at Type 1 Class 3 Typical: 3.7 W / Max: 5.3 W
Connectors Shielded RJ45 (Ethernet), audio via AXIS T61 Mk II
Storage microSD/microSDHC/microSDXC, NAS, encrypted recording
Operating Conditions –15 °C to 50 °C (max 55 °C intermittent), 10–85% RH
Storage Conditions –40 °C to 65 °C
Dimensions (HxWxD) 92 × 146 × 122 mm
Weight 760 g
Included Accessories Installation guide, RJ45 tool, extra cable & screw gaskets, T20 L-key, authentication key
Optional Accessories AXIS TP9801 Steel Cover, AXIS T864, 2N 2WIRE, T8415, Surveillance Cards
Video Management AXIS Companion, AXIS Camera Station, 3rd-party VMS support
Languages EN, DE, FR, ES, IT, RU, ZH (Simplified/Traditional), JA, KO, PT, PL
Warranty 5-year warranty



Q&A

Q: What makes the AXIS P9117-PV ideal for corner mounting?
A: It delivers full 180° corner-to-corner coverage with no blind spots, making it perfect for elevators, small rooms, and confined spaces.

Q: Can this camera detect objects using AI?
A: Yes. It features a Deep Learning Processing Unit (DLPU) that powers AXIS Object Analytics to detect and classify humans, vehicles, and license plates on the edge.

Q: Is the camera reliable in low light or darkness?
A: Absolutely. It’s equipped with Lightfinder and Forensic WDR, ensuring clear color images in near-darkness and balanced visuals in challenging lighting.

Q: Is it built to withstand harsh conditions?
A: Yes. With IK10 and IP66 ratings, it resists vandalism, dust, water, and temperatures from -15 °C to 50 °C.

Q: Does it support audio features?
A: Yes. It includes a built-in microphone (disabled by default), supports two-way audio, and is ready for AXIS Audio Analytics.
