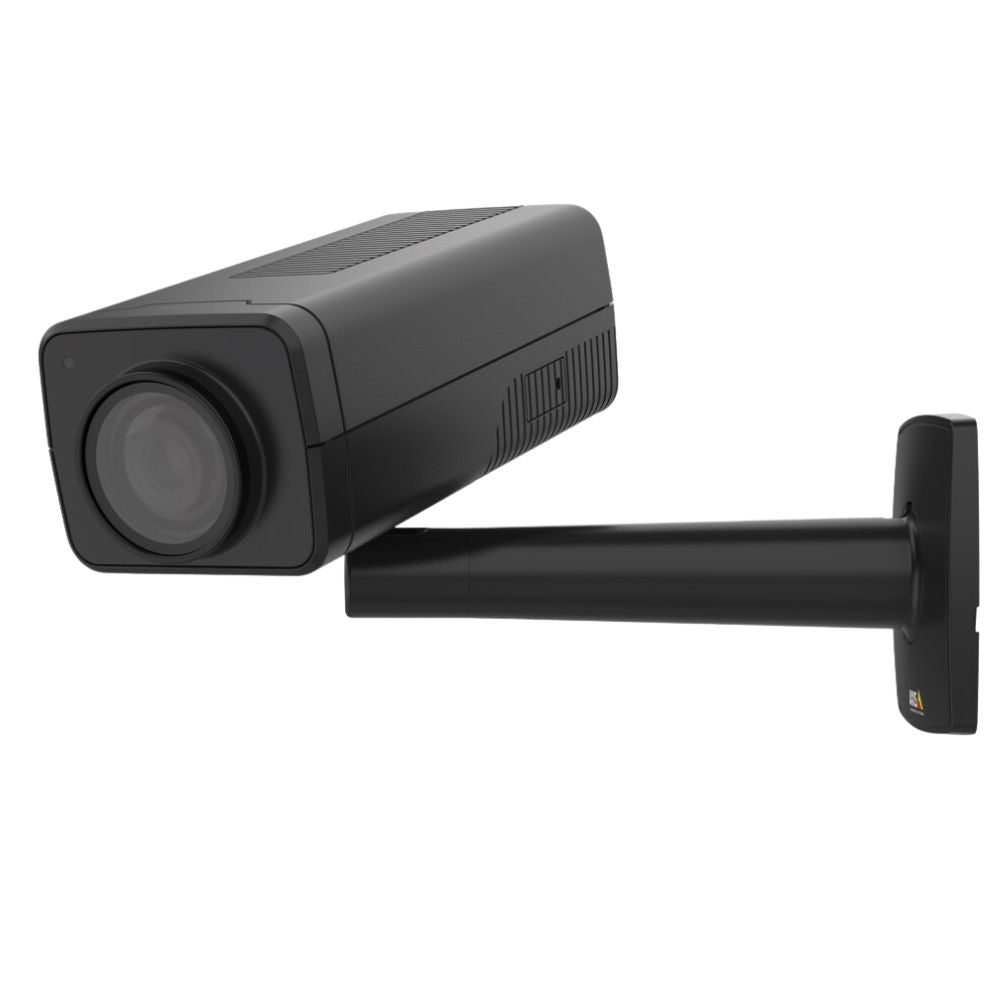

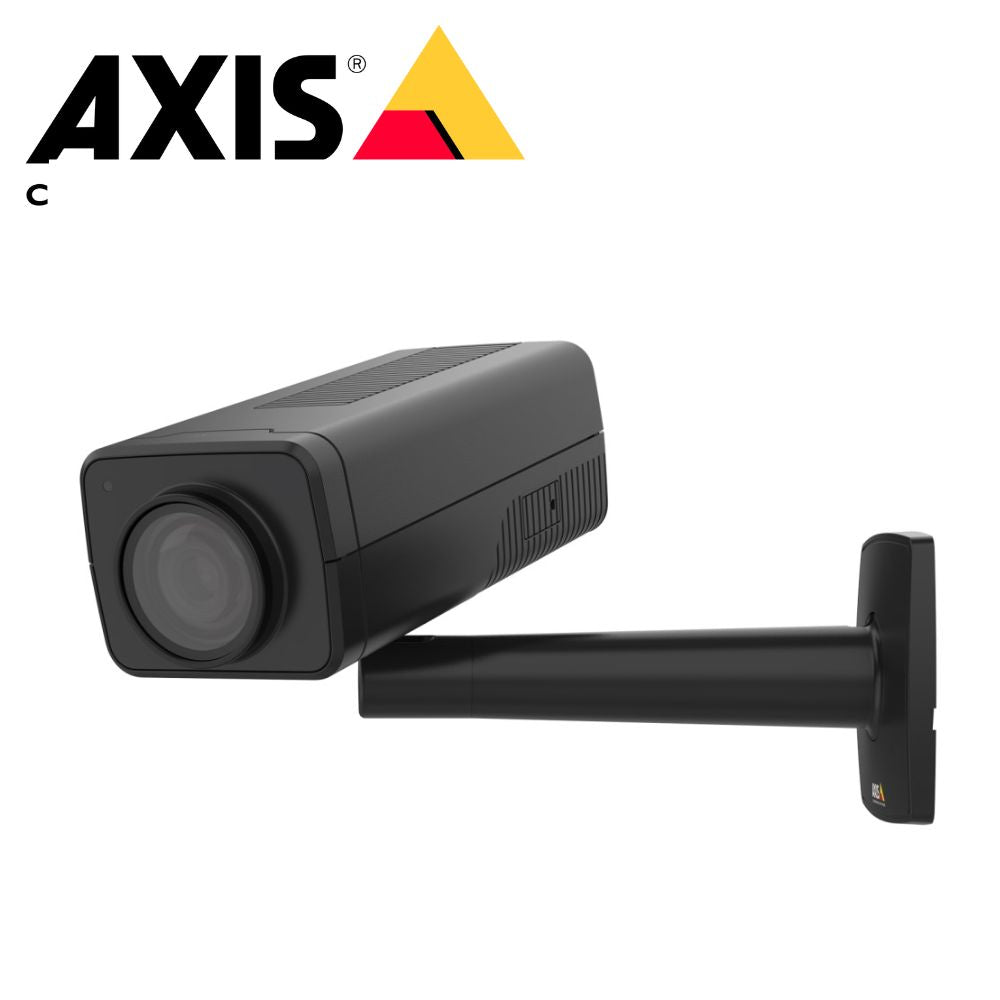

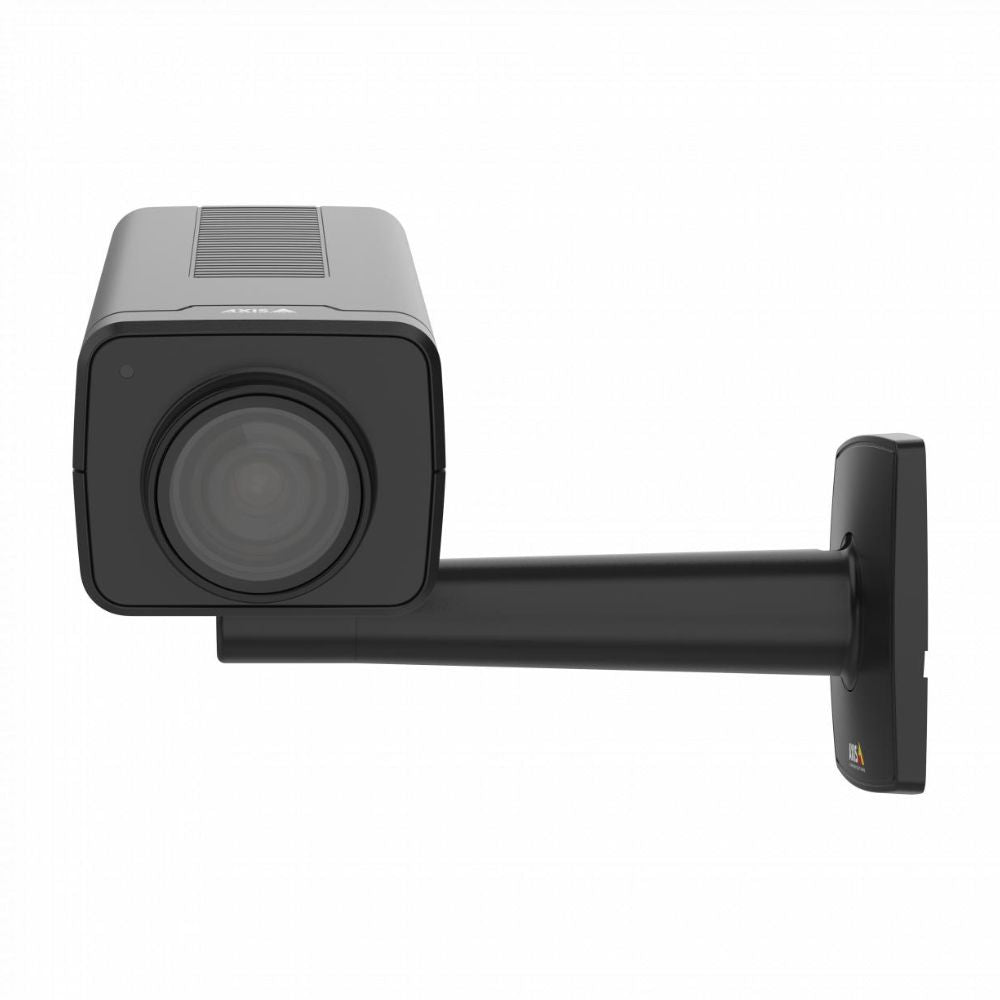

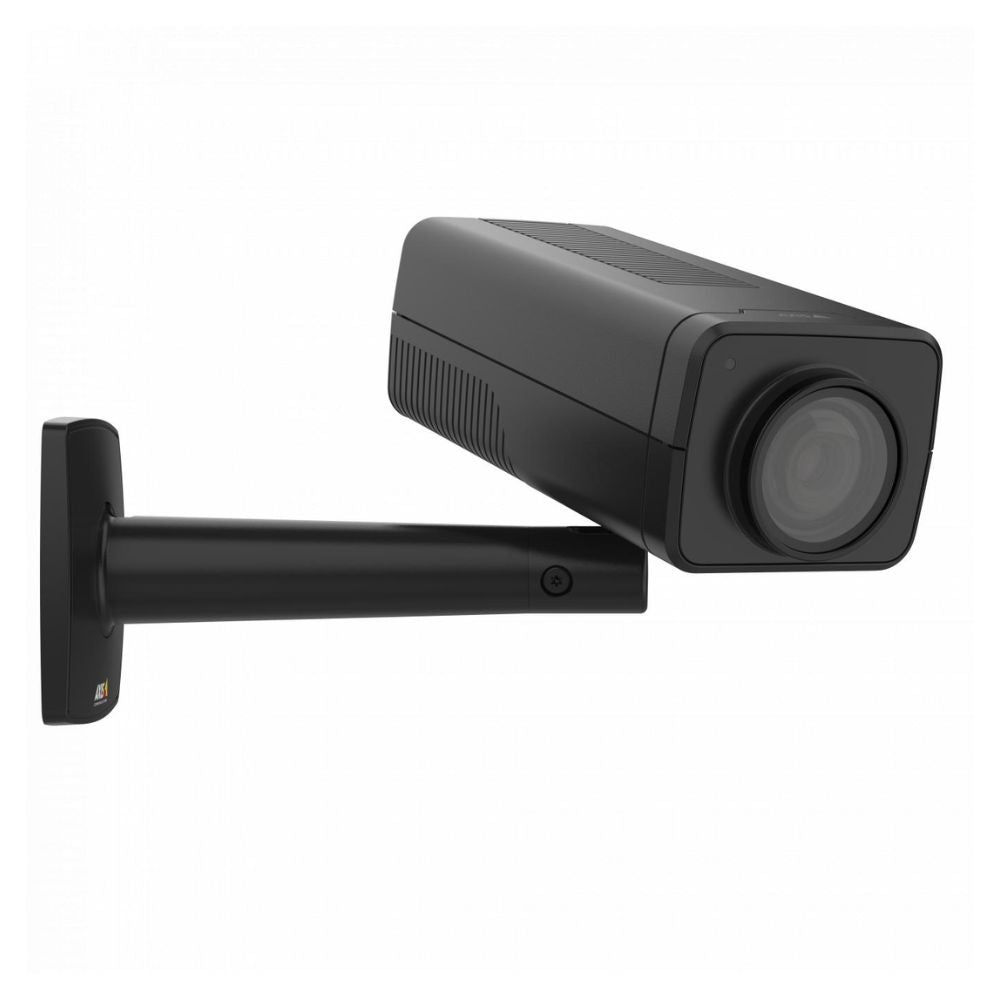

The AXIS Q1715 is a high-performance block camera offering crisp HDTV 1080p video at up to 60 fps, enhanced by a powerful 21x optical zoom. With an onboard deep learning processing unit (DLPU), it delivers intelligent, edge-based analytics for granular classification of objects, humans, and vehicles. Ideal for integration into custom enclosures or housings, it supports two-way audio, HDMI/HD-SDI outputs, and advanced cybersecurity features.
Features
-
HDTV 1080p with 21x Zoom – Captures crisp detail from wide views to focused zoom-in scenes.
-
Deep Learning Analytics at the Edge – Enables real-time detection and classification of humans, vehicles, and license plates.
-
AXIS Object Analytics – Tailored rules for object in area, line crossing, and time-in-area with color-coded overlays.
-
HDMI & HD-SDI Output – Supports simultaneous streaming and local monitoring via multiple output options.
-
Compact and Mount-Ready – Lightweight design for easy fit into AXIS accessory housings and integration.
-
Advanced Cybersecurity Built In – Axis Edge Vault, signed firmware, and secure boot protect the device and data.
-
Smart Scene Profiles – Optimized presets for forensic, vivid, or traffic monitoring scenarios.
What's Included:
- AXIS Q1715 Block Camera
- Installation guide
- Windows® decoder 1-user license
- Stand
- Connector kit
- TORX® T20 screw driver
- RESISTORX® L-key
- Terminal block connector
DOWNLOADS
Key Info
Flexible Deployment with HD Quality
Get full HD 1080p video at up to 60 fps, even under changing lighting conditions. The 21x optical zoom lens captures expansive areas or fine detail as needed.
Built for Smart Surveillance
The onboard DLPU delivers real-time classification of humans, faces, vehicles (cars, buses, trucks, bikes), and license plates. With AXIS Object Analytics, configure up to 10 scenarios tailored to your security goals.
Multiple Outputs and Audio Options
Simultaneously stream video via IP, HDMI, or HD-SDI. Integrate audio using mic/line-in and out or pair with a network speaker for two-way communication.
Cybersecure by Design
Secure boot, signed firmware, Axis Edge Vault with device ID, and AES-encrypted SD card storage protect your surveillance infrastructure.
Efficient and Open Integration
Compatible with AXIS Camera Station, ONVIF (Profiles G, M, S, T), SIP, VAPIX, and third-party VMS. ACAP support allows additional apps and custom analytics.
Tech Specs
| Specification |
Details |
| **Camera** |
|
| Image Sensor |
1/2.8” progressive scan RGB CMOS |
| Lens |
4–84.6 mm varifocal, autofocus, P-Iris |
| Field of View |
H: 76°–3.6°, V: 42°–2.2° |
| Day/Night |
Automatic IR-cut filter |
| Min. Illumination |
Color: 0.1–0.2 lux; B/W: 0.02–0.04 lux (depending on frame rate) |
| Zoom |
21x optical, 100 preset positions |
| SoC |
ARTPEC-7 |
| Memory |
2048 MB RAM, 1024 MB Flash |
| **Video** |
|
| Compression |
H.264, H.265, Motion JPEG |
| Resolutions |
1920x1080 to 160x90 |
| Frame Rate |
Up to 60 fps (HDMI/HD-SDI up to 30 fps) |
| Streaming |
Multiple streams, Zipstream (H.264/H.265), low latency mode |
| Image Settings |
Forensic WDR (up to 120 dB), tone mapping, overlays, defogging, privacy masks |
| Scene Profiles |
Forensic, vivid, traffic overview |
| **Audio** |
|
| Encoding |
SDI: AES3; HDMI: LPCM; Network: AAC-LC, G.711, G.726, Opus, LPCM |
| Input/Output |
External mic/line-in, line-out, ring power |
| **Network** |
|
| Protocols |
IPv4/6, HTTP/2, HTTPS, FTP, SFTP, SNMP, RTSP, RTP, SRTP, MQTT, SIP, and more |
| Interfaces |
RJ45 10/100/1000 Mbps PoE, 3.5 mm audio, HDMI, SDI (BNC), RS485/RS422, I2C, terminal block |
| **System Integration** |
|
| API |
VAPIX, ONVIF (G/M/S/T), SIP, ACAP |
| Events |
Motion, audio, storage, temperature, PTZ, tampering, MQTT triggers |
| Event Actions |
Record, upload, PTZ preset, make call, MQTT publish, overlay text, notifications |
| Built-in Tools |
Pixel counter, leveling guide, license plate capture assistant |
| **Analytics** |
|
| Included |
AXIS Object Analytics, Motion Detection, Audio Spectrum Visualizer |
| Object Detection |
Humans, faces, vehicles (cars, buses, trucks, bikes), license plates |
| Advanced Features |
Color-coded boxes, trajectory metadata, 10 scenario support |
| **Cybersecurity** |
|
| Software |
Signed firmware, brute force delay, digest authentication, password protection |
| Hardware |
Secure boot, Axis Edge Vault, encrypted SD card, secure keystore (FIPS 140-2) |
| Network Security |
HTTPS/HSTS, TLS 1.2/1.3, MACsec, NTS, X.509 PKI, IEEE 802.1X |
| **General** |
|
| Casing |
Aluminum and plastic, compact mount-ready design |
| Power |
PoE IEEE 802.3at Type 2, or 10–28V DC |
| Storage |
microSD/microSDHC/microSDXC with AES encryption, NAS support |
| Operating Conditions |
-20 °C to 50 °C, 10–85% RH |
| Dimensions & Weight |
66 × 80 × 195 mm, 650 g |
| Languages |
EN, FR, DE, ES, IT, RU, JA, KO, ZH (Simplified/Traditional), PT, PL |
| Warranty |
5-year warranty |
Q&A
Q1: Does the AXIS Q1715 support live HDMI or SDI output?
A: Yes, the camera supports simultaneous HDMI and HD-SDI output for local display or broadcast use.
Q2: What analytics does this camera support?
A: AXIS Object Analytics with support for humans, vehicles, faces, and license plates, plus 10 custom rule scenarios.
Q3: Can it be used in custom enclosures?
A: Yes. The compact design is compatible with AXIS accessory housings like the TQ1809-LE.
Q4: How is cybersecurity handled?
A: Features include secure boot, signed firmware, Axis Edge Vault, and encrypted storage with FIPS-certified hardware.
Q5: Does it offer remote zoom and focus?
A: Yes. The camera features 21x optical zoom with fast autofocus and P-Iris control for precision focusing.
