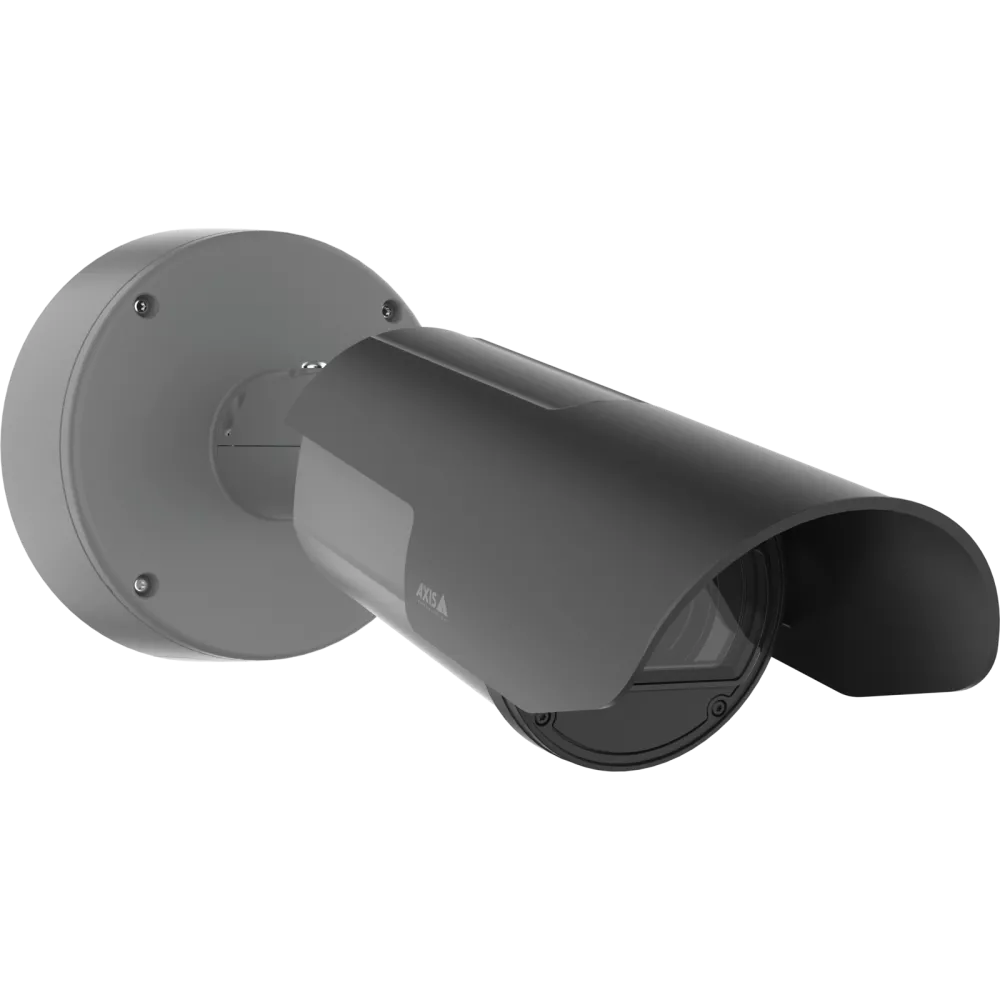

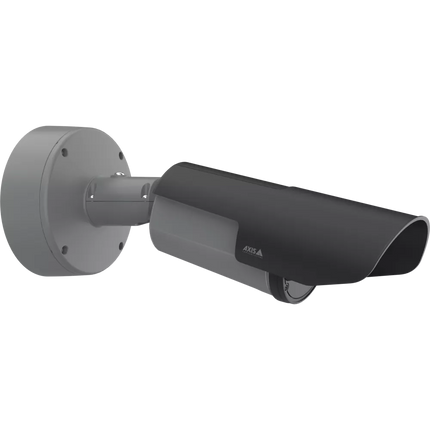

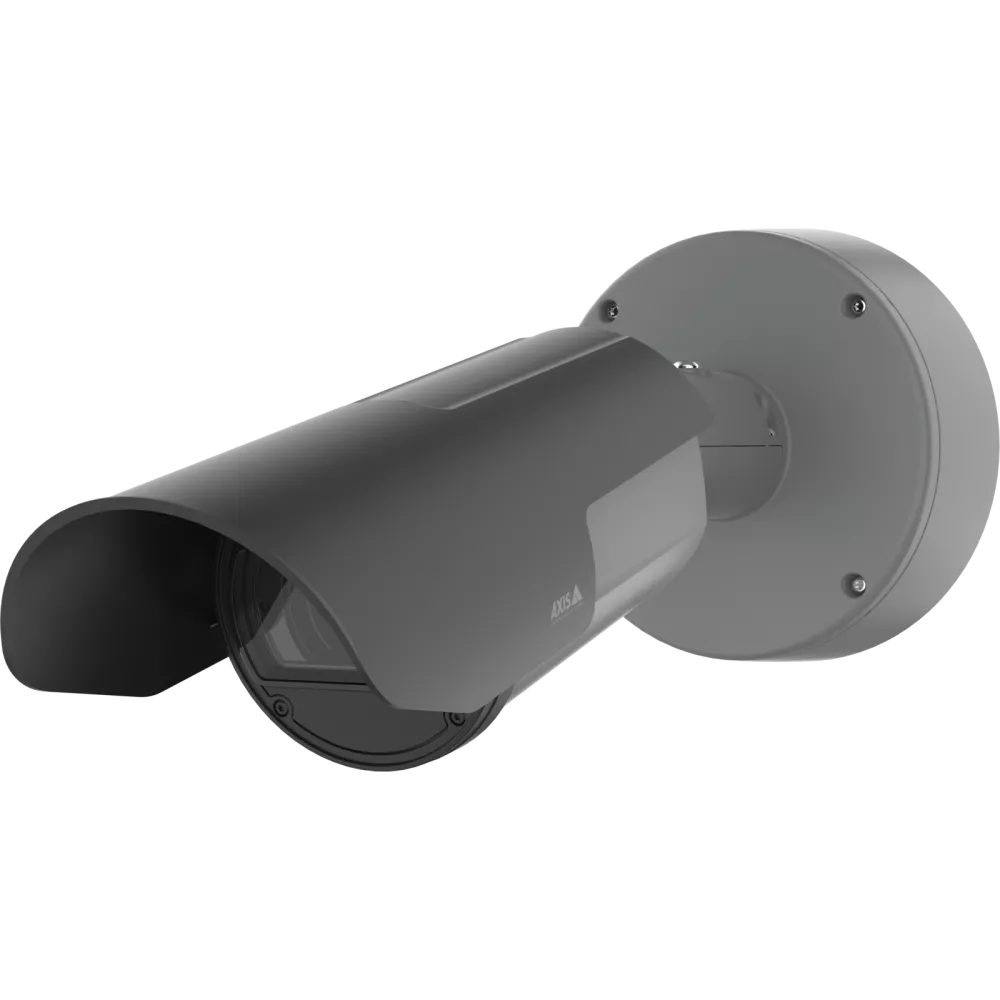

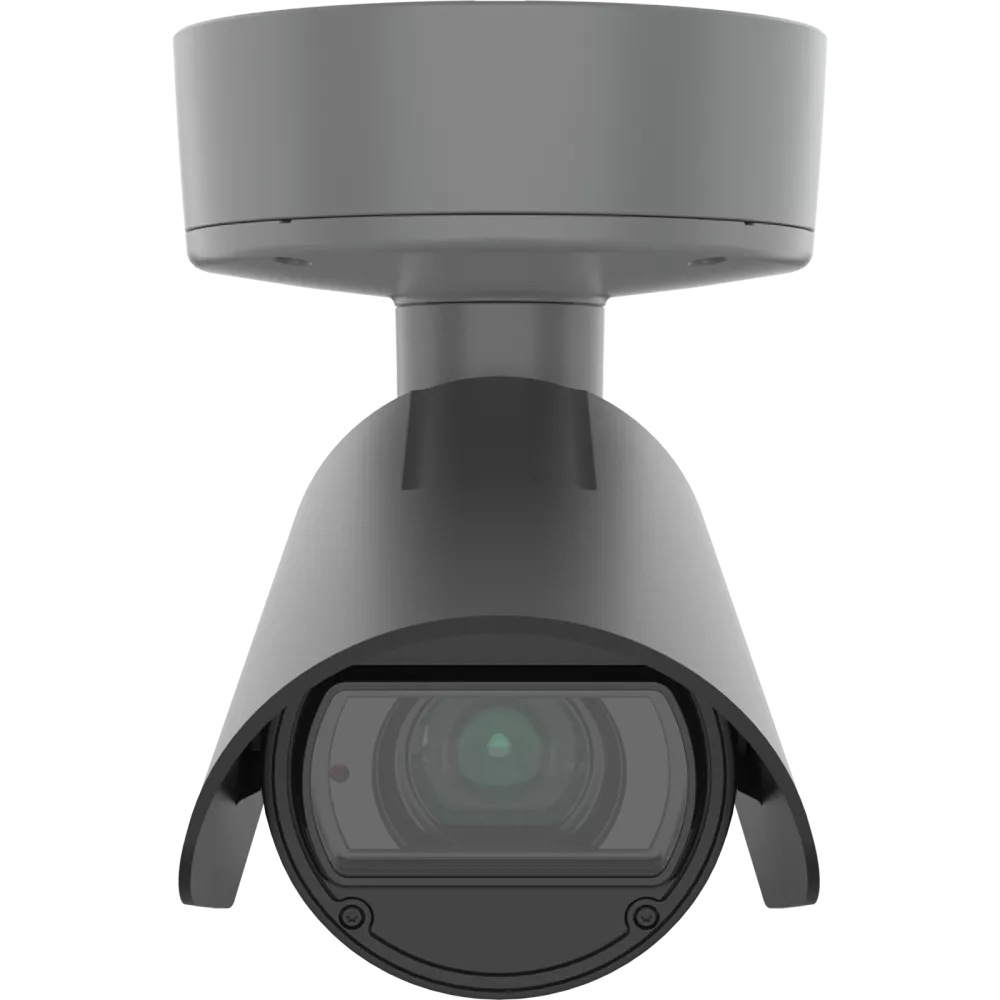

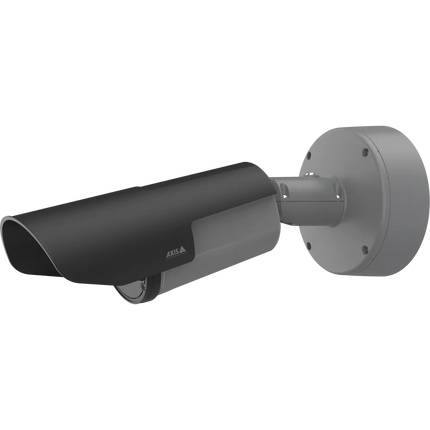

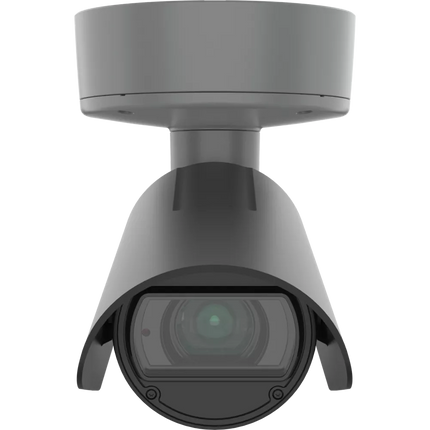

The Axis Q1800-LE is a purpose-built outdoor LPR (License Plate Recognition) camera designed for reliable plate capture in demanding environments. With its long-range telephoto lens, advanced optical zoom, and built-in IR illumination, it delivers accurate license plate identification at distances up to 100 meters (328 feet) – even at night. Ideal for highways, city surveillance, gated communities, or commercial parking lots, the Q1800-LE excels in both high-speed traffic and low-light conditions. Built tough and smart, it's ready for the most challenging monitoring tasks.
Features
-
Optimized for License Plates: Built to capture plates clearly in motion, from long distances up to 100 m (328 ft).
-
Integrated Long-Range IR: Strong infrared illumination ensures reliable night-time capture in complete darkness.
-
Precision Telephoto Lens: Adjustable 8.2–47.2 mm motorized lens provides flexible coverage with pinpoint clarity.
-
Axis Lightfinder 2.0: Enhanced low-light performance delivers color footage where others switch to black and white.
-
Axis Forensic WDR: Captures fine details even in scenes with harsh light or shadows.
-
Robust Weather Protection: IP66, NEMA 4X, and IK10-rated – resists rain, snow, heat, and vandalism.
-
Efficient Video Compression: Axis Zipstream with H.264/H.265 reduces bandwidth and storage without sacrificing quality.
-
Modular Mounting Options: Supports multiple mounting brackets and accessories for flexible installation.
-
Edge Storage Support: Built-in microSD card slot allows for local recording and backup redundancy.
Downloads
Extra Info
Purpose-Built for Plate Capture
Unlike standard security cameras, the Axis Q1800-LE is engineered specifically for license plate recognition. Its precision lens and built-in IR deliver high-contrast imagery that allows analytics software or LPR systems to identify plates clearly at long distances – even on fast-moving vehicles.
Reliable in Harsh Conditions
The Q1800-LE is housed in a durable, weatherproof casing rated to withstand extreme heat, cold, rain, and dust (IP66/NEMA 4X). It also holds an IK10 impact rating for protection against vandalism, making it well-suited for public areas and roadside installations.
Light Performance Without Compromise
Equipped with Lightfinder 2.0 and Forensic WDR, this camera performs exceptionally in low light and difficult lighting scenarios. Whether capturing plates at sunset, during headlight glare, or in full darkness, it ensures image clarity and color consistency.
Flexible Integration & Storage
Designed for professional systems, the Q1800-LE integrates easily with Axis’ full ecosystem and third-party platforms. It supports edge storage using a microSD card, ensuring local video backup even if network connectivity is interrupted.
Tech Specs
| Camera Image Sensor |
1/1.8" Progressive scan CMOS |
| Lens |
Motorized lens with remote zoom and focus
Focal length: 8.2–47.2 mm, f/1.6–2.9
Horizontal field of view: 10.7°–61.9°
Vertical field of view: 6.0°–35.0° |
| Day and Night Functionality |
Automatically removable infrared-cut filter |
| Minimum Illumination |
Color: 0.08 lux at 50 IRE (f/1.6)
B/W: 0.005 lux at 50 IRE (f/1.6)
0 lux with IR illumination on |
| Shutter Speed |
1/32500 s to 1/2 s |
| Camera Angle Adjustment |
Pan: ±180°
Tilt: –90° to +90°
Rotation: ±95° |
| Video Compression |
H.264 (MPEG-4 Part 10/AVC), H.265 (HEVC), Motion JPEG |
| Resolution |
2304×1728 (4 MP) to 160×120 |
| Frame Rate |
Up to 25/30 fps (50/60 Hz) with power line frequency |
| Video Streaming |
Multiple, individually configurable streams
Axis Zipstream technology in H.264/H.265 |
| Image Settings |
Compression, Color, Brightness, Sharpness, Contrast, Local contrast, White balance
Exposure control (including automatic gain control)
WDR: up to 120 dB depending on scene
Noise reduction, Scene profiles, Barrel distortion correction, Image flip/rotation, Text/graphic overlays |
| Wide Dynamic Range (WDR) |
Forensic WDR (up to 120 dB) |
| Low-Light Technology |
Lightfinder 2.0 |
| Infrared Illumination |
Built-in IR with power-efficient LEDs
Range: Up to 100 m (328 ft)
Optimized for license plate capture |
| Pan/Tilt/Zoom |
Zoom: 6x optical, Digital PTZ |
| Audio |
Two-way audio
External microphone input or line input, Line output
Audio compression: AAC-LC, G.711, G.726
Audio streaming: Two-way and full duplex |
| Event Triggers |
Analytics, Edge storage events, Input signal, Manual trigger, PTZ presets, Time schedule, Event API |
| Event Actions |
File upload via FTP, HTTP, HTTPS, network share and email
Notification via email, HTTP, HTTPS, TCP, SNMP trap
Overlay text/image, Pre- and post-alarm video buffering
Record to local storage, External output activation, PTZ preset |
| Video Analytics |
License plate capture assistant
Support for AXIS Camera Application Platform (ACAP) |
| Storage Options |
Support for microSD/microSDHC/microSDXC cards
Support for recording to network-attached storage (NAS) |
| Security |
Signed firmware, Secure boot, Axis Edge Vault, TPM 2.0
IEEE 802.1x (EAP-TLS), HTTPS encryption, Password protection, IP address filtering, Network access control, Digest authentication |
| Power |
Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4 |
| Operating Conditions |
–40 °C to 60 °C (–40 °F to 140 °F)
Humidity: 10–100% RH (condensing) |
| Storage Conditions |
–40 °C to 65 °C (–40 °F to 149 °F) |
| Approvals |
EMC: EN 55032 Class A, EN 55035, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A)
Safety: IEC/EN/UL 62368-1
Environment: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-30, IEC 60068-2-78
Ingress protection: IEC/EN 60529 IP66
Impact resistance: IEC/EN 62262 IK10
NEMA 250 Type 4X |
| Casing |
Metal casing with integrated sunshield
Color: White (RAL 9003) |
| Dimensions |
Height: 104 mm (4.1 in)
Length: 362 mm (14.3 in)
Width: 104 mm (4.1 in) |
| Weight |
2.6 kg (5.7 lb) |
| Included Accessories |
Installation guide, Windows decoder 1-user license, Cable gaskets, Connector guard, AXIS T94F01M J-box/Gang box plate, Resistorx L-key |
| Warranty |
5-year Axis warranty |
Q&A
Q: How far can this camera capture license plates?
A: Up to 100 meters (328 feet), depending on vehicle speed, plate design, and lighting conditions.
Q: Can it work in complete darkness?
A: Yes. It has integrated, long-range IR LEDs specifically designed to capture clear images at night.
Q: Is this camera suitable for highways?
A: Absolutely. It's optimized for capturing fast-moving vehicles in challenging conditions, making it ideal for highways and major roads.
Q: What makes it different from a regular security camera?
A: It’s built for one purpose: accurate plate capture at distance and speed. It combines advanced optics, IR, and low-light tech to do this reliably where standard cameras fall short.
Q: Can it record to an SD card?
A: Yes. It supports microSD card recording for on-site backup.
Q: What environments is it designed for?
A: Outdoor environments with variable lighting, weather, and traffic. Its rugged build and certifications make it suitable for commercial lots, urban areas, and gated entries.
