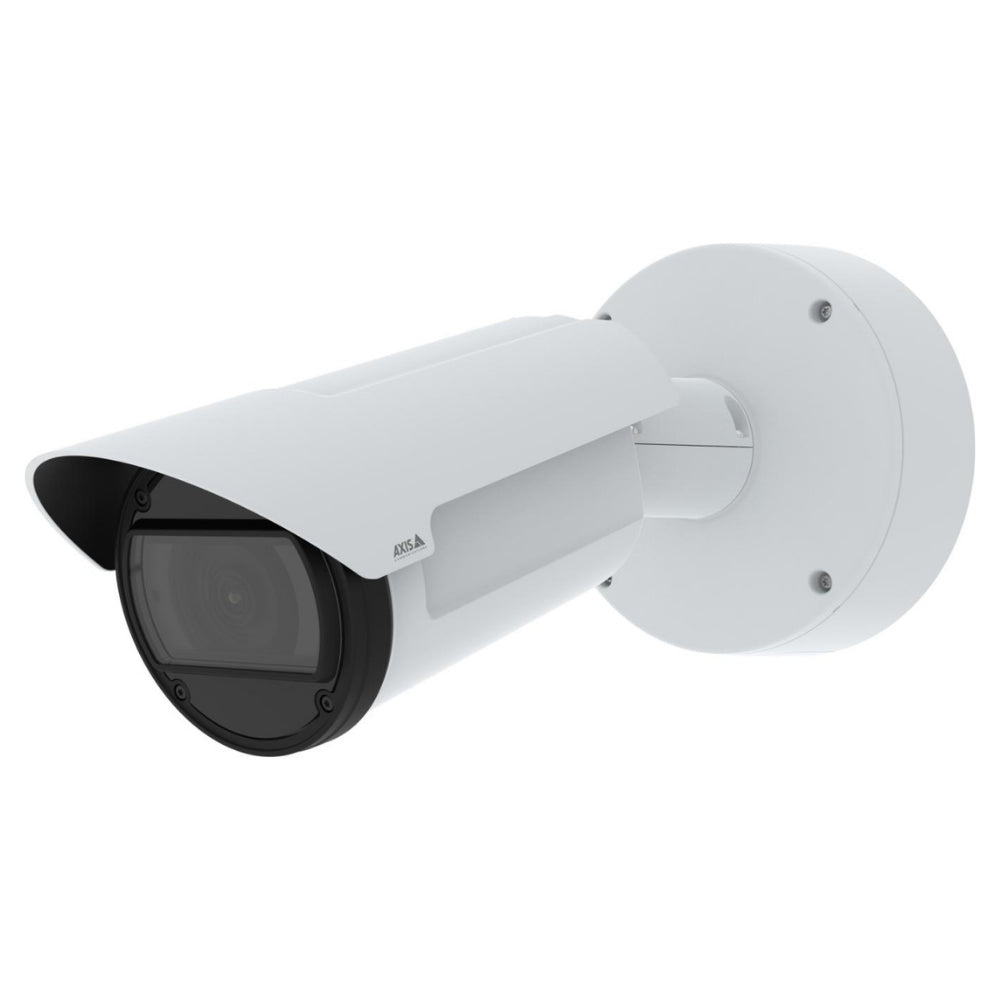

Axis Q1806-LE 4MP Outdoor Bullet, 4.3-137mm Lens, 32X Optical Zoom, DLPU, IR 850nm - 02506-001

Description

The AXIS Q1806-LE is a 4 MP bullet camera with 32x zoom and up to 90 fps, ideal for long-range, low-light surveillance. It features deep learning analytics, PoE-out, secure cable management, and Axis Edge Vault for strong cybersecurity.

Features

  • 4 MP at up to 90 fps – Smooth, high-quality video with exceptional clarity.
  • 32x Optical Zoom – Capture fine details at long distances.
  • PoE-Out – Power additional devices like a speaker or strobe light.
  • Deep Learning Analytics – Detect and classify humans and vehicles.
  • Axis Edge Vault – Protects device integrity and sensitive data.
  • Optical Image Stabilization – Reduces blur from vibrations or movement.
  • Flexible Installation – IDC connectors and spacious back box for secure wiring.
  • Durable Build – IK10, IP66/IP67, and NEMA 4X rated for harsh environments.

What’s Included:

  • AXIS Q1806‑LE Bullet Camera
  • Installation guide
  • Terminal block connector
  • Connector guard
  • Cable gaskets

DOWNLOADS

Datasheet  AXIS Q1806-LE Datasheet
Installation Guide  AXIS Q1806-LE Installation Guide
User Manual  AXIS Q1806-LE User Manual

Key Info

Precision Imaging & Zoom

With a 1/1.8″ progressive scan CMOS sensor, 2.0 µm pixels, and 32× optical zoom, the camera achieves sharp recognition across challenging distances. DLPU and forensic WDR ensure detail clarity even in mixed lighting.

Night & Low-Light Performance

  • Lightfinder for full-color video under dim light
  • Optimised IR up to 100 m for pitch-dark conditions
  • Shutter speeds from 1/143 000 s to 2 s for detailed capture in fast-moving scenes

Smart Analytics at the Edge

The integrated DLPU enables real-time detection and classification with AXIS Object Analytics. Supports up to 10 analytics scenarios like line-crossing and crossline counting, drastically reducing server load and latency.

Installation & Connectivity

Loaded with remote zoom and focus, P‑Iris control, space for secure cabling, IDC connectors, 62 mm filter thread, and a powerful PoE‑Out port for accessory integration.

Cybersecurity & Resilience

Fully secured with Axis Edge Vault, signed firmware, encrypted storage, IEEE 802.1X, HTTPS/TLS, and a tamper-resistant hardware design. Secure keystore and FIPS-certified cryptography preserve device integrity.

Efficient Operation & Integration

  • Supports H.264/H.265 with Zipstream for bandwidth-saving video
  • Multiple streams (up to 20) with dynamic frame rate control
  • Compatibility with AXIS Camera Station, ONVIF G/M/S/T, and third-party VMS
  • ACAP support enhances customization and third-party app deployment

Tech Specs

Specification Details
**Camera**
Image Sensor 1/1.8” progressive scan RGB CMOS
Pixel Size 2.0 µm
Lens Varifocal 4.3–137 mm, F1.4–4.0H-FOV: 60°–2.3°, V-FOV: 39°–1.3°Remote zoom/focus, P-Iris, 62 mm filter thread
Minimum Focus Distance 1.2 m (3.9 ft)
Day/Night Mode Removable IR-cut (day), IR-pass 720 nm (night)
Minimum Illumination Color: 0.08 lux (F1.4), B/W: 0.02 lux (F1.4), 0 lux with IR
Shutter Speed 1/143000 s to 2 s (up to 90 fps)
Angle Adjustment Pan ±180°, Tilt 0 to -90°, Roll -90 to 270°
SoC ARTPEC-8 with DLPU
Memory 2048 MB RAM, 8192 MB Flash
**Video**
Video Compression H.264 (Baseline/Main/High), H.265 (Main), Motion JPEG
Resolution 4:3: 2160x1512 to 160x12016:9: 2880x1620 to 160x9016:10: 1280x800 to 160x100
Frame Rate WDR: up to 30 fpsNo WDR: up to 90 fps
Streaming Up to 20 streamsZipstream, VBR/ABR/MBR, low latency mode
SNR >55 dB
WDR Forensic WDR up to 120 dB
Multi-View Streaming Up to 8 cropped views
Noise Reduction 2D (spatial) and 3D (temporal)
Image Settings Saturation, contrast, sharpness, WB, local contrast, tone mapping, defog, barrel distortion correction, overlays, mirroring, corridor view
Scene Profiles Forensic, vivid, traffic overview
PTZ Digital PTZ, optical zoom, presets, directional indicator, guard tour
**Audio**
Features AGC, 10-band EQ, spectrum visualizer, speaker & mic pairing
Audio I/O Mic input, line-in, line-out, digital input, 12 V ring power
Audio Encoding LPCM, AAC-LC, G.711, G.726, Opus
**Network**
Protocols IPv4/6, HTTP/S, TLS, FTP/SFTP, CIFS/SMB, SMTP, mDNS, UPnP, SNMP, NTP/NTS, RTSP/RTP/SRTP, MQTT, SIP, SSH, LLDP, CDP, IEEE 802.1X, IEEE 802.1AR, etc.
**System Integration**
APIs VAPIX, ACAP (Native/CV SDK), ONVIF Profiles G/M/S/T
Event Triggers Health, digital/audio, I/O, motion, tampering, schedules, MQTT
Event Actions Overlays, notifications, light control, recording, clip sending, WDR mode
Installation Aids Pixel counter, remote zoom/focus, level grid, leveling assistant
**Analytics**
Included Applications AXIS Object Analytics, Scene Metadata, Image Health, Privacy Shield, VMD, tampering, audio detection
Supported Applications License Plate Verifier, Perimeter Defender, Speed Monitor, ACAP 3rd-party
AXIS Object Analytics Detects/classifies humans & vehiclesScenarios: line crossing, time in area, occupancy, crossline countingIncludes trajectory visuals
**Cybersecurity**
Hardware Security Axis Edge Vault, TPM 2.0 (FIPS 140-2 Level 2), secure boot, signed OS/video
Network Security IEEE 802.1X, HTTPS/HSTS, TLS 1.2/1.3, firewall, secure syslog, NTS, X.509
Documentation Hardening Guide, SBOM, Security Model, Vulnerability Policy
**General**
Casing IP66/67, IK10 body, IK08 glass, NEMA 4X, anti-glare
Power PoE IEEE 802.3at/bt, 10–28 V DC, 20–24 V ACPoE-out via IEEE 802.3bt
Connectors RJ45 (PoE), RJ45 (PoE-out), I/O (2x), audio (3.5mm), DC in
IR Illumination Optimised IR, 850 nm LEDsRange: 100 m or more
Storage microSD/microSDHC/microSDXC, NASAES-XTS encrypted
Operating Conditions -40 °C to 60 °C (max 74 °C short-term), 10–100% RH
Storage Conditions -40 °C to 65 °C, 5–95% RH
Dimensions EPA: 0.0478 m² (0.51 ft²)
Weight 3200 g (7.05 lb)
Included Accessories Camera, terminal block, RJ45 cable, connector guard, gaskets, install guide, auth key
Optional Accessories T8415 Install Tool, surveillance cards (axis.com)
VMS Compatibility AXIS Companion, AXIS Camera Station, Device Manager, partner VMS
Languages English, German, French, Spanish, Chinese, Japanese, Korean, Polish, more
Warranty 5-year warranty



Q&A

Q: Can it monitor long distances?
A: Yes, the 32× zoom combined with DLPU enables clear identification up to ~273 m, and detection up to 2.7 km at 25 px/m DORI levels.

Q: Does it support analytics?
A: Yes—deep learning-based AXIS Object Analytics is onboard, with real-time classification and customizable scenarios.

Q: Is it secure and weatherproof?
A: Absolutely. It boasts IP66/67, IK10, NEMA 4X ratings, and Axis Edge Vault for secure boot, encrypted storage, and key security.

Q: Can it power external devices?
A: Yes—its PoE‑Out port supplies power to devices like speakers or alarms.

Q: How does it perform in low light?
A: Outstandingly—with Lightfinder full-color imaging, IR vision up to 100 m, and Forensic WDR for balanced contrast.
