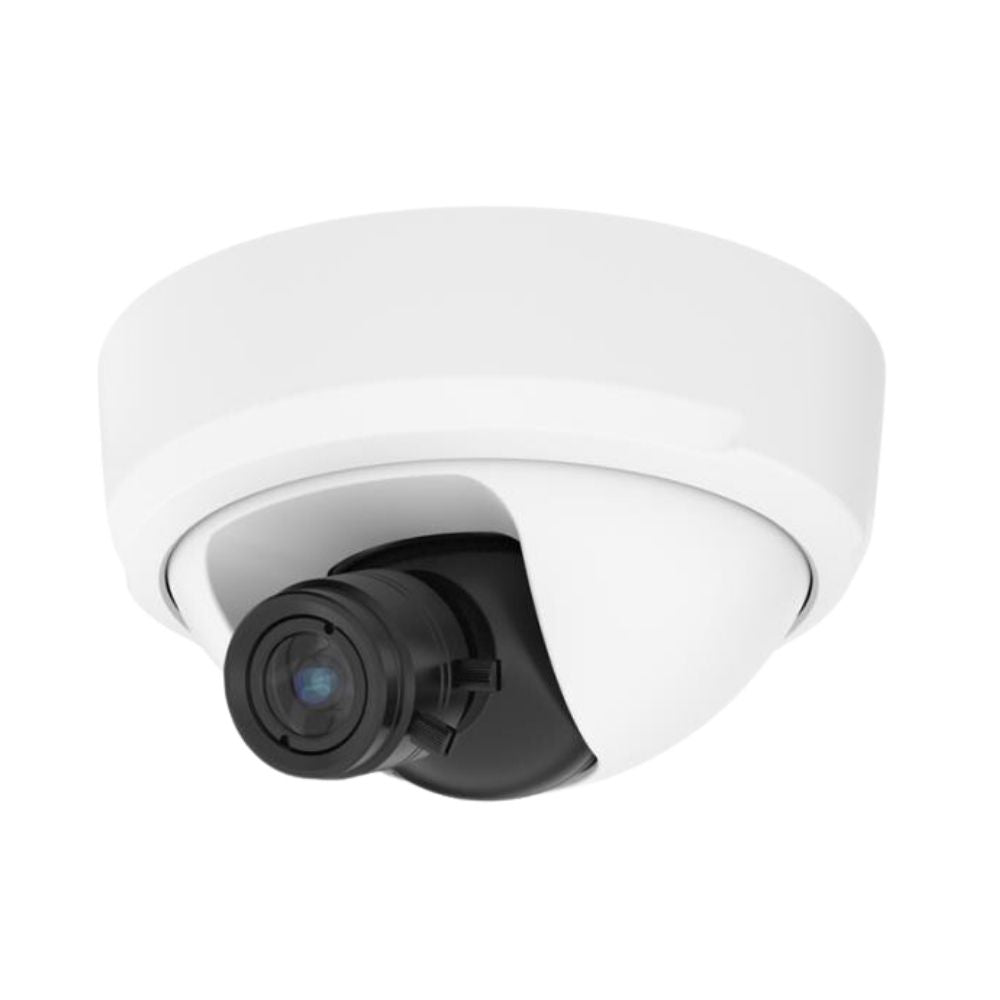

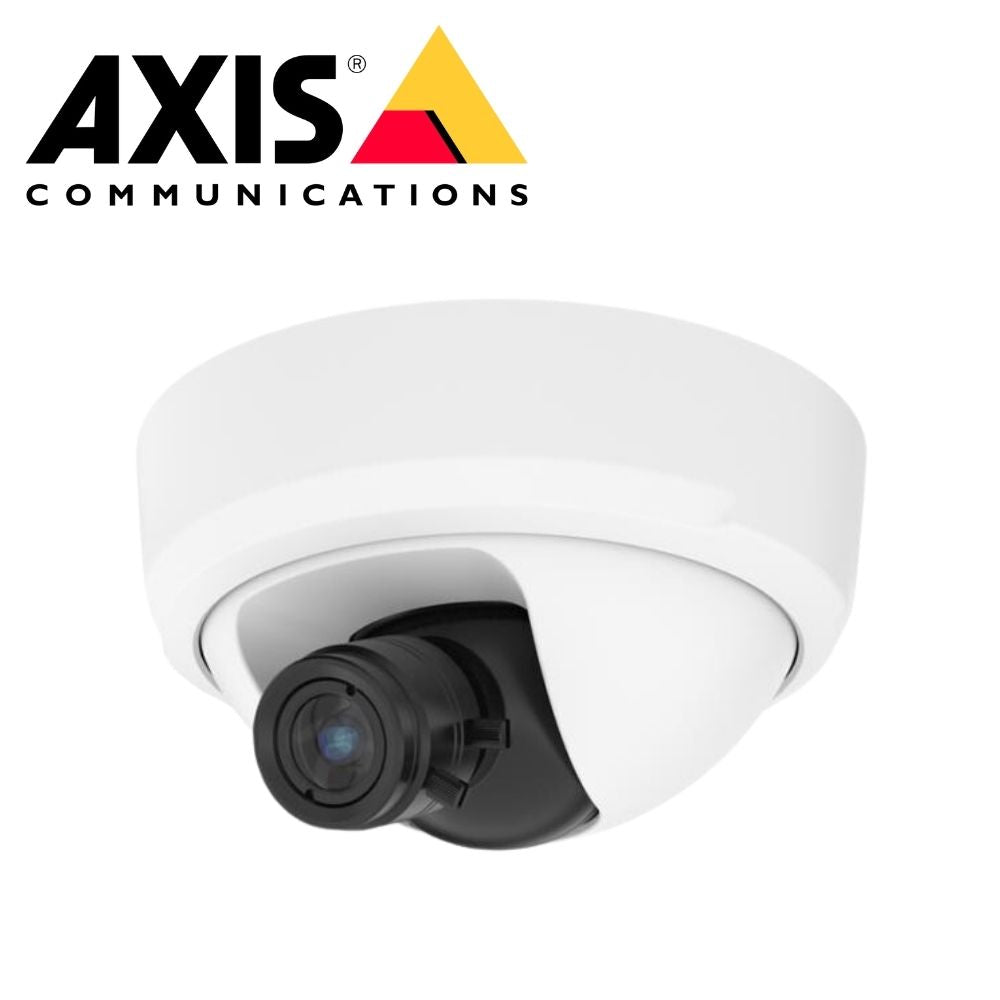

The AXIS FA4115 is a compact indoor varifocal dome sensor unit designed for discreet installations in retail, office, and banking environments. Paired with an AXIS FA Main Unit, it delivers crisp 1080p resolution with flexible horizontal viewing angles from 99° to 53°. Featuring Forensic WDR optimized for movement and Axis Corridor Format, it ensures excellent detail capture even in challenging lighting and narrow spaces.
Features
-
1080p Varifocal Dome – Sharp video with adaptable coverage using a 2.8–6.0 mm varifocal lens.
-
Flexible Field of View – Adjusts between 99° wide-angle and 53° narrow for detail-focused scenes.
-
Forensic WDR – Tuned for motion, it ensures balanced exposure in complex lighting conditions.
-
Axis Corridor Format – Ideal for hallways, aisles, or vertical scenes.
-
360° Pan, 90° Tilt, 360° Rotation – Easy sensor positioning during installation.
-
Indoor-Ready Design – Aluminum and plastic casing, IP3X rated, built for versatile indoor use.
-
PVC-Free Build & 3-Year Warranty – Environmentally conscious with solid warranty coverage.
What’s Included:
- AXIS FA4115 Dome Sensor Unit
- 8-meter (26 ft) black connection cable
- Mounting brackets
- Installation Guide
DOWNLOADS
Key Info
Compact, Discreet, and Flexible
Designed for areas needing subtle monitoring, this unit blends into ceilings while offering wide or zoomed-in views depending on your needs.
Sharp, Adaptive Surveillance
Whether you’re securing an office lobby or a store aisle, the adjustable FOV and Forensic WDR deliver consistent, high-quality imaging even when lighting is uneven.
Seamless Integration
Connects to AXIS FA Main Units to form a modular system where processing and analytics are centralized, while the sensor remains minimal in view.
Reliable for Indoor Environments
Built to withstand everyday conditions like heat, humidity, or cold storage, this camera is tested for operational durability and image reliability.
Tech Specs
|
Specification
|
Details
|
|
**Camera**
|
|
|
Image Sensor
|
1/3” progressive scan RGB CMOS
|
|
Lens
|
Varifocal 2.8–6.0 mm, fixed iris, F2.0
|
|
Field of View
|
H: 99°–53°, V: 53°–30°
|
|
Day/Night
|
–
|
|
Min. Illumination
|
Color: 0.2 lux
|
|
Shutter Speed
|
1/32500 s to 1/25 s (50 Hz), 1/32500 s to 1/30 s (60 Hz)
|
|
SoC
|
Requires AXIS FA Main Unit
|
|
Memory
|
Handled by connected FA Main Unit
|
|
Compute Capabilities
|
Dependent on connected Main Unit
|
|
**Video**
|
|
|
Compression
|
Determined by FA Main Unit
|
|
Resolutions
|
1920x1080 (1080p)
|
|
Frame Rate
|
Up to 25/30 fps (50/60 Hz)
|
|
Streaming
|
Via FA Main Unit
|
|
Image Settings
|
Forensic WDR, Axis Corridor Format
|
|
PTZ
|
Digital PTZ via Main Unit
|
|
**Audio**
|
|
|
Audio Support
|
Provided by FA Main Unit
|
|
Encoding
|
Provided by FA Main Unit
|
|
Connectors
|
8 m (26 ft) black cable to Main Unit
|
|
**Network**
|
|
|
Protocols
|
Provided by FA Main Unit
|
|
Connectors
|
8 m cable (included)
|
|
**System Integration**
|
|
|
API
|
VAPIX via FA Main Unit
|
|
Event Triggers
|
Motion detection, tampering, input (via Main Unit)
|
|
Event Actions
|
Recording, alerts, streaming (via Main Unit)
|
|
Built-in Tools
|
Camera angle adjustment: pan 360°, tilt 0°–90°, rotation 360°
|
|
**Analytics**
|
|
|
Included
|
Depends on FA Main Unit support
|
|
Object Detection
|
With AXIS Main Unit (if supported)
|
|
Metadata
|
With AXIS Main Unit
|
|
**Cybersecurity**
|
|
|
Software Security
|
Via Main Unit (signed firmware, HTTPS, etc.)
|
|
Hardware Security
|
Relies on Main Unit
|
|
Network Security
|
Provided by Main Unit (IEEE 802.1X, TLS, etc.)
|
|
**General**
|
|
|
Casing
|
Aluminum and plastic, IP3X-rated
|
|
Mounting
|
Includes mounting bracket
|
|
Power
|
Supplied via AXIS FA Main Unit
|
|
Storage
|
Handled by FA Main Unit (NAS, SD, etc.)
|
|
Operating Conditions
|
–20 °C to 50 °C, 10–85% RH (non-condensing)
|
|
Storage Conditions
|
–40 °C to 65 °C, 5–95% RH (non-condensing)
|
|
Dimensions
|
Ø 88 mm × H 50–70 mm
|
|
Weight
|
112 g (0.25 lb)
|
|
Languages
|
Based on connected Main Unit
|
|
Warranty
|
5-year warranty
|
Q&A
Q1: Can I use the AXIS FA4115 outdoors?
A: No, it is designed specifically for indoor use. For outdoor installations, use a weather-resistant model or housing.
Q2: Does it function as a standalone camera?
A: No. It must be connected to an AXIS FA Main Unit to operate and stream video.
Q3: How adjustable is the field of view?
A: The varifocal lens allows horizontal view adjustments from 99° for wide scenes to 53° for focused areas.
Q4: What kind of mounting options are supported?
A: It includes a mounting bracket with full 360° pan, tilt, and rotation for flexible positioning.
Q5: Is Forensic WDR useful in indoor scenes?
A: Absolutely. It enhances visibility in challenging indoor lighting—such as areas with windows, entrances, or mixed lighting sources.
