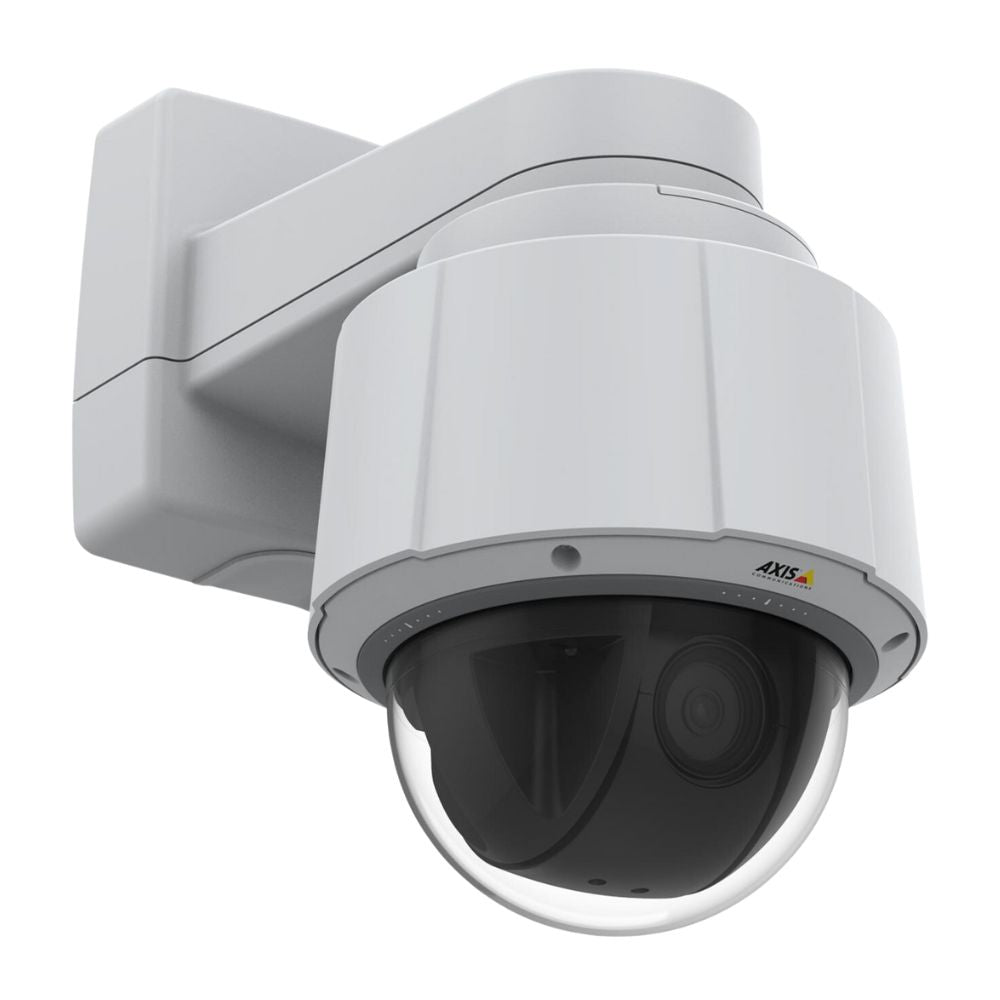

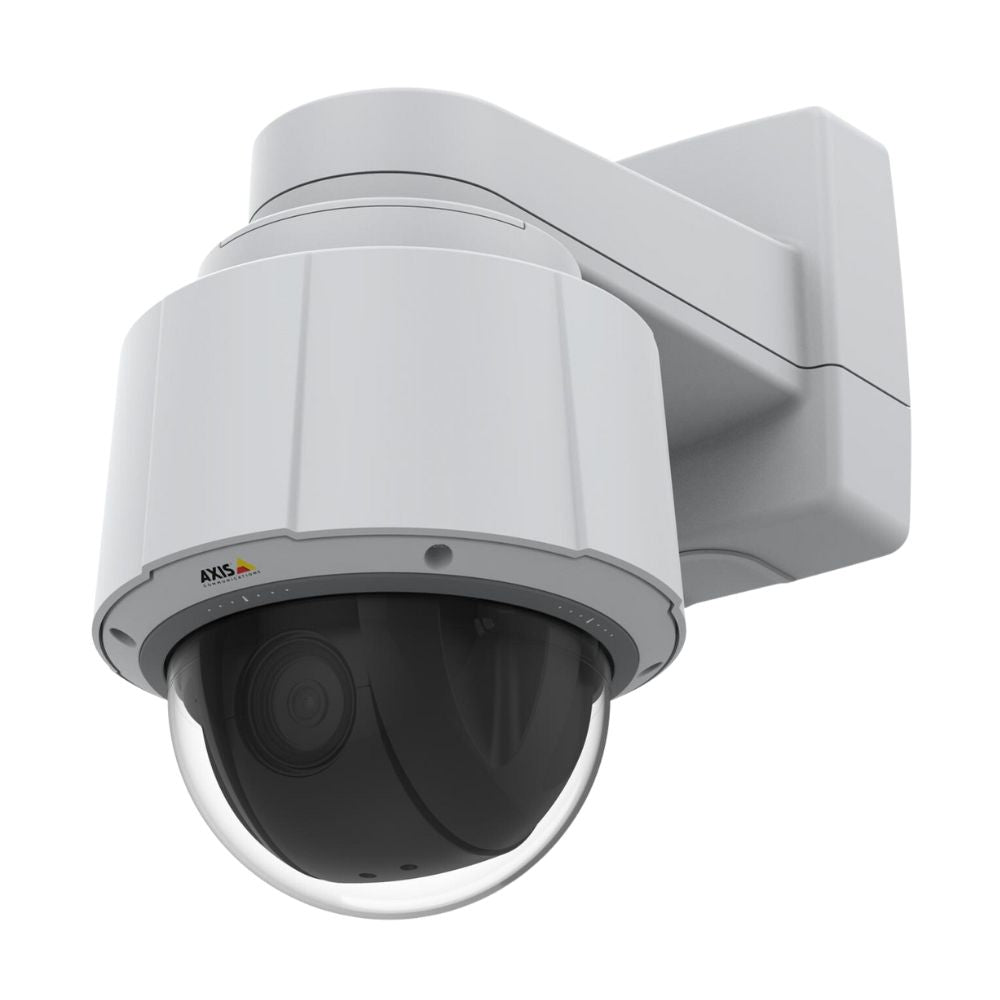

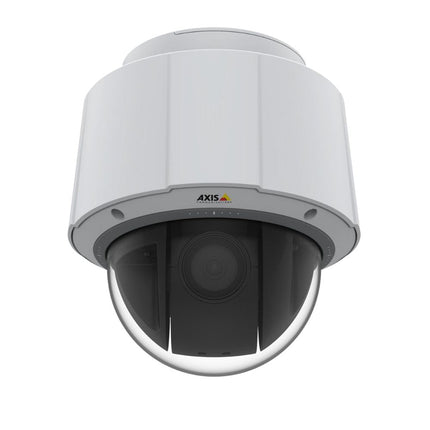

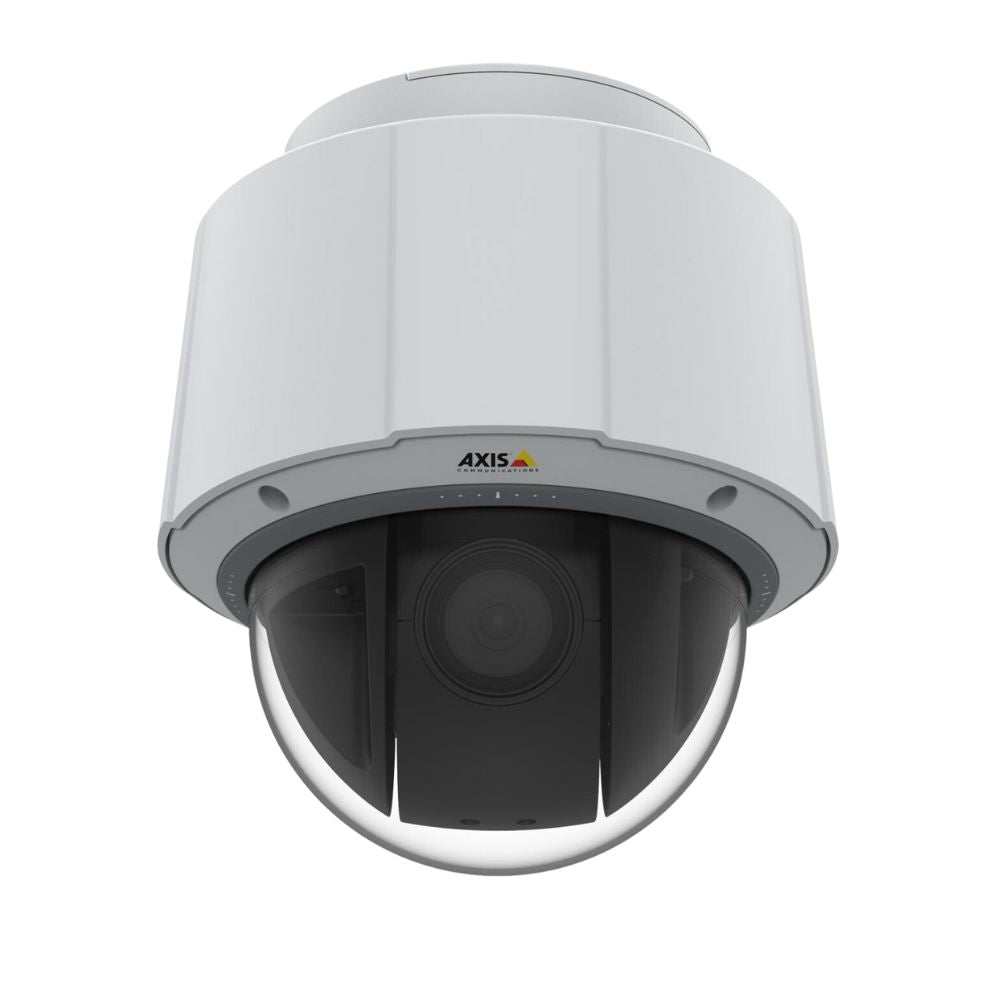

The AXIS Q6075-E is an outdoor PTZ camera with 1080p resolution, 40x zoom, and Lightfinder 2.0 for clear low-light imaging. It features intelligent tracking, built-in analytics, and strong cybersecurity—ideal for critical outdoor surveillance.
Features
-
HDTV 1080p with 40x Optical Zoom – Provides excellent detail and coverage for wide or distant surveillance.
-
Lightfinder 2.0 Technology – Delivers bright, color-accurate images in near darkness.
-
Autotracking 2 and Orientation Aid – Smart tracking of moving objects and easy orientation for quick situational awareness.
-
Built-in Intelligent Analytics – Includes object detection, motion analysis, loitering guard, and more for proactive security.
-
Robust Cybersecurity and TPM – Equipped with FIPS 140-2 level 2 certified TPM, secure boot, signed OS, and encrypted storage.
-
Axis Zipstream with H.264/H.265 – Reduces bandwidth and storage needs while maintaining video quality.
-
All-Weather Outdoor Design – IP66/67, NEMA 4X, and IK10-rated with Arctic Temperature Control down to -50 °C.
What's Included:
- Axis 90 W SFP Midspan and power cable
- RJ45 Push-pull Connector (IP66)
- Sunshield
- Installation Guide
- Windows Decoder 1-user License
DOWNLOADS
Key Info
Exceptional Zoom and Image Quality
Get close-up views with 40x optical zoom while maintaining full HD clarity—ideal for open areas like airports or highways.
Reliable Performance in Harsh Environments
Built tough for outdoor use, with protection against dust, water, impacts, and extreme cold.
Advanced Object Detection and Tracking
Autotracking 2 and AXIS Object Analytics allow precise detection and classification of humans, vehicles, and more.
Cybersecure by Design
From FIPS-certified TPM to encrypted video storage and secure boot, it protects against unauthorized access.
Smart Compression and Streaming
Axis Zipstream ensures forensic-quality footage at lower bandwidth and storage cost.
Flexible Integration and Control
Compatible with VMS platforms and supports ONVIF, VAPIX, and cloud connection for seamless deployment.
Future-Ready AI Capabilities
Built-in MLPU allows for on-device processing of analytics and metadata generation.
Tech Specs
Specification |
Details |
**Camera** |
Image Sensor |
1/2.8" progressive scan CMOS |
Lens |
4.25–170 mm, F1.6–4.95, Autofocus, Auto-iris |
Field of View |
Horizontal: 65.1°–2.00°, Vertical: 39.1°–1.18° |
Minimum Illumination |
Color: 0.1 lux / B&W: 0.002 lux at 30 IRE |
Pan/Tilt/Zoom |
360° endless pan, 220° tilt, 40x optical zoom, 12x digital |
SoC |
ARTPEC-7 with MLPU |
Memory |
1024 MB RAM, 512 MB Flash |
**Video** |
Compression |
H.264, H.265, MJPEG, Zipstream |
Resolution |
HDTV 1080p (1920x1080) to 320x180 |
Frame Rate |
Up to 50/60 fps |
Streaming |
Multiple configurable streams; Zipstream supported |
WDR |
Up to 120 dB |
Image Settings |
Privacy masks, rotation, EIS, overlay, defog, scene profiles |
**Analytics** |
Included |
AXIS Object Analytics, Motion Guard, Fence Guard, Loitering Guard, Autotracking 2 |
Detection |
Humans, vehicles, faces, license plates, counting, line crossing |
**Network** |
Protocols |
IPv4/6, HTTP/2, HTTPS, TLS 1.3, SRTP, FTP, MQTT, UPnP, LLDP, SNMP, and more |
Connectors |
RJ45 (PoE), Push-pull (IP66) |
**Cybersecurity** |
Edge Security |
Signed OS, secure boot, password protection, encrypted SD card |
TPM |
FIPS 140-2 level 2 certified TPM 2.0 |
Network Security |
IEEE 802.1X, MACsec, TLS 1.3, X.509 PKI, secure syslog |
**General** |
Casing |
IP66/67, NEMA 4X, IK10-rated, aluminum & PC/ASA dome |
Power |
High PoE 60W Midspan (included), typical 14W, max 51W |
Storage |
SD/SDHC/SDXC card support, encrypted NAS recording |
Operating Conditions |
-50 °C to 50 °C (-58 °F to 122 °F), Arctic startup -40 °C |
Dimensions |
⌀232 x 271 mm (9.13 x 10.7 in) |
Weight |
3.75 kg (8.3 lb) |
Languages |
EN, DE, FR, ES, IT, RU, ZH, JA, KO, PT, NL, CZ, SV, FI, TR, TH, VI |
Warranty |
5-year warranty |
Q&A
Q: Can the AXIS Q6075-E be used in extremely cold environments?
A: Yes. With High PoE 60W power, it operates down to -50 °C and starts up at -40 °C thanks to Arctic Temperature Control.
Q: What analytics are built into the camera?
A: It includes AXIS Object Analytics, Motion Guard, Loitering Guard, Fence Guard, and Autotracking 2.
Q: Is the AXIS Q6075-E secure for government or critical infrastructure use?
A: Yes. It meets FIPS 140-2 Level 2 requirements, includes TPM 2.0, and has signed firmware and secure boot.
Q: Does it support cloud integration?
A: Yes. It supports one-click cloud connection and is compatible with Axis VMS and third-party platforms.
Q: How is bandwidth optimised without losing image quality?
A: Axis Zipstream with H.264/H.265 reduces file sizes while retaining forensic-quality footage.
