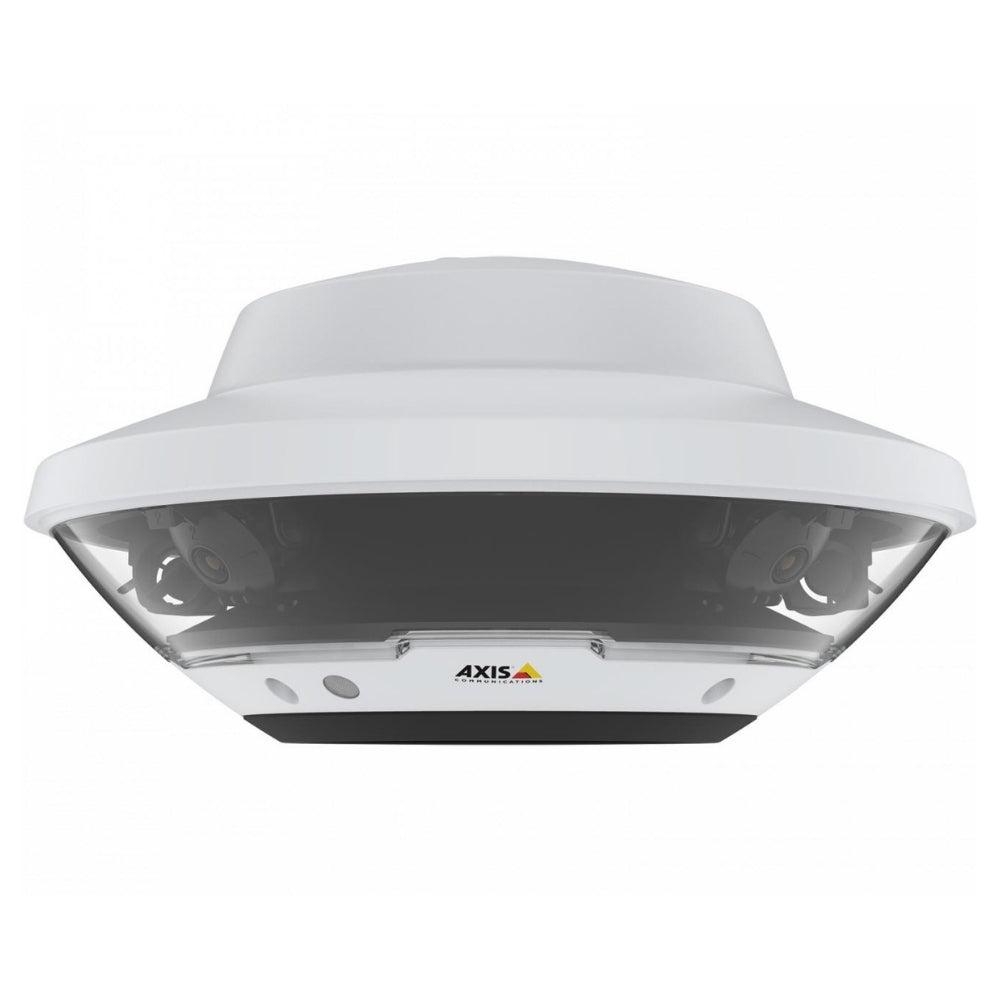

Axis Q6100-E 50Hz 4X5MP Outdoor Multi-Directional, PTZ Control - 01710-001

Description

The AXIS Q6100-E is a multi-sensor network camera designed for real-time 360° monitoring with high image detail, day or night. When paired with an AXIS Q61 or Q63 PTZ camera, it enables one-click PTZ control and automatic tracking.

Features

  • 360° Overview with PTZ Control – Combines panoramic vision with one-click PTZ tracking using compatible Q61 or Q63 PTZ cameras.
  • 4x 5 MP Sensors – Delivers sharp 20 MP resolution for full scene coverage and forensic detail.
  • Autofocus & Exchangeable Lenses – Offers customizable and precise image setup per sensor.
  • Directional Audio Detection – Locates sound sources and instantly redirects PTZ to the incident.
  • IP66, IK10 & NEMA 4X Rated – Built for outdoor reliability in rain, dust, heat, cold, and vandal-prone areas.
  • Advanced Analytics Suite – Supports Motion Guard, Loitering Guard, and Fence Guard, with built-in autopilot and audio-based alerts.
  • Secure & Scalable – Features signed OS, Axis Edge Vault, TLS 1.3, and secure remote connectivity.

What’s Included:

  • AXIS Q6100-E Network Camera
  • Adapter for AXIS Q61-E and Q63-E
  • Bayonet screws
  • Installation guide
  • Windows decoder (1-user license)

DOWNLOADS

Datasheet  AXIS Q6100-E Datasheet
Installation Guide  AXIS Q6100-E Installation Guide
User Manual  AXIS Q6100-E User Manual

Extra Info

360° Smart Surveillance
With four 5 MP sensors, this camera provides seamless panoramic coverage in real-time. It works hand-in-hand with an AXIS Q61 or Q63 PTZ camera to enable one-click control and auto-tracking—ideal for wide-area monitoring like city centers or transit hubs.

Intelligent Audio-Based Tracking

  • Directional audio detection pinpoints unusual sound events
  • Automatically redirects PTZ view to the audio source
  • Ideal for proactive incident response

Flexible Lens Configuration

  • Each sensor has an exchangeable, tiltable lens with autofocus
  • Supports customized fields of view—wide or narrow
  • Ensures optimal setup for any surveillance scene

Built Tough for All Weather

  • IP66, IK10, and NEMA 4X-rated for harsh environments
  • Withstands rain, snow, dust, impact, and temperatures from -50 °C to 50 °C
  • AXIS Camera Heater Power Supply required for Q63 models in extreme cold

Proactive and Secure Monitoring

  • Supports analytics like Motion Guard, Fence Guard, and Loitering Guard
  • Cybersecurity features: signed OS, secure boot, encrypted file system
  • Complies with Axis’ cybersecurity standards and best practices

Tech Specs

Specification Details
**Camera**
Image Sensor 4 x 5 MP progressive scan RGB CMOS 1/2.5”
Lens Autofocus lenses, Fixed iris, F2.0, Focal length: 2.8 mm
Field of View Horizontal: 360° / Vertical: 84°
Day and Night Automatically removable infrared-cut filter
Min. Illumination Color: 0.4 lux at 50 IRE, F2.0 / B/W: 0.03 lux at 50 IRE, F2.0
Shutter Speed 1/32500 to 1/20 s
Camera Angle Adjustment Pan, tilt, and rotate
PTZ One-click PTZ control
SoC Model S5
Memory 2048 MB RAM, 512 MB Flash
**Video**
Compression H.264 (Main, High), H.265 (Main), Motion JPEG
Resolution 4 x 2592x1944 to 320x240 (default: 2592x1944)
Frame Rate Up to 20 fps (50/60 Hz) in all resolutions
Streaming Multi-stream, H.264/H.265 with Zipstream, ABR/MBR/VBR support
Image Settings Resolution, compression, saturation, brightness, sharpness, contrast, white balance, exposure, WDR, overlays, privacy masks (8 max/channel)
**Network**
Protocols IPv4/6, HTTP/HTTPS, TLS, FTP/SFTP, CIFS/SMB, RTSP, MQTT, SNMP, SSH, LLDP, CDP, DHCP, ARP, UPnP, mDNS, NTP/NTS, ICMP, SRTP, etc.
**System Integration**
API VAPIX, ONVIF Profiles G/M/S/T, Axis ACAP, One-click cloud connection
Event Triggers Analytics, edge storage events, virtual inputs, status monitoring, tampering, scheduled events
Event Actions Recording, upload, email/HTTP/SNMP notifications, overlays, PTZ presets, MQTT publish
Built-in Tools Installation focus, lens selection, positioning calibration, PTZ remote
**Analytics**
Included Directional Audio Detection, Autopilot, AXIS Motion Guard, Fence Guard, Loitering Guard, Video Motion Detection, Active Tampering Alarm
**Cybersecurity**
Software Security Signed OS, digest authentication, brute force delay protection, OAuth 2.0 (ADFS), password protection
Hardware Security Encrypted file system (AES-XTS-Plain64 256-bit)
Network Security IEEE 802.1X, TLS 1.2/1.3, HTTPS/HSTS, X.509 Certificate PKI, Network Time Security (NTS), host-based firewall
**General**
Casing IP66-, IK10-, NEMA 4X-rated polycarbonate dome with aluminum body
Power Typical 9W, max 23W; 24VDC input or AXIS T8154 (100–240 VAC); AXIS High PoE midspan for PTZ models
Storage microSD/SDHC/SDXC with encryption, NAS support
Operating Conditions -50 °C to 50 °C (with AXIS Camera Heater Power Supply); -40 °C to 50 °C normally; max 74 °C (intermittent, NEMA TS 2)
Dimensions Ø 361 mm × 192 mm (H)
Weight 4.0 kg (excluding PTZ)
Languages English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese, Dutch, etc.
Warranty 5-year warranty


Q&A

Q: Can the AXIS Q6100-E operate on its own?
A: No, it must be paired with an AXIS Q61 or Q63 Series PTZ camera to function properly.

Q: What’s the benefit of the 4 x 5 MP sensor setup?
A: It delivers a full 360° view with a combined 20 MP resolution for complete situational awareness.

Q: Does the camera support audio-based tracking?
A: Yes, directional audio detection automatically points the PTZ camera to the source of sound.

Q: Can I adjust or replace the lenses?
A: Yes, each lens is exchangeable, tiltable, and includes autofocus for flexible setup.

Q: Is it built for harsh environments?
A: Absolutely. It’s rated IK10, IP66, and NEMA 4X for reliable outdoor use in tough conditions.

Videos

Read more

Product form

Axis Q6100-E 50Hz 4X5MP Outdoor Multi-Directional, PTZ Control - 01710-001

SKU: Q6100-E Datasheet
Part Number: 01710-001

🟢 IN STOCK— Delivery in 1–3 days.

$3,607.00 $3,440.00 Incl. GST

10% Off Discount Code: Axis-2025
Copied!
    PayPalAmerican Express Apple Pay Google Pay MastercardShop Pay Visa

    Trusted by 5000+ happy customers

    FREE Express Delivery over $200

    Easy 30-Day Returns Policy

    Australian Warranty & Tech Support

    5-Year Axis Warranty
