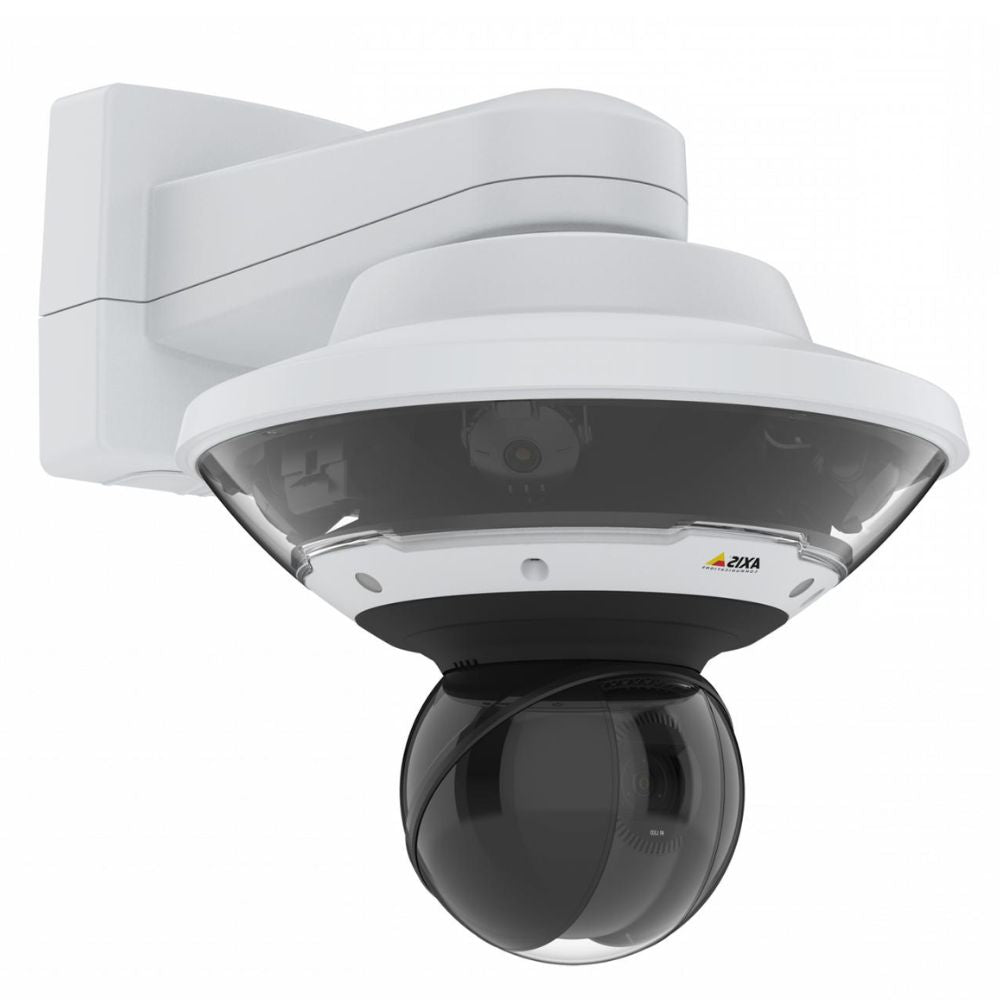

Axis Q6100-E 20MP Outdoor Multisensor Camera – 360° View, 4×2.8mm AF Lenses, IP66/IK10 – 01710-001 / 01711-001

Description

The AXIS Q6100-E is a 360° multidirectional camera with four 5 MP sensors for detailed panoramic views. It supports PTZ integration, directional audio detection, and autopilot—ideal for wide-area surveillance in cities, airports, and stadiums.

Features

  • 360° Overview with PTZ Integration – Combines four 5 MP sensors with PTZ tracking for total situational awareness.
  • One-Click PTZ Control and Autopilot – Seamlessly tracks motion using the paired PTZ camera with automatic or manual control.
  • Directional Audio Detection – Redirects the PTZ camera to the audio source for immediate incident verification.
  • Exchangeable Autofocus Lenses – Easily swap and adjust lenses for flexible setup and precise coverage.
  • Zipstream with H.264/H.265 – Efficient compression reduces bandwidth and storage while maintaining forensic quality.
  • Cybersecurity Ready – Features signed OS, secure boot, encrypted file system, and network security protocols like IEEE 802.1X and TLS 1.3.
  • Rugged Outdoor Build – IP66, IK10, and NEMA 4X ratings with operating temperatures down to -50 °C when paired with heater power supply.

What’s Included:

  • AXIS Q6100-E Unit
  • AXIS Q61-E and Q63-E Adapter
  • Bayonet Screws
  • Installation Guide
  • Windows Decoder 1-user License

DOWNLOADS

Datasheet  AXIS  Q6100‑E Datasheet
Installation Guide  AXIS  Q6100‑E Installation Guide
User Manual  AXIS  Q6100‑E User Manual

Key Info

High-Resolution Total Coverage
Four 5 MP sensors provide 360° panoramic coverage with crisp, clear imaging at up to 20 MP total resolution.

Seamless Integration with PTZ Cameras
Use with AXIS Q61/Q63 Series PTZ cameras for one-click PTZ handoff and autopilot tracking within the overview scene.

Built-in Audio and Event Intelligence
Audio detection and built-in analytics (Motion Guard, Loitering Guard, etc.) support smarter surveillance automation.

Flexible Lens Configuration
Tiltable and exchangeable autofocus lenses ensure each sensor is optimally adjusted to the scene.

Cybersecure and Hardened
From encrypted storage to OpenID authorization and secure boot, it's designed for robust cybersecurity and compliance.

Efficient Video Compression
Supports H.264, H.265, and Zipstream to optimize storage without sacrificing image quality.

All-Weather Design
Withstands tough environments—IP66/IP67-rated, IK10 impact resistance, and heater support for -50 °C operation.

Tech Specs

Specification Details
**Camera**
Image Sensor 4 x 5 MP 1/2.5” progressive scan RGB CMOS
Lens 2.8 mm, F2.0, Autofocus, Fixed iris, Exchangeable, Tiltable
Field of View Horizontal: 360°, Vertical: 84°
Day/Night IR-cut filter (automatically removable)
Minimum Illumination Color: 0.4 lux / B&W: 0.03 lux
Shutter Speed 1/32500 s to 1/20 s
Pan/Tilt/Zoom One-click PTZ control
SoC Model S5
Memory 2048 MB RAM, 512 MB Flash
**Video**
Compression H.264 (Main/High), H.265 (Main), Zipstream
Resolution 2592x1944 to 320x240 per sensor
Frame Rate Up to 20 fps (50/60 Hz)
Streaming Multiple configurable H.264/H.265 streams
Image Settings WDR, overlays, brightness, contrast, white balance, privacy masks, sharpness, exposure, dynamic text/image overlay
**Audio**
Detection Directional audio detection with PTZ redirection
**Network**
Protocols IPv4/6, HTTPS, HTTP/2, TLS 1.2/1.3, FTP, MQTT, SIP, SSH, SRTP, NTP, mDNS, LLDP, CDP, and more
Connectors RJ45 x2 (1 for PoE, 1 for PTZ), M8 AC/DC input
**System Integration**
API VAPIX, ONVIF (G/M/S/T), ACAP, Cloud, SIP VoIP
Event Triggers Audio, motion, tampering, PTZ ready, temperature, storage, network status, scheduled events, etc.
Event Actions Recording, alerts, overlays, MQTT publish, email, FTP, HTTP, HTTPS
**Analytics**
Included Motion Guard, Fence Guard, Loitering Guard, VMD, Tampering, Directional Audio Detection, Autopilot
Optional 3rd-party apps via ACAP
**Cybersecurity**
Edge Security Signed OS, encrypted storage, OpenID OAuth 2.0, password protection, brute force protection
Network Security IEEE 802.1X, HTTPS/HSTS, TLS 1.3, X.509 PKI, secure syslog, NTS, host firewall
**General**
Casing IP66/IP67, NEMA 4X, IK10, polycarbonate dome, aluminum body
Power 24 VDC input / High PoE (max 60 W); heater power supply required with Q63-E
Storage SD/SDHC/SDXC, NAS, AES 256-bit encryption supported
Operating Conditions -50 °C to 50 °C (-58 °F to 122 °F) with heater supply
Dimensions Ø 361 mm × H 192 mm (14.2 in × 7.6 in)
Weight 4.0 kg (8.8 lb) without PTZ camera
Languages EN, DE, FR, ES, IT, RU, ZH (Simplified/Traditional), JA, KO, PT, PL, NL, CZ, SV, FI, TR, TH, VI
Warranty 5-year warranty



Q&A

Q1: Does the AXIS Q6100-E work as a standalone camera?
A: No. It must be paired with a compatible AXIS Q61 or Q63 Series PTZ camera to enable PTZ functionality and full operation.

Q2: What’s the benefit of using this camera with PTZ?
A: The Q6100-E offers full 360° overview with its four sensors, while the PTZ camera handles zooming in and tracking details. You get both broad situational awareness and targeted surveillance.

Q3: Can I change the lenses?
A: Yes. Each of the four lenses is exchangeable and tiltable, allowing flexible customization to match your scene and coverage requirements.

Q4: Is it suitable for harsh environments?
A: Absolutely. It's rated IP66/IP67 for water and dust resistance, IK10 for impact protection, and NEMA 4X for tough outdoor conditions. With a heater, it can operate down to -50 °C.

Q5: Does it support audio?
A: Yes, it features directional audio detection. When triggered, it can redirect the PTZ camera toward the source of the sound.

Videos

Read more

Product form

Axis Q6100-E 20MP Outdoor Multisensor Camera – 360° View, 4×2.8mm AF Lenses, IP66/IK10 – 01710-001 / 01711-001

SKU: Q6100-E 50 Hz Datasheet
Part Number: 01710‑001 / 01711‑001

🟢 IN STOCK— Delivery in 1–3 days.

$3,442.00 Incl. GST

5% Off Discount Code: Axis-2026
Copied!
    PayPalAmerican Express Apple Pay Google Pay MastercardShop Pay Visa

    Trusted by 5000+ happy customers

    FREE Express Delivery over $200

    Easy 30-Day Returns Policy

    Australian Warranty & Tech Support

    5-Year Axis Warranty

    Official Dahua Online Reseller | Australia’s #1 Dahua Specialist | Backed by Real Support

    We Sell Australian Stock Only, No Grey Import Products
    Order before 2pm for same day dispatch
    Click & Collect Learn More
    Bulk Pricing Available—Message Us On Whatsapp | Get a Quote
