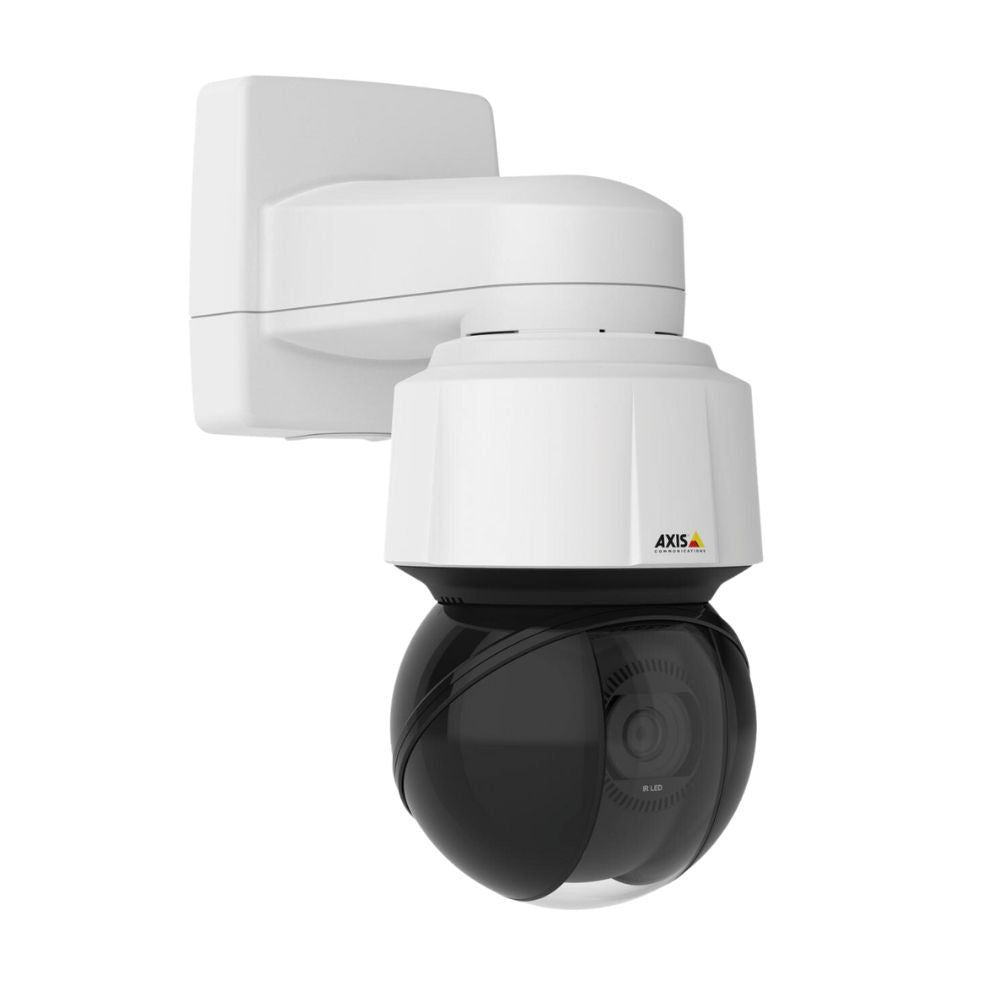

The AXIS Q6135-LE is a 1080p PTZ camera with 32x zoom, 250m IR range, and Sharpdome for full-range clarity. It offers advanced tracking, deep learning, and strong cybersecurity—ideal for critical public surveillance.
Features
-
HDTV 1080p + 32x Zoom – Capture distant details with full HD clarity and high-speed pan/tilt/zoom control.
-
Sharpdome with 20° Above Horizon – Maintain consistent image quality in all directions—even above the horizon line.
-
Optimised IR with 250 m Range – Built-in adaptive IR provides superior visibility in total darkness at long distances.
-
Autotracking 2 & Orientation Aid – Automatically follows moving subjects with click-to-track and dynamic overlays.
-
AXIS Object Analytics – Detects and classifies humans and vehicles with up to 10 configurable rules.
-
Edge Vault Cybersecurity – Includes secure boot, signed firmware, and TPM module (FIPS 140-2 level 2 certified).
-
H.265 with Zipstream – Save on bandwidth and storage without compromising image quality.
What's Included:
- AXIS Q6135-LE PTZ Camera
- High PoE 60 W Midspan
- IP66-rated RJ45 Connector Kit
- Installation Guide
- Windows® Decoder 1-user License
DOWNLOADS
Key Info
Powerful PTZ with Long-Range Clarity
Equipped with a 32x optical zoom and HDTV 1080p, this camera excels in covering large areas or zooming in on specific objects. Its Sharpdome design ensures consistent focus, even when tilting above the horizon—ideal for city surveillance and perimeter protection.
Night Vision at Scale
With Optimised IR reaching up to 250 meters and Lightfinder 2.0 technology, the AXIS Q6135-LE delivers bright, sharp images in complete darkness or challenging lighting conditions.
AI-Powered Detection and Tracking
Built-in deep learning capabilities enable object classification and precise tracking. Autotracking 2 lets the camera automatically follow people or vehicles, while orientation aids provide fast operator control.
Resilient and Ready for Harsh Conditions
The IP66-, IK10-, and NEMA 4X-rated housing withstands extreme weather, dust, vandalism, and temperatures from -50 °C to 50 °C. Arctic Temperature Control enables start-up in freezing conditions.
Secure by Design
This camera includes Axis Edge Vault and a TPM 2.0 module for secure cryptographic operations. Supports signed firmware, secure boot, encrypted SD storage, and robust network authentication.
Tech Specs
| Specification |
Details |
| **Camera** |
|
| Image Sensor |
1/2.8” Progressive Scan CMOS |
| Lens |
4.3–137.6 mm, F1.4–4.0 |
| Zoom |
32x optical, 12x digital (384x total) |
| Field of View |
H: 58.3°–2.4°, V: 34.9°–1.3° |
| Min. Illumination |
Color: 0.06 lux; B/W: 0.008 lux; 0 lux with IR |
| IR Range |
Up to 250 m with Optimised IR |
| PTZ |
360° endless pan, +20° to -90° tilt, speed dry, presets, guard tours |
| **Video** |
|
| Resolution |
Up to 1920x1080 (HDTV 1080p) |
| Frame Rate |
Up to 50/60 fps |
| Compression |
H.264, H.265, Motion JPEG |
| WDR |
Forensic WDR up to 120 dB |
| Streaming |
Zipstream (H.264/H.265), VBR/ABR/MBR |
| **Analytics** |
|
| Object Analytics |
Human and vehicle detection, 10 configurable rules |
| Additional Features |
Autotracking 2, Active Gatekeeper, Orientation aid, Event triggers |
| **Audio & Network** |
|
| Audio |
Two-way via AXIS T61 Audio I/O interface |
| Network Protocols |
HTTPS, TLS, SRTP, IPv6, MQTT, SNMP, and more |
| **Cybersecurity** |
|
| Software Security |
Signed firmware, SD encryption, brute force protection |
| Hardware Security |
TPM 2.0, Axis Edge Vault, secure boot |
| **General** |
|
| Casing |
IP66, IK10, NEMA 4X, Sharpdome |
| Operating Temp |
-50 °C to 50 °C |
| Power |
PoE+ / High PoE (up to 51 W) |
| Storage |
microSD/microSDXC with AES encryption, NAS support |
| Dimensions |
Ø 165 mm × H 241 mm |
| Weight |
3 kg |
| Warranty |
5-year warranty |
Q&A
Q1: How far can the AXIS Q6135-LE see at night?
A: Its built-in Optimised IR can illuminate objects up to 250 meters (820 ft) away, making it ideal for perimeter and long-range monitoring.
Q2: What makes Sharpdome special?
A: Sharpdome allows the camera to tilt 20° above the horizon, providing exceptional image quality even in upward-looking views—ideal for hilly terrain or city skylines.
Q3: Can this camera track moving objects automatically?
A: Yes, it features Autotracking 2, which can detect and follow humans or vehicles using AI-powered motion analysis.
Q4: Is the AXIS Q6135-LE suitable for outdoor use?
A: Yes, it’s built for harsh conditions with IP66, IK10, and NEMA 4X ratings, and operates down to -50 °C with Arctic start-up support.
Q5: How secure is the camera against cyber threats?
A: It includes Axis Edge Vault, TPM 2.0, signed firmware, secure boot, and full support for encrypted communication and storage.
