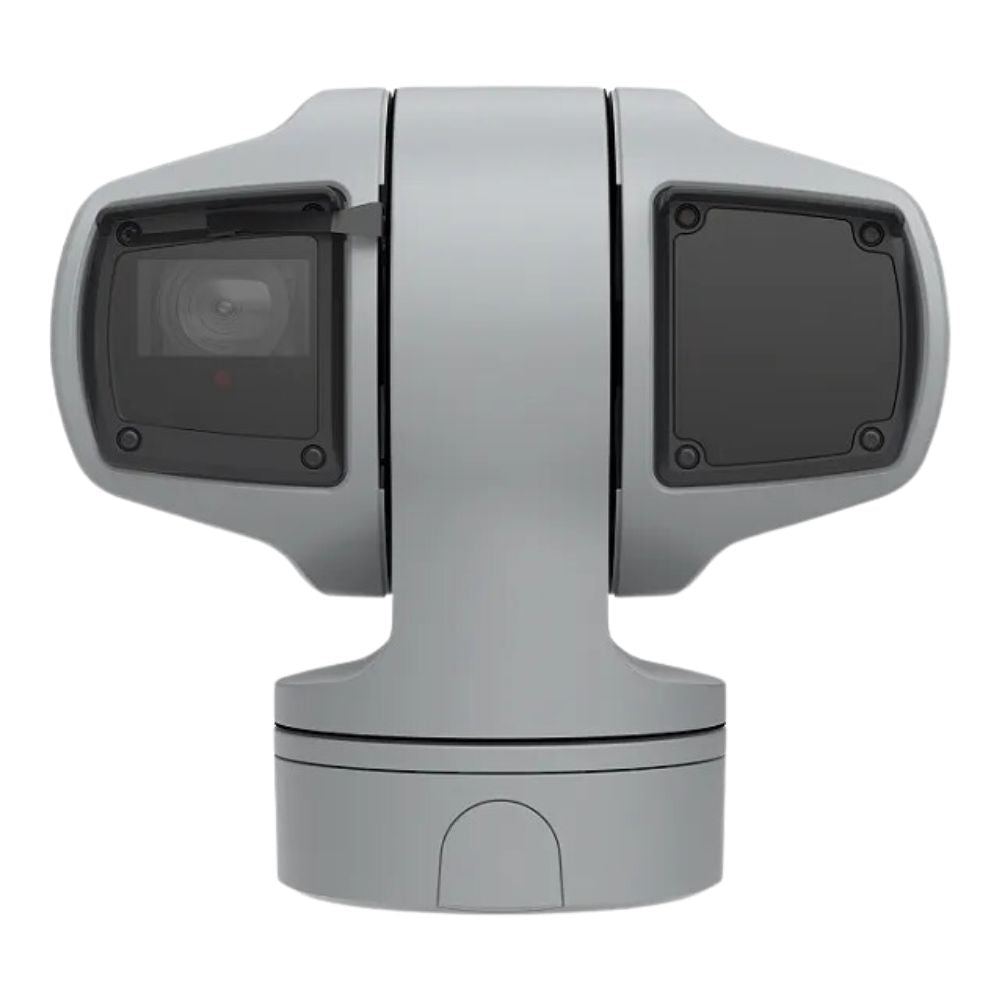

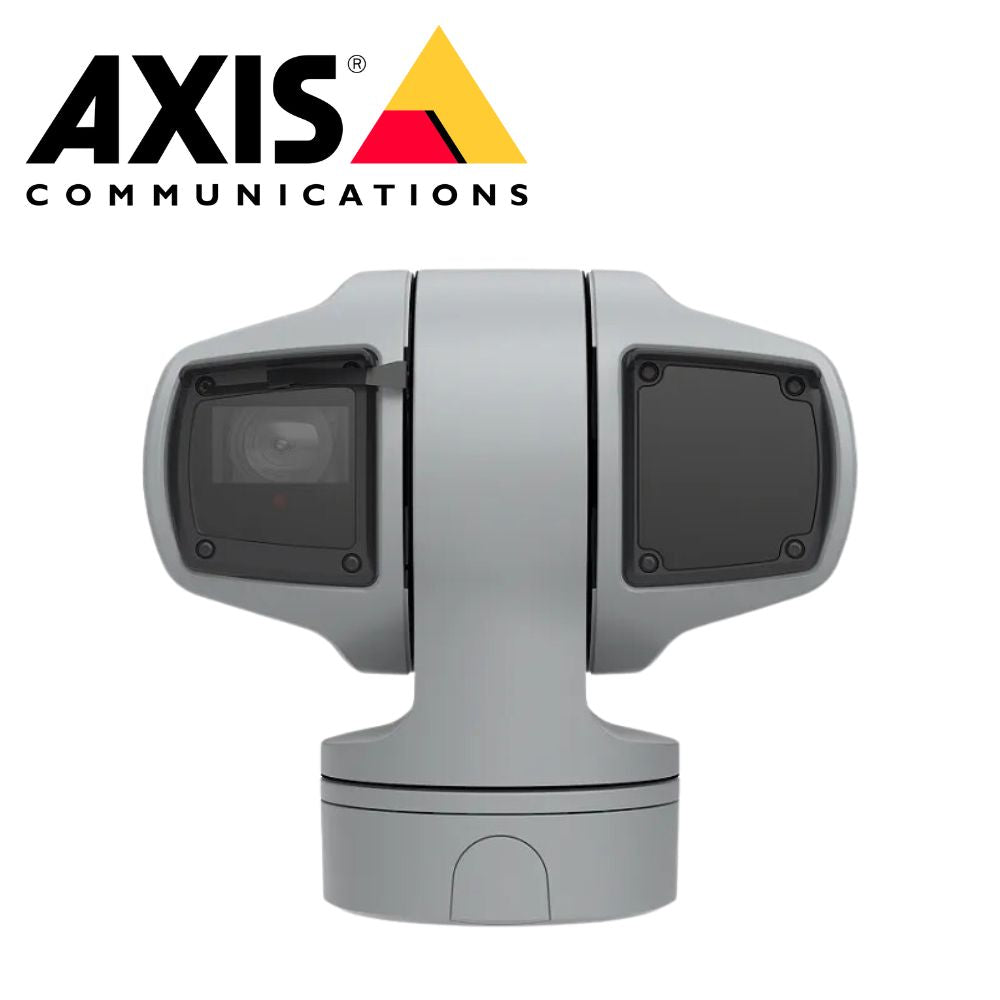

Introducing the Axis Q6215-LE PTZ Network Camera — a rugged, high-performance surveillance solution designed for large open areas and extreme environments. Combining 30x optical zoom, long-range IR, and cutting-edge imaging technology, it delivers superior video coverage day or night. Perfect for perimeter protection, airports, highways, stadiums, and industrial sites where reliability and detail matter most.
Features
-
30x Optical Zoom – Capture fine details at extreme distances, ideal for long-range monitoring.
-
Long-Range Infrared – See clearly in total darkness up to 400 meters with built-in IR LEDs.
-
Heavy-Duty Build – Military-grade housing withstands wind speeds up to 245 km/h; perfect for exposed installations.
-
AXIS Lightfinder – Delivers full-color video in near darkness for better identification and clarity.
-
AXIS Sharpdome Technology – Ensures full scene coverage with sharp detail and 360° seamless tracking.
-
Laser Focus Assist – Instant focus accuracy, even in pitch-black or low-contrast scenes.
-
Wide Temperature Range – Operates from -50°C to 50°C; performs in freezing cold or extreme heat.
-
IP66, IK10, NEMA 4X Rated – Built to resist water, corrosion, and physical impact in harsh conditions.
-
Intelligent Video Analytics – Supports advanced tracking, auto-follow, and event-triggered responses.
Downloads
Extra Info
Designed for Extreme Conditions
The Q6215-LE is built for the toughest jobs. It combines a military-grade PTZ mechanism with a robust weatherproof casing to perform flawlessly in storms, high winds, snow, or intense heat. The camera is IP66, IK10, and NEMA 4X certified, offering resistance to dust, water, impact, and corrosion — ideal for critical infrastructure and outdoor perimeter protection.
Laser Focus for Instant Accuracy
In fast-paced environments or at night, the camera’s built-in laser focus helps it lock onto subjects instantly, even over long distances or in low-light conditions. Whether it’s a moving vehicle on a highway or an intruder on the edge of a property, you’ll get crisp footage without delay.
Full Scene Clarity – Day or Night
With 30x optical zoom and long-range IR up to 400 meters, the Q6215-LE delivers exceptional surveillance coverage. AXIS Lightfinder ensures full-color video even in low light, while Sharpdome technology maintains sharp detail at any tilt angle — giving operators total control with zero blind spots.
Advanced Intelligence Built In
Support for Axis’ open platform means this camera can integrate with smart analytics — like intrusion detection, auto-tracking, motion alarms, or license plate recognition. It’s not just a camera — it’s a proactive security tool.
Tech Specs
| Camera Image Sensor |
1/2.8" progressive scan CMOS |
| Minimum Illumination |
Color: 0.1 lux at 30 IRE, F1.6
B/W: 0.01 lux at 30 IRE, F1.6
0 lux with IR illumination on |
| Shutter Speed |
1/30000 s to 1 s |
| Lens |
4.3–129 mm, F1.6–4.7
30× optical zoom, horizontal angle of view: 62.9°–2.3° |
| Day and Night Functionality |
Automatically removable infrared-cut filter |
| IR Illumination |
Optimized IR, range up to 400 m
850 nm IR wavelength |
| Pan/Tilt Range |
Pan: 360° endless
Tilt: +90° to –90° |
| Pan/Tilt Speed |
Pan: 0.05°/s to 120°/s
Tilt: 0.05°/s to 90°/s
Preset speed: Pan 120°/s, Tilt 90°/s |
| Video Compression |
H.264 (Baseline, Main, High Profile), MJPEG |
| Video Streaming |
Multiple, individually configurable streams in H.264 and MJPEG |
| Resolutions |
1920x1080 to 320x180 |
| Frame Rate |
Up to 50/60 fps (50/60 Hz) in all resolutions |
| Video Features |
Wide Dynamic Range (WDR) - Forensic Capture, Lightfinder, Electronic image stabilization |
| Image Settings |
Compression, color, brightness, sharpness, white balance, exposure control, exposure zones, backlight compensation, fine-tuning of behavior at low light |
| Audio |
Two-way audio (full duplex), external microphone input, line input/output |
| Network Protocols |
IPv4, IPv6, HTTP, HTTPS, SSL/TLS, QoS, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP™, SNMP v1/v2c/v3, DNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| Security |
Signed firmware, secure boot, IEEE 802.1X, HTTPS, password protection, IP address filtering, user access control, audit logs |
| Edge Storage |
MicroSD/microSDHC/microSDXC slot (card not included) |
| Connectors |
RJ45 10BASE-T/100BASE-TX PoE
Audio in/out, I/O, RS485/RS422, SFP slot |
| Power |
High Power over Ethernet (Hi-PoE)
Max consumption: 95 W |
| Operating Conditions |
-50 °C to 50 °C (-58 °F to 122 °F)
Humidity 10–100% RH (condensing) |
| Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F) |
| Certifications |
IP66, IK10, NEMA 4X, IEC 60068-2-6 (vibration), MIL-STD-810G 514.6, 516.6 (impact and shock) |
| Dimensions |
222 mm × 378 mm (8.7 in × 14.9 in) |
| Weight |
Approximately 8.3 kg (18.3 lb) |
| Included Accessories |
AXIS Sunshield A, Installation guide, Windows® decoder 1-user license |
| Optional Accessories |
Wall mount, pendant kits, clear/IR dome covers, SFP modules, power supplies, AXIS T91 and T94 series mounts |
| Warranty |
Axis 3-year limited hardware warranty |
Q&A
Q: What environments is the Axis Q6215-LE best suited for?
A: It's ideal for large outdoor spaces like airports, city surveillance, highways, ports, stadiums, and industrial facilities. Its rugged build and long-range visibility make it perfect for challenging weather and wide coverage areas.
Q: How far can the camera see at night?
A: The integrated IR LEDs provide night vision up to 400 meters (1,312 feet), making it suitable for wide-area nighttime surveillance.
Q: Can it be used in extreme temperatures?
A: Yes. It operates in temperatures from -50°C to 50°C (-58°F to 122°F) and has Arctic Temperature Control to start in cold climates.
Q: What makes the image quality so reliable?
A: Features like AXIS Lightfinder and Sharpdome deliver sharp, full-color video in low light and maintain detail at all angles, even during fast pan-tilt movements.
Q: Is this camera vandal-proof?
A: Absolutely. It has IK10 impact protection and NEMA 4X corrosion resistance, making it highly durable against physical tampering and harsh elements.
Q: Does the camera support smart features?
A: Yes, it supports advanced video analytics like motion detection, auto-tracking, and is compatible with third-party applications via the Axis Camera Application Platform (ACAP).
