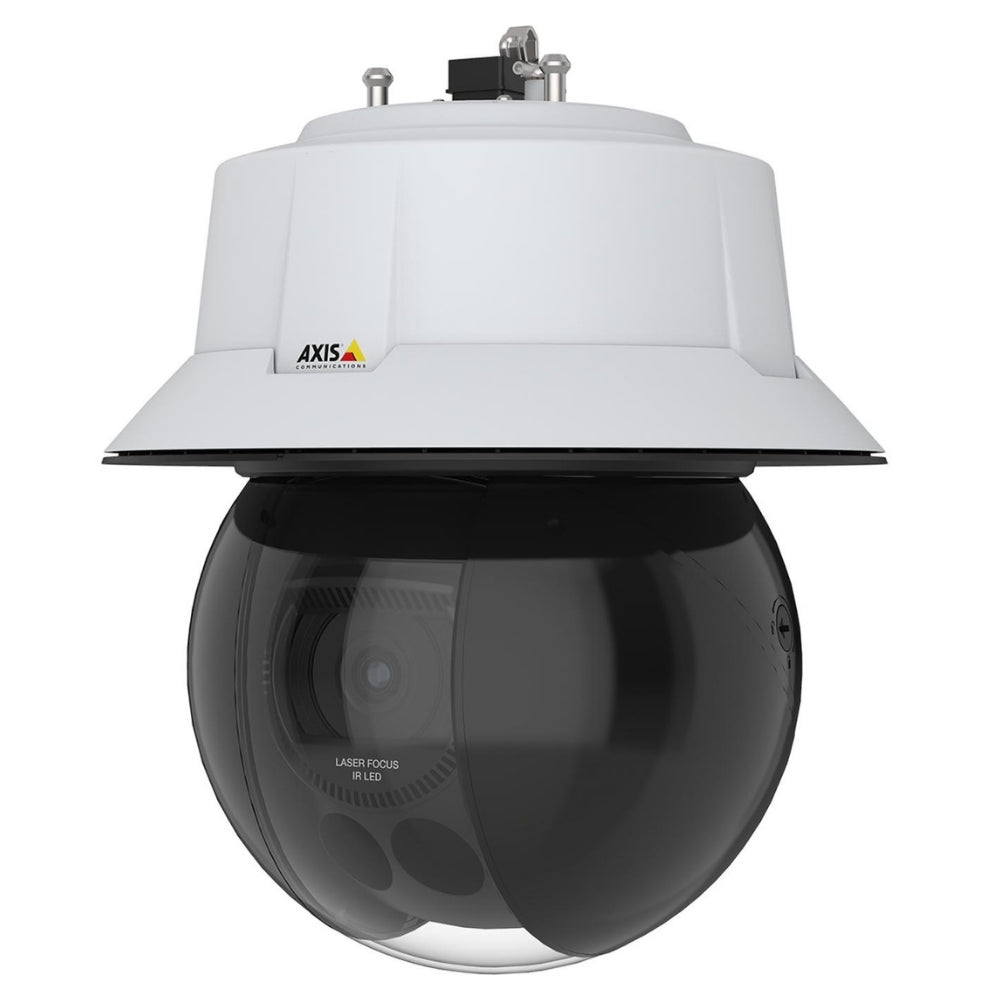

The AXIS Q6318-LE is a powerful PTZ camera with 4K UHD resolution, laser focus, and advanced analytics for wide-area surveillance. It features 31x optical zoom, lightning-fast quick-zoom, IR illumination, and precision tracking—ideal for city surveillance, airports, and large outdoor spaces. Built tough for any weather, it delivers excellent performance in complete darkness or challenging lighting conditions.
Features
-
4K UHD Resolution – Captures ultra-sharp images at 3840x2160 resolution.
-
31x Optical Zoom with Quick-Zoom – Moves from wide to tele view in under 1 second.
-
Laser Focus + Lightfinder 2.0 – Ensures rapid and accurate focusing, even in low light.
-
IR Illumination up to 200 m – Delivers clear visibility in pitch darkness.
-
Autotracking 2 with Orientation Aid – Seamlessly follows moving objects with click-and-track support.
-
AXIS Object Analytics – Detects and classifies humans and vehicles with scenario-based detection.
-
Rugged Design – IK10, IP66/IP67, and NEMA 4X-rated for harsh outdoor conditions.
-
Trusted Platform Module (TPM) – FIPS 140-2 Level 2 certified cybersecurity hardware.
-
Secure & Smart – Features Axis Edge Vault, signed firmware, secure boot, and encrypted storage.
What's Included:
- AXIS Q6318-LE PTZ Camera
- 60W High PoE Midspan (including power cable)
- IP66-rated network connector
- Installation guide
- Windows® decoder license (1-user)
- Paint template and paper
DOWNLOADS
Key Info
Perfect for City Surveillance and Outdoor Monitoring
Thanks to its 4K UHD clarity, 31x zoom, and IR range over 200 meters, the AXIS Q6318-LE is ideal for monitoring public spaces, perimeters, and large campuses. It offers quick setup, AI-based tracking, and excellent performance in all conditions.
Seamless and Smart Surveillance
1: AXIS Q6318-LE PTZ, 2: AXIS Camera Station, 3: Third-party VMS
A: IP-based deployment, B: Smart event triggers and secure integration
This PTZ camera integrates effortlessly with Axis Camera Station and other VMS platforms. You get instant PTZ control, advanced event triggers, and edge-based analytics—all secured with built-in TPM and Axis Edge Vault.
Fast, Accurate Target Tracking
With fast pan/tilt and zoom, laser focus, and autotracking 2, this camera can follow fast-moving vehicles and people precisely—making it perfect for mission-critical surveillance.
Clear Images in Any Condition
Equipped with industry-leading technologies:
-
Lightfinder 2.0 for full-color visibility in near darkness
-
Optimised IR for covert infrared illumination
-
Forensic WDR for high-contrast scenes
Built for All-Weather, All-Day Operation
Rugged and weather-resistant with:
- IK10, IP66/IP67, and NEMA 4X ratings
- Arctic Temperature Control: Operates from -50 °C to 74 °C
- 200+ meter IR range with smart illumination
- Repaintable aluminum casing and polycarbonate dome
Cybersecurity Built-In
Stay protected with:
- TPM 2.0 (FIPS 140-2 Level 2)
- Axis Edge Vault
- Secure boot, signed OS, SD card encryption (AES-XTS 256-bit)
- Support for MACsec, IEEE 802.1X, and secure certificates
License Plate Reading & Object Detection
Supports:
- AXIS Object Analytics for human/vehicle classification
- Scene metadata for license plate and vehicle type detection
- Up to 10 custom detection scenarios with bounding boxes, trajectories, and privacy zones
Tech Specs
| Specification |
Details |
| **Camera** |
|
| Image Sensor |
1/2” progressive scan CMOS |
| Lens |
6.91 – 214.64 mm, F1.36–F4.6 |
| Horizontal FOV |
58.5° – 2.3° |
| Vertical FOV |
34.9° – 1.4° |
| Focus |
Laser focus, autofocus, P-iris |
| Zoom |
31x optical, 12x digital (372x total) |
| Day/Night Functionality |
Removable IR-cut filter |
| Min. Illumination (Color) |
0.11 lux at 30 IRE, F1.360.25 lux at 50 IRE, F1.36 |
| Min. Illumination (B/W) |
0.001 lux at 30 IRE, F1.360.009 lux at 50 IRE, F1.360 lux with IR on |
| Shutter Speed |
1/8500 s to 1/5 s (50/60 Hz) |
| PTZ Capabilities |
Pan: 360° endless, 0.05°–550°/sTilt: +20 to -90°, 0.05°–500°/sQuick-Zoom: <1 sec |
| Presets |
300 preset positions, 10 recorded tours, guard tours |
| SoC |
ARTPEC-7 |
| Memory |
2048 MB RAM, 512 MB Flash |
| Compute Capabilities |
Machine Learning Processing Unit (MLPU) |
|
|
| **Video** |
|
| Resolution |
Up to 3840x2160 (4K UHD) |
| Frame Rate |
Up to 25/30 fps (50/60 Hz) |
| Compression |
H.264, H.265, Motion JPEG |
| Streaming |
Multi-stream, Zipstream, VBR/ABR/MBR, low-latency mode |
| Image Settings |
WDR (up to 120 dB), EIS, defog, freeze-on-PTZ, scene profiles, rotation, privacy masks (32 polygon zones), color, brightness, sharpness, local contrast |
|
|
| **Network & Security** |
|
| Network Protocols |
IPv4, IPv6, HTTP, HTTPS, HTTP/2, TLS, FTP, CIFS/SMB, SMTP, mDNS, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, MQTT, SSH, SIP, MACsec, IEEE 802.1X, etc. |
| Cybersecurity Features |
TPM 2.0 (FIPS 140-2 Level 2), Axis Edge Vault, signed OS & firmware, secure boot, encrypted SD storage, HTTPS, firewall, MACsec |
|
|
| **Analytics** |
|
| Included Applications |
AXIS Object Analytics, AXIS Scene Metadata, Video Motion Detection, Orientation Aid PTZ, Autotracking 2 |
| Supported Applications |
AXIS License Plate Verifier, AXIS Perimeter Defender |
| Detection Capabilities |
Humans, vehicles, license plates, line crossing, object in area, time in area, bounding boxes, perspective config |
|
|
| **General** |
|
| IR Illumination |
Optimised IR, 850 nm IR LEDs, up to 200 m range |
| Power |
High PoE (60W), IEEE802.3bt Type 3 Class 6Typical 15W (no IR), Max 51W |
| Storage |
microSD/SDHC/SDXC with AES-256 encryption, NAS support |
| Operating Conditions |
Full Power: -50 °C to 50 °CLow Power: -5 °C to 50 °CMax: 74 °C (NEMA TS 2), 10–100% RH (condensing) |
| Storage Conditions |
-40 °C to 65 °C, 5–95% RH (non-condensing) |
| Dimensions |
Height: 261 mmØ 239 mm (with weather shield) |
| Weight |
4800 g (10.6 lb) |
| Casing |
Repaintable aluminum, IK10, IP66/IP67, NEMA 4X |
| Certifications |
FIPS 140-2, ETSI EN 303 645, IEC/EN/UL 62368-1, VCCI, FCC, CE, etc. |
| Included Accessories |
Installation guide, 60W Midspan, Windows decoder license, IP66 connector, paint tools |
| Optional Accessories |
AXIS Mounts, Surveillance Cards, Wireless Installation Tool |
| VMS Support |
AXIS Companion, AXIS Camera Station, 3rd-party VMS |
| Warranty |
5-year warranty |
Q&A
Q: Can it handle fast movement and zoom at the same time?
A: Yes, the Quick-Zoom and Autotracking 2 make it ideal for following fast-moving subjects.
Q: Does it support 24/7 operation in all weather?
A: Absolutely. With IP66/IP67, IK10, NEMA 4X, and arctic control, it’s built for continuous outdoor use.
Q: Is license plate detection supported?
A: Yes, it supports AXIS License Plate Verifier and captures vehicle details accurately, even at long distances.
Q: What cybersecurity features are included?
A: The camera features TPM 2.0, secure boot, signed firmware, Axis Edge Vault, and more.
Q: What is the max IR range?
A: The built-in Optimised IR LEDs reach over 200 meters, depending on the scene.
