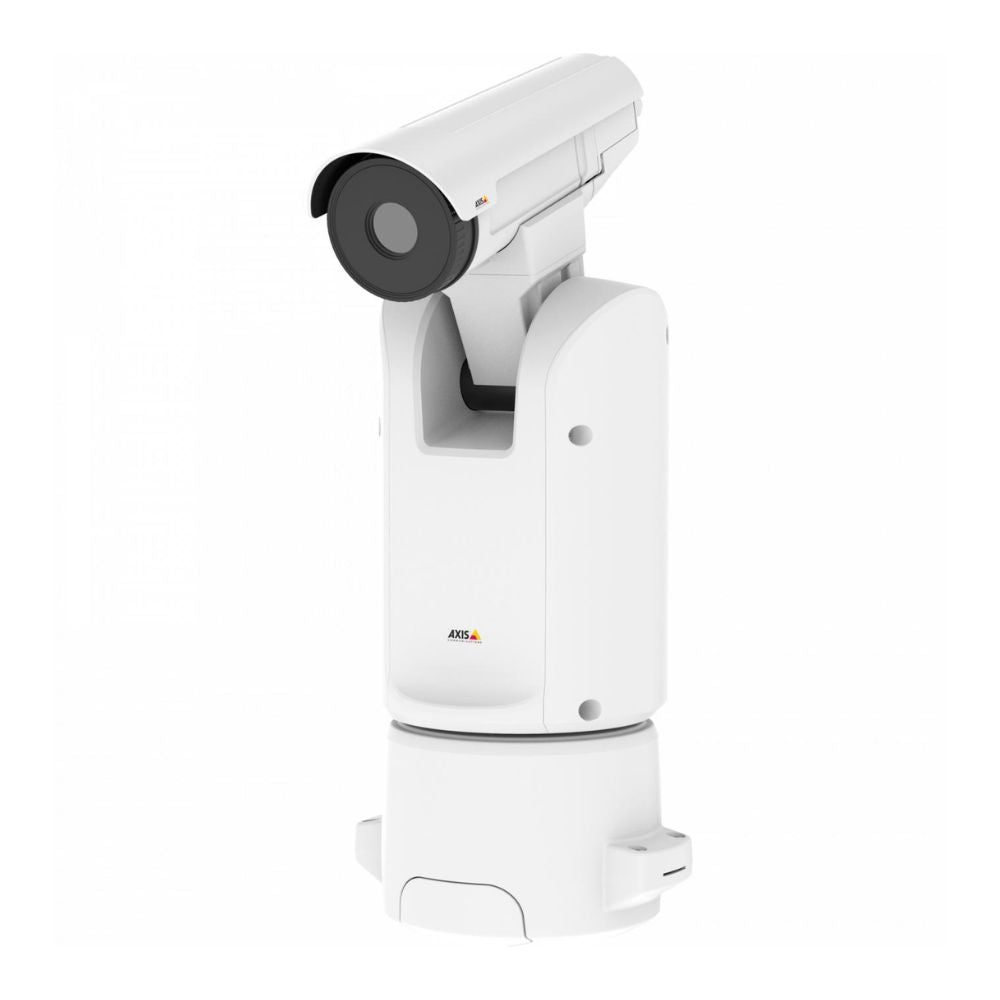

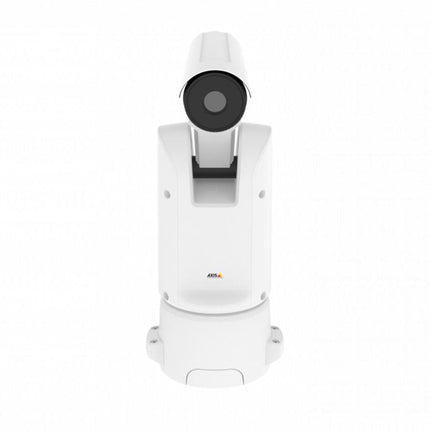

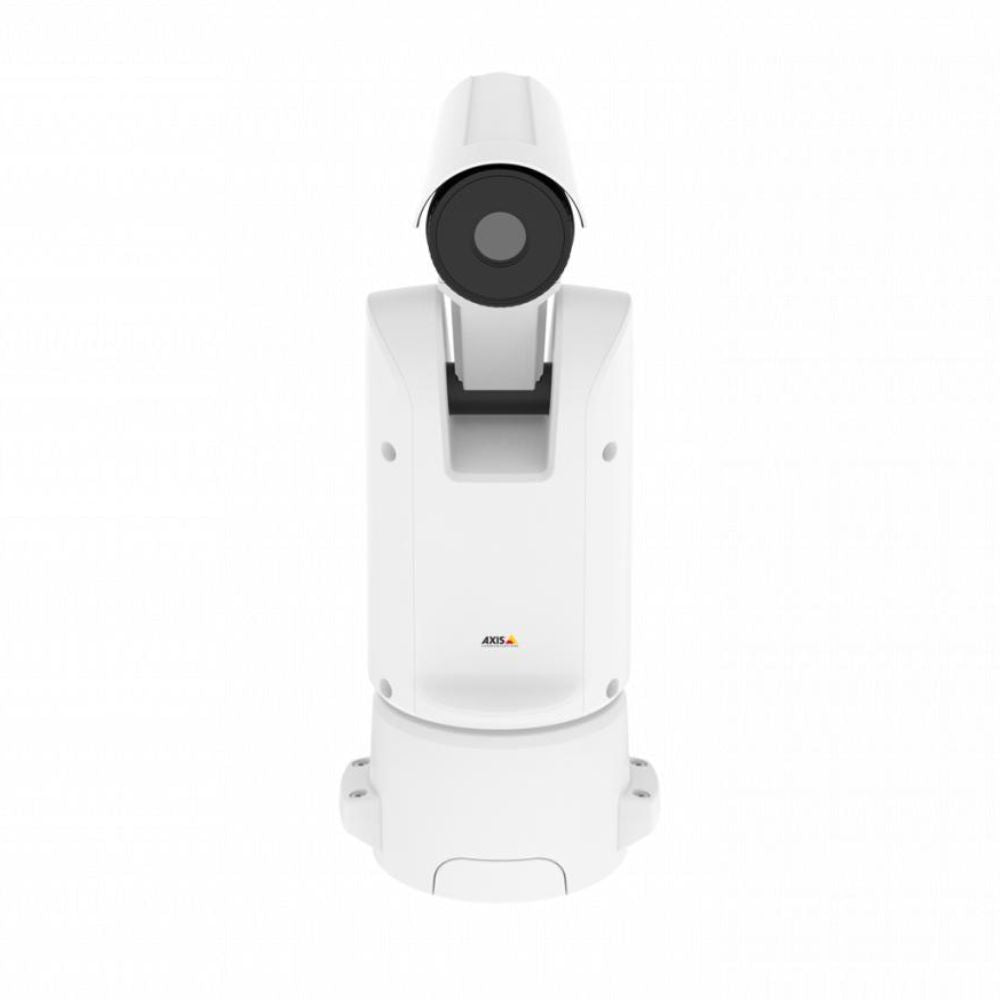

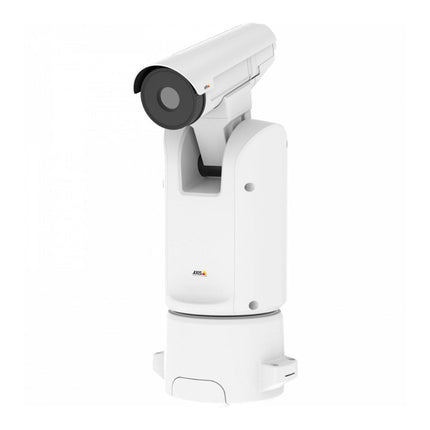

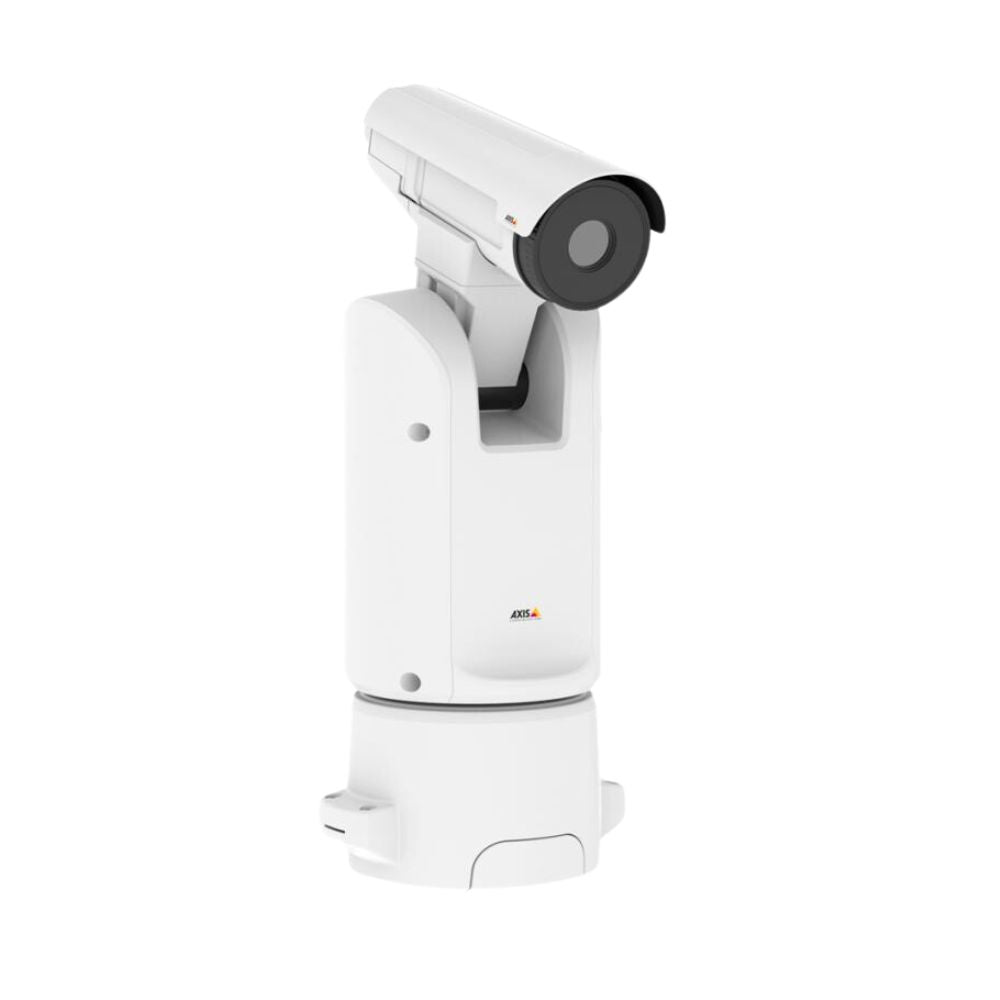

The AXIS Q8641-E is a rugged thermal PT camera with 384×288 resolution and a 10.7° view for long-range threat detection. It offers smooth 360° pan, ±90° tilt, EIS, and dual network ports—ideal for perimeter and critical infrastructure security.
Features
-
384x288 Thermal Resolution – Ensures reliable thermal detection with excellent contrast for spotting threats at long distances.
-
Smooth PTZ Functionality – Continuous 360° pan and -90° to +45° tilt with de-icing support for uninterrupted surveillance.
-
Electronic Image Stabilization – Delivers clear, stable footage even during windy or shaky conditions.
-
Bandwidth-Saving Zipstream – Optimizes storage and bandwidth usage without compromising video quality.
-
Built-in Analytics – Includes motion detection, shock detection, fence guard, and loitering guard.
-
Dual Network Interfaces – SFP slot and RJ45 port enable long-range fiber connection with automatic failover.
-
Outdoor-Ready Design – IP66/NEMA 4X-rated aluminum casing with heater and sunshield for extreme weather.
What's Included
- Installation guide
- Windows® decoder (1-user license)
- Power connector
- I/O connector
- Torx® bits T20 and T30
DOWNLOADS
Key Info
High-Contrast Thermal Imaging Offers thermal detection with 384×288 resolution and <70 mK NETD for long-range clarity in total darkness, smoke, or fog.
Smooth 360° Positioning Supports endless panning and wide tilt angles for seamless area coverage, ideal for perimeters and open terrains.
Redundant Connectivity Dual network ports (RJ45 and SFP) ensure reliable video streaming with automatic failover to prevent downtime.
Ruggedized for Outdoors Operates in extreme weather with IP66/NEMA 4X housing, built-in heater, and resistance to high winds up to 47 m/s.
Efficient and Scalable Supports Zipstream, encrypted edge storage, and integration with AXIS Camera Station and ONVIF-compatible VMS.
Tech Specs
| Specification |
Details |
| **Camera** |
| Sensor |
Uncooled Microbolometer, 384×288, 17 µm |
| Lens |
35 mm, F1.2, athermalized |
| Field of View |
Horizontal: 10.7° |
| NETD |
< 70 mK |
| Pan/Tilt |
Pan: 360° endless, Tilt: -90° to +45°, 0.05°–120°/s |
| Preset Accuracy |
0.05°, 256 preset positions, de-icing control |
| **Video** |
| Compression |
H.264 (Baseline/Main/High), Motion JPEG, Zipstream |
| Resolution |
Scalable up to 768×576 |
| Frame Rate |
Up to 8.3 fps or 30 fps |
| Streaming |
Multiple H.264/MJPEG streams, configurable frame rate and bandwidth |
| Image Settings |
Brightness, contrast, sharpness, overlays, EIS, multiple color palettes |
| **Analytics** |
| Included |
AXIS Motion Guard, Fence Guard, Loitering Guard, Video Motion Detection, Shock Detection |
| Supported |
ACAP support for third-party apps |
| **Network** |
| Protocols |
IPv4/6, HTTPS, TLS, RTSP, SNMP, FTP, MQTT, SOCKS, SSH, IEEE 802.1X, and more |
| Security |
HTTPS encryption, password protection, signed firmware, brute force protection |
| Connectors |
SFP slot, RJ45, power, I/O (4 configurable I/Os) |
| **Cybersecurity** |
| Edge Security |
Centralized certificate management, AES-XTS SD encryption |
| Failover |
Automatic failover between SFP and RJ45 |
| **General** |
| Casing |
Powder-coated aluminum, IP66, NEMA 4X, germanium window |
| Power |
24 V AC/DC, typical: 16 W, max: 182 W |
| Storage |
microSD/microSDHC/microSDXC, NAS, encrypted support |
| Operating Conditions |
-40 °C to 60 °C, 10–100% RH, wind load: 47 m/s |
| Dimensions |
557 × 229 × 289 mm (22 × 9 × 11 in) |
| Weight |
12 kg (26.5 lb) |
| Languages |
EN, DE, FR, ES, IT, RU, ZH, JA, KO, PT, ZH-TW |
| Warranty |
5-year warranty |
Q&A
Q1: What resolution does this thermal camera offer? A: It provides 384×288 thermal resolution, scalable up to 768×576 for better visibility.
Q2: Is it suitable for outdoor surveillance in tough environments? A: Yes, it’s IP66/NEMA 4X-rated and designed to operate from -40 °C to 60 °C with wind resistance up to 47 m/s.
Q3: How does it ensure uninterrupted network connection? A: It has both SFP and RJ45 interfaces with failover support, ideal for mission-critical installations.
Q4: What built-in analytics are included? A: It includes video motion detection, fence guard, loitering guard, and shock detection.
Q5: Can it support third-party applications? A: Yes, it supports AXIS Camera Application Platform (ACAP) for installing third-party analytics.
