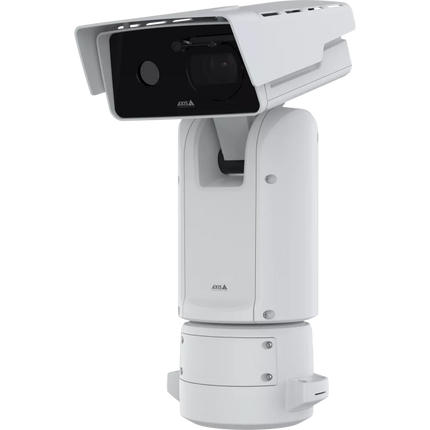

Experience top-tier surveillance in all environments with the Axis Q8752-E Mk II, a powerful bispectral PTZ camera designed for demanding security installations. Combining thermal imaging with high-definition visual video, this dual-sensor system delivers unmatched detection, identification, and situational awareness—day or night, in any weather. Ideal for critical infrastructure, perimeter protection, and remote site monitoring.
Features
-
Dual-Sensor Imaging – Combines thermal and visual views for continuous surveillance in total darkness or harsh visibility.
-
Long-Range Detection – Detect, recognize, and identify people and vehicles at extended distances with precision.
-
Optical Zoom up to 32x – Zoom in on distant activity with detailed clarity using a powerful 32x visual lens.
-
Thermal Lens Flexibility – Choose between 35mm, 60mm, or 100mm thermal lenses to meet your range needs.
-
Reliable All-Weather Performance – Built for extremes with IP66/67, NEMA 4X, and MIL-STD-810G compliance.
-
Electronic Image Stabilization – Delivers steady video even in high winds or when mounted on tall poles or towers.
-
Axis Lightfinder 2.0 – Enables color video in near-dark conditions for more useful forensic evidence.
-
Thermal Palette Options – Adjust color schemes to improve visibility based on your environment and target.
-
Advanced Analytics Ready – Compatible with Axis Perimeter Defender and third-party intrusion analytics for proactive alerts.
Downloads
Extra Info
See Clearly – Even When Others Can't

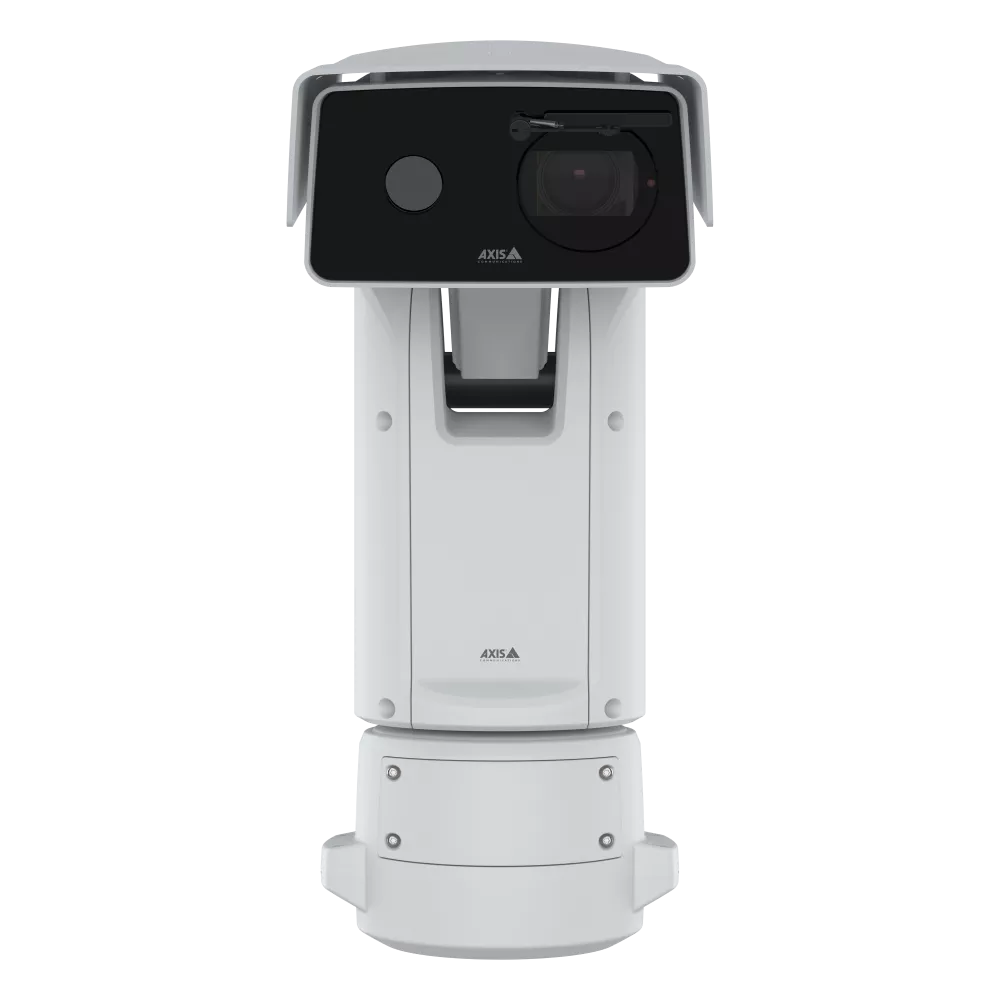

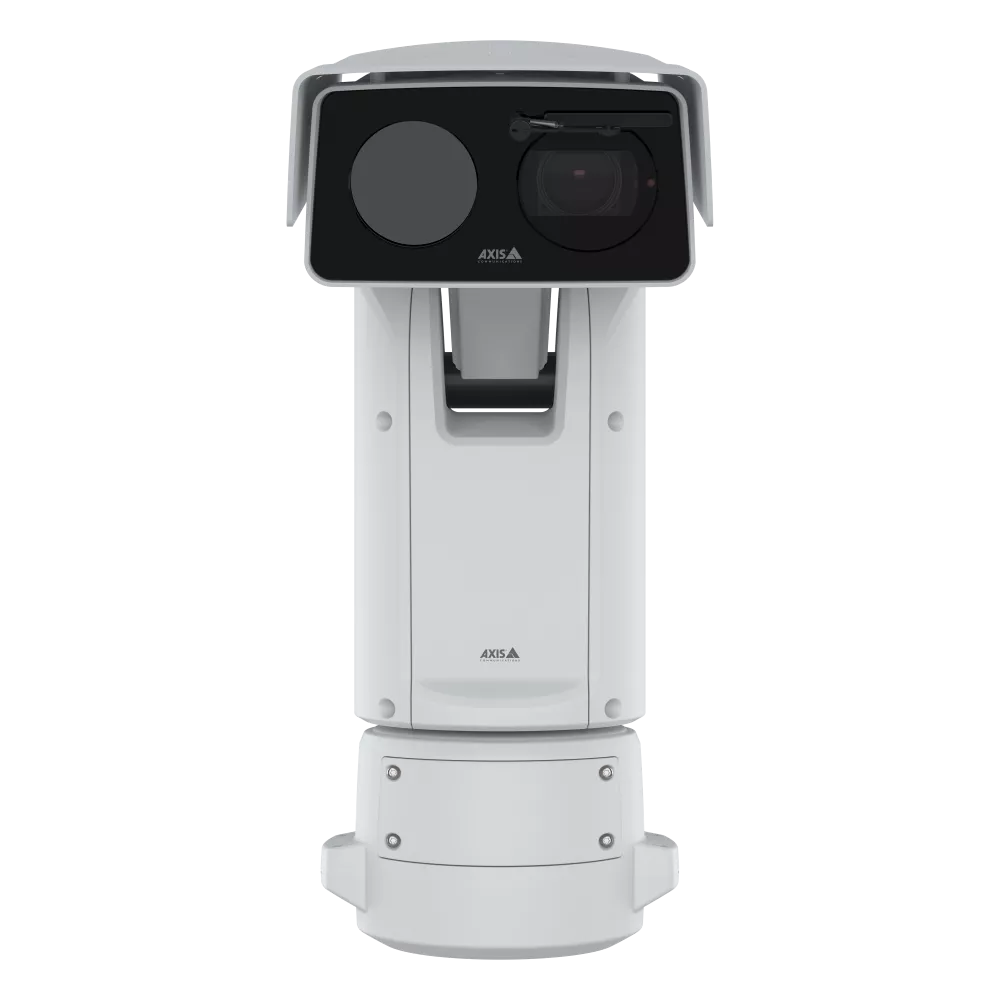

The Q8752-E Mk II is equipped with two fully integrated camera sensors: one thermal and one optical. Thermal imaging helps spot intruders, fires, or vehicles regardless of fog, smoke, darkness, or camouflage. The visual sensor provides high-quality identification and situational detail.
Built for Harsh Environments
Designed for perimeter and area monitoring in rugged conditions, this camera is housed in a corrosion-resistant casing and can withstand extreme temperatures, wind, and moisture. The IP66/67 and NEMA 4X ratings, combined with MIL-STD-810G certification, ensure reliable operation from deserts to coastal zones.
Unmatched Detection Range
Choose from thermal lenses with focal lengths of 35mm, 60mm, or 100mm, depending on your application. Paired with a 32x optical zoom lens on the visual sensor, this setup enables real-time tracking and verification of moving targets over long distances—perfect for airports, substations, and border security.
Stable and Secure Imagery
High-mounted or exposed installations often suffer from wind vibration. The Q8752-E Mk II uses electronic image stabilization (EIS) to reduce blur and jitter, providing stable, usable footage even in tough conditions.
Forensics and Real-Time Response
Axis Lightfinder 2.0 captures true-to-life color images in very low light, giving investigators and security teams better footage for real-time decisions and post-event analysis. You can also define thermal palettes for clearer heat contrast, enabling faster identification of people or vehicles.
Tech Specs
| Model |
AXIS Q8752-E Mk II |
| Camera Type |
Bispectral PTZ (Thermal and Visual) |
| Thermal Imaging |
Uncooled microbolometer
384x288 resolution
Thermal sensitivity (NETD): <50 mK |
| Thermal Lenses Available |
35 mm: 10.5° x 7.9° FOV
60 mm: 6.2° x 4.7° FOV
100 mm: 3.7° x 2.8° FOV |
| Visual Sensor |
1/2.8” progressive scan CMOS |
| Visual Resolution |
1920x1080 (HDTV 1080p) |
| Optical Zoom |
32x optical zoom (4.3–137 mm) |
| Horizontal Field of View |
Visual: 63.4°–2.2°
Thermal: Depends on lens |
| Image Enhancements |
Electronic image stabilization (EIS)
Wide dynamic range – Forensic Capture
Axis Lightfinder 2.0
Thermal image contrast enhancement |
| Video Compression |
H.264 (Main/High profile)
H.265 (Main profile)
Motion JPEG |
| Pan/Tilt Range |
Pan: 360° endless
Tilt: -90° to +45° |
| Pan/Tilt Speed |
Pan: 0.05°/s to 120°/s
Tilt: 0.05°/s to 120°/s |
| Preset Positions |
256 |
| Video Streams |
Multiple configurable streams in H.264/H.265/MJPEG |
| Audio Support |
Two-way audio
G.711, G.726, and AAC-LC audio codecs |
| Storage Options |
microSD/microSDHC/microSDXC slot
Support for recording to network-attached storage (NAS) |
| Operating Conditions |
-50°C to 55°C (-58°F to 131°F)
Humidity: 10–100% RH (condensing) |
| Outdoor Rating |
IP66/67, NEMA 4X, IK10
MIL-STD-810G compliant |
| Power Input |
24 V AC/DC
Typical: 110 W
Max: 170 W (with heater and IR cut filter) |
| Connectors |
RJ45 10BASE-T/100BASE-TX
Audio in/out
DC input
24-pin I/O terminal block |
| Alarm Inputs/Outputs |
6 configurable I/Os (4 digital input, 2 digital output) |
| Security |
Signed firmware
Secure boot
Axis Edge Vault
TPM 2.0 module |
| Analytics Compatibility |
AXIS Perimeter Defender
AXIS Object Analytics
Support for third-party applications via AXIS Camera Application Platform (ACAP) |
| Included Accessories |
Installation guide
Connector kit
Windows® decoder 1-user license
AXIS Media Control |
| Dimensions |
427 x 286 x 200 mm (16.8 x 11.3 x 7.9 in) |
| Weight |
11.5 kg (25.4 lb) |
| Certifications |
EMC, Safety, Environment, and Network approvals (EN 55032, EN 55024, EN 61000, EN 60950-22, NEMA 4X, IK10, etc.) |
| Warranty |
5-year Axis warranty |
Q&A
Q: Can this camera operate at night without lighting?
A: Yes. The thermal imaging sensor detects heat signatures without the need for visible light, making it ideal for complete darkness.
Q: Is this camera suitable for high-security or critical infrastructure?
A: Absolutely. It’s designed for demanding applications like airports, power plants, and military perimeters, with rugged certifications and advanced analytics compatibility.
Q: What does “bispectral” mean in this camera?
A: It means the camera has both a thermal sensor and a visual (optical) sensor, letting you view both image types separately or side by side.
Q: Can I use this camera in coastal or extreme weather locations?
A: Yes. With IP66/67, NEMA 4X, and military-grade (MIL-STD-810G) protection, it performs in rain, dust, high winds, and salty air.
Q: How far can the camera see?
A: Detection range depends on the lens used. The 100mm thermal lens provides very long-range detection, while the 32x zoom on the optical lens ensures close-up detail of distant subjects.
Q: Does this support video analytics for intrusion detection?
A: Yes, it supports Axis Perimeter Defender and third-party analytics for intelligent motion detection and real-time alerts.
