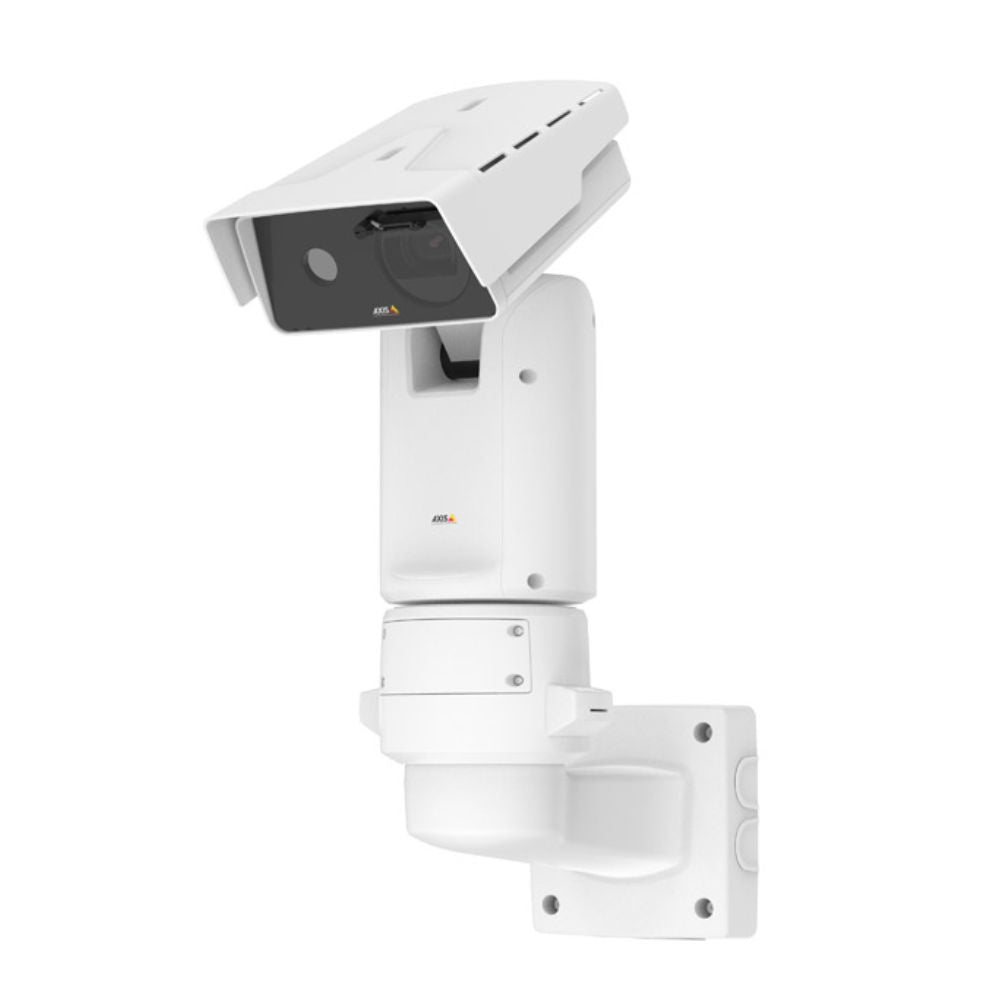

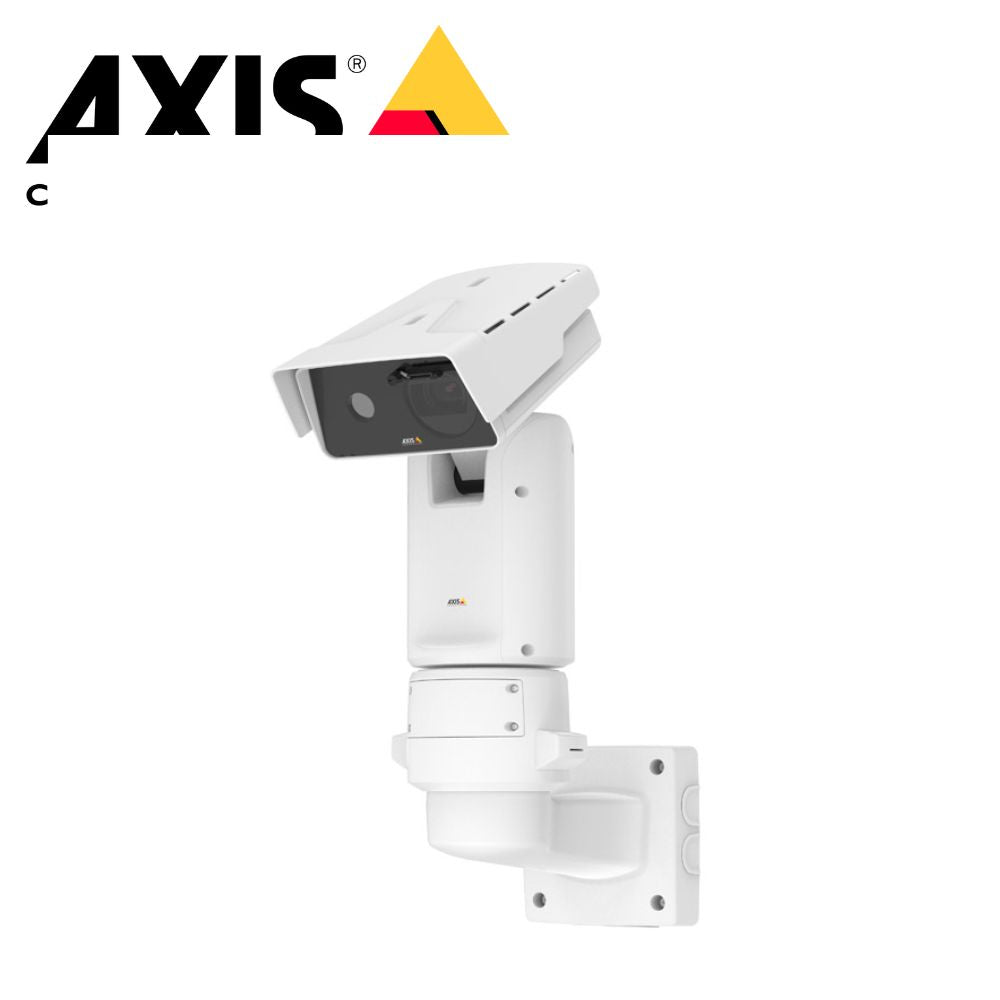

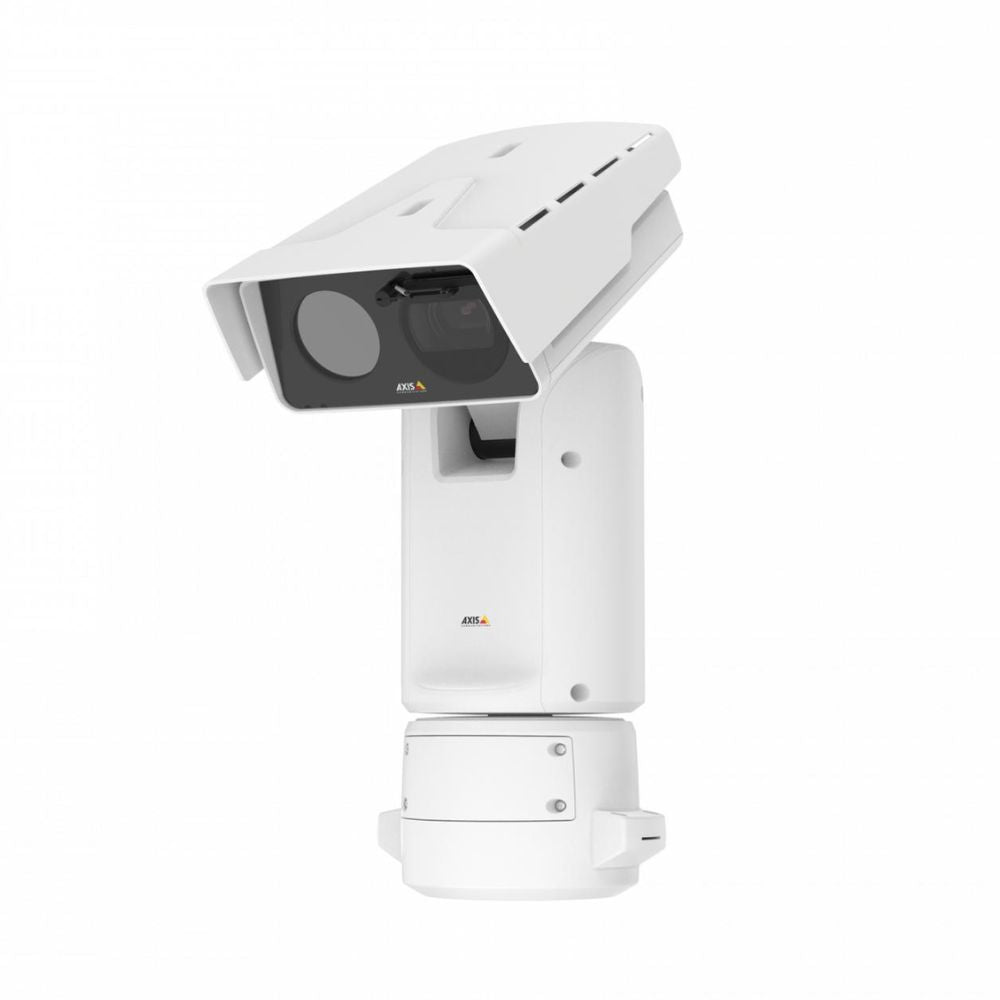

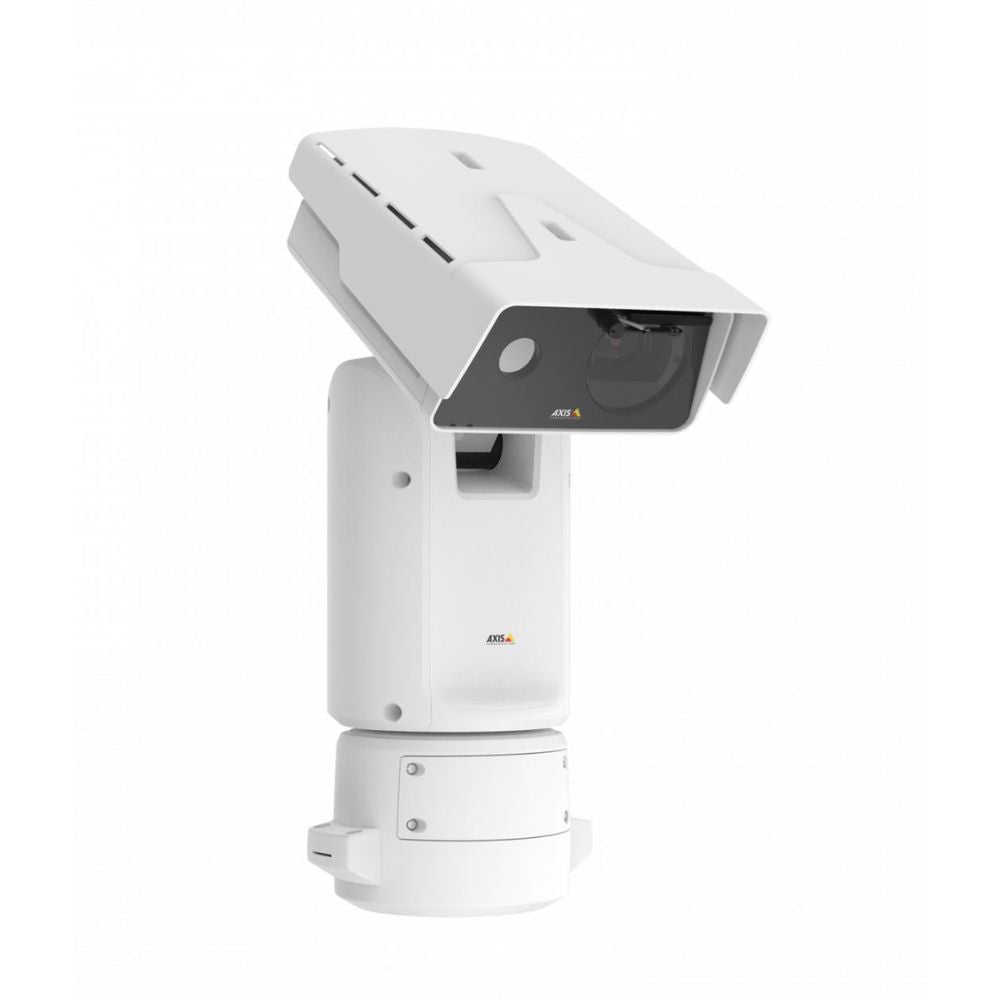

The AXIS Q8752-E combines thermal imaging and full HD video in a single rugged PTZ camera, providing long-range detection and reliable visual verification in any lighting or weather conditions. With powerful zoom, 360° endless pan, dual Electronic Image Stabilization (EIS), and cybersecurity features like TPM 2.0 and secure boot, it’s built for mission-critical surveillance—ideal for borders, airports, harbors, and large perimeters.
Features
-
Dual Sensor Design – Combines thermal and visual cameras for reliable detection and verification.
-
360° Infinite Pan – Enables smooth and continuous tracking of moving objects with full PTZ control.
-
Dual Electronic Image Stabilization – Ensures stable video in windy conditions or when mounted on poles.
-
Thermal Imaging – Detects heat signatures in complete darkness or challenging visibility conditions.
-
Visual Imaging with Lightfinder 2.0 & Forensic WDR – Captures saturated color and sharp detail even in low light.
-
AXIS Guard Suite Included – Motion Guard, Fence Guard, and Loitering Guard analytics built-in.
-
Cybersecure by Design – Includes TPM 2.0, signed firmware, secure boot, encrypted storage, and Axis Edge Vault.
-
Fiber Connectivity Support – Allows long-distance installation and high-bandwidth performance.
What’s Included:
- AXIS Q8752-E Camera
- Installation Guide
- Connector Kit
- Windows® Decoder (1-user license)
- Torx® T20 & T30 Bits
- Connector Guard
DOWNLOADS
Key Info
Two Cameras, One Powerful Unit
The bispectral design combines a thermal sensor for detection and a full HD visual sensor for identification. This lets operators spot intrusions in darkness, fog, or bright light—and confirm visually before reacting.
Precision PTZ Performance
With 360° endless pan, tilt from -90° to +45°, and 32x optical zoom on the visual channel, this camera tracks targets with smooth, jerk-free movement and extreme accuracy.
Exceptional Visibility in Any Light
-
Thermal Sensor: Up to 640x480 resolution with optional zoom lens
-
Visual Sensor: 1920x1080 resolution with 32x optical zoom
-
Low-Light Sensitivity: Lightfinder 2.0 and Forensic WDR deliver vivid images in near darkness.
Robust & Ready for Any Weather

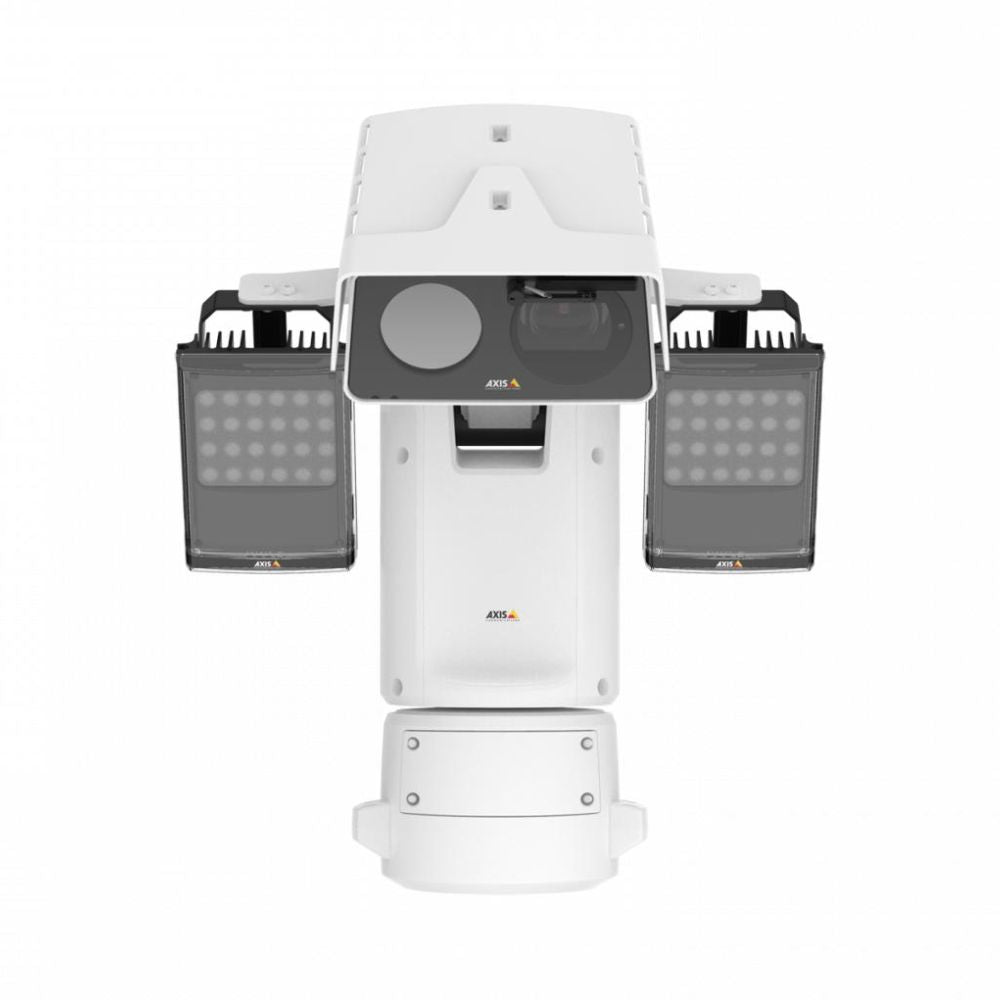

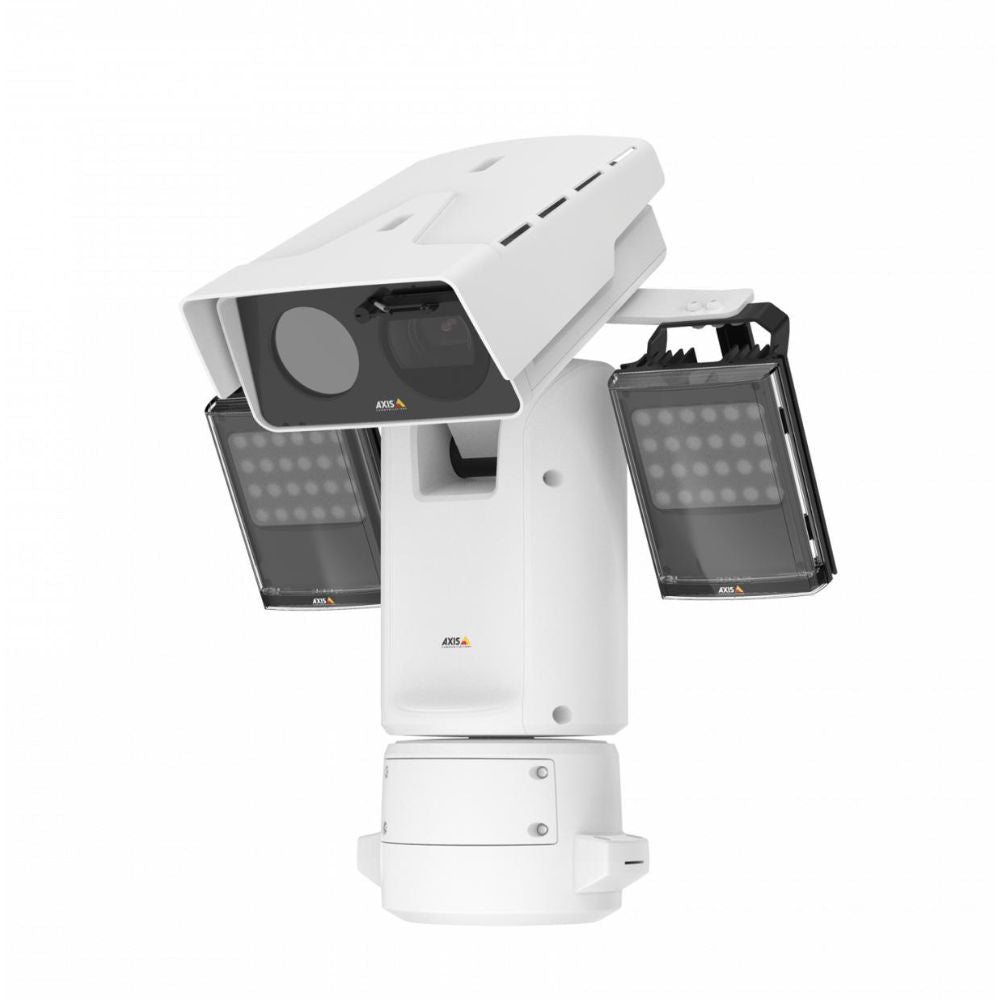

Housed in a corrosion-resistant, IP66-, IK10-, and NEMA 4X-rated casing with built-in de-icing, a long-life wiper, and optional IR illuminators, it's made for extreme conditions.
Cybersecurity You Can Trust
Built on Axis’ hardened OS and security model:
-
TPM 2.0 with FIPS 140-2 Level 2 Certification
- Signed Firmware & Secure Boot
-
Axis Edge Vault for device identity integrity
-
Encrypted SD Card Support & Secure Keystore
Tech Specs
| Specification |
Details |
| **Camera** |
|
| Image Sensors |
Visual: 1/2.8” CMOS, Thermal: 640x480 uncooled microbolometer |
| Visual Lens |
4.3–137.6 mm, 32x optical zoom, F1.4–4.0 |
| Thermal Lens |
Fixed 35 mm or Zoom 35–105 mm, 3x optical + 4x digital zoom |
| Thermal NETD |
< 50 mK |
| Min. Illumination |
Color: 0.06 lux / B&W: 0.008 lux |
| IR Filter |
Auto-removable IR-cut (visual sensor) |
| Pan/Tilt |
360° endless pan, tilt -90° to +45°, 256 presets |
| Electronic Image Stabilization |
On both thermal and visual channels |
| De-Icing Control |
Built-in heater for frost/ice removal |
| **Video** |
|
| Resolution |
Visual: Up to 1920x1080; Thermal: Up to 640x480 (scaled to 800x600) |
| Frame Rate |
Visual: Up to 60 fps; Thermal: Up to 30 fps |
| Video Compression |
H.264, H.265, Motion JPEG |
| WDR / Lightfinder |
Forensic WDR up to 120 dB, Lightfinder 2.0 |
| Streaming |
Multiple configurable streams, Zipstream, VBR/ABR/MBR |
| Privacy Masks |
32 individual polygon privacy masks |
| **Audio** |
|
| Audio Input |
External mic/line-in (3.5 mm) |
| Audio Streaming |
Simplex, with echo and noise cancellation |
| Formats |
LPCM, AAC, G.711, G.726, Opus |
| **Networking & Integration** |
|
| Network Ports |
RJ45 (1 Gbps) + SFP Slot for fiber |
| Protocols |
IPv4/6, HTTPS, TLS, MQTT, SNMP, SRTP, etc. |
| Integration |
VAPIX®, ONVIF (Profiles G/M/S/T), AXIS ACAP |
| Event Triggers |
Motion, tampering, PTZ status, I/O, storage failure, etc. |
| Event Actions |
Recording, alerts, overlays, MQTT publish, wiper, etc. |
| **Analytics** |
|
| Included |
AXIS Motion Guard, Fence Guard, Loitering Guard, Orientation Aid, Audio Detection |
| PTZ Autotracking |
Supported (visual channel only) |
| 3rd-Party Support |
Yes, via AXIS Camera Application Platform |
| **Cybersecurity** |
|
| Hardware Security |
TPM 2.0, Secure Boot, Axis Edge Vault |
| Software Security |
Signed firmware, encrypted SD/NAS, secure keystore |
| Network Security |
HTTPS, IEEE 802.1X, X.509 certificates, MACsec |
| **General** |
|
| Casing |
IP66, IK10, NEMA 4X-rated aluminum with UV-stabilized cover |
| Wiper |
Long-life silicone blade |
| Operating Temp |
-40 °C to 55 °C; max intermittent 65 °C |
| Wind Resistance |
Up to 52 m/s (116 mph) with optional accessories |
| Power |
20–28 V AC/DC, max 204 W (with accessories) |
| Storage |
microSD/microSDXC with AES encryption, NAS support |
| Dimensions |
244 × 360 × 582 mm |
| Weight |
14.7–15.1 kg depending on model |
| Languages |
15+ languages including EN, DE, FR, ZH, JA, KO |
| Warranty |
5-year limited warranty |
Q&A
Q&A
Q1: What is the benefit of a bispectral camera?
A: It combines thermal detection (for heat-based sensing) with visual verification (for identification), increasing reliability and reducing false alarms.
Q2: Can the AXIS Q8752-E operate in harsh weather?
A: Yes, it’s IP66-, IK10-, and NEMA 4X-rated, with built-in heaters and optional IR for reliable operation in snow, rain, and high winds.
Q3: How far can it see with thermal imaging?
A: It can detect heat signatures from long distances—up to 195 meters or more depending on lens configuration.
Q4: Is it compatible with fiber connections?
A: Yes, it includes an SFP slot for fiber optic cabling, ideal for remote or bandwidth-heavy installations.
Q5: How secure is it?
A: It includes Axis Edge Vault, secure boot, TPM 2.0, signed firmware, and encrypted video for industry-leading cybersecurity.
