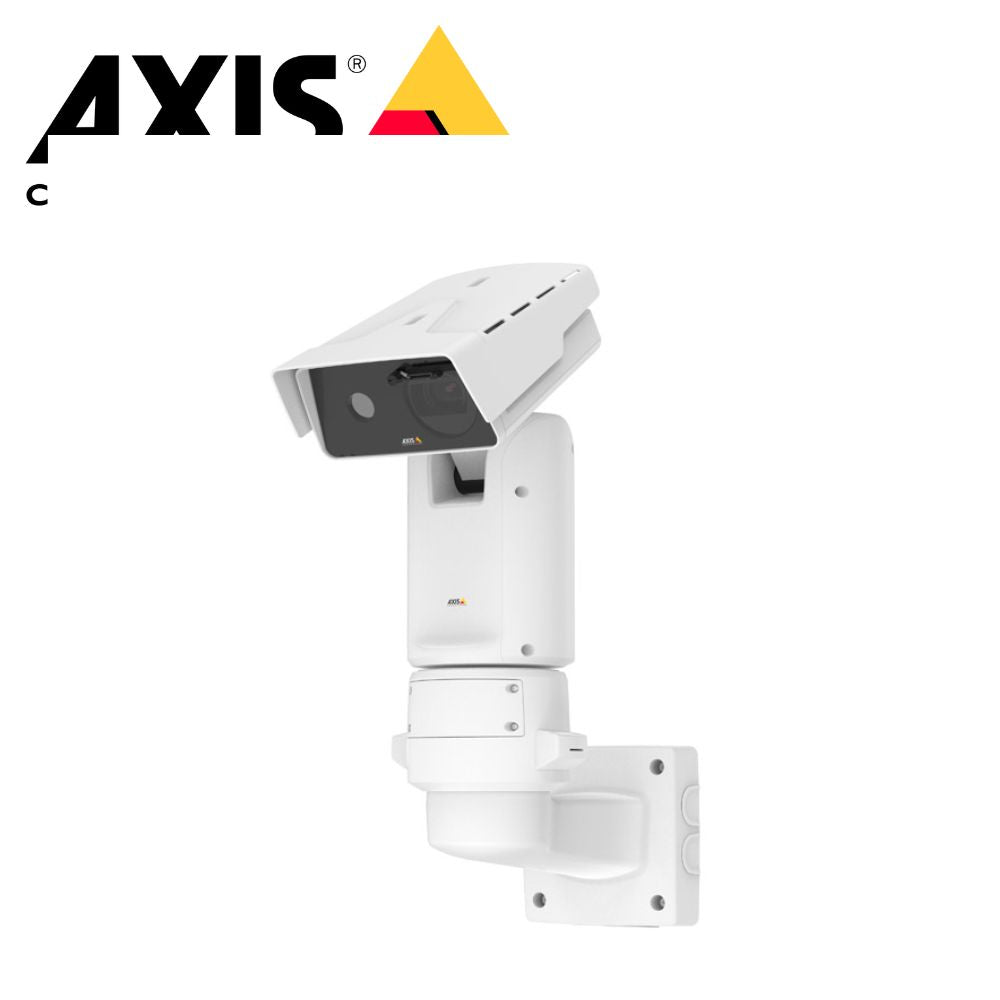

The AXIS Q8752-E is a rugged, high-performance bispectral PTZ camera that combines long-range thermal detection and HD visual surveillance. Designed for 24/7 perimeter monitoring and mission-critical applications, it features dual image stabilization, smart analytics, and advanced cybersecurity—all in one powerful system.
Feature
-
Thermal & Visual Imaging – Combines thermal detection and HDTV 1080p visual verification for all-weather, all-light surveillance.
-
360° Infinite Pan – Fast repositioning with smooth, jerk-free movements and precision PTZ control.
-
Dual Electronic Image Stabilization – Ensures steady visuals from both thermal and optical channels, even in windy or high-vibration environments.
-
Lightfinder 2.0 & Forensic WDR – Delivers vibrant color in low light and high-detail images in complex lighting scenes.
-
Built-in Smart Analytics – Includes AXIS Motion Guard, Fence Guard, Loitering Guard, and supports 3rd party apps via ACAP.
-
Cybersecure with Edge Vault – Secure boot, signed firmware, TPM 2.0, and encrypted SD storage ensure data integrity and device protection.
-
Fiber Optic-Ready – Optional SFP slot enables long-distance connectivity and higher bandwidth performance.
What's Included:
- AXIS Q8752-E Camera (35 mm or Zoom variant)
- Installation guide
- Windows® decoder license (1-user)
- Connector kit
- Torx® T20 and T30 bits
- Connector guard
DOWNLOADS
Key Info
Dual Imaging for Maximum Coverage
This bispectral camera allows simultaneous thermal detection and visual identification in one device. Whether in total darkness, heavy smoke, or glaring sunlight, it captures essential details with precision and speed.
Precision PTZ & Long-Range Surveillance
With 360° endless pan, 256 presets, and up to 384x zoom (optical + digital), the Q8752-E can cover vast areas and zoom in on fine details. Its smooth movement and auto-tracking make it ideal for high-security zones.
Resilient in Harsh Conditions
Housed in an IP66-, IK10-, and NEMA 4X-rated casing, the camera is built for extreme environments—from -40 °C cold to 55 °C heat, and wind speeds of up to 116 mph with optional accessories.
Smart at the Edge
Equipped with the ARTPEC-7 SoC and AXIS Camera Application Platform (ACAP), the Q8752-E runs intelligent analytics on the edge—offloading server resources and enabling real-time alerts.
Trusted Cybersecurity
Axis Edge Vault, signed video, encrypted file systems, and TPM 2.0 secure the camera from tampering, unauthorized access, and data theft. Complies with major cybersecurity standards and includes secure boot.
Tech Specs
| Specification |
Details |
| **Camera** |
|
| Visual Sensor |
1/2.8” CMOS, HDTV 1080p |
| Thermal Sensor |
640×480 uncooled microbolometer, 35 mm or 35–105 mm lens |
| Field of View |
Visual: 58.5°–2.4° (H), Thermal: 17°–6° (H) |
| Min. Illumination |
Color: 0.06 lux, B/W: 0.008 lux |
| IR-Cut Filter |
Auto-removable for day/night switching |
| Image Stabilization |
EIS for both visual and thermal |
| **Video** |
|
| Compression |
H.264, H.265, Motion JPEG with Zipstream |
| Resolution |
Visual: up to 1920x1080, Thermal: up to 800x600 (scaled) |
| Frame Rate |
Visual: up to 60 fps; Thermal: up to 30 fps |
| WDR |
Forensic WDR |
| **Audio** |
|
| Input |
3.5 mm mic/line in |
| Streaming |
Simplex, noise & echo cancellation |
| Encoding |
LPCM, AAC, G.711, G.726, Opus |
| **PTZ** |
|
| Pan/Tilt |
360° endless, -90° to +45°, 0.05°–120°/s |
| Zoom |
Visual: 32x optical, Thermal: 3x optical, 4x digital |
| Presets |
256 positions, auto-tracking, guard tours |
| **Network & Integration** |
|
| Ports |
RJ45, SFP slot, 4 I/Os, audio in |
| Storage |
microSD/microSDHC/microSDXC with encryption, NAS support |
| API |
VAPIX, ACAP, ONVIF (G/M/S/T), MQTT |
| Protocols |
IPv4/6, HTTPS, TLS, RTSP, SFTP, SNMP, NTP, SRTP, MACsec, etc. |
| Event Triggers |
Motion, PTZ, temperature, edge storage, tampering |
| **Cybersecurity** |
|
| Software |
Signed firmware, secure boot, SD encryption |
| Hardware |
TPM 2.0, Axis Edge Vault, secure keystore |
| Network Security |
IEEE 802.1X, TLS 1.3, MACsec, X.509 PKI |
| **General** |
|
| Casing |
IP66, IK10, NEMA 4X, powder-coated aluminum |
| Power |
20–28 V AC/DC, typical 16W, max 204W |
| Operating Conditions |
-40 °C to 55 °C, humidity 10–100% RH |
| Dimensions |
244 x 360 x 582 mm |
| Weight |
35 mm: 14.7 kg; Zoom: 15.1 kg |
| Languages |
EN, DE, FR, ES, IT, ZH, JP, KO, PT, RU, PL, etc. |
| Warranty |
5-year warranty |
Q&A
Q1: What makes this camera ideal for perimeter surveillance?
A: Its dual thermal and optical sensors, 360° PTZ, and long-range zoom allow fast detection and tracking of intrusions in any condition.
Q2: Can it withstand harsh environments?
A: Yes, it’s rated IP66, IK10, and NEMA 4X and can operate in temperatures from -40 °C to 55 °C.
Q3: Does it support smart analytics?
A: Absolutely. It includes AXIS Motion Guard, Fence Guard, and Loitering Guard, and supports third-party analytics via ACAP.
Q4: How secure is the camera?
A: It features Axis Edge Vault, TPM 2.0, signed firmware, secure boot, and encrypted storage.
Q5: What connectivity options are available?
A: It supports both RJ45 and fiber optic (SFP), making it ideal for remote or bandwidth-heavy installations.
