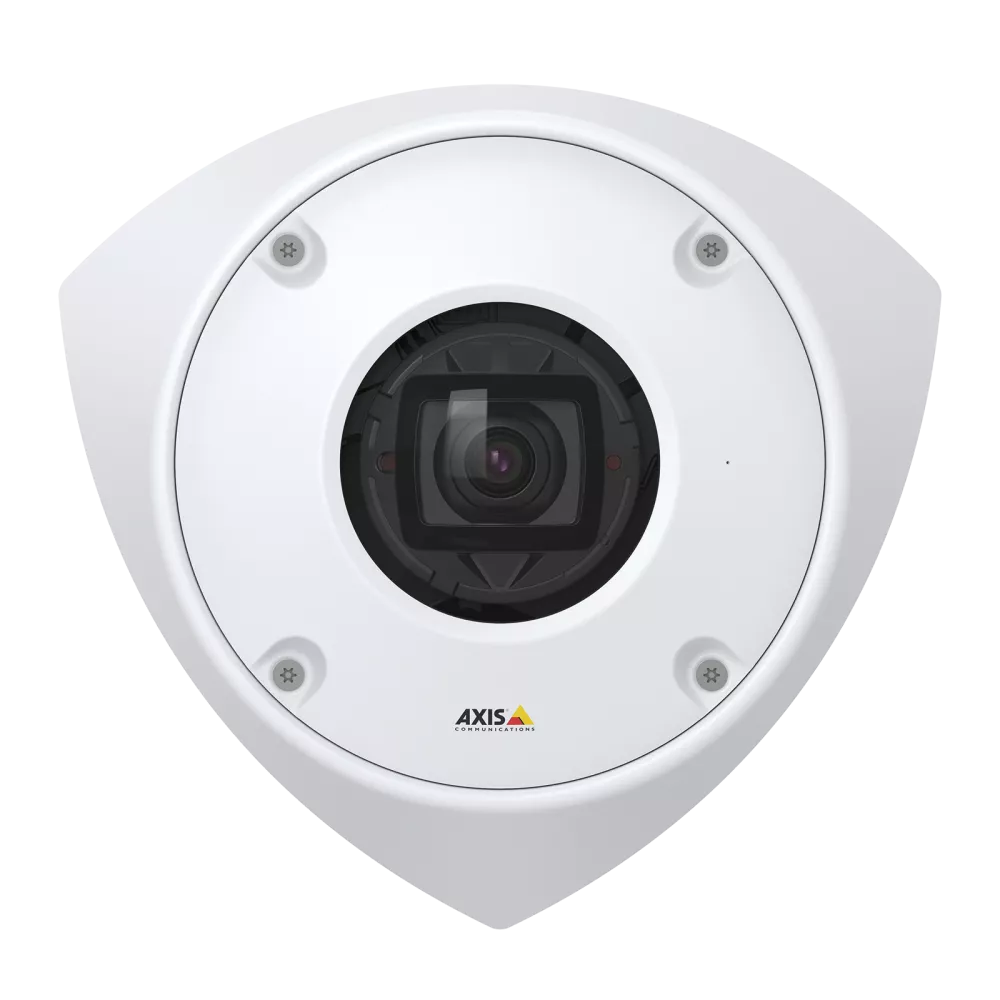

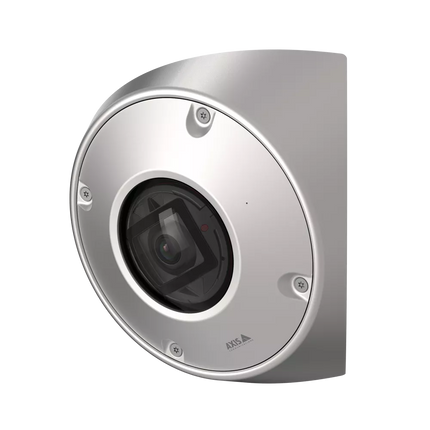

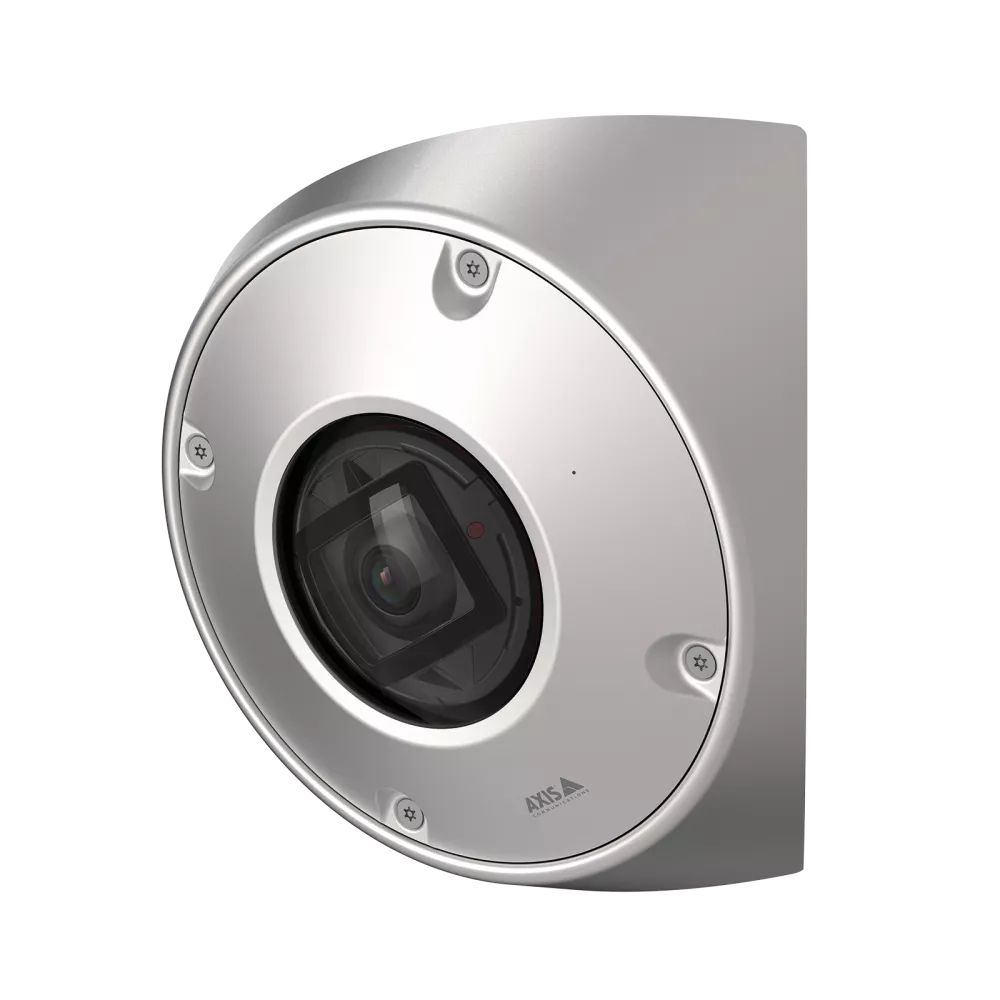

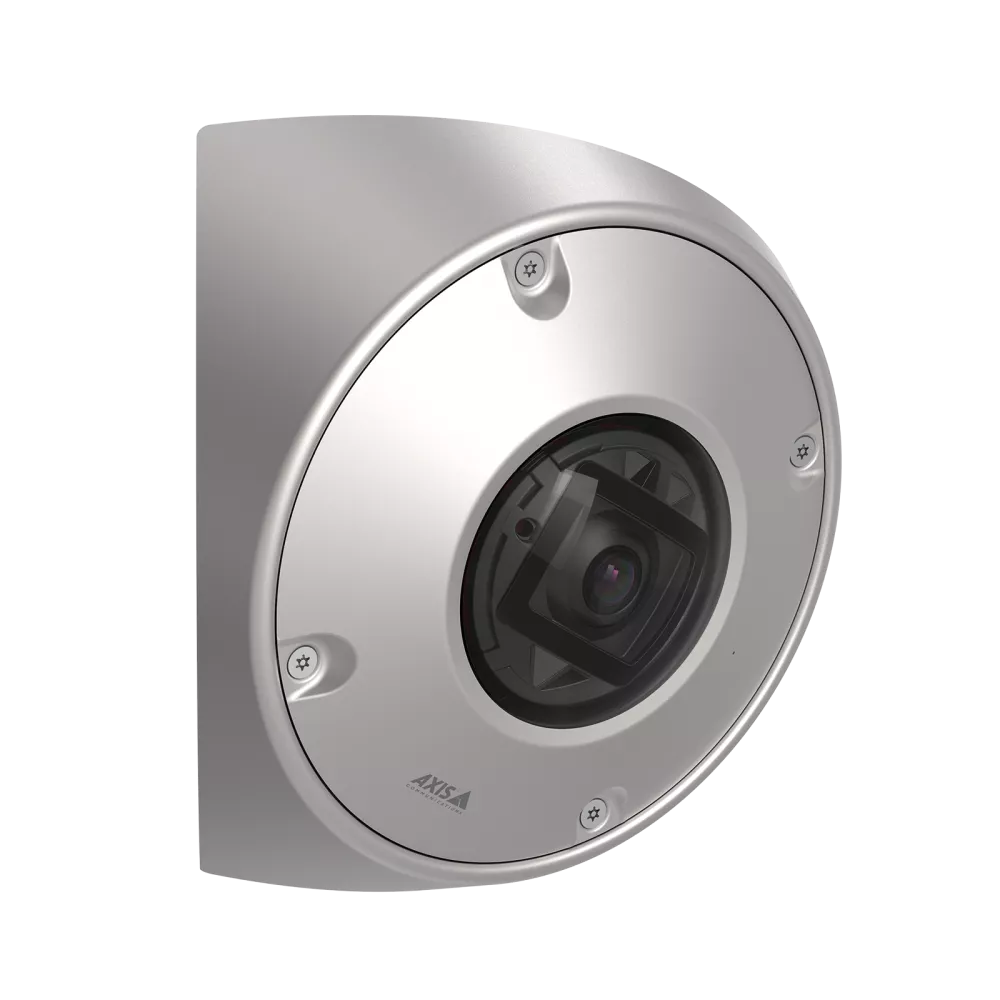

The Axis Q9216-SLV is a corner-mounted, anti-ligature camera ideal for high-security environments like correctional and healthcare facilities. It offers 180° wide-angle 4MP video, even in low light, with vandal-resistant housing and no blind spots, ensuring safety and privacy without compromise.
Features
-
Anti-Ligature Design: Prevents self-harm or tampering, ideal for behavioral health and high-security spaces.
-
180° Corner-to-Corner Coverage: Captures entire rooms without blind spots, even right below the camera.
-
4 Megapixel Resolution: Delivers sharp, forensic-level detail for effective monitoring and evidence capture.
-
Optimized for Low Light: Clear video in challenging lighting with advanced image processing.
-
Fixed Wide-Angle Lens: 3.2mm lens gives 125° horizontal field of view, covering entire rooms effortlessly.
-
Durable IK10+ Vandal Resistance: Withstands physical abuse and aggressive environments.
-
Waterproof & Dust-Resistant (IP66/67): Sealed against moisture and dust for reliable operation in damp or wet indoor areas.
-
Privacy Masking Zones: Customizable zones protect sensitive areas without compromising security.
-
Zipstream Video Compression: Saves bandwidth and storage while preserving critical forensic details.
Downloads
| Datasheet |
AXIS Q9216-SLV Network Camera
|
| Installation Guide |
AXIS Q9216-SLV Network Camera - Installation Guide
|
| User Manual |
AXIS Q9216-SLV Network Camera - User Manual
|
Extra Info
Purpose-Built for Risk-Prone Spaces

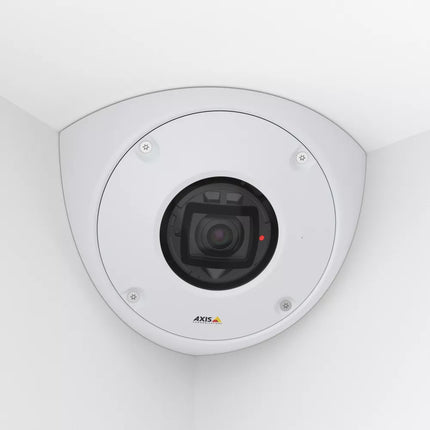

The Q9216-SLV is more than just a security camera—it’s a safety tool. Designed to eliminate ligature points and withstand physical abuse, it’s ideal for spaces where both surveillance and occupant safety are non-negotiable. Its compact, corner-mounted shape ensures full room coverage without giving subjects an opportunity to tamper with or block the view.
Smart Coverage, Zero Blind Spots
Thanks to its wide-angle fixed lens and corner-mount design, the camera achieves a 180° horizontal and 125° vertical field of view. This ensures full visibility from wall to wall, floor to ceiling—even directly beneath the unit. It’s perfect for spaces where every inch matters.
Built Tough for Harsh Indoor Use
The IK10+ and IP66/67 ratings mean this camera is ready for aggressive settings. It resists impacts, water jets, and fine dust, making it suitable for wet cells, shower areas, or other vulnerable indoor zones. The stainless steel front and impact-resistant polycarbonate casing ensure long-term durability.
Privacy with Control
With Axis's privacy masking zones, you can easily obscure sensitive areas (like toilets or changing spaces) while maintaining full oversight elsewhere. This is critical for compliance and ethical surveillance, especially in medical or correctional environments.
Efficient Storage Without Sacrificing Quality
Axis Zipstream with H.264/H.265 compression keeps file sizes small without dropping critical visual data. This allows longer storage and lower network strain—perfect for systems that need to store video for legal or investigative reasons.
Tech Specs
| Camera Model |
Axis Q9216-SLV |
| Image Sensor |
1/2.5" Progressive Scan CMOS |
| Lens |
Fixed lens
3.2 mm, F2.0 |
| Horizontal Field of View |
125° |
| Vertical Field of View |
95° |
| Diagonal Field of View |
180° |
| Minimum Illumination |
Color: 0.17 lux at 50 IRE
Black & White: 0.03 lux at 50 IRE |
| Shutter Time |
1/31500 s to 1/5 s |
| Video Compression |
H.264 (Baseline, Main, High profile)
H.265 (Main profile)
Motion JPEG |
| Resolution |
Up to 2304x1728 (4 MP) |
| Frame Rate |
Up to 25/30 fps (50/60 Hz) in all resolutions |
| Video Streaming |
Multiple configurable streams
Axis Zipstream technology in H.264 and H.265 |
| Video Capabilities |
WDR: Dynamic Contrast
Multi-view streaming
Privacy masking
Mirroring
Rotation: 0°, 90°, 180°, 270° |
| Audio |
Two-way audio
Built-in microphone
Built-in speaker
AAC-LC, G.711, G.726 |
| Audio Detection |
Yes |
| Network Protocols |
IPv4, IPv6, HTTP, HTTPS, FTP, SFTP, SSL/TLS, QoS, SNMP v1/v2c/v3, DNS, NTP, RTSP, RTP, TCP, UDP, IGMP, SMTP, DHCP, ARP, SOCKS, SSH |
| Security |
Password protection
IP address filtering
Signed firmware
Secure boot
IEEE 802.1x (EAP-TLS)
HTTPS encryption
Digest authentication
User access log
Centralized certificate management |
| Edge Storage |
MicroSD/microSDHC/microSDXC slot
Support for recording to network-attached storage (NAS) |
| Operating Conditions |
0°C to 45°C (32°F to 113°F)
Humidity 10–100% RH (condensing) |
| Storage Conditions |
-40°C to 65°C (-40°F to 149°F) |
| Vandal Resistance |
IK10+ impact-resistant (50 joules) |
| Ingress Protection |
IP66/67 rated |
| EMC |
EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class A, KN35 |
| Safety |
IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1 |
| Dimensions |
139 x 100 x 94 mm (5.5 x 3.9 x 3.7 in) |
| Weight |
835 g (1.84 lb) |
| Casing |
Aluminum housing
Front cover in stainless steel (EN 1.4404)
Polycarbonate clear dome (BPA-free) |
| Power |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 2
Max 6.4 W |
| Included Accessories |
Installation guide
Windows® decoder 1-user license
Resistorx L-key |
| Optional Accessories |
Axis surveillance card
Axis mounting accessories
Axis protective clear dome |
| Warranty |
5-year Axis warranty |
Q&A
Q: Is the Axis Q9216-SLV suitable for behavioral health facilities?
A: Yes. Its anti-ligature design and corner mount prevent self-harm and tampering, making it ideal for patient rooms, seclusion areas, or similar high-risk settings.
Q: Can this camera be installed in wet or humid areas?
A: Absolutely. The camera is IP66/67-rated for water and dust resistance, and has a robust housing designed to perform reliably even in damp indoor conditions.
Q: Does it offer full room coverage?
A: Yes. It provides 180° horizontal and 125° vertical coverage, capturing everything from wall to wall and even directly below the unit with no blind spots.
Q: How is privacy handled in sensitive areas?
A: It includes configurable privacy masking zones to block out sensitive areas in the video feed while still allowing secure monitoring of the rest of the space.
Q: What materials is it made of?
A: The camera uses a stainless steel front with a polycarbonate dome. The entire unit is designed to be tamper-proof, impact-resistant (IK10+), and suitable for institutional use.
