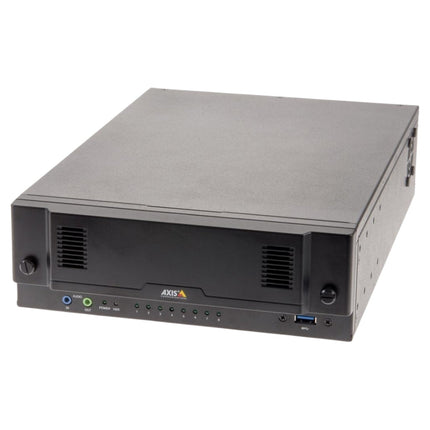

The AXIS Camera Station S2208 Appliance is a compact, all-in-one recording solution designed for reliable high-definition surveillance with up to 4K resolution. It features an integrated 8-port PoE switch and comes preloaded with AXIS Camera Station and 8 core licenses. With easy installation, SSD OS storage, and a 5-year warranty, it’s ideal for small to mid-sized systems requiring dependable performance.
Features
-
Integrated 8-Port PoE Switch – 135 W PoE power budget, IEEE 802.3at Class 4.
-
Supports UHD 4K Video – Live viewing and playback with multi-view capability.
-
8 AXIS Camera Station Licenses Included – Expandable with additional licenses.
-
Encrypted Storage – TPM 2.0 & secure OS/recording drive encryption.
-
Compact Size with Expandable Storage – Includes 1x 4 TB HDD, 1 free slot.
-
Dual Monitor Support – Supports up to 2 monitors (one 4K max).
-
5-Year Warranty – On recorder and included hard drive.
What’s Included:
- AXIS Camera Station S2208 Appliance (4 TB, 1 HDD installed)
- 8 AXIS Camera Station Core Licenses
- Power adapter
- Rack ears
- 5-Year Warranty Documentation
DOWNLOADS
Tech Specs
| Specification |
Details |
| Form Factor |
Desktop with optional rack ears |
| PoE Ports |
8x RJ45 10/100 Mbps, 135 W PoE budget |
| Uplink Ports |
1x SFP, 1x RJ45 (Switch) |
| Server Ports |
1x RJ45, 2x USB 2.0, 1x DisplayPort™, 1x HDMI |
| Front I/O |
1x USB 3.0, 1x Audio In, 1x Audio Out |
| Storage |
4 TB (1×4 TB) Surveillance-Class HDD, 2 slots total |
| RAID Support |
RAID 0, 1, 10 (not preconfigured) |
| Max Throughput |
128 Mbit/s recording rate |
| OS Drive |
120 GB SSD (Windows 10 IoT Enterprise) |
| Security |
Encrypted drives, TPM 2.0 |
| Graphics |
Intel® HD Graphics |
| Power Supply |
Max 270 W, external adapter |
| Operating Temp. |
0 °C to 40 °C (32 °F to 104 °F) |
| Dimensions |
330 × 230 × 78 mm (13 × 9.1 × 3.1 in) |
| Weight |
5.8 kg (12.8 lb) |
| Warranty |
5-year limited warranty (axis.com/warranty) |
Q&A
Q1: How many channels does the S2208 support?
A: It supports up to 8 video channels and includes 8 AXIS Camera Station licenses.
Q2: Does it support UHD video?
A: Yes, it supports up to 4K resolution live view and playback.
Q3: Is storage upgradeable?
A: Yes, it includes 1 HDD slot free, and supports additional 4 TB surveillance drives.
Q4: Does it support RAID configurations?
A: Yes, RAID 0, 1, and 10 are supported, though not configured out of the box.
Q5: Can it connect to multiple displays?
A: Yes, it supports two monitors, with one 4K monitor recommended.
