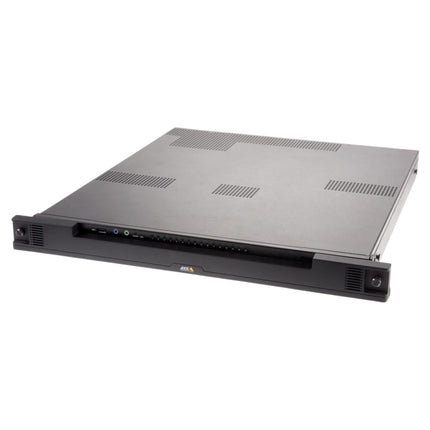

The AXIS Camera Station S2216 Appliance is a powerful, all-in-one recording solution built for high-definition surveillance with up to 4K resolution. It includes a 16-port PoE switch, 8 TB surveillance-grade storage, and comes preloaded with AXIS Camera Station and 16 licenses. Designed for ease of installation and full compatibility with Axis cameras, it offers a reliable, scalable, and secure solution with a 5-year warranty.
Features
-
Integrated 16-Port PoE Switch – Supports IEEE 802.3at Class 4 with a 260 W budget.
-
Up to 4K UHD Surveillance – Live viewing and recording in ultra-high definition.
-
Preloaded AXIS Camera Station – 16 licenses included; scalable via additional licenses.
-
Secure OS & Storage – TPM 2.0 and drive encryption for added cybersecurity.
-
Expandable Storage – Comes with 8 TB (2×4 TB); 2 extra HDD slots available.
-
Dual Display Support – Supports up to 2 monitors (1 x 4K max).
-
5-Year Warranty – Full coverage on both hardware and drives.
What’s Included
- AXIS Camera Station S2216 Appliance (8 TB, 2 HDD preinstalled)
- 16 Camera Station Core Licenses
- Rack rails
- Power cord
- 5-Year Warranty Documentation
DOWNLOADS
Tech Specs
| Specification |
Details |
| Form Factor |
1U Rack Mount |
| PoE Ports |
16x RJ45 10/100 Mbps, 260 W PoE budget |
| Uplink Ports |
1x SFP, 1x RJ45 (Switch) |
| Server Ports |
1x RJ45, 2x USB 2.0, 1x DisplayPort™, 1x HDMI |
| Storage |
8 TB (2×4 TB) Surveillance-Class HDDs, 4 slots total |
| RAID Support |
RAID 0, 1, 10 (not preconfigured) |
| Max Throughput |
256 Mbit/s recording rate |
| OS Drive |
120 GB SSD (Windows 10 IoT Enterprise) |
| Security |
Encrypted drives, TPM 2.0 |
| Graphics |
Intel® HD Graphics |
| Power Supply |
100–240 V AC, Max 520 W |
| Operating Temp. |
0 °C to 40 °C (32 °F to 104 °F) |
| Dimensions |
476 × 440 × 45 mm (18.7 × 17.3 × 1.8 in) |
| Weight |
11 kg (24.3 lb) |
| Warranty |
5-year limited warranty (axis.com/warranty) |
Q&A
Q1: How many cameras can the S2216 support?
A: It supports up to 16 video channels and includes 16 Camera Station licenses.
Q2: Does it support UHD video?
A: Yes, it supports 4K live view and playback, with up to 24 split camera views.
Q3: Is the storage expandable?
A: Yes, it has 2 additional HDD slots available for future expansion.
Q4: Are RAID configurations available?
A: Yes, it supports RAID 0, 1, and 10, though RAID is not preconfigured.
Q5: Is it compatible with all Axis cameras?
A: Yes, it's designed to work seamlessly with all Axis IP cameras.
