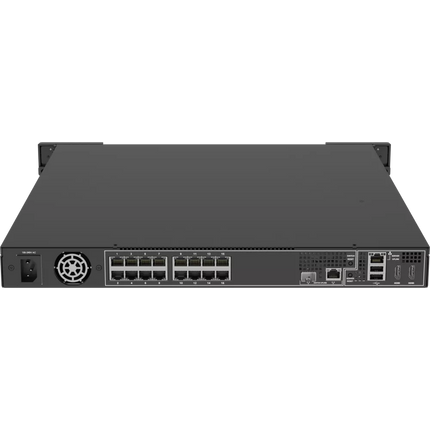

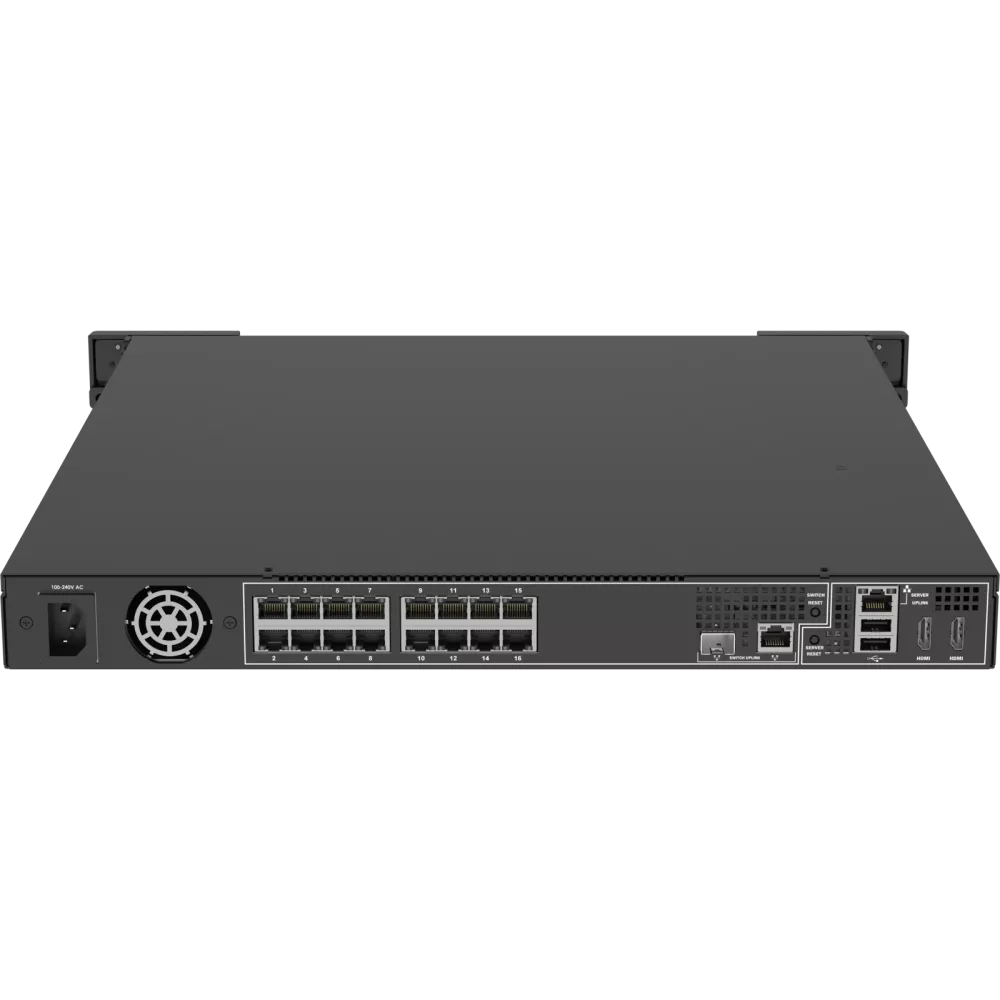

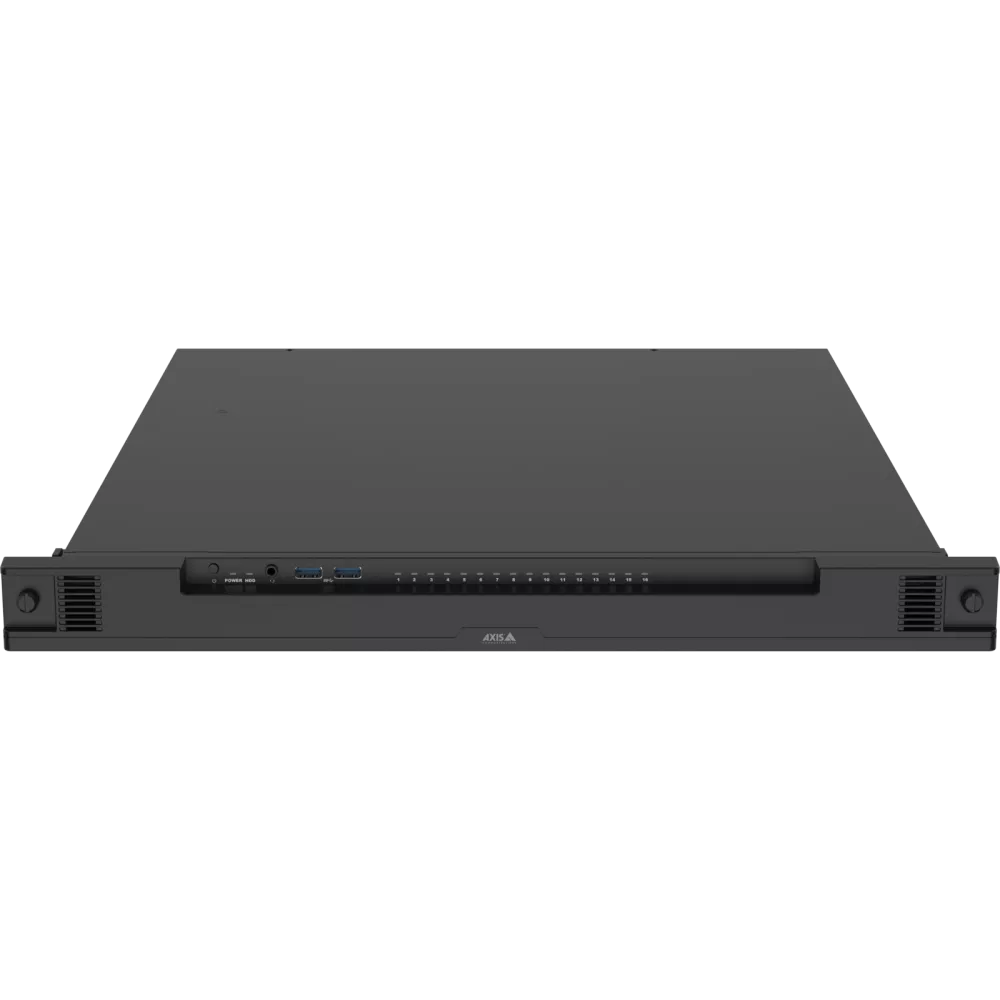

AXIS Camera Station S2216 Mk II Rack Appliance
-
Complete Surveillance Solution: This 16-channel rack appliance includes everything you need for a robust surveillance system, including AXIS Camera Station Pro licenses and 8 TB of storage.
-
Effortless Installation: Pre-loaded software and tools minimize setup time, allowing for quick deployment in any environment.
-
Expandable Storage: Two empty bays allow for easy storage expansion, accommodating your growing surveillance needs.
-
Flexible RAID Configurations: Supports multiple RAID levels (0/1/5/10) for enhanced data redundancy and security.
-
AI-Driven Features: Supports advanced AI applications like Smart Search 2, enhancing your ability to analyze video footage efficiently.
-
Cybersecurity Focused: Equipped with high-security features, including an encrypted operating system and FIPS 140-2 Level 2 certified TPM for data protection.
-
Reliable Performance: Built with powerful components to ensure smooth operation in demanding environments like commercial buildings and manufacturing sites.
Extra Info
The AXIS Camera Station S2216 Mk II is designed for larger installations, providing a comprehensive solution for managing multiple surveillance channels. With its 16-channel capacity, it allows users to monitor extensive areas seamlessly. The pre-loaded AXIS Camera Station Pro licenses mean you can start recording and managing your footage right away, without the hassle of additional purchases or installations.
Storage is a critical aspect of any surveillance system, and this appliance addresses that with 8 TB of built-in storage and the option for expansion through its two empty bays. This flexibility ensures that as your surveillance needs grow, your system can adapt without requiring a complete overhaul.
In terms of data security, the S2216 Mk II is built with cybersecurity in mind. The encrypted operating system and certified TPM ensure that your recordings are secure from unauthorized access. Additionally, the system's secure boot feature guarantees that only trusted software runs on the device, further protecting your data integrity.
For ease of use, the AXIS Recorder Toolbox simplifies the setup process with an intuitive wizard, allowing users to configure network settings and other essential parameters quickly. The built-in dashboard provides real-time information about the system's status, making maintenance straightforward and efficient.
Technical Specifications
| Camera |
16-channel support |
| Video |
AXIS Camera Station Pro licenses included |
| Audio |
Supports audio recording |
| Storage |
8 TB built-in, expandable with 2 empty bays |
| RAID |
Supports RAID levels 0/1/5/10 |
| Cybersecurity |
Encrypted OS, FIPS 140-2 Level 2 certified TPM |
| Dimensions |
Standard rack size |
| Warranty |
5-year hardware warranty |
Tech Specs
Please refer to the datasheet for a more accurate and complete list of specifications.
Download Datasheet
* Some technical specifications may vary depending on which hardware option you choose.
Technical specifications
| Form factor |
Rack 1U |
| Included licenses |
16 |
| System storage (TB) |
8 TB |
| Total HDD bays |
4 |
| Free HDD bays |
2 |
| HDDs included |
2 |
| Supported RAID level |
0, 1, 10 |
| Default RAID level |
Not configured |
| PoE total output power |
260 |
| Power over Ethernet Plus |
16 |
| Validated video channels |
16 |
| Validated recording bitrate (Mbit/s) |
256 |
| Operating system |
Windows 11 IoT Enterprise LTSC |
