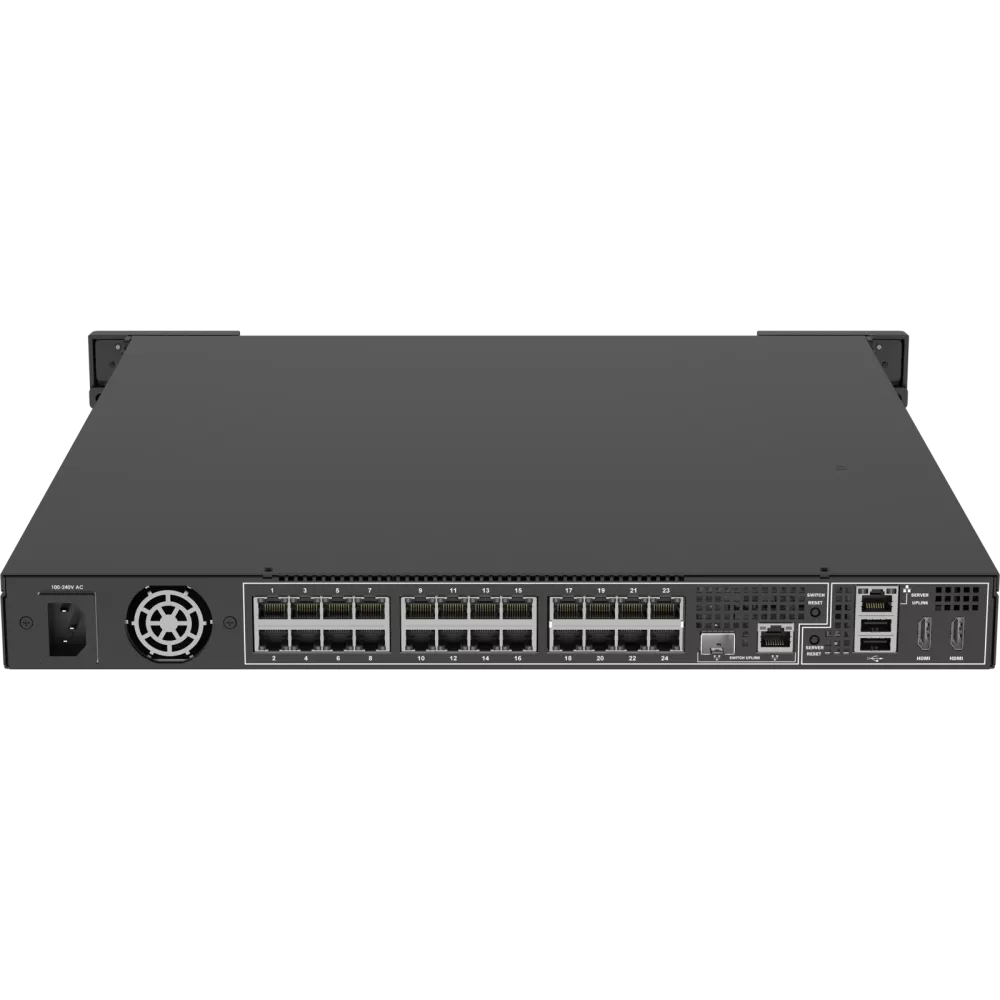

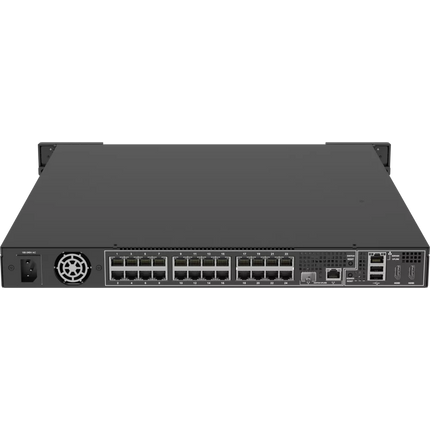

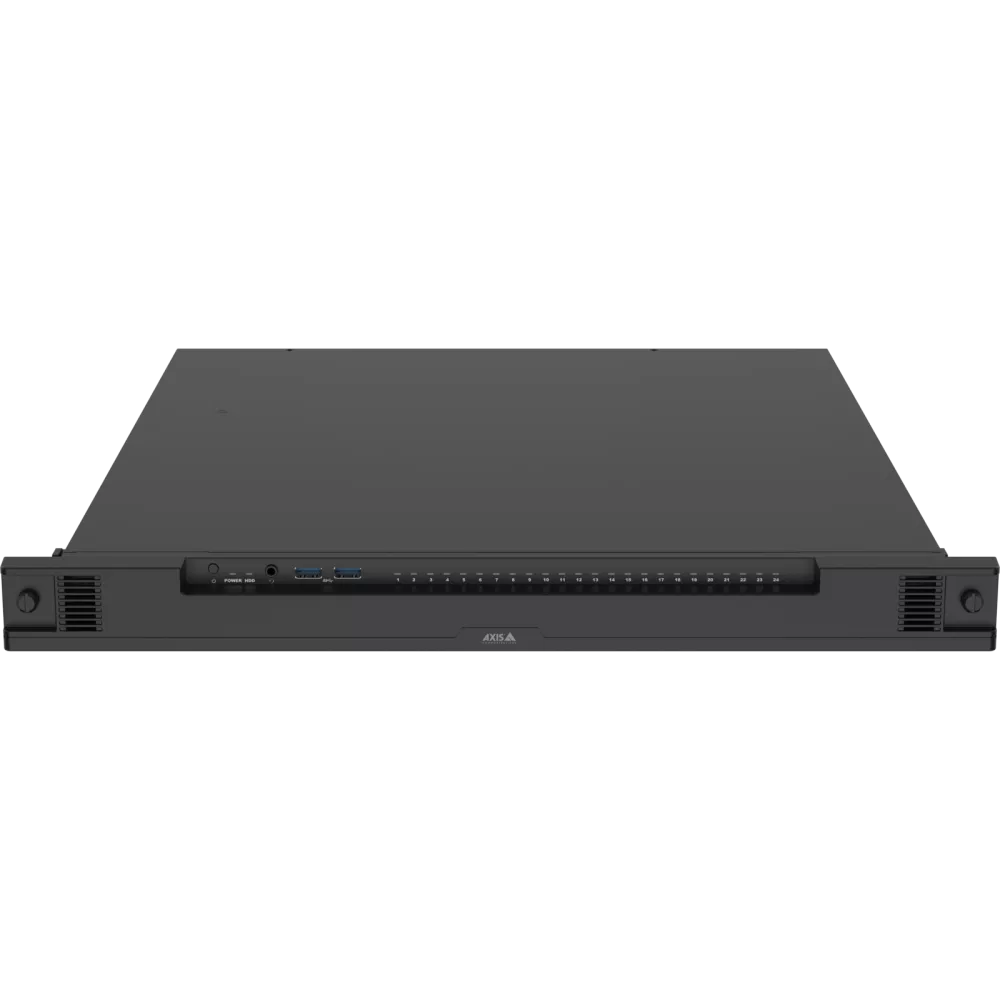

AXIS Camera Station S2224 Mk II Rack Appliance
-
Comprehensive Surveillance Solution: This 24-channel rack appliance includes everything you need for a complete surveillance system, including AXIS Camera Station Pro licenses and 12 TB of storage.
-
Effortless Installation: Pre-loaded software and tools minimize setup time, allowing for quick deployment in any environment.
-
Expandable Storage: Two empty bays allow for easy storage expansion, accommodating your growing surveillance needs.
-
Flexible RAID Configurations: Supports multiple RAID levels (0/1/5/10) for enhanced data redundancy and security.
-
AI-Driven Features: Supports advanced AI applications like Smart Search 2, enhancing your ability to analyze footage efficiently.
-
Robust Cybersecurity: Equipped with high-security features, including an encrypted operating system and FIPS 140-2 Level 2 certified TPM for data protection.
-
Reliable Performance: Built with powerful components to ensure smooth operation in larger installations such as commercial buildings and manufacturing sites.
Extra Info
The AXIS Camera Station S2224 Mk II is designed for larger installations, providing a robust platform for managing up to 24 surveillance channels. Its pre-loaded software simplifies the setup process, allowing users to configure hostname, network settings, and time settings with ease. The intuitive AXIS Recorder Toolbox dashboard offers real-time insights into system performance, including uptime and configuration details.
With two empty bays for storage expansion, users can easily increase their recording capacity as needed. The appliance supports various RAID configurations, ensuring that your data is not only stored securely but also remains accessible even in the event of hardware failure.
Cybersecurity is a top priority for the AXIS Camera Station S2224 Mk II. The device features an encrypted operating system and a secure boot process, ensuring that only trusted software runs on the appliance. Additionally, the physical isolation of connected devices from external networks significantly reduces the risk of cyber threats.
Technical Specs
| Camera |
24-channel support |
| Video |
AXIS Camera Station Pro licenses included |
| Audio |
Supports audio recording |
| Storage |
12 TB pre-installed, expandable with 2 empty bays |
| RAID |
Supports RAID 0/1/5/10 |
| Cybersecurity |
Encrypted OS, FIPS 140-2 Level 2 certified TPM |
| Warranty |
5-year hardware warranty |
Tech Specs
Please refer to the datasheet for a more accurate and complete list of specifications.
Download Datasheet
* Some technical specifications may vary depending on which hardware option you choose.
Technical specifications
| Form factor |
Rack 1U |
| Included licenses |
24 |
| System storage (TB) |
12 TB |
| Total HDD bays |
4 |
| Free HDD bays |
2 |
| HDDs included |
2 |
| Supported RAID level |
0, 1, 10 |
| Default RAID level |
Not configured |
| PoE total output power |
260 |
| Power over Ethernet Plus |
24 |
| Validated video channels |
24 |
| Validated recording bitrate (Mbit/s) |
384 |
| Operating system |
Windows 11 IoT Enterprise LTSC |
