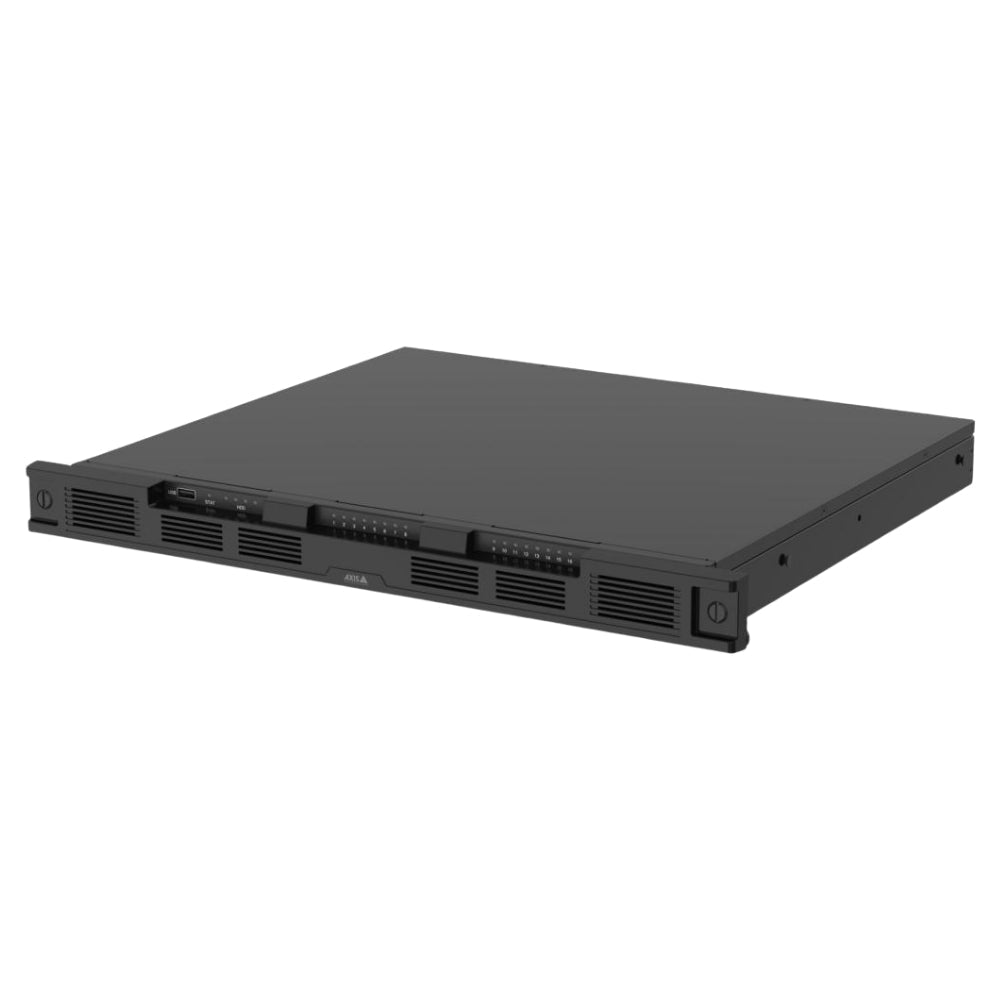

The AXIS S3016 Recorder is a high-performance 1U rack-mounted solution designed to simplify video surveillance installations. With built-in PoE for up to 16 devices, reliable RAID-configured storage, and seamless integration with AXIS video management systems, it ensures secure, efficient, and scalable video recording. Ideal for both single-site and multi-site deployments.
Features
-
16-Channel PoE Recorder – Built-in 16-port PoE switch with 305 W power budget, supports up to PoE Class 4.
-
Flexible Storage Options – Hot-swappable surveillance-grade HDDs with support for RAID 0/1/5/6/10.
-
High Recording Capacity – Up to 32 TB (24 TB usable with RAID 5), 256 Mbit/s total recording rate.
-
Cybersecure by Design – Equipped with Axis Edge Vault, secure boot, signed OS, TPM 2.0 & encrypted storage.
-
Dual Network Ports – Includes 2.5 Gbps LAN and AUX uplink for fast video and system access.
-
Easy Export & Setup – USB ports for video export and one-click cloud connection.
-
AXIS VMS Compatible – Works with AXIS Companion and AXIS Camera Station for efficient monitoring.
What’s Included
- AXIS S3016 Recorder (Choose 8 TB, 16 TB, or 32 TB variant)
- Rack rails and mounting accessories
- Power cable
- Front cover and rubber feet
- Installation Guide
- 5-Year Warranty Documentation
DOWNLOADS
Tech Specs
| Specification |
Details |
| Form Factor |
1U rack-mountable (EIA-310 compatible) |
| Storage |
4x Surveillance-Class HDDs (Hot-swappable) |
| Available Capacities |
8 TB (6 TB usable), 16 TB (12 TB usable), 32 TB (24 TB usable) |
| RAID Support |
Factory RAID 5; supports 0/1/5/6/10 |
| Recording Rate |
Up to 256 Mbit/s, 16 video sources |
| Video Compression |
H.264, H.265 (based on camera support) |
| Audio Support |
One-way AAC audio streaming (if camera supports) |
| Connectors |
16x PoE RJ45 (1 Gbps), 1x AUX RJ45 (2.5 Gbps), 1x LAN RJ45 (2.5 Gbps), etc. |
| Power Supply |
650 W (305 W dedicated to PoE) |
| Power Consumption |
31–49 W typical, varies by model |
| Operating Temp. |
0 °C to 45 °C (32 °F to 113 °F) |
| Cybersecurity |
Axis Edge Vault, TPM 2.0, Secure Boot, HTTPS/TLS, encrypted file system |
| System Tools |
AXIS Site Designer, AXIS Device Manager |
| Dimensions |
484 x 402 x 44.1 mm (19.1 x 15.8 x 1.7 in) |
| Weight |
~10.2 to 10.7 kg depending on variant |
| Warranty |
5-year warranty (axis.com/warranty) |
Q&A
Q1: How many cameras can this recorder support?
A: It can support up to 16 Axis cameras or devices, with a total throughput of 256 Mbit/s.
Q2: What storage options are available?
A: You can choose from 8 TB, 16 TB, or 32 TB models, with RAID 5 configured out of the box.
Q3: Does it support third-party cameras?
A: No, it is compatible only with Axis devices (firmware 5.50 or later).
Q4: What RAID levels are supported?
A: Supports RAID 0, 1, 5, 6, and 10. RAID 5 is pre-configured for redundancy and performance.
Q5: Is it suitable for ultra-high-definition recording?
A: Yes, it supports all camera resolutions including 4K and all standard frame rates.
