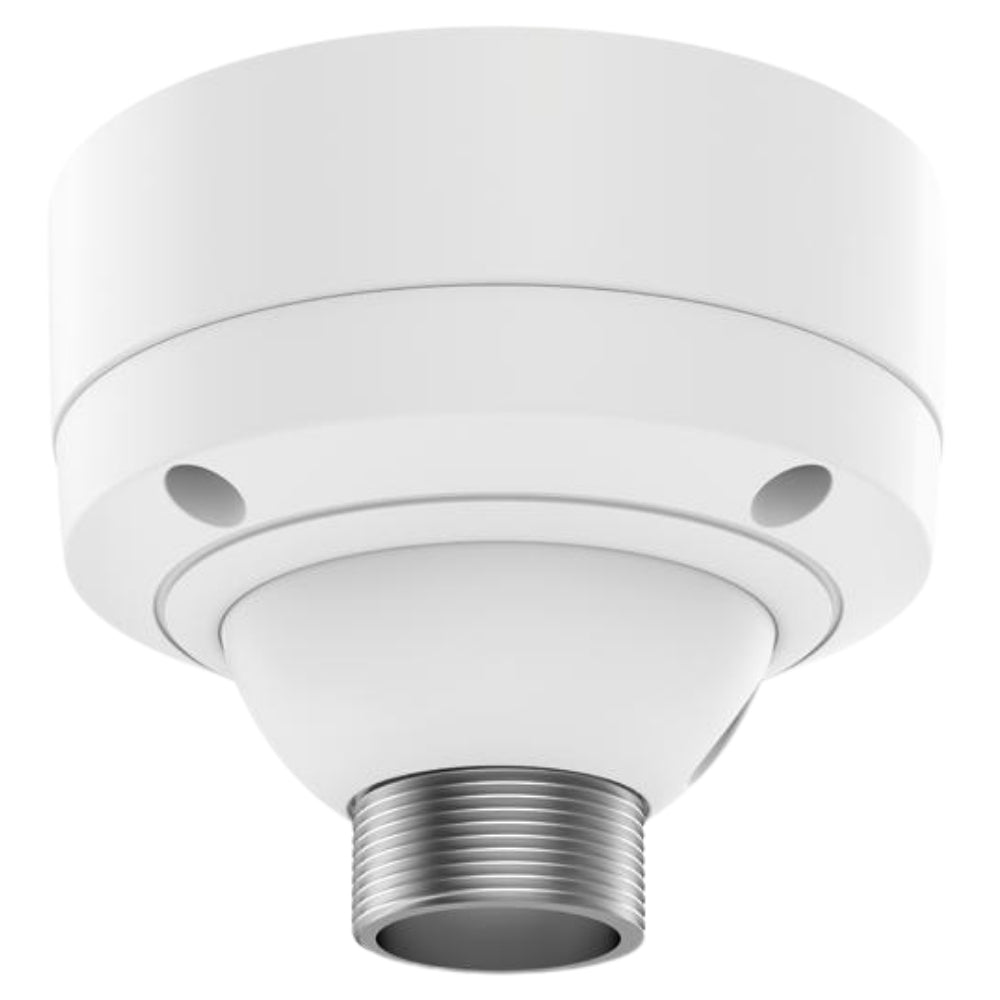

Axis T91B51 Indoor/Outdoor Ceiling Mount (Bracket) – 5507-461

Description

The AXIS T91B51 is a versatile ceiling mount designed for both indoor and outdoor use. It supports PTZ and fixed dome cameras using a 1.5” NPS thread and is ideal for low ceilings or roof overhangs. The mount features a unique swing design that minimizes damage if struck and a pivoting ball joint to maintain a level installation on sloped ceilings. Extension pipes are available for flexible installation heights up to 5 meters.

Key Features

  • Indoor & Outdoor Use – NEMA 4X-rated, corrosion-resistant, and impact-resistant
  • Wide Compatibility – Supports a variety of Axis PTZ and dome cameras (with pendant kits)
  • Flexible Length – Extendable up to 5 m using optional 30 cm and 100 cm pipes
  • Swivel Action Design – ±45° pivot angle for shock absorption and sloped ceiling adjustments
  • Robust Construction – IK10-rated, powder-coated aluminum for strength and durability
  • Easy Cable Routing – Dual cable conduit holes (side and back) for neat installations
  • Safe Load Capacity – Holds up to 10 kg (22 lbs), ideal for heavy-duty surveillance gear

What’s Included:

  • AXIS T91B51 Ceiling Mount
  • Installation Guide

DOWNLOADS

Datasheet  AXIS T91B51 Datasheet
Installation Guide  AXIS T91B51 Installation Guide

Tech Specs

Specifications Details
Mount Type Ceiling Mount (Swivel, ±45° Pivot Angle)
Compatibility PTZ and fixed dome cameras (via pendant kits)
Supported Cameras P55/P56/Q60/Q61, P33, M30, M32, P3707, Q3709, etc.
Material Powder-coated aluminum
Environmental Rating NEMA 4X, IK10, corrosion-resistant
Environment Indoor and outdoor
Cable Routing Side and back conduit holes (¾”)
Max Load 10 kg (22 lbs)
Dimensions (L) 104 mm (4 in)
Weight 1.2 kg (2.6 lbs)
Approvals EN/IEC/UL 60950-1/-22, IK10, EN 50581, NEMA 250
Accessories T91B52 Extension Pipes (30 cm / 100 cm)
Warranty 5-year warranty



Q&A

Q1: Can this mount be used outdoors?
Yes, the T91B51 is NEMA 4X-rated and corrosion-resistant, suitable for outdoor installations.

Q2: What is the maximum weight it can support?
It can support up to 10 kg (22 lbs), suitable for heavy Axis PTZ cameras.

Q3: Can I use this on a sloped ceiling?
Yes. Thanks to its pivoting ball joint, the mount can keep the camera level even when installed on an angled surface.

Q4: Does this mount come with extension pipes?
No. Extension pipes (30 cm and 100 cm) are sold separately under the T91B52 model line.

Q5: What kind of cameras are compatible?
The mount supports a wide range of Axis PTZ and fixed dome cameras, but often requires a pendant kit specific to each model series.
