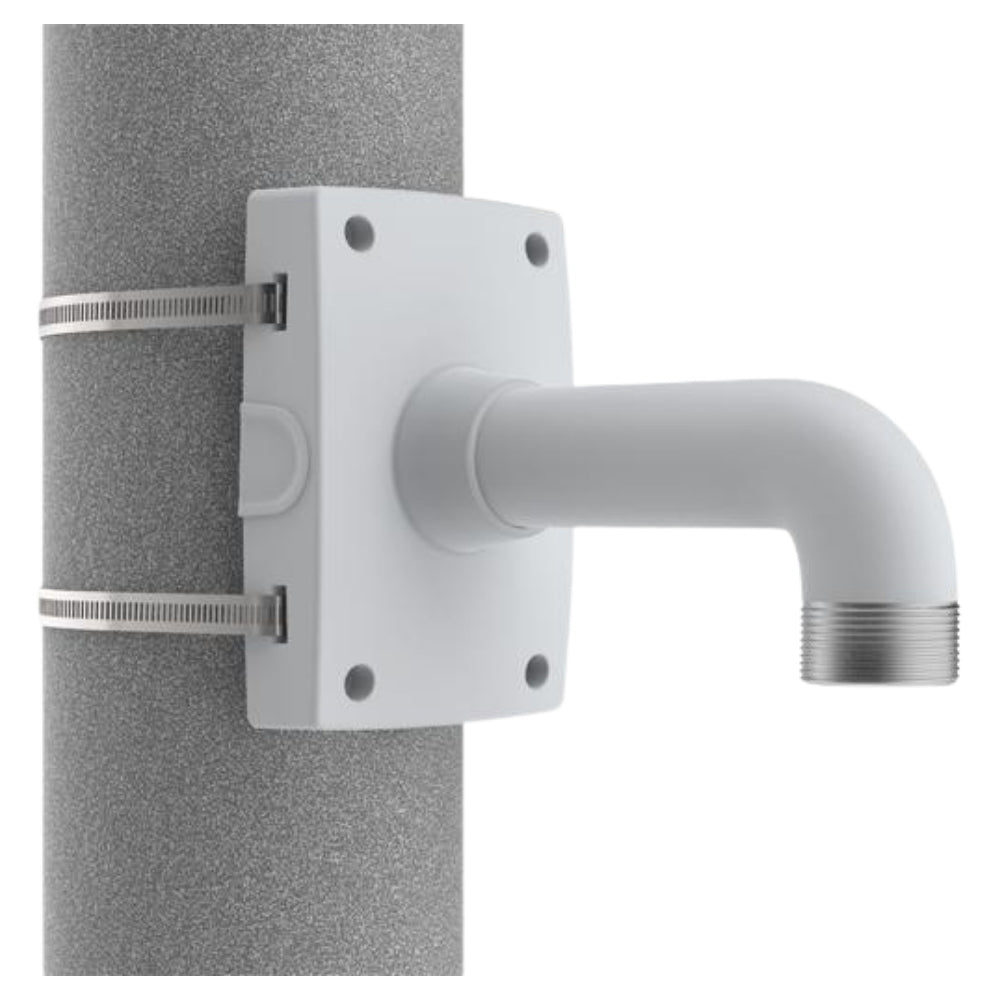

The AXIS T91B67 is a highly durable pole mount designed for fixed dome cameras using 1.5” NPS threaded Axis pendant kits. Built from impact-resistant, weatherproof aluminum, this mount is ideal for indoor or outdoor installations on poles or beams. Its closed-back design and cable gasket protect against water and insects, ensuring long-term reliability in harsh environments.
Features
-
Rugged Outdoor Design – Built from powder-coated aluminum and rated NEMA 4X and IK10 for tough conditions.
-
Flexible Pole Fit – Installs on poles from 65–165 mm (2.5–6.5 in) diameter or beams.
-
Impact-Resistant – Designed to deter tampering and vandalism.
-
Insect-Proof Cable Entry – Closed back and gasket prevent infestation and damage.
-
Clean Cable Management – Side conduit entries (3/4") support protected cable routing.
-
Supports Pendant Kits – Compatible with Axis 1.5" NPS threaded pendant mounts.
-
Indoor/Outdoor Ready – Versatile for use in varied environments and installations.
What’s Included:
- AXIS T91B67 Pole Mount
- Stainless Steel Straps
- Insect-Proof Cable Gasket
- Installation Guide
Required Accessories
DOWNLOADS
Tech Specs
| Specification |
Details |
| Mount Type |
Pole mount (supports beams and poles 65–165 mm diameter) |
| Supported Products |
Axis fixed dome cameras compatible with 1.5” NPS threaded pendant kits |
| Material |
Powder-coated aluminum |
| Color |
White (NCS S 1002-B) |
| Maximum Load |
15 kg (33 lb) |
| Cable Routing |
Back cable hole, 3/4” conduit side entries |
| Interface |
1.5” NPS |
| Impact Rating |
IK10 (IEC 62262) |
| Ingress Rating |
NEMA 250 Type 4X |
| Environment Rating |
Indoor/Outdoor (IEC 60721, MIL-STD 810G) |
| Dimensions |
252 x 134 x 194 mm (9.9 x 5.3 x 7.6 in) |
| Weight |
1.2 kg (2.6 lb) |
| Sustainability |
PVC-free |
| Approvals |
IEC/EN/UL 60950-1, 60950-22, RoHS, WEEE |
| Warranty |
5-year limited hardware warranty |
Q&A
Q1: Is this mount vandal-proof?
A: Yes, it has an IK10 impact rating, which protects against tampering and physical attacks.
Q2: What pendant kits are supported?
A: Any Axis pendant kit with a 1.5” NPS thread interface is supported.
Q3: Can it be installed indoors?
A: Yes, while it's outdoor-rated, it's fully suitable for indoor use as well.
Q4: Are the mounting straps included?
A: Yes, stainless steel pole straps are included for securing to poles or beams.
Q5: How is the cabling protected?
A: The mount features a closed back and an insect-proof gasket, along with 3/4" conduit side entries for clean, weatherproof cable routing.
