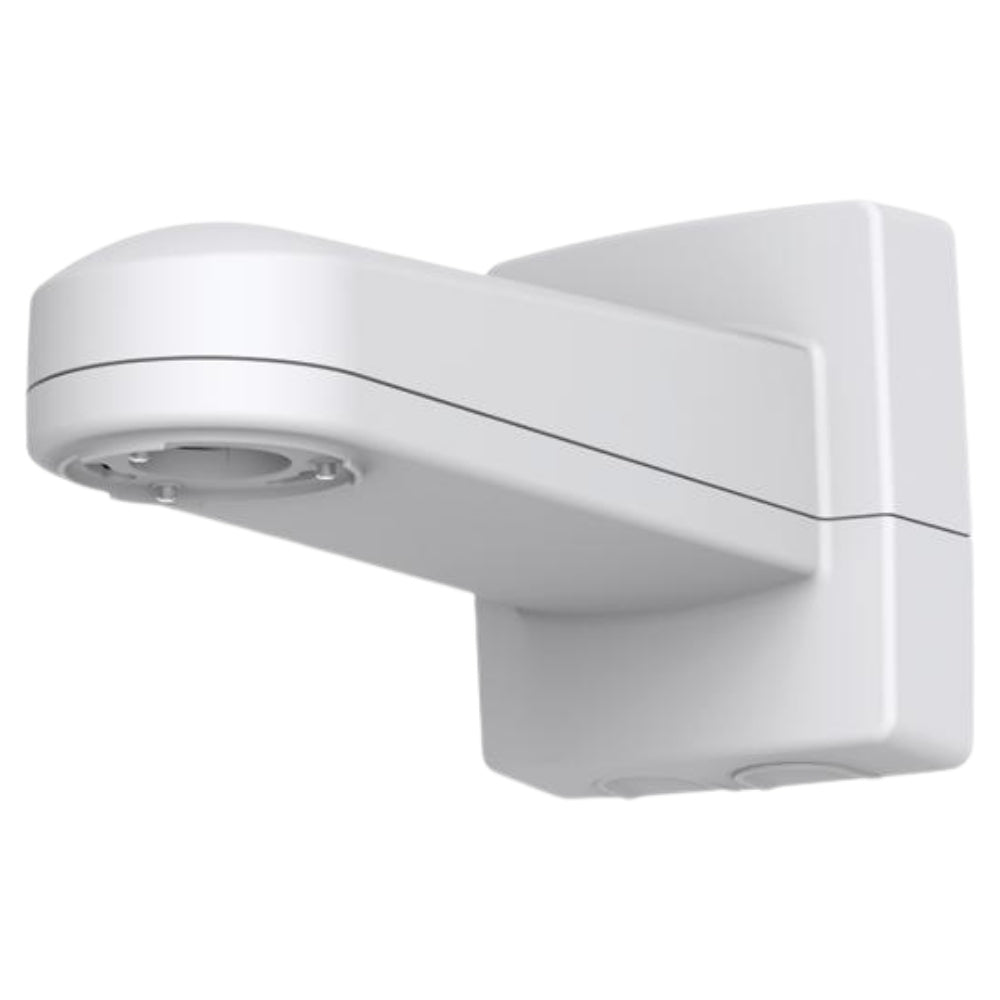

The AXIS T91G61 Wall Mount is a durable mount for PTZ and multi-sensor cameras, featuring extra space for accessories, a pre-mounted IP66 RJ45 connector, and compatibility with Axis and Pelco mounts—ideal for flexible indoor and outdoor installations.
Features
-
Spacious Internal Compartment – Houses midspans, service loops, and network devices.
-
Pre-mounted Ethernet Cable – Includes an IP66-rated RJ45 connector for fast setup.
-
Impact & Weather Resistant – IK10, IP66, and NEMA 4X certified; built for harsh environments.
-
Flexible Mounting – Compatible with wall, pole, and corner mount accessories.
-
Standardized Hole Patterns – Matches Axis PTZ and Pelco wall mounts for retrofits.
-
Durable Build – Powder-coated aluminum housing for long-lasting use.
-
Neat Cable Management – Internal routing with options for bottom conduit entry.
What’s Included:
- AXIS T91G61 Wall Mount
- Installation Guide
- Ethernet cable with IP66 RJ45 connector (pre-mounted)
- Foam gaskets and silicone strap (pre-mounted)
- Connector plug angle C13
DOWNLOADS
Tech Specs
| Specification |
Details |
| Mount Type |
Wall mount with internal accessory compartment |
| Supported Products |
AXIS Q3709-PVE, Q6000-E, P56, Q60, Q61 Series |
| Material |
Powder-coated aluminum |
| Color |
White (NCS S 1002-B) |
| Cable Routing |
Internal – back cable hole, bottom conduit entries |
| Environment |
Indoor / Outdoor |
| Impact Rating |
IK10 (IEC 62262) |
| Weatherproofing |
IP66 (IEC 60529), NEMA 250 Type 4X |
| Vibration/Shock |
IEC 60068-2-6 (Sinus), IEC 60068-2-27, MIL-STD 810G |
| Dimensions |
185 x 214 x 404 mm (7.28 x 8.43 x 15.9 in) |
| Weight |
3.5 kg (7.7 lb) |
| Maximum Load |
30 kg (66 lb) |
| Warranty |
3-year Axis limited hardware warranty |
Q&A
Q1: What cameras are compatible with this mount?
A: It supports AXIS Q3709-PVE, Q6000-E, P56, Q60, and Q61 Series cameras.
Q2: Can this be mounted on poles or corners?
A: Yes, with optional accessories like AXIS T91A57 (pole) and AXIS T91A64 (corner) mounts.
Q3: Is it suitable for harsh outdoor environments?
A: Yes, it meets IP66, IK10, and NEMA 4X standards for weather and impact resistance.
Q4: Can the cable be routed internally?
A: Yes, through the back hole or bottom conduit entries using built-in gaskets.
Q5: Does it include a midspan?
A: No, midspans must be purchased separately but are supported inside the mount.
